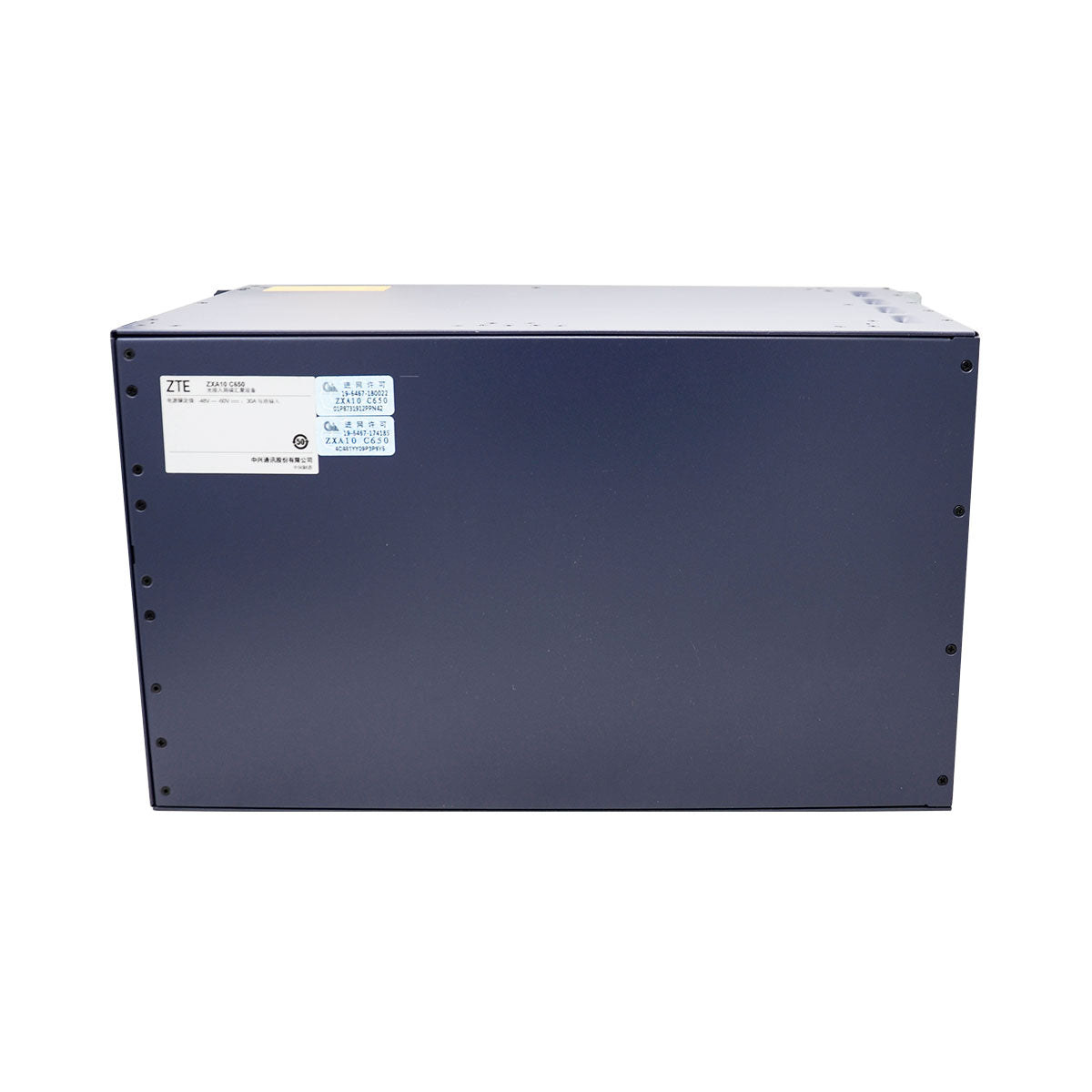

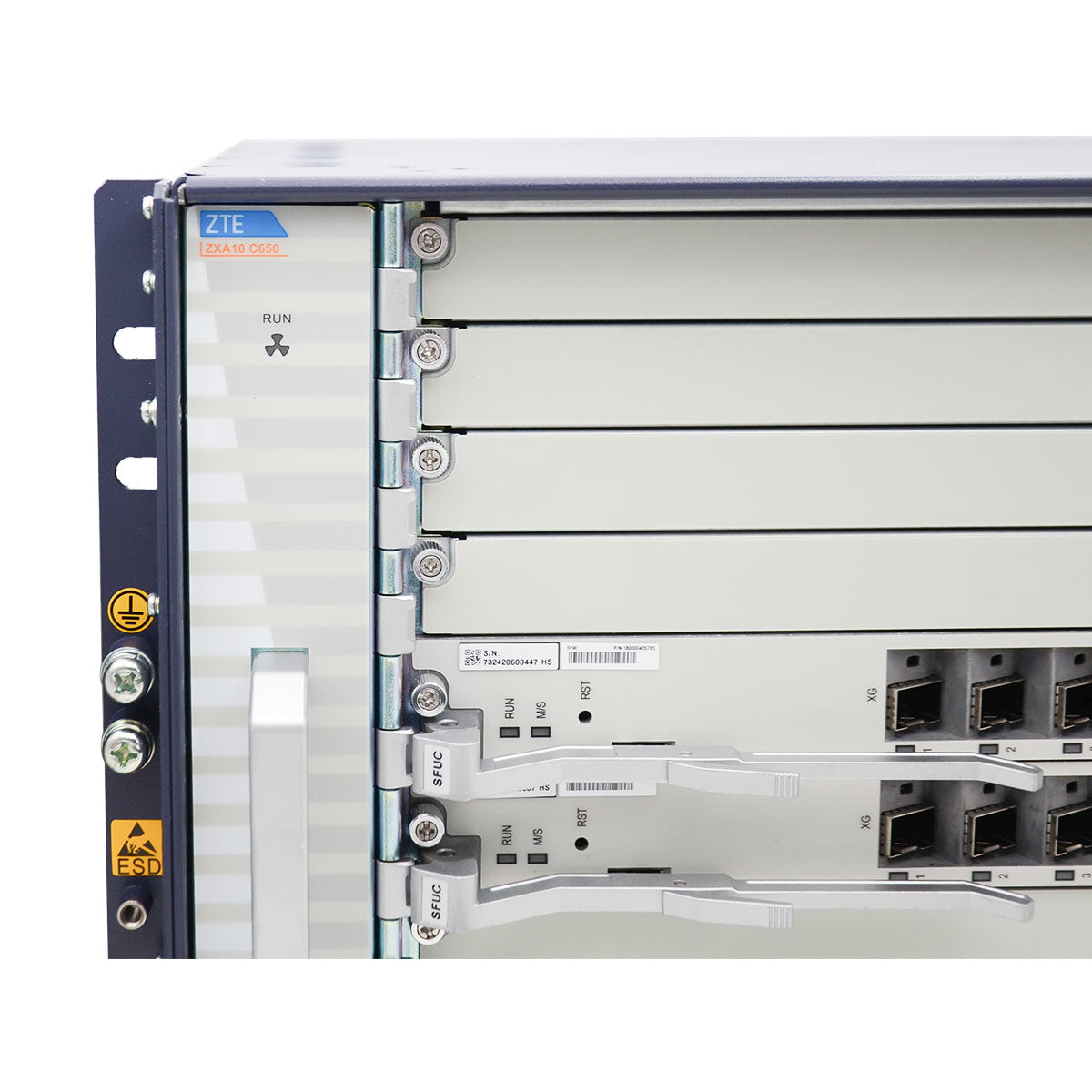

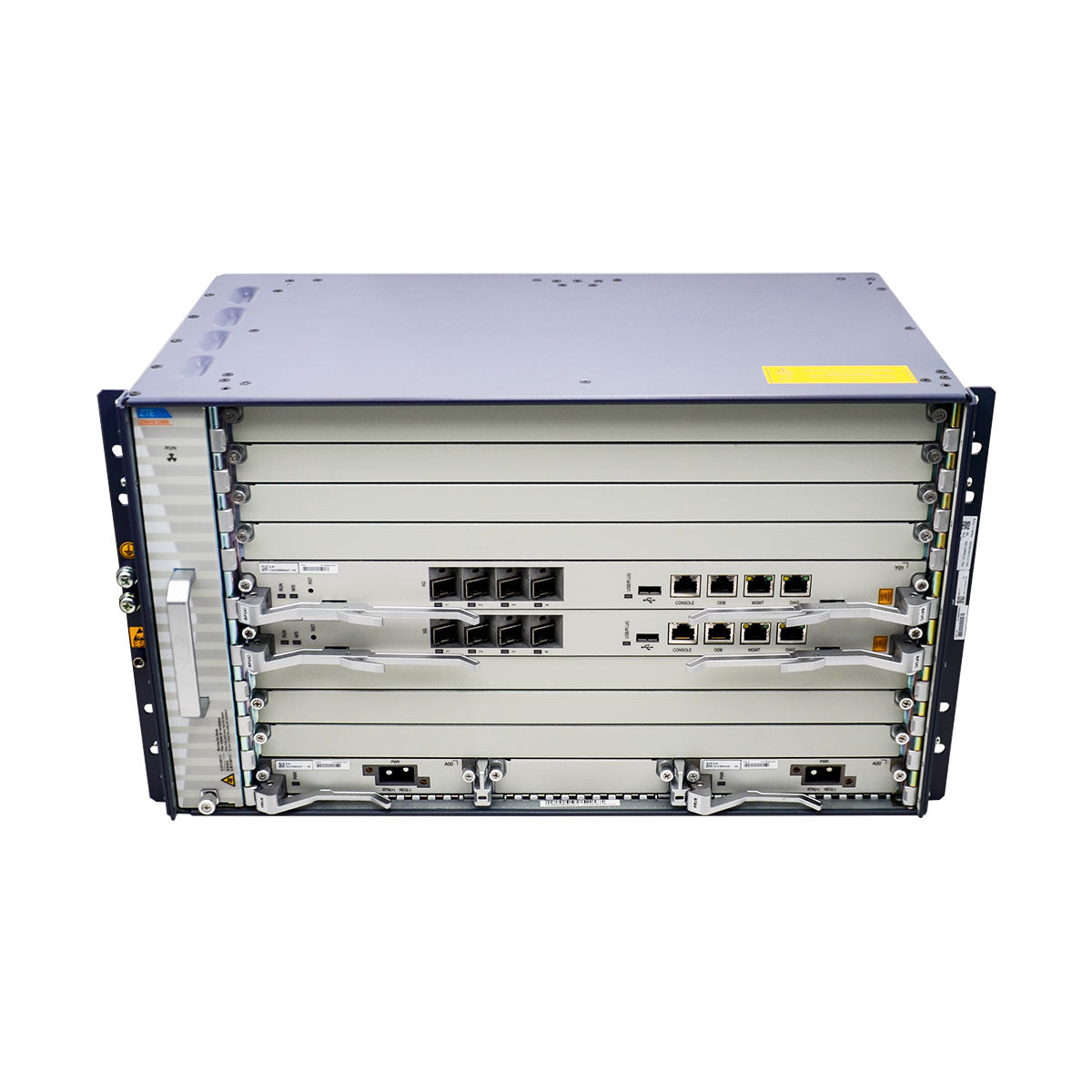

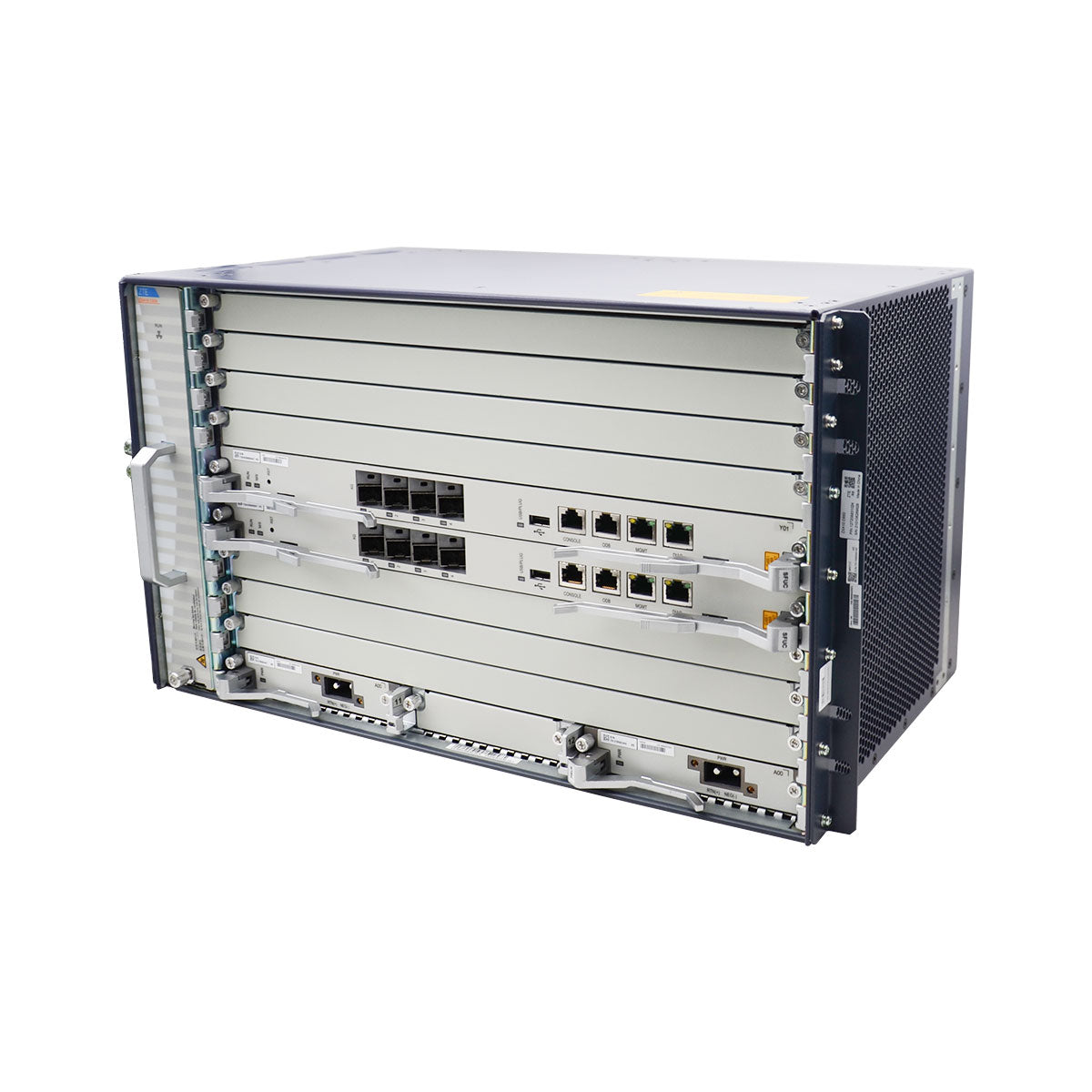

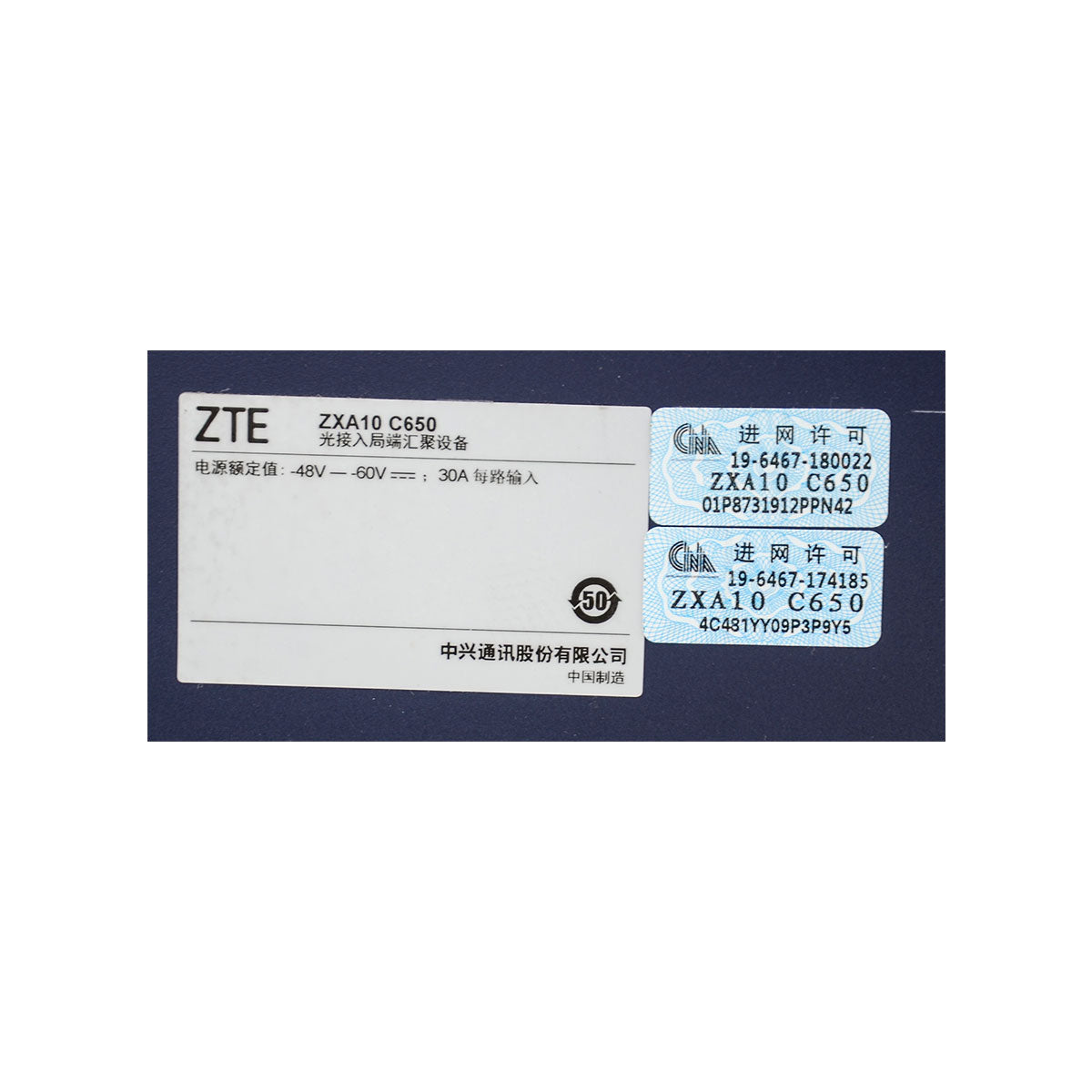

ZTE ZXA10 C650 OLT Overview
The ZXA10 C650 is a medium-capacity optical access equipment based on the TITAN platform. It meets the fullscenario access needs of ultra-high bandwidth, big video, FMC and network re-architecture, and provides the integration of transmission and access, as well as carrier-class QoS and security.
ZXA10 C650: Medium-Capacity Optical Access Equipment

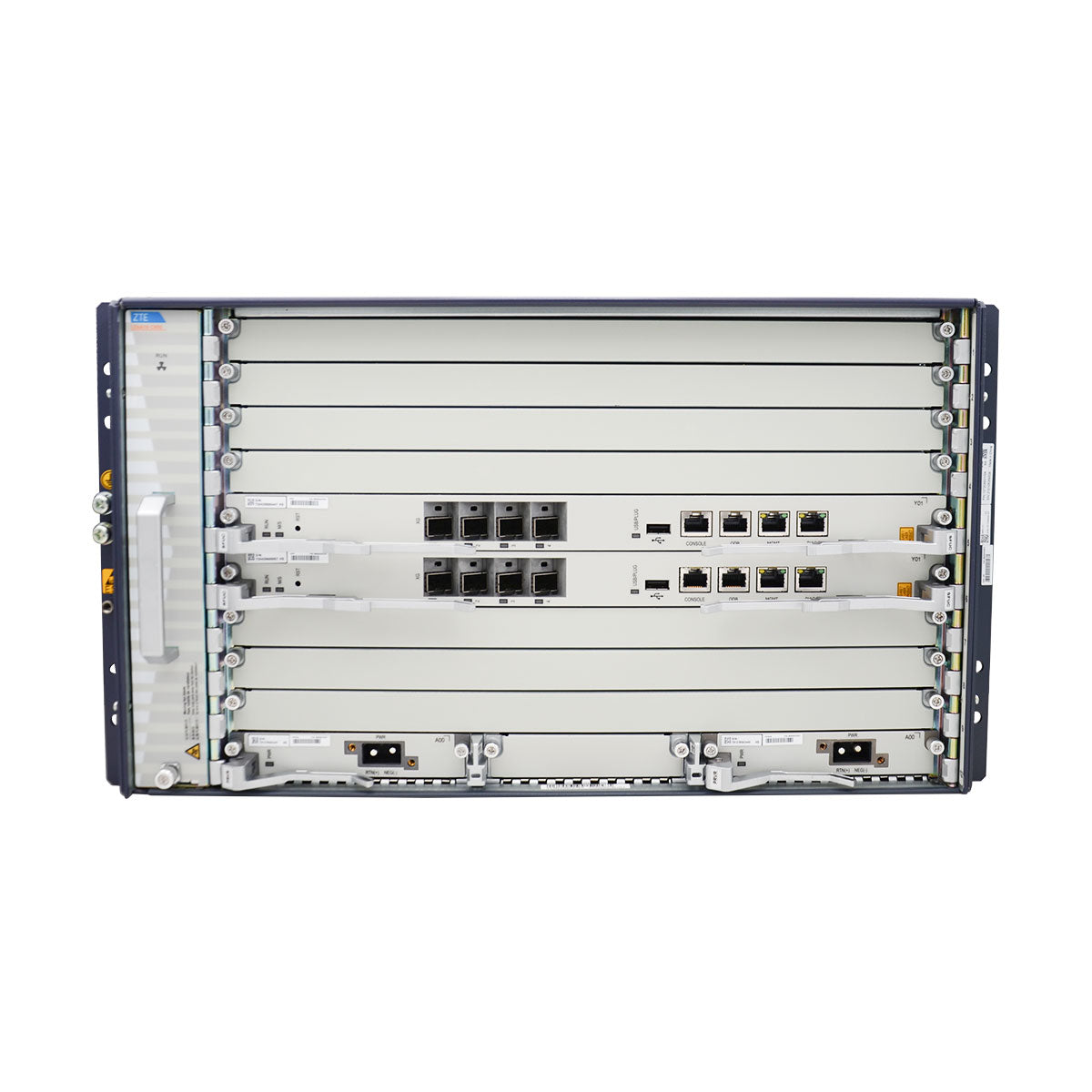

ZXA10 C650 provides 7 service slots for plugging user-side subscriber cards and network-side line cards. The ZXA10 C650 can be installed in a ZXA10 IC6320/ZXA10 IC6322/ZXA10 IC6622 cabinet or a third party's 19" cabinet that meets IEC standard specifications.
ZXA10 C650 supports 6T switching capacity of backplane bus and 512K MAC address. The ZXA10 C650 features the following:
Middle capacity and high bandwidth: Provides 7 service slots for plugging user-side subscriber cards and network-side line cards.
Separated control and forwarding: Provides redundant control & switch card on the control plane, and supports dual matrix load balancing on the forwarding plane.
Card compatibility: The main service cards are compatible with the ZXA10 C600, thereby saving the spare parts cost.
Consistent functions: The functions are consistent with the ZXA10 C600 to make the maintenance easier and to reduce the training expenditures.
ZXA10 C600/C650/C620 fulfil the following functions:
PON OLT: supports GPON, XG-PON, XGS-PON, Combo PON, Any-PON and P2P access, supports FTTH, FTTO, FTTB, FTTC, FTTdp and FTTM networking working with different types of ONUs.
Layer 2 optical access platform: supports Ethernet uplink and downlink, supports convergence and forwarding of layer 2 Ethernet service traffics.
Layer 3 optical access platform: supports layer 3 routing, supports convergence and forwarding of IP service traffics, implements the gateway function.
Service access control: Implements the access control, traffic control and service carrying per service per user, supports home users and dedicated users, LTE small cells and other kind of users, and supports voice, Internet connection, 4K/8K+ IPTV, VR/AR, MEF CE 2.0, and mobile backhaul services.
Separation of control plane and forwarding plane, supports future performance upgrade.
.
Technical Specifications of The ZTE ZXA10 C650
Specification | |
Switching capacity of backplane bus (Tbit/s) | 6 |
System switching capacity (Tbit/s) | 7.2 |
Switching capacity of system layer 2 packet forwarding rate | Distributed unblocked forwarding |
Switching card switching capacity | 3.6 Tbit/s (single switching board SFUL/SFULV/SFUH/SFUHV) |
Switching and forwarding delay |
Upstream: ≤1500 μs Downstream: ≤100 μs |
Power Supply Mode |
PRVR / PRVR(C) provides one –48V DC input interfaces to supply power to cards of the ZXA10 C600/C650 The ZXA10 C600/C650 supports two power cards. If the input voltages of the two power cards are the same, the two power cards operate in load sharing mode. |
Full load bit error rate | 10 e-9 (full load transmission) |
Dimensions (mm) | 263.9 mm × 482.6 mm × 285.3 mm |
Weight(kg) |
12 (empty); <30 (full configuration |
Card Supported
Card Type | Card Code | Card Name | Functions |
Switch & control card | Enhanced SFUL | Enhanced System Control And Switching Card | ZXA10 C600/C650 switch & control card |
Enhanced SFUP | Enhanced System Control And Switching Card | ZXA10 C600/C650 switch & control card | |
Enhanced SFUH | Enhanced System Control And Switching Card | ZXA10 C600/C650 switch & control card | |
Enhanced SFUQ | Enhanced System Control And Switching Card | ZXA10 C600/C650 switch & control card | |
SPUF | Type-F switch & control card | ZXA10 C620 switch & control card | |
SPUFS | Type-FS switch & control card | ZXA10 C620 switch & control card | |
Power card | PRVR | Type-R DC power interface card | ZXA10 C600/C650 DC power card |
PRVR(C) | Type-RC DC power interface card | ZXA10 C600/C650 DC power card | |
PRSF | Type-F DC power interface card | ZXA10 C620 single-channel DC power interface card | |
PRAF | Type-F AC power interface card | ZXA10 C620 AC power interface card | |
Service card | Enhanced GFGH | 16-port GPON Enhanced Line Card | Supports 16 GPON SFP interfaces |
Maximum optical split ratio: 1:128 | |||
GFGL | 16-port GPON Line card Type-L | Supports 16 GPON SFP interfaces | |
Maximum optical split ratio: 1:128 | |||
Enhanced GFTH | 16-port XGS-PON Enhanced Line Card | Supports 16 XGS-PON SFP+ interfaces | |
Maximum optical split ratio: 1:256 | |||
GFTL | 16-port XGS-PON Line card Type-L | Supports 16 XGS-PON SFP+ interfaces | |
Maximum optical split ratio: 1:256 | |||
GFXL | 16-port XG-PON Line card Type-L | Supports 16 XG-PON SFP+ interfaces | |
Maximum optical split ratio: 1:256 | |||
Enhanced GFCH | 16-port XGS-PON & GPON Combo Enhanced Line Card | Supports 16 XGS-PON & GPON SFP+ hybrid interfaces | |
Maximum optical split ratio of GPON: 1:128 | |||
Maximum optical split ratio of XGS-PON: 1:128 | |||
Supports the access of XGS-PON ONUs, XG-PON ONUs and GPON ONUs | |||
GFCL | 16-port XGS-PON & GPON Combo Line card Type-L | Supports 16 XGS-PON & GPON SFP+ hybrid interfaces | |
Maximum optical split ratio of GPON: 1:128 | |||
Maximum optical split ratio of XGS-PON: 1:128 | |||
Supports the access of XGS-PON ONUs, XG-PON ONUs and GPON ONUs | |||
Enhanced GFBH | 16-port XG-PON & GPON Combo Enhanced Line Card | Supports 16 XG-PON & GPON SFP+ hybrid interfaces | |
Maximum optical split ratio of GPON: 1:128 | |||
Maximum optical split ratio of XG-PON: 1:128 | |||
GFBL | 16-port XG-PON & GPON Combo Line card Type-L | Supports 16 XG-PON & GPON SFP+ hybrid interfaces | |
Maximum optical split ratio of GPON: 1:128 | |||
Maximum optical split ratio of XG-PON: 1:128 | |||
Enhanced HFTH | 16-port Any-PON Enhanced Line Card | Supports 16 Any-PON SFP+ interfaces | |
The port access features is consistent with the corresponding xPON card according to the type of the plugged optical module | |||
HFTL | 16-port Any-PON Line Card Type L | Supports 16 Any-PON SFP+ interfaces | |
The port access features is consistent with the corresponding xPON card according to the type of the plugged optical module | |||
Ethernet interface card | Enhanced XFTO | 8-port 10GE Enhanced Optical Interface Card | Supports 8 10GE SFP+/GE SFP Ethernet interfaces |
XFEO | 8-port 10GE Optical Interface Card Type E | Supports 8 10GE SFP+/GE SFP Ethernet interfaces | |
Enhanced XFTH | 16-port 10GE Enhanced Optical Interface Card | Supports 16 10GE SFP+/GE SFP Ethernet interfaces | |
XFEH | 16-port 10GE Optical Interface Card Type E | Supports 16 10GE SFP+/GE SFP Ethernet interfaces | |
XFWD | 2-port 100GE Ethernet optical interface card | Supports 2 100GE QSFP28 Ethernet interfaces | |
XFPH | 16-port P2P Ethernet optical subscriber card | ZXA10 C600/C650 P2P Ethernet optical subscriber card | |
Supports 16 10GE SFP+/GE SFP P2P Ethernet interfaces | |||
Enhanced XFQH | 16-port P2P Ethernet optical subscriber card | ZXA10 C600/C650 P2P Ethernet optical subscriber card | |
Supports 16 10GE SFP+/GE SFP P2P Ethernet interfaces | |||
PFEK | 48-port P2P Ethernet optical subscriber card | Supports 24 Compact SFP (CSFP) P2P GE/FE optical modules (supports 48-port P2P users) | |
Supports 24 GE SFP/FE SFP Ethernet modules (supports 24 users) |
PON Optical Module
GPON Optical Module |
Single Fiber Bidirectional Optical Module, Class B+ | Single Fiber Bidirectional Optical Module, Class C+ | Single Fiber Bidirectional Optical Module, Class C++ | Single Fiber Bidirectional Optical Module, Class D |
XG-PON Optical Module |
Single Fiber Bidirectional Optical Module, N1 | Single Fiber Bidirectional Optical Module, N2a | ||
XG-PON & GPON Combo Optical Module |
Single Fiber Bidirectional Optical Module, GPON/XG-PON MPM B+ |
Single Fiber Bidirectional Optical Module, GPON/XG-PON MPM C+ |
||
XGS-PON Optical Module |
Single Fiber Bidirectional Optical Module, N1 | Single Fiber Bidirectional Optical Module, N2 | ||
XGS-PON & GPON Combo Optical Module |
Single Fiber Bidirectional Optical Module |
Single Fiber Bidirectional Optical Module | ||
GPON/XGS-PON MPM B+ |
GPON/XGS-PON MPM C+ |
Uplink GE/10G Optical/Electrical Module
GE Optical Module |
||||||
Standard model |
1000BASE-SX |
1000BASE-LX10 |
1000BASE-EX |
1000BASE-XD |
1000BASE-ZX |
1000BASE-EZX |
Operating wavelength |
850 nm |
1310 nm |
1310 nm |
1550 nm |
1550 nm |
1550 nm |
Encapsulation mode |
SFP |
SFP |
SFP |
SFP |
SFP |
SFP |
Rate |
1.25 Gbit/s |
1.25 Gbit/s |
1.25 Gbit/s |
1.25 Gbit/s |
1.25 Gbit/s |
1.25 Gbit/s |
Optical connector type |
LC |
LC |
LC |
LC |
LC |
LC |
Optical fiber type |
Multi-mode |
Single mode |
Single mode |
Single mode |
Single mode |
Single mode |
Transmission distance |
0.55 km |
10.0 km |
40.0 km |
40.0 km |
80.0 km |
120.0 km |
10GE Optical Module |
||||||
Standard model |
10GBASE-SR |
10GBASE-LR10 |
10GBASE-ER40 |
10GBASE-ER |
10GBASE-ZR |
|
Operating wavelength |
850 nm |
1310 nm |
1310 nm |
1550 nm |
1550 nm |
|
Encapsulation mode |
SFP+ |
SFP+ |
SFP+ |
SFP+ |
SFP+ |
|
Rate |
10.3125 Gbit/s |
10.3125 Gbit/s |
10.3125 Gbit/s |
10.3125 Gbit/s |
10.3125 Gbit/s |
|
Optical connector type |
LC |
LC |
LC |
LC |
LC |
|
Optical fiber type |
Multimode |
Single mode |
Single mode |
Single mode |
Single mode |
|
Transmission distance |
0.3 km |
10.0 km |
40.0 km |
40.0 km |
80.0 km |
