ZTE ZXHN F660 V9.0 ONT Overview
Introduction
ZTE F660 GPON ONT provides 3 FE Ethernet ports, 1 GE Ethernet port, 1 POTS port and 1 USB. F660 has WiFi function, support 2.4G WIFI 802.11 b/g/n.
ZTE ZXHN F660 is a GPON Optical Network Terminal designed for FTTH scenario. It supports L3 function to help subscriber construct intelligent home network. It provides subscribers rich, colorful, individualized, convenient and comfortable services including voice, video (IPTV) and high speed internet access.
Key Feature
-

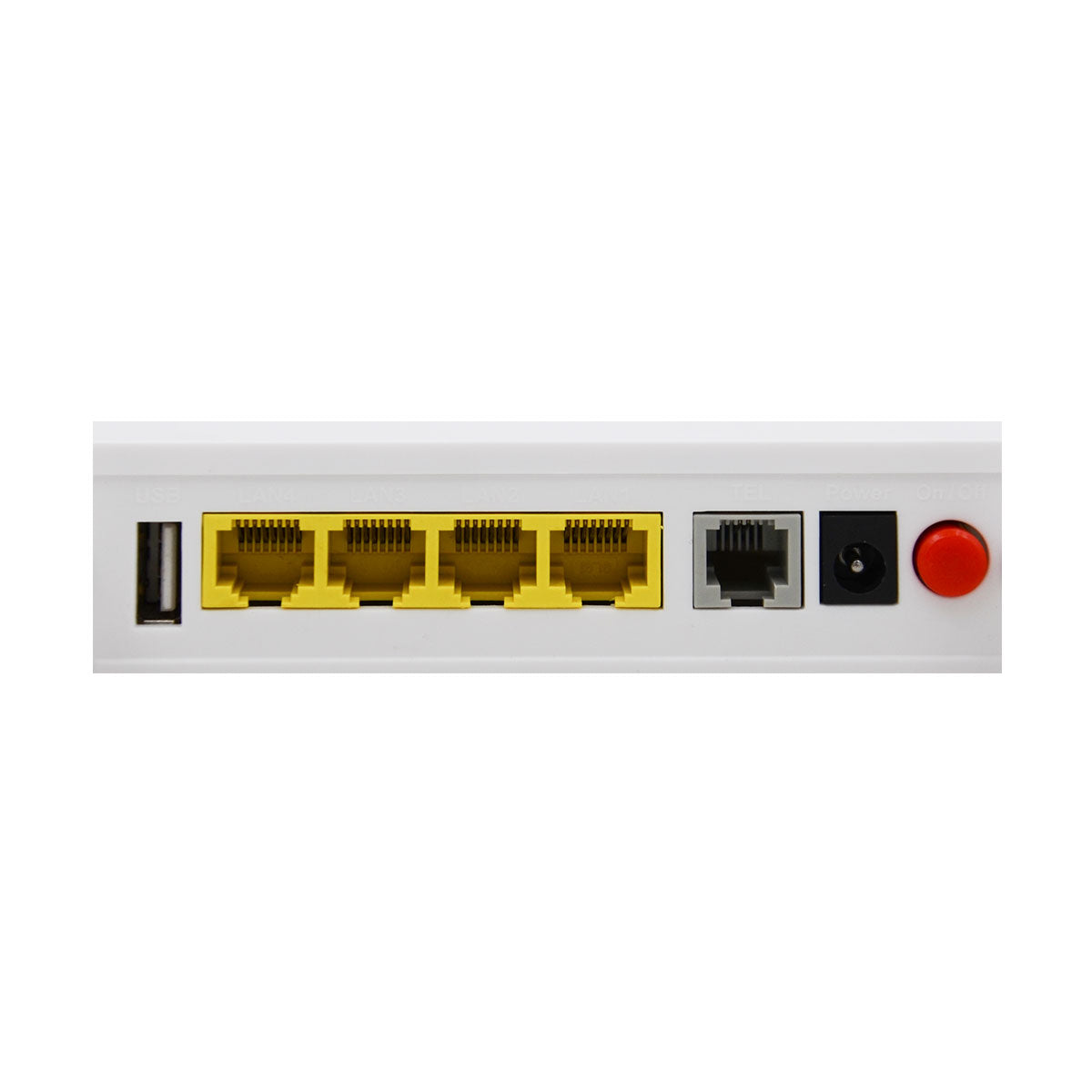

Provides 1GE+3FE+1POTS+WIFI+USB 5dbi antennas
-
Optical connector SC/UPC
-
OMCI supported
-
Global version of the latest firmware
Technical Datasheet
Interface | 1GE+3FE+1POTS+WIFI+USB 5dbi antennas |
Optical port | 1 * GPON interface (SC/UPC) |
Transmission Rate | 2.488Gbps downstream and 1.244Gbps upstream |
Transmitting Optical Power | 0.5~5dBm |
Receiving Sensitivity | Better than -28dBm |
Antenna | 5dbi External antennas |
Overload Optical Power | -8 dBm |
Link distance | 0 ~ 20km max |
Transmission Wavelength | Receiving: 1,490 nm |
Transmitting: 1,310 nm | |
Working environment | Operating temperature: 0ºC to 40ºC |
Environment humidity: 5% to 95% | |
System power supply | 12 V DC, 1 A |
Dimensions | 220mm x 160 mm x 44 mm |
