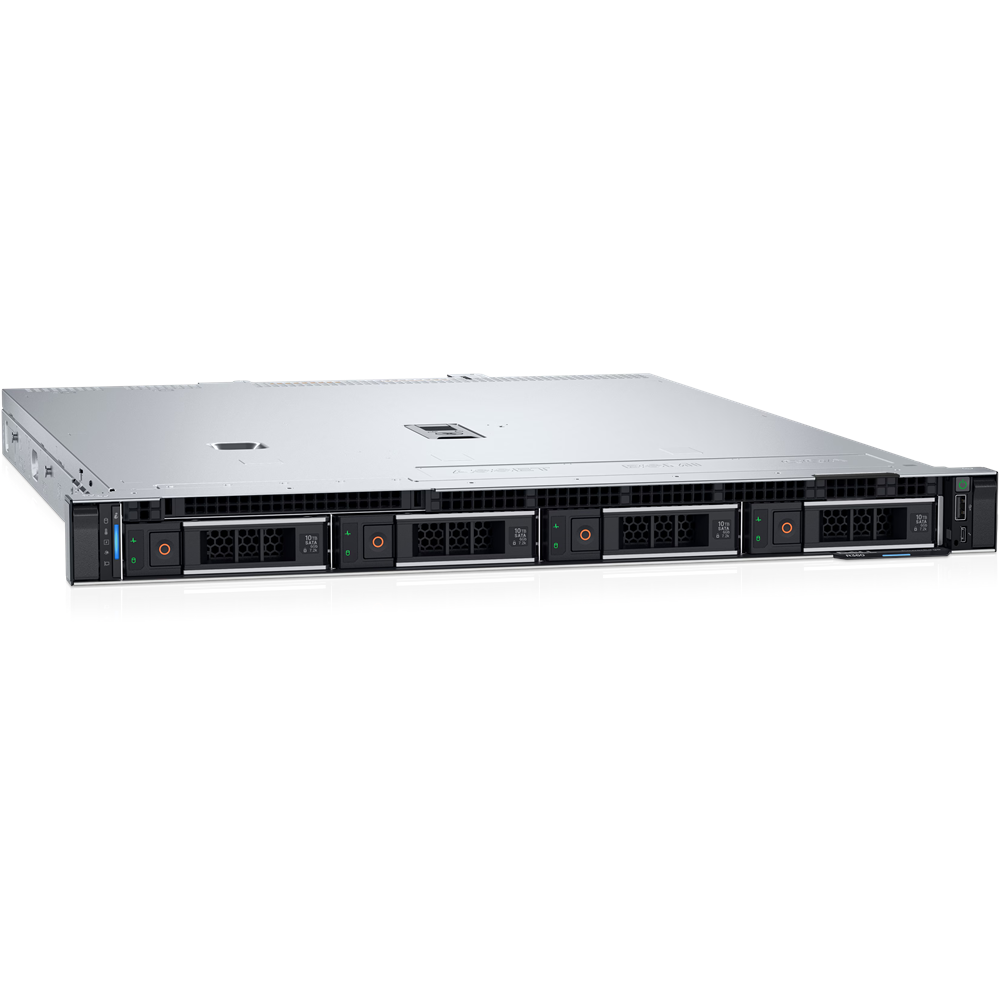

Dell PowerEdge R360 Server Overview
PowerEdge R360 is a 1U server that supports One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to eight cores or one Intel®.
System Features
The Dell PowerEdge R360 is a powerful entry-level one-socket rack server designed to meet the evolving computing demands from organizations. The system features:
● One Intel® Xeon® 6300 series or one Xeon® E-2400 series processor or one Intel® Pentium® processor
● Four DDR5 DIMM slots
● Two redundant AC or DC power supply units
● PCI Express® (PCIe) 4.0 enabled expansion slots
● Up to:
○ 8 x 2.5-inch SAS/SATA
○ 4 x 3.5 inch SAS/SATA
○ 6 x 2.5 inch SAS/SATA HDD/SSD + 2 x 2.5 inch NVMe
● Onboard LAN ports
Processor Features
The following lists the features and functions that are in the upcoming Intel® Xeon® 6300 series Processor offering:
● For small businesses, the Xeon® 6300 series provides a reliable solution with business-ready servers to support business critical services and customer data needs.
● For cloud service, the Xeon® 6300 series is the perfect option for Bare Metal Instances and Code/Data Security, with a cost-effective solution for essential performance to support entry-level bare metal services. Key updates for the 6300 series include increased performance with a new processor core architecture:
● 4, 6, and 8 core option
● Up to 95 W TDP
● Up to 128 GB memory
● DDR5 up to 4800 MT/s
Key Workloads
PowerEdge R360 is versatile enough to address many customer segments and workloads affordably, that includes:
● Collaboration/Sharing: Built-in features to enable collaborative applications between groups of people that share information and processes on-site or remotely.
● ROBO Business/Database: Provide computing performance for ROBO business and database workloads including mailing, data process and analysis.
● Near Edge: Suitable form-factor for near-edge computing with GPU applications, such as video and audio analysis, surveillance, and VDI
Dell PowerEdge R360 Server Supported Drives
Technical Specifications of Dell PowerEdge R360 Server
| Category | Technical Specifications |
| Model | Dell PowerEdge R360 |
| Form Factor | 1U Rack Server |
| Processor | Supports 1 × Intel® Xeon® 6300 Series Processor / Intel® Xeon® E-2400 Series Processor |
| Processor Core Support | Up to 8 cores (Xeon E-2400 Series) |
| Entry Processor Option | Intel® Pentium® Processor (up to 2 cores) |
| Chipset | Intel C266 Series Chipset |
| Memory Type | DDR5 ECC UDIMM |
| Memory Slots | 4 × DIMM slots |
| Memory Speed | Up to 4400 MT/s |
| Maximum Memory Capacity | Up to 128GB DDR5 ECC UDIMM |
| Storage Drive Bays | Supports up to 8 × 2.5-inch SAS/SATA drives |
| Alternative Storage Configuration | Up to 4 × 3.5-inch SAS/SATA HDD/SSD |
| NVMe Storage Support | Up to 2 × 2.5-inch direct attach NVMe drives (with supported configuration) |
| Hot-Plug Storage | Supported |
| Storage Interface | SAS 12Gb/s, SATA 6Gb/s |
| Storage Controller Options | PERC H355 / PERC H755 / PERC H355f / PERC H755f / HBA355i |
| Software RAID | S160 Software RAID |
| Boot Optimization Storage | BOSS-N1 (Boot Optimized Storage Solution) Support |
| Expansion Slots | PCIe Gen 5 Expansion Support |
| GPU Support | NVIDIA A2 GPU Support |
| Network Controller | Embedded Broadcom LOM / Optional PCIe Network Adapter |
| Network Options | 1GbE / 10GbE / 25GbE Network Adapter Options |
| Front Ports | USB Ports, VGA Port (configuration dependent) |

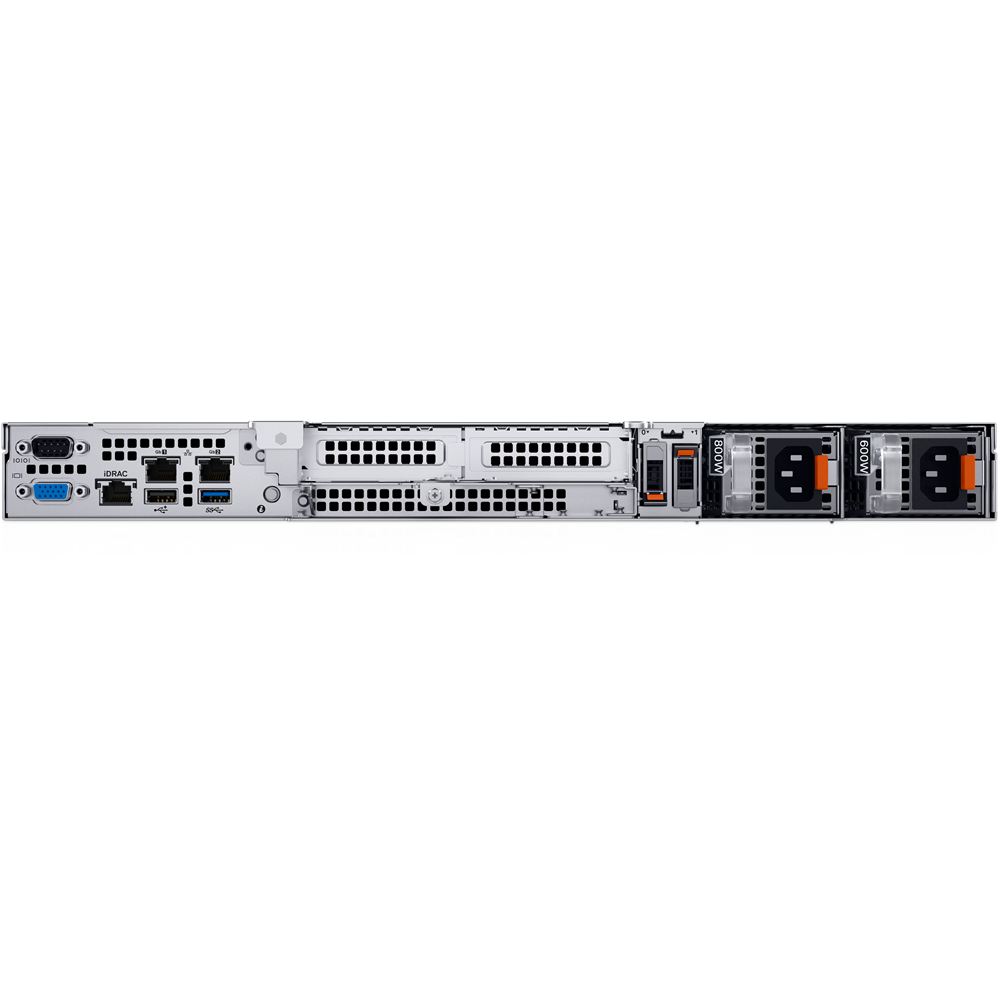

| Rear Ports | USB Ports, VGA Port, Serial Port, Network Ports |
| Remote Management | Dell iDRAC9 with Lifecycle Controller |
| Management Features | Remote monitoring, configuration, firmware update, system health monitoring |
| Security Features | TPM 2.0 Support, Secure Boot, System Lockdown |
| Power Supply Options | 600W Platinum Hot-Plug PSU |
| Power Supply Options (High Efficiency) | 700W Titanium Hot-Plug PSU |
| Power Supply Configuration | Single or Redundant PSU Configuration |
| Cooling System | High-performance air cooling fans |
| Rack Size | 1U Rack Mount |
| Chassis Dimensions (Approx.) | Height: 42.8 mm (1.68") |
| Weight | Approx. 11.6 kg (configuration dependent) |
| Operating Systems Supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi (availability depends on configuration) |
| Recommended Applications | Small Business IT Infrastructure, Edge Computing, Remote Office/Branch Office (ROBO), Virtualization, File Services, Network Applications |
| Warranty Options | Dell ProSupport / ProSupport Plus options available |
| Generation | Dell PowerEdge 16G Server Platform |
