Dell PowerEdge R470 Server Overview
The Dell PowerEdge R470 is a 1U, one-socket rack server engineered for high-performance computing with optimal power efficiency and balanced performance, driving cost savings and boosting data center productivity.
• Purpose-built to scale infrastructure to adapt seamlessly to technological changes, integrating new capabilities that support long-term growth and innovation.
• Powered by Intel® Xeon® 6 processors designed to meet diverse performance and efficiency requirements and offered with advanced GPU support.
• Enhanced I/O flexibility with optional front I/O configuration for seamless cold aisle serviceability.
• Energy-efficient designs with Smart Power and Cooling deliver cost savings and peak performance.
• Configurable to suit diverse needs with industry standard open designs (DC-MHS) compliance.
System Features
The PowerEdge R470 system is a 1U server that supports:
● One Intel® Xeon 6 processor E- core with up to 144 cores or One Intel® Xeon 6 processor P- core with up to 86 Cores with R1S option.
● 16 DIMM slots
● Two redundant AC or DC power supply units
● Up to 16 x EDSFF E3.S Gen5 NVMe front drives or Up to 8 x EDSFF E3.S Gen5 NVMe front drives or Up to 10 x 2.5-inch SATA or Up to 8 x 2.5-inch SATA front drives or Up to 8 x 2.5-inch NVMe front drives or Up to 4 x 3.5 - inch SATA front drives with Up to 2 x EDSFF E3.S Gen5 NVMe rear drives
Processor Features
The Intel® Xeon® 6 series processors meet diverse power, performance, and efficiency needs. Efficient-cores (E-cores) deliver high core density and exceptional performance per watt, while Performance-cores (P-cores) excel at the widest range of workloads with increased performance for AI and HPC. Intel® Xeon® 6 series processors offer improved performance per watt, boosted performance per rack, upgraded memory speeds, enhanced I/O, expanded UPI speeds and added software extension security.
The following lists the features and functions of the Processors:
● Up to 144 cores and up to 330 W TDP for Intel® Xeon® 6 E-Core processor
● Up to 86 cores and up to 350 W TDP for Intel® Xeon® 6 P-Core processor
● Up to 8 channels DDR5 6400 MT/s (1DPC) and 5200 MT/s (2DPC)
● UPI 2.0 up to 24GT/s
● 88 lanes PCIe 5.0
● R1S: up to 136 lanes PCIe 5.0
● PCIe bifurcation capability
● Intel® socket E2: 4710-2 pins
Key Workloads
The Dell PowerEdge R470 offers powerful performance in a purpose-built, cyber resilient, mainstream server. Ideal for:
● Virtualization/Cloud Scale
● Scale-Out Database
● Edge Compute
● High-Performance Compute
● Software-Defined Storage Node
Dell PowerEdge R470 Server Supported Drives
Technical Specifications of Dell PowerEdge R470 Server
| Category | Specification |
| Model | Dell PowerEdge R470 Server |
| Form Factor | 1U Rack Server |
| Processor | One Intel® Xeon® 6 Processor (Single Socket)• Intel Xeon 6 E-core: Up to 144 cores• Intel Xeon 6 P-core (R1S): Up to 86 cores |
| Processor Sockets | 1 |
| Memory | • 16 DDR5 DIMM slots• Supports Registered ECC DDR5 RDIMM only• Maximum 4TB DDR5• Memory speeds up to 6400 MT/s |
| Memory Capacity | • Xeon 6 E-core: Up to 1TB• Xeon 6 P-core: Up to 4TB |
| Drive Bays | Flexible configurations supporting:• E3.S NVMe SSD• 2.5" SAS/SATA SSD/HDD• 2.5" NVMe SSD |
| Storage Controllers | Internal RAID• PERC H365i DC-MHS• Front PERC H965i DC-MHS• PERC H365i Adapter• PERC H965i AdapterExternal• HBA465e• H965e RAID |
| Boot Optimized Storage | NVMe BOSS |
| PCIe Expansion | Up to 4 × PCIe Gen5 slots (x16 connectors) |
| GPU Support | Up to 4 × 75W Single-width GPUs |
| DPU Support | NVIDIA BlueField-3 2 × 200GbE B3220 |
| OCP Network | Up to 2 × OCP NIC 3.0 modules (Front or Rear) |
| Embedded Management | • iDRAC• iDRAC Direct• Redfish API• RACADM CLI• iDRAC Service Module |
| Networking | Dedicated 1Gb BMC Ethernet Management Port |

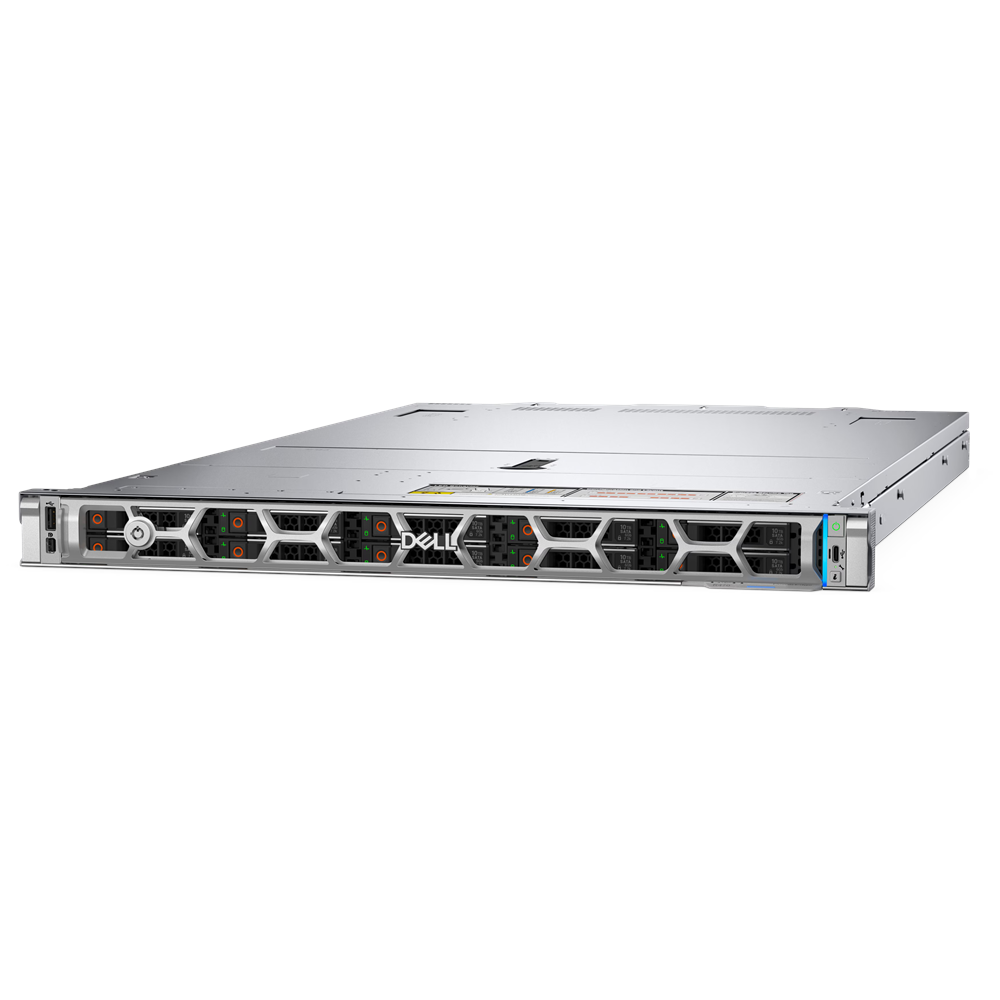

| Front Ports | • USB Type-C 2.0• Optional USB Type-A 2.0• Optional Mini DisplayPort• Optional DB9 Serial (Front I/O)• Dedicated BMC Ethernet (Front I/O option) |

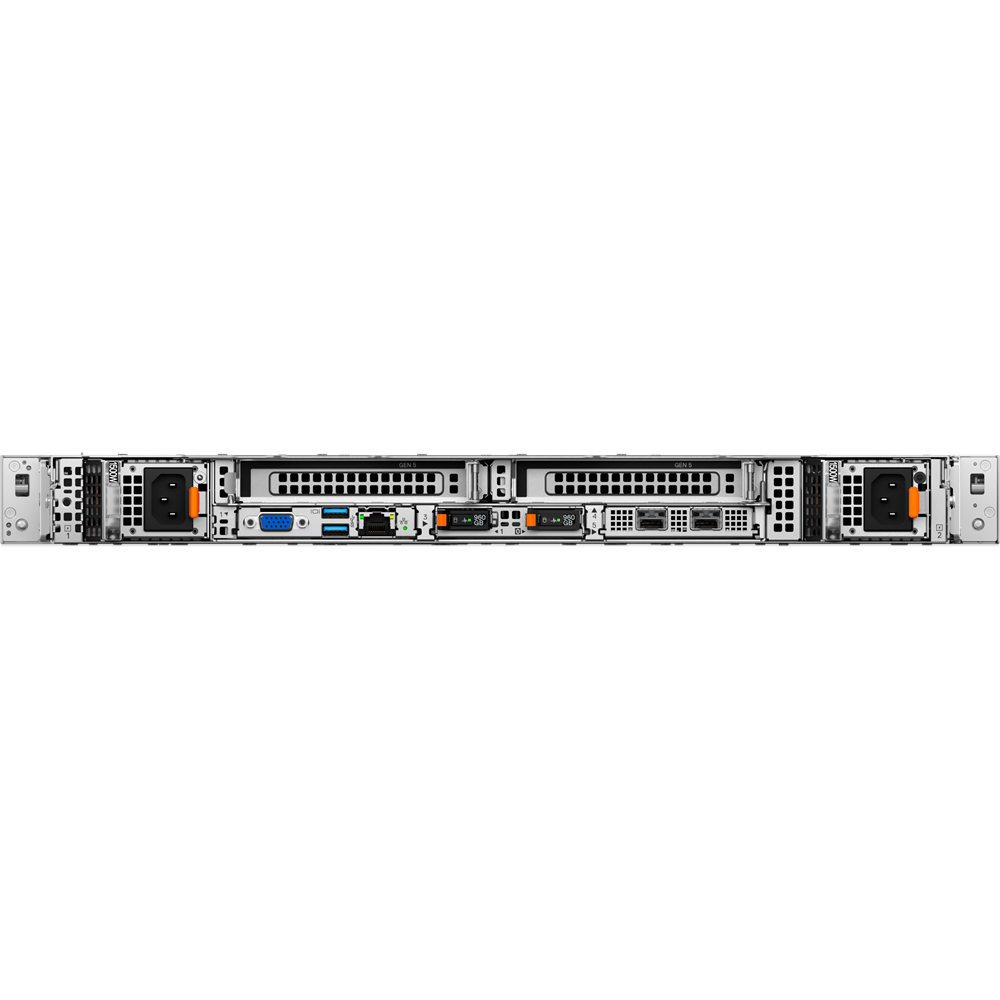

| Rear Ports | • Dedicated BMC Ethernet• 2 × USB 3.1 Type-A• VGA |
| Internal Ports | 1 × USB 3.1 Type-A |
| Power Supply | Hot-plug redundant PSU options (configuration dependent) |
| Cooling | Optimized Air Cooling with Dell Smart Power & Cooling Technology |
| Security | • Silicon Root of Trust• Secure Boot• Secure Erase• TPM 2.0• Signed Firmware• System Lockdown• Chassis Intrusion Detection |
| Operating Systems | • Microsoft Windows Server• Windows Server Datacenter• VMware ESXi• Red Hat Enterprise Linux• SUSE Linux Enterprise Server• Canonical Ubuntu Server LTS |
| Dimensions (W × D) | Width: 482 mm (19.0")Depth: 815–829 mm (depending on configuration) |
| Workloads | • Cloud-scale Web Applications• Microservices• Data Services• Virtualization• Scale-out Database |
| Energy Efficiency | ENERGY STAR® Compliant |
| Supported OS | Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Server (depending on certification) |
| Dimensions (H×W×D) | 42.8 × 482 × 786 mm (Max Depth with PSU Handle) |
| Height | 42.8 mm (1.69") |
| Width | 482 mm (19") |
| Depth | Up to 786 mm (30.95") |
| Weight | Approx. 17–19 kg (depends on configuration) |
