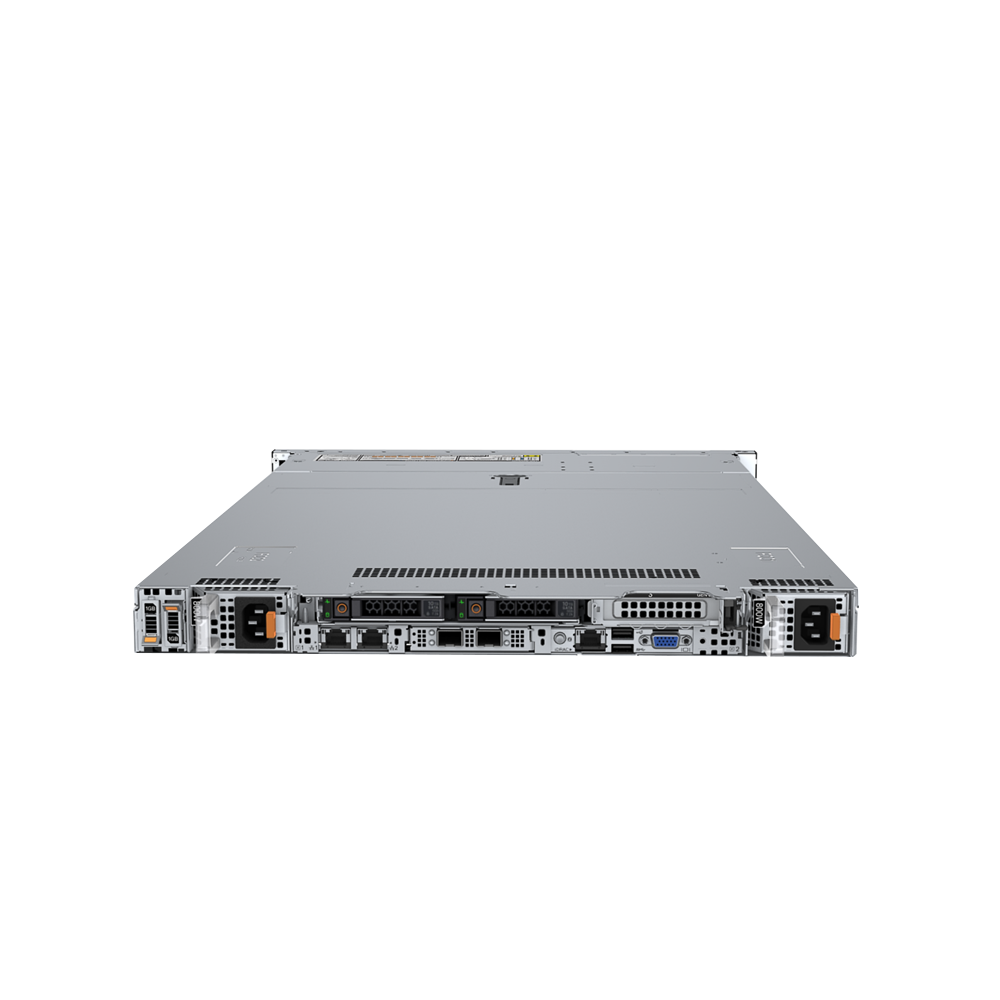

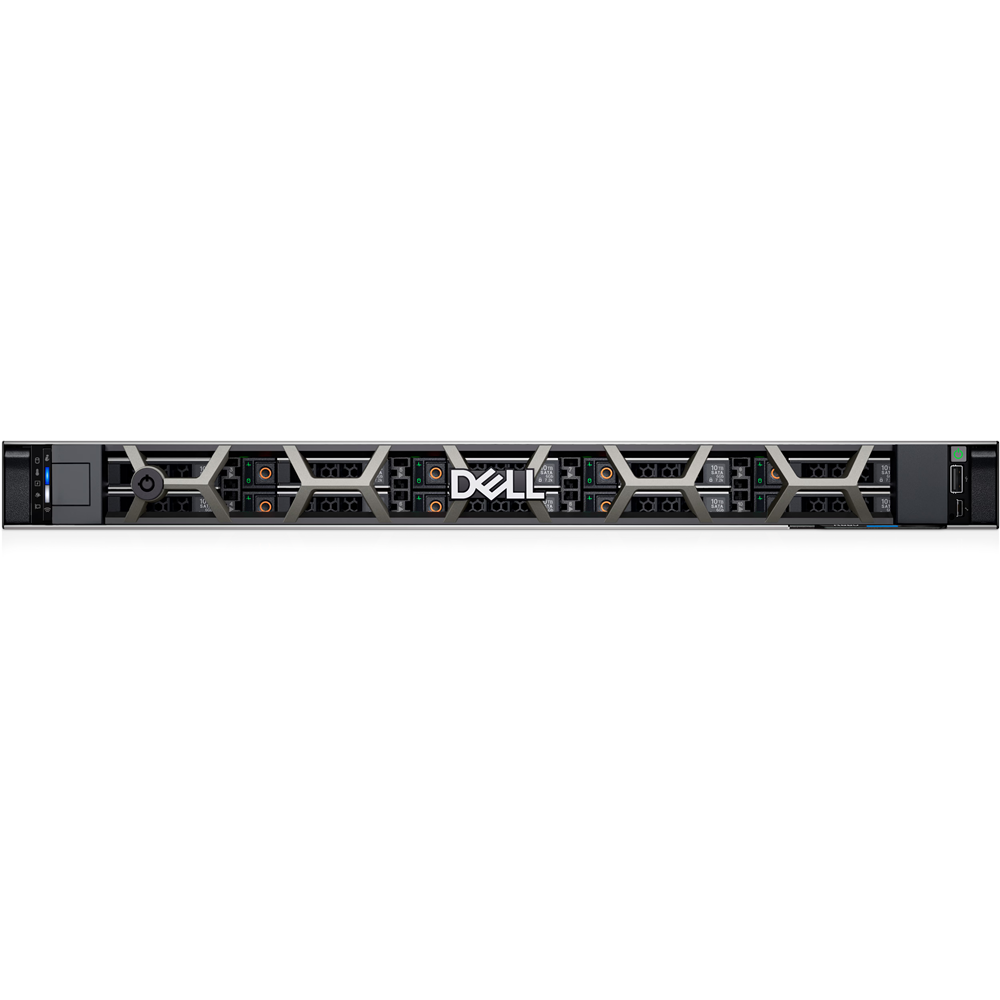

Dell PowerEdge R660 Server Overview
Take innovation to the next level with faster time to value and peak compute performance using optimum configurations. Built with a 1U, two-socket design.
System Features
Gain the performance you need with the full-featured Dell PowerEdge R660 which is designed to optimize even the most demanding workloads like AI, dense database analytics and high-density virtualization.
- Add up to two 5th Generation Intel® Xeon® Scalable processors with up to 64 cores for faster and more accurate processing performance
- Accelerate in-memory workloads with up to 32 DDR5 RDIMMS up to 5600 MT/sec (1DPC)
- Support for GPUs including 3 x single-wide for workloads requiring acceleration
- Storage options include up to 8 x 2.5" NVMe/SAS4/SATA, plus up to 10 x 2.5" NVMe/SAS4/SATA, 14/16x NVME E3.S Gen5
Key Workloads
The versatile R660 is designed to address data-intensive, diverse workloads including:
● High Density Virtualization
● Dense Database Analytics(VDI)
● Mixed Workload Standardization
Storage Controllers
Dell RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.
16G PERC Controller offerings are a heavy leverage of the 15G PERC family. The Value and Value Performance levels carry over to 16G from 15G. New to 16G is the Avenger-based Premium Performance tier offering. This high-end offering drives IOPs performance and enhanced SSD performance.
NOTE: The size of the RAID 1 drives must be less than that of the second RAID container.
Supported Drives
| Drive Form Factor | Interface | Speed | Drive Type | Supported Capacities |
| 2.5" | vSAS | 12Gb/s | SSD | 1.92 TB, 3.84 TB, 960 GB, 7.62 TB |
| 2.5" | SAS | 24Gb/s | SSD | 1.92 TB, 1.6 TB, 800 GB, 3.84 TB, 960 GB, 7.68 TB |
| 2.5" | SATA | 6Gb/s | SSD | 1.92 TB, 480 GB, 960 GB, 3.84 TB, |
| 2.5" | NVMe | Gen4 | SSD | 1.6 TB, 3.2 TB, 6.4 TB, 1.92 TB, 3.84 TB, 15.63 TB, 7.68 TB, 800 GB, 400 GB |
| 2.5" | DC NVMe | Gen4 | SSD | 3.84 TB, 960 GB |
| 2.5" | SAS | 12Gb/s | 10K | 600 GB, 1.2 TB, 2.4 TB |
| EDSFF E3.S | NVMe | Gen5 | SSD | 3.84 TB, 7.68 TB |
Technical Specifications of Dell PowerEdge R660 Server
| Category | Specification |
| Product Name | Dell PowerEdge R660 Rack Server |
| Form Factor | 1U Rack Server |
| Processor |
Up to two 5th Generation Intel® Xeon® Scalable processors with up to 64 cores for faster and more accurate processing performance |
| Processor Sockets | Dual Socket |
| Chipset | Intel Chipset |
| Memory Type | DDR5 ECC Registered DIMM (RDIMM) |
| Memory Slots | 32 DIMM Slots |
| Maximum Memory | Up to 8TB DDR5 RDIMM |
| Memory Speed | Up to 5600 MT/s (depending on CPU) |
| Storage Bays | Up to 10 × 2.5" SAS/SATA/NVMe SSD/HDD |
| NVMe Support | Yes, Front NVMe SSD Supported |
| Boot Optimization | BOSS-N1 with Dual M.2 SSD (Optional) |
| RAID Controller | PERC H355, H755, H965, HBA355i (Optional) |
| Embedded NIC | 2 × 1GbE LOM (Optional) |
| OCP NIC | OCP NIC 3.0, up to 100GbE |
| PCIe Expansion | Up to 3 × PCIe Gen5 Slots |
| GPU Support | Supports Single Width GPU (Configuration Dependent) |
| Power Supply | Hot-plug Redundant PSU (700W / 800W / 1100W / 1400W / 1800W Titanium, depending on configuration) |
| Cooling | Hot-plug High Performance Fans |
| Management | iDRAC9 Express, Enterprise or Datacenter |
| Security | TPM 2.0, Secure Boot, Silicon Root of Trust, System Lockdown |
| Operating Systems | Windows Server, Red Hat Enterprise Linux, Ubuntu Server, SUSE Linux Enterprise Server, VMware ESXi |
| Hypervisor Support | VMware ESXi, Microsoft Hyper-V |
| Dimensions (HxWxD) | 42.8 × 482 × 773 mm |
| Rack Height | 1U |
Frequently Asked Questions
Q1: Are you an authorised Dell supplier?
Yes. We are a certified Dell enterprise hardware partner with valid export authorisation from Dell China.
Q2: Is the Dell PowerEdge Server brand new?
Yes. Unless explicitly stated otherwise, every server we sell is factory‑sealed and brand new.
Q3: Do you provide Dell warranty?
Yes. We include Dell's official 3‑year global warranty with every server. Extended warranty periods and upgrade options available.
Q4: Can I customize the server configuration?
Yes. You can tailor CPU type/core count, memory capacity/speed, storage drives (type, size, and RAID level), network adapters, redundant power supplies, rails, cables, and other accessories. Our tech team will assist you in selecting the right options for your workload.
Q5: Do you ship internationally?
Yes. We serve enterprise customers, integrators, and project buyers worldwide. Our logistics cover export‑grade packaging, customs clearance coordination, and end‑to‑end delivery tracking to any global destination.
Why Buy Dell PowerEdge Server From Us?
· Dell Authorized Partner
We are a trusted Dell enterprise hardware supplier with:
✔ Official Dell export credentials
✔ Genuine factory‑fresh Dell products
✔ Official global warranty support
· Competitive Enterprise Pricing
Through Dell supply channels, we provide:
✔ Preferential project‑based quotes
✔ Volume discounts
✔ Tender support
· Global Delivery Capability
We support customers worldwide with:
✔ Export packaging
✔ International logistics
✔ Project delivery coordination
· Professional Technical Support
Our team helps analyse your actual use cases:
✔ Optimal CPU configuration
✔ Suitable storage options
✔ Enterprise networking solutions
