Dell PowerEdge R770 Server Overview
PowerEdge R770 is a 2U server that supports, 2 Intel Xeon 6 processors with up to 144 cores, 32 DIMM slots, 2 AC or DC power supply units, and up to 16 x EDSFF E3.S NVMe (SSD) drives.
System Features
The PowerEdge R770 system is a 2U server that supports:
● Two Intel Xeon 6 processors with up to 144 E-Cores or 86 P-cores
● Optional Direct Liquid Cooling (DLC) for required CPU SKU and/or configurations
● 32 DIMM slots
● Two AC or DC power supply units
● No backplane configuration
● Up to 8x EDSFF E3.S NVMe drives FIO configuration
● Up to 16x EDSFF E3.S NVMe drives FIO configuration
● Up to 16 x EDSFF E3.S NVMe drives
● Up to 32 x EDSFF E3.S NVMe drives
● Up to 40 x EDSFF E3.S NVMe drives
● Up to 4 x EDSFF E3.S NVMe drives on the rear
● Up to 8 x 2.5-inch SATA/NVMe drives
● Up to 8 x 2.5-inch Universal drives
● Up to 16 x 2.5-inch SATA drives
● Up to 24 x 2.5 inch SATA drives
● Up to 24 x 2.5 inch SATA/NVMe (8 NVMe + 16 SATA) drives
Key Workloads
The Dell PowerEdge R770 is powered by Intel Xeon 6 Processors, DDR5 Memory, NVMe BOSS, Energy Star compliant, advanced cooling for cloud environments. Ideal for:
• Virtualization
• Artificial Intelligence Inferencing
• Cloud-native applications
• Hyperscale workloads
• Scale out Databases
Processor Features
The Intel® Xeon® 6 series processor stack is comprised entirely of efficiency cores (E-Cores) providing ultra-high core counts optimized for Cloud Service Providers and HPC server applications. Intel® Xeon® 6700E offers improved performance per watt, boosted performance per rack, upgraded memory speeds, enhanced I/O, expanded UPI speeds and added software extension security.
The following lists the features and functions that are in the Intel® Xeon® 6700E Processor offering:
● High core counts with up to 144 cores with up to 330 W TDP
● Enhanced DDR5 memory with speed up to 6400 MT/s in one DIMM per channel (1DPC) and 5200 MT/s in two DIMM per
channel (2DPC)
● Faster UPI 2.0 with up to four Intel Ultra Path Interconnect (Intel® UPI) at up to 24 GT/s, increasing multi-socket
bandwidth
● PCIe 5.0 with up to 88 lanes
● Security features leveraging Software Guard Extensions (SGX) for Application Isolation
Storage Controllers
The R770 system supports Front PERC H975i.
NOTE: The size of the RAID 1 drives must be less than that of the second RAID container.
For the ESXi operating system, H975i is supported on 9.0 or later versions.
Supported Drives
The table shown below lists the internal drives that are supported in R770.
| Form Factor | Type | Speed | Rotational Speed | Capacities |
| EDSFF E3.S | DC NVMe | Gen5 | SSD | 1.6 TB, 3.2 TB, 1.92 TB, 3.84 TB |
| EDSFF E3.S | NVMe | Gen5 | SSD | 3.2 TB, 6.4 TB, 3.84 TB, 7.68 TB, 15.36 TB, 30.72 TB, 61.44 TB |
| 2.5 inches | SATA | 6 Gb | SSD | 480 GB, 960 GB, 1.92 TB, 3.84 TB |
| 2.5 inches | NVMe | Gen4 | SSD |
400 GB, 800 GB, 960 GB, 1.6 TB, 1.92 TB, 3.2 TB, 3.84 TB, 6.4 TB, 7.68 TB, 12.8 TB, 15.63 TB, 30.72 TB, 61.44 TB |
Technical Specifications of Dell PowerEdge R770 Server
| Feature | Technical Specifications |
| Processor | Two Intel® Xeon® 6 Processors with up to 144 E-cores or 86 P-cores per processor |
| Memory | • 32 × DDR5 DIMM slots |
| • Supports RDIMM up to 8 TB | |
| • Memory speed up to 6400 MT/s | |
| • Supports registered ECC DDR5 DIMMs only | |
| Storage Controllers | Internal Boot: |
| • BOSS-N1 DC-MHS: HW RAID 1, 2 × M.2 NVMe SSDs | |
| • M.2 Interposer Board (DC-MHS): 2 × M.2 NVMe SSDs or USB | |
| Internal Controllers: | |
| • Front PERC H965i | |
| • Front PERC H975i | |
| • Front PERC H365i | |

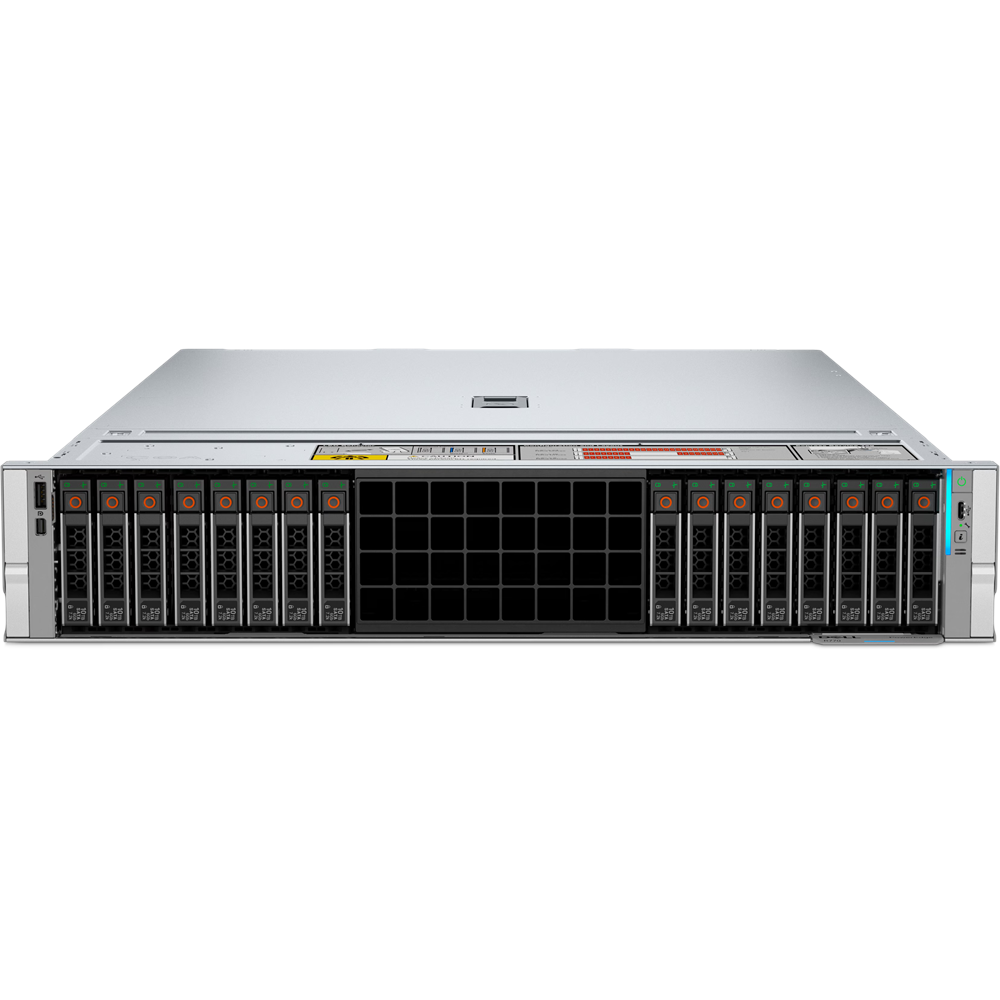

| Front Bays | • No Backplane configuration |
| • Up to 8 × EDSFF E3.S NVMe (max 491.52 TB) | |
| • Up to 16 × EDSFF E3.S Gen5 NVMe (max 983.04 TB) | |
| • Up to 20 × EDSFF E3.S Gen5 NVMe (max 1228.8 TB) | |
| • Up to 8 × 2.5" SATA/NVMe Direct/NVMe RAID (max 491.52 TB) | |
| • 8 × 2.5" Universal (max 491.52 TB) | |
| • Up to 10 × 2.5" SATA (max 38.4 TB) | |
| • Up to 2 × EDSFF E3.S Gen5 NVMe rear drives (max 122.88 TB) | |
| Hot Swap Power Supplies | • 1500W Titanium 100–240 VAC / 240 VDC |
| • 1100W Titanium 100–240 VAC / 240 VDC | |
| • 800W Titanium 100–240 VAC / 240 VDC | |
| • 1100W Platinum 100–240 VAC / 240 VDC | |
| • 800W Platinum 100–240 VAC / 240 VDC | |
| • 1800W HLAC Titanium 200–240 VAC / 240 VDC* | |
| • 1500W 277 VAC / 336 VDC* | |
| • 1400W LVDC -48~-60 VDC | |
| Cooling Options | • Air cooling |
| • Direct Liquid Cooling (DLC) | |
| Note: DLC requires rack manifolds and Cooling Distribution Unit (CDU) | |
| Fans | • High Performance Silver (HPR SLVR) fans |
| • Standard (STD) fans | |
| • Up to 4 sets dual fan modules, hot-swappable | |
| Form Factor | 1U Rack Server |
| Dimensions & Weight | Height: 42.8 mm (1.69") |
| Width: 482 mm (18.98") | |
| Weight: 20.42 kg (45.02 lb) | |
| Rear I/O configuration depth: | |
| • 816.92 mm with bezel | |
| • 815.14 mm without bezel | |
| Front I/O configuration depth: | |
| • 829.44 mm without bezel | |
| Embedded Management | • iDRAC |
| • iDRAC Direct | |
| • iDRAC RESTful API with Redfish | |
| • RACADM CLI | |
| • iDRAC Service Module (iSM) | |
| • Quick Sync 2 wireless module | |
| • NativeEdge Endpoint* | |
| • NativeEdge Orchestrator* | |
| Bezel | Optional security bezel |
| Security | • Cryptographically signed firmware |
| • Data at Rest Encryption (SED support) | |
| • Secure Boot | |
| • Secured Component Verification | |
| • Secure Erase | |
| • Silicon Root of Trust | |
| • System Lockdown | |
| • TPM 2.0 FIPS, CC-TCG certified | |
| • Chassis Intrusion Detection | |
| Network Options | • 2 × OCP NIC 3.0 cards (optional) |
| • Supports 1GbE, 10GbE, 25GbE, 100GbE and 400GbE* | |
| OCP / Expansion Slots | • Slot 31: 1 ×16 OCP 3.0 on front riser |
| • Slot 32: 1 ×16 OCP 3.0 on front riser | |
| • Slot 2: 1 ×16 OCP 3.0 | |
| • Slot 5: 1 ×8 Gen5 OCP 3.0 or 1 ×16 Gen5 OCP 3.0 | |
| BOSS Slot | • Slot 34: Front BOSS slot |
| • Slot 3: Rear BOSS slot | |
| GPU Support | Up to 3 × 75W Single Width GPUs |
| DPU Support | • NVIDIA BlueField-3 2×200GbE B3220 |
| • NVIDIA BlueField-3 1×400GbE B3140H | |
| Ports | Front Ports: |
| • 1 × USB 2.0 Type-C | |
| • 1 × USB 2.0 Type-A (optional) | |
| • 1 × Mini DisplayPort (optional) | |
| • 1 × DB9 Serial (front I/O configuration) | |
| • 1 × Dedicated Ethernet port for iDRAC management | |

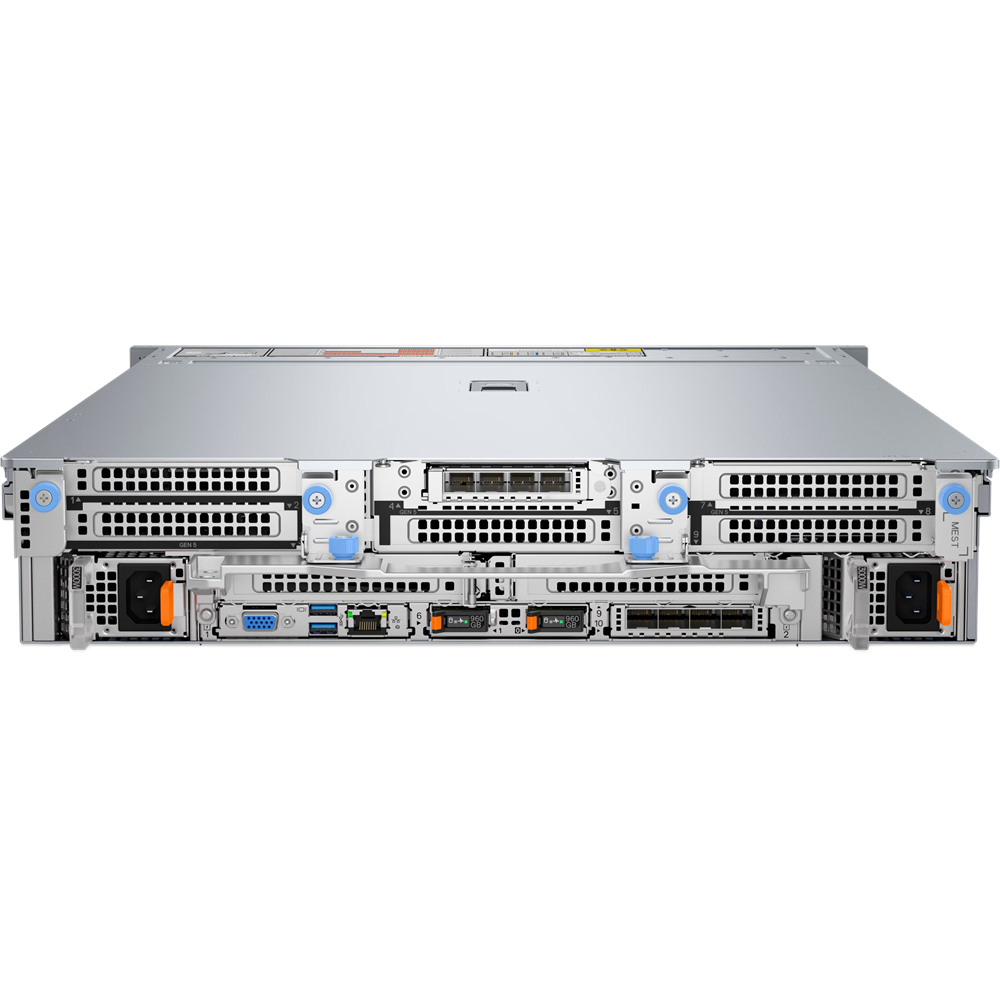

| Rear Ports: | |
| • 1 × Dedicated Ethernet port for iDRAC management | |
| • 1 × VGA | |
| • 2 × USB 3.1 Type-A | |
| Internal Port: | |
| • 1 × USB 3.1 Type-A | |
| PCIe | • Up to 2 ×16 Gen5 PCIe slots |
| • Up to 3 ×16 or 2 ×8 Gen5 PCIe slots | |
| • Supports FHFL/FHHL/LPHL configurations depending on slot | |
| Operating Systems & Hypervisors | • Canonical Ubuntu Server LTS |
| • Microsoft Windows Server with Hyper-V (P-Core only) | |
| • Red Hat Enterprise Linux | |
| • SUSE Linux Enterprise Server | |
| • VMware ESXi | |
| • Dell NativeEdge OS* | |
| OEM Ready Version | available |
