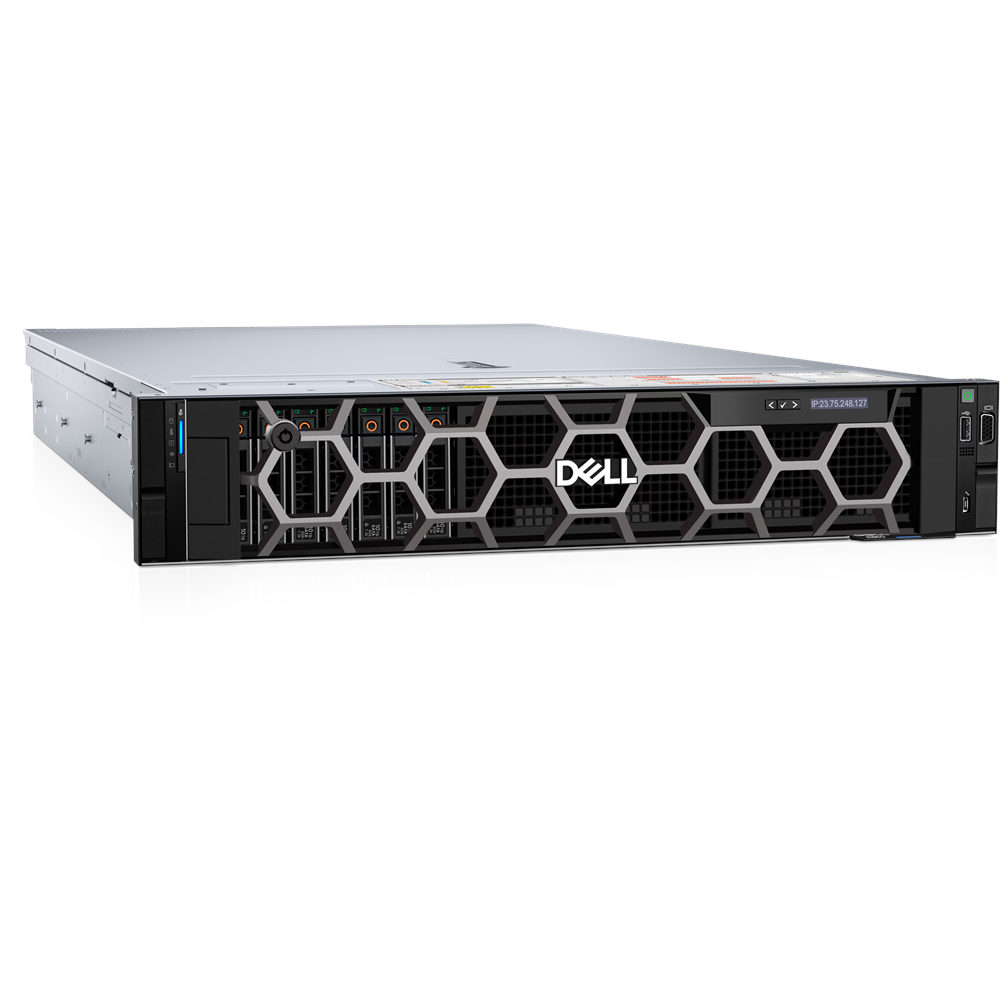

Dell PowerEdge R860 Server Overview
PowerEdge R860 is a 2U server that supports, up to 4 x 4th Gen Intel® Xeon® Scalable Processors with up to 60 cores, 64 DDR5 DIMM slots, supports maximum 16 TB, 2 AC or DC power supply units with 1+1 redundancy.
System Features
The PowerEdge R860 system is a 2U server that supports:
- Up to 4 x 4th Gen Intel® Xeon® Scalable Processors with up to 60 cores
- 64 DDR5 DIMM slots, supports maximum 16 TB
- Two AC or DC power supply units with 1+1 redundancy
- Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) drives
- Up to 8 x EDSFF E3.S NVMe Gen5 (SSD) drives
- Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives
- Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives
- Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (SSD) drives
- Up to 24 x 2.5-inch SAS/SATA (HDD/SSD) + 2 x 2.5 inch (rear) SAS/SATA/NVMe (HDD/SSD) or 4 x EDSFF E3.S (rear) NVMe Gen5 (SSD) drives
- PCI Express® (PCIe) 5.0 enabled expansion slots
- Network interface technologies to cover Network Interface Card (NIC)
Key Workloads
Looking for accelerated compute to maximize performance in a dense, scalable server architecture to address the following applications:
● SAP/HANA, Oracle, SQL
● Database, ERP, CRM, batch
● Data warehouse, business intelligence
● Virtualization/VM and VDI
● AI, HPC and ML/DL
Processor Features
The 4th Generation Intel® Xeon® Processors stack is the next generation data center processor offering with significant performance increases, integrated acceleration, and next generation memory and I/O. Sapphire Rapids accelerate customer usages with unique workload optimizations.
The following lists the features and functions that are in the 4th Generation Intel® Xeon® Scalable Processor offering:
● Faster UPI with up to four Intel Ultra Path Interconnect (Intel UPI) at up to 16 GT/s, increasing multisocket bandwidth
● More, faster I/O with PCI Express 5 and up to 80 lanes (per socket)
● Enhanced Memory Performance with DDR5 support and memory speed up to 4800 MT/s in one DIMM per channel (1DPC)
and 4400 MT/s in two DIMM per channel (2DPC)
● New built-in accelerators for data analytics, networking, storage, crypto, and data compression
Storage Controllers
Dell’s RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar. 16G PERC
Controller offerings will be a heavy leverage of 15G PERC family. The Value and Value Performance levels will carry over to 16G from 15G. New to 16G, is the Harpoon-based Premium Performance tier offering. This high-end offering will drive IOPs performance and enhanced SSD performance.
Technical Specifications of Dell PowerEdge R860 Server
| Category | Technical Specifications |
| Model | Dell PowerEdge R860 |
| Server Type | Rack Server |
| Form Factor | 2U Rack Server |
| Processor | Up to 4 × 4th Generation Intel® Xeon® Scalable Processors |
| Processor Socket | 4 Socket |
| CPU Core Options | Up to 60 cores per processor |
| Intel Technology | Optional Intel® QuickAssist Technology |
| Chipset | Intel® C741 Chipset |
| Memory Type | DDR5 RDIMM |
| Memory Slots | 64 × DDR5 DIMM slots |
| Maximum Memory | Up to 16TB RDIMM |
| Memory Speed | Up to 4800 MT/s |
| Storage Front Bay Options | Up to 8 × 2.5" SAS/SATA HDD/SSD |
| Storage Front Bay Options | Up to 8 × EDSFF E3.S Gen5 NVMe SSD |
| Storage Front Bay Options | Up to 16 × 2.5" SAS/SATA/NVMe HDD/SSD |
| Storage Front Bay Options | Up to 24 × 2.5" SAS/SATA/NVMe HDD/SSD |
| Storage Hybrid Configuration | Up to 16 × 2.5" SAS/SATA + 8 × 2.5" NVMe SSD |
| Rear Storage | Up to 2 × 2.5" SAS/SATA HDD/SSD |
| Boot Storage | BOSS-N1: HWRAID 2 × M.2 NVMe SSD |
| Storage Controller | PERC H965i / PERC H755 / PERC H355 |
| HBA Controller | HBA355i / HBA465i |
| External Controller | PERC H965e / HBA355e / HBA465e |
| RAID Support | RAID controller support (PERC series) |
| Network Interface | 1 × 1GbE LOM + OCP 3.0 NIC support |
| PCIe Expansion | Up to 8 × PCIe slots |
| PCIe Generation | PCIe Gen4 / Gen5 |
| GPU Support | No GPU support |
| Management | Dell iDRAC9 Enterprise |
| Systems Management | OpenManage Enterprise, SupportAssist, Update Manager |
| Security Features | Secure Boot, Secure Erase, Signed Firmware, Secure Component Verification |
| Power Supply Options | 1100W / 1400W / 1800W / 2400W / 2800W |
| Power Supply Configuration | Redundant Hot-Plug PSU |
| Dimensions (H×W×D) | 2U × 482mm × 812mm |
| Operating Systems Supported | Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Server LTS |
