By HuaTelecom

HT245 XPON Wifi 5 ONT | F670L/EG8145V5 Similar

Regular price $0.00
Regular price Sale price $0.00
Availability: 1000 in stock
Regular price $0.00
Regular price Sale price $0.00
HT245 XPON Wifi 5 ONT Overview (Dual Band ONT F670L/EG8145V5 similar/replacement)

The Huatelecom HT245 is a GPON routing-type Optical Network Terminal (ONT) designed for FTTH broadband access. Powered by high-performance HiSilicon solution, it delivers stable Gigabit connectivity and dual-band Wi-Fi 5 (802.11ac) wireless performance, making it ideal for residential and small business applications.
The HT245 features 4 Gigabit Ethernet (GE) ports, and dual-band 2.4G&5G Wi-Fi 1200Mbps, enabling high-speed Internet access, and seamless multimedia services over a single fiber connection.




Key Features

HT245 with 1*XPON+2*GE+ 2.4G&5G Wi-Fi 5

· HiSilicon chipset for stable performance

 · Support SmartOLT / GenieACS TR069 management

· Compatible with ZTE Huawei Nokia FiberHome OLT,

· Compliant with IEEE802.11b/g/n/ac WIFI

· Compatible with Huawei OLT

· Support Layer 2/Layer 3 functions

· Detect and exchange PON mode automatically

· Support EasyMesh protocol

· IPv4/IPv6 Stack





Technical Datasheet

Item

Specification

Interface

1*GPON+2*GE+ 2.4G&5G Wi-Fi 5

Indicators

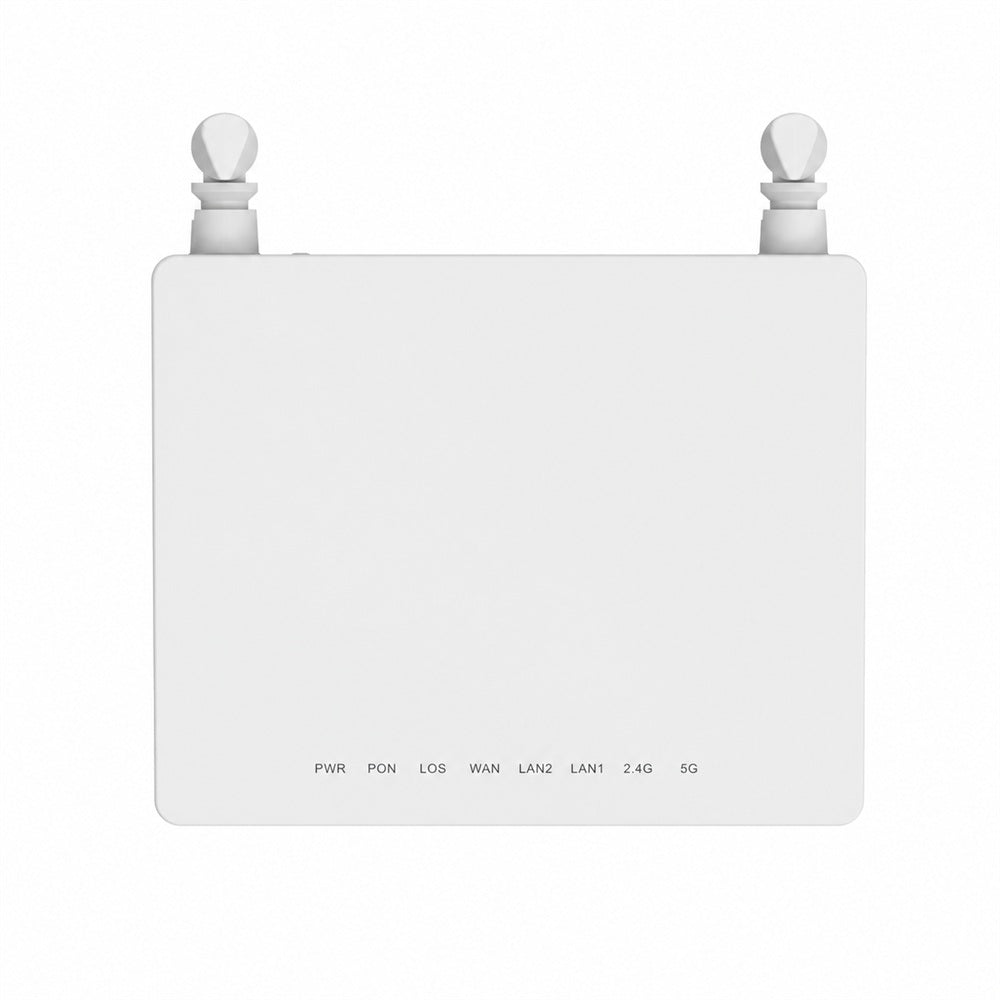

PWR, PON, LOS, WAN, LAN2, LAN1, 2.4G, 5G

PON interface

1XPON port (EPON PX20+ and GPON Class B+)
SC single mode, SC/UPC connector
TX optical power: 0+4dBm; RX sensitivity: -27dBm
Overload optical power: -3dBm(EPON) or  -8dBm (GPON)
Transmission distance: 20KM
Wavelength: TX 1310nm, RX1490nm

WiFi interface

WiFi:2.4GHz5GHz 2×2, rate up to 1.167Gbps,Multiple SSID
TX power: 2.4GHz: 23dBm; 5GHz: 24dBm
RX power: 2.4GHz: HT40-MCS7 -72dBm; 5GHz: VHT80 MCS9 <-62dBm

User interface

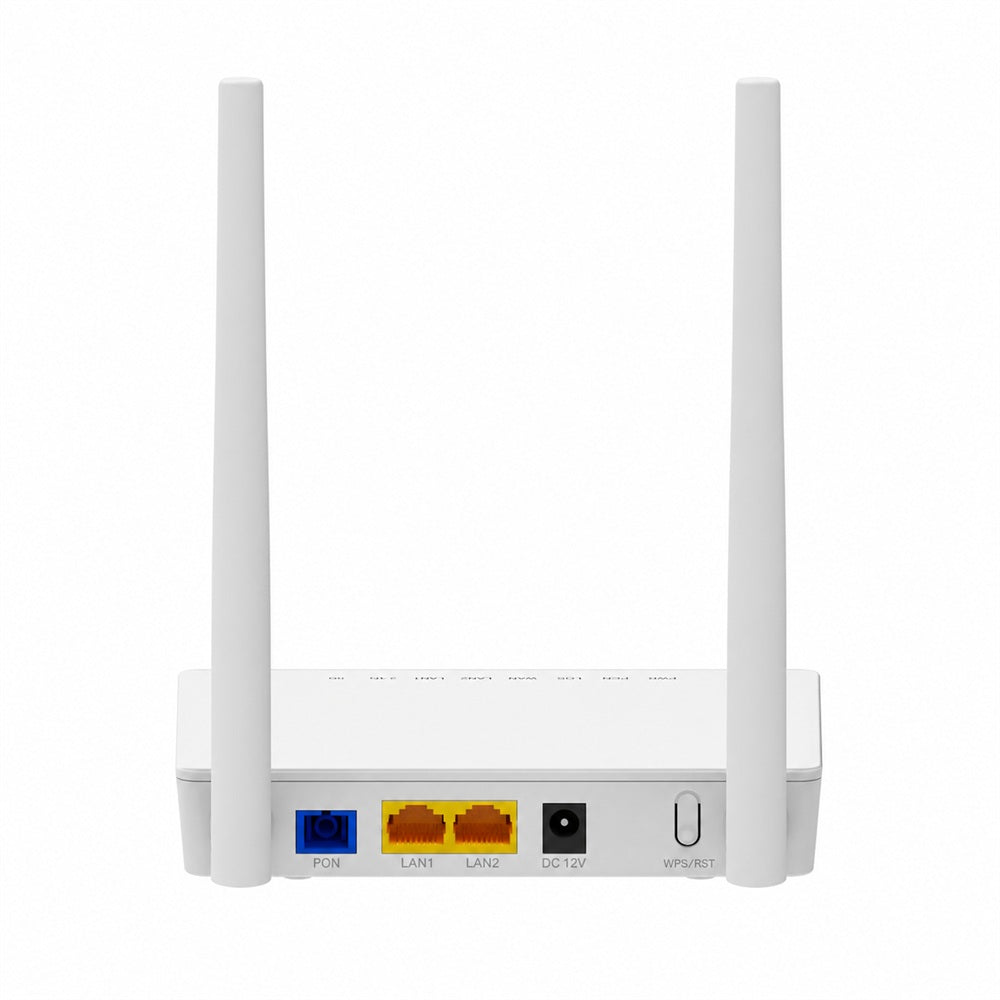

2×GE, Auto-negotiation,RJ45 ports
LAN1 supports WAN mode

Layer 3

IPv4, IPv6 and IPv4/IPv6 dual stack
DHCP/PPPOE/Static
Static route, DHCP Server
NAT/DMZ/DDNS/Virtual Server

QoS

Support 4 queues
Support SP, WRR, 802.1P and DSCP

Management

OAM/OMCI, Telnet, WEB, TR069

Connection Mode

Bridge,Route & Bridge/Route mixed mode

Data Service Functions

Full speed non-blocking switching
1K MAC address table
8 full range VLAN ID
Support VLAN tag, untag, transparent, trunk, translation mode
Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
Support auto polarity detection of Ethernet ports (AUTO MDIX)
Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy

Wireless

Integrated 802.11b/g/n/ac
Authentication:WEP-64/WEP-128/ WPA/WPA2/WPA3
Modulation type:DSSS,CCK and OFDM
Encoding scheme:BPSK,QPSK,256QAM
Easymesh

Security

Support Firewall
Support Mac filter Based on MAC or URL
Support ACL

Dimensions

139.3 × 136.7 × 30 mm

Weight

195 g

Power Adapter

DC 12V / 1A

Power Consumption

≤12 W

Operating condition

Temp: -10 ~ +55°C; humidity: 5 ~ 95% (non-condensing)
