Huawei H807GPBH Board Overview

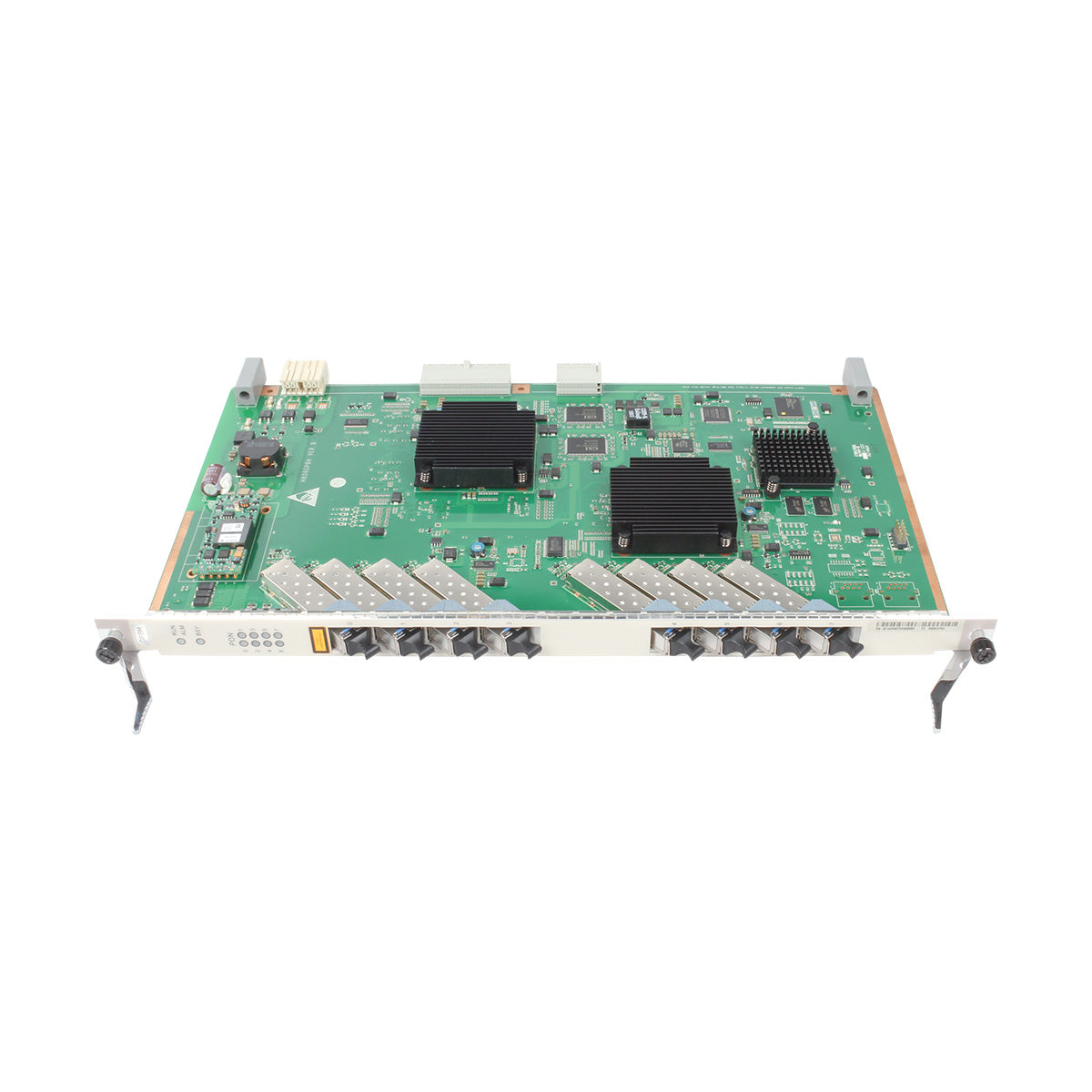

The H807GPBH is an 8-port GPON OLT Interface Board. It works together with the optical network terminal (ONT) to provide GPON access services. H807GPBH can be applied to Huawei SmartAX MA5600T series OLT MA5608T, MA5683T and MA5680T.

The H807GPBH card will come with 8pcs C+ module by default or you can choose to come with C++/B+ module.

8 GPON ports (SFP) Max. split radio:  Class B+: 1: 64; Class C+/C++: 1: 128


Huawei H807GPBH Board Specification
Specification
Service ports
GPON Port 8-GPON Port
GPON SFP Module Specification
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimum Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (mm) 22.86 (W) x 237.00 (D) x 395.40 (H)
Power Consumption and Maximum Frame Size
Power Consumption H806GPBH : Static: 32 W, Maximum: 46 W
H807GPBH:  The data is being tested.
Maximum Frame Size 2004 bytes
Operating temperature -25°C to +65°C



Difference of MA5600T GPON service board

Specification

H801GPBC

H802GPBD

H805GPBD

H802GPFD/H805GPFD

H806GPBH/H807GPBH

H801GPMD

Port quantity

4

8

8

16

8

8

MAX Split ratio (Class B+)

1: 64

1: 64

1: 64

1: 64

1: 64

1: 64

MAX Split ratio (Class C+/Class C++)

Not support

1: 128

1: 128

1: 128

1: 128

1: 128

D-CMTS

No

No

No

No

No

Yes

ONU-based shaping

No

No

Yes

Yes

Yes

Yes

Optical performance monitor

Yes (querying Rx optical power is not supported)

Yes

Yes

Yes

Yes

Yes

RSSI detection and controlled optical signal transmission of the optical module

No

Yes

Yes

Yes

Yes

Yes

ONU-based rate limitation

×

√

√

√

√

√

CAR group

×

√

√

√

√

√

Temperature query and high temperature alarm

Yes

Yes

Yes

Yes

Yes

Yes

Automatic power shutdown in case of a high temperature

No

Yes

Yes

Yes

Yes

Yes

Maximum differential fibre distance (km)

20

20

20

40

40

40

Maximum Number of Service Flows Supported by the Board

8184

8184

8184

16368

8184

6144

Maximum Number of MAC address Supported by the Board

32768

32768

32768

32768

32768

32768

Available DBA bandwidth (based on single port) (kbit/s)

1238400

1238784

1238784

1238784

1238784

1238784

Number of T-CONT supported by each GPON port

256

1024

1024

1024

1024

1024

Board supporting downstream FEC

Yes

Yes

Yes

Yes

Yes

Yes

Board supporting upstream FEC

No

Yes

Yes

Yes

Yes

Yes

Rogue ONT detection

No

Yes

Yes

Yes

Yes

Yes

Number of ONUs supported by a GPON port

64

128

128

128

128

128

Number of GEM ports supported by each board

8192

8192

8192

16384

8192

8192

Number of GEM ports supported by each GPON port

3872

3872

3872

3872

3872

3872

Number of service ports supported by each GEM port

8

8

8184

8184

8184

7168

HQoS (four levels)

×

×

×
  • H802GPFD: ×
  • H805GPFD: √
  • H806GPBH: ×
  • H807GPBH: √

×

9216-byte Jumbo frames

×

×

×
  • H802GPFD: ×
  • H805GPFD: √
  • H806GPBH: ×
  • H807GPBH: √

×

Power budget supported by a GPON port

Class B+ (28.5 dB, mostly used)
  • Class B+ (28.5 dB, mostly used),
  • Class C+ (32 dB long reach transmission)
  • Class C++: 35 dB

Minimum bandwidth supported by a T-CONT

512kbps
  • 1 Mbit/s (in the minimum delay mode)
  • 128 kbit/s (in the maximum bandwidth usage mode)
