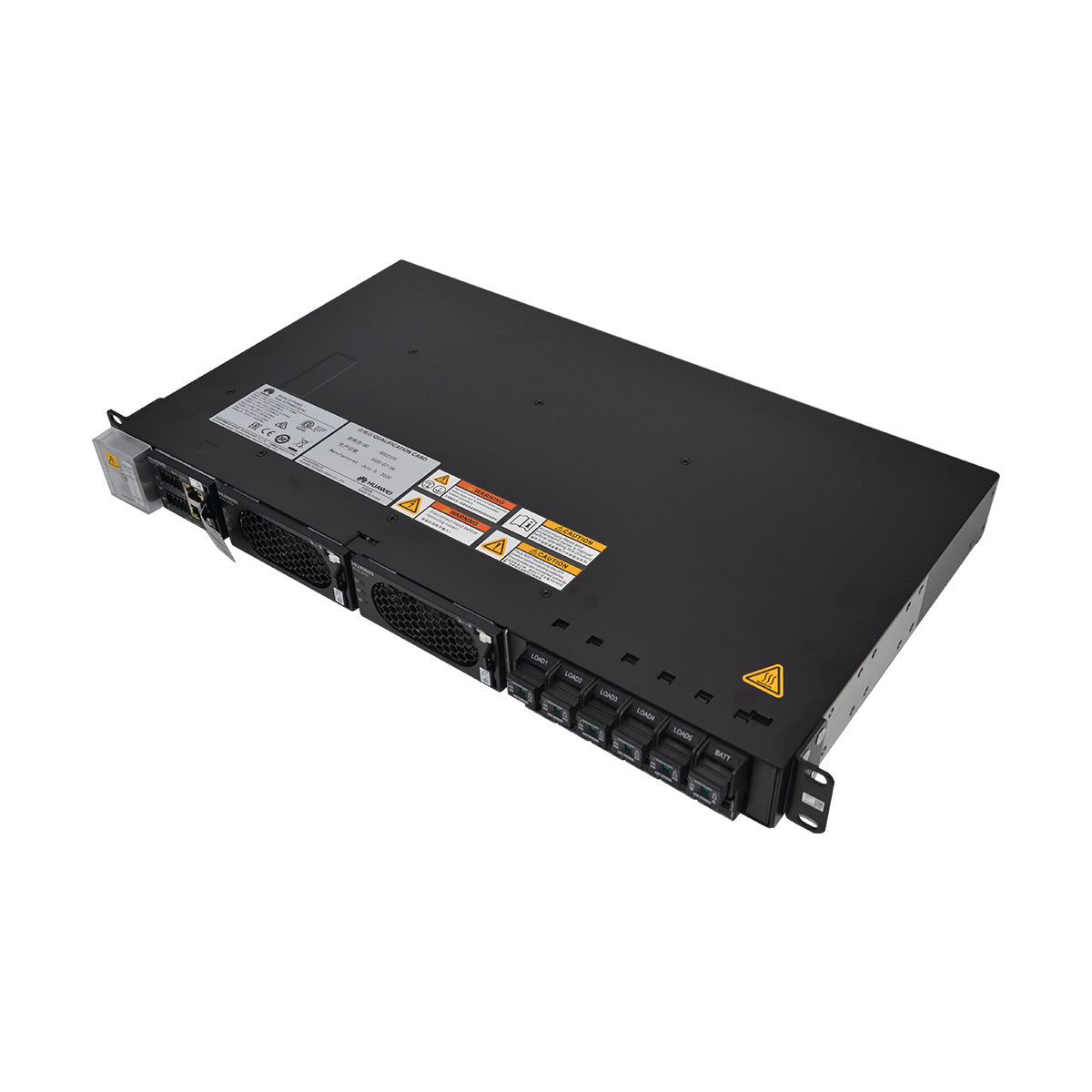

Huawei ETP4860-B1A2 48V Embedded DC Power System
Huawei ETP4860-B1A2 Overview
ETP4860-B1A2 is an AC/DC embedded power system with excellent performance such as high power efficiency, intelligent battery management, remote management, wide range of AC/DC input voltage, etc. The system can configure 1U 30A high rectifier module, and provides 4kW output. ETP4860-B1A2 can be embedded in 19-inch rack or cabinet.
Key Features
- Wide range of AC input voltage from 85 V AC to 300V AC
- Support high-voltage DC input (100 to 420V DC)
- Hot-swappable rectifier and DC distribution unit
- Standard structure design, adapt 19/21 inch installation
- Compact design(only 1U in height), saving user space
- High rectifier efficiency over 96% helps to save energy
- Excellent rectifier dormancy function increases system efficiency
- Intelligent battery management and protection help to prolong battery lifespan
- Support environmental signal monitoring and remote management through dry contact, serial interface or Ethernet interface
Huawei ETP4860-B1A2 Datasheet
| ETP4860-B1A2 | Value (Standard AC Input) | Value (HVDC Input) |
| Dimension | 442 mm (W) × 255 mm (D) × 43.6 mm (U, 1U) | |
| Weight | ≤ 4 kg (without rectifiers) | |
| Cooling Mode | Natural cooling | |
| Installation Mode | Installed on 19-inch rack or cabinet | |
| Cabling Mode | Front inlet and front outlet | |
| Maintenance Mode | Front | |
| Protection Level | IP20 | |
| Input Mode | 220 V AC single phase or 110 V AC dual-live wire | HVDC (High-voltage DC remote power supply) |
| Input Voltage | 85–300 V AC, rated value: 220 V AC | 100–420 V DC, rated value: 200–380 V DC |
| Input Frequency | 45–66 Hz, rated value: 50/60 Hz | / |
| Input Capacity | - | |
| Output Voltage | 42–58 V DC, rated value: 53.5 V DC | |
| Maximum Capacity | 4 kW | |
| Battery Breakers | 1 × 50 A/1P | |
| LLVD Breakers | - | |
| BLVD Breakers | 4 × 32 A/1P, 1 × 16 A/1P | |
| SPD | - | |
| Operating Temperature | -40°C to +65°C | |
| Storage Temperature | -40°C to +70°C | |
| Operating Humidity | 5% – 95% (non-condensing) | |
| Altitude | 0 –4000 m (when the altitude ranges from 2000 m to 4000 m, the operating height decreases by 1 m for each additional 200 m) |
| Rectifier Module Comparison | ||
| Parameter | R4815G1 | R4830G1 |
| Efficiency | > 95% (60% to 100% load) > 96% Max |
> 95% (30% to 90% load) > 96% Max |
| Maximum Power | 1000W (176 to 300 V AC) | 2000W (176 to 300 V AC) |
| Input Voltage | 85 to 300 V AC | 85 to 300 V AC / 85 to 400 V DC |
| Working Temperature | -40°C to +75°C (full output below 55°C); ETS EN 300-019 |
-40°C to +75°C (full output below 55°C); ETS EN 300-019 |
| Dimension | 95.5 mm(W) × 208 mm(D) × 40.8 mm(H) |
95.5 mm(W) × 208 mm(D) × 40.8 mm(H) |
| Weight | ≤1.2 kg | ≤1.2 kg |
| Cooling Mode | Forced Air cooling (Built-in fan) |
Forced Air cooling (Built-in fan) |
| Power Factor | ≥ 0.98 (> 50% load at 230 V AC) |
≥ 0.99 (> 50% load at 230 V AC) |
| THD | ≤ 5% (> 65% load at 230 V AC) | ≤ 5% (> 50% load at 230 V AC) |
| Monitoring Unit Comparison | ||
| Parameter | SMU11C | SMU11B |
| Signal Input | 5 DI, 1 gate, 1 Temp, 2 battery mid-point voltage detection | |
| Alarm Output | 2 DO (compatible with DI) | |
| Communication Port | CAN, RS485(northbound), RS485(southbound) |
CAN, FE(northbound), RS485(southbound) |
| Display Mode | No LCD, support mobile APP | No LCD, support web |
Component Troubleshooting
Rectifying Rectifier Faults
A rectifier is damaged if either of the following conditions is not met:
l When the rectifier does not communicate with the SMU, the Run indicator on the rectifier is steady on, the Fault indicator is off, and the AC input voltage is around 220 V. The rectifier output is normal.
l The SMU can perform equalized charging, float charging, and current limiting control for the rectifier when the communication cable to the rectifier is correctly connected and communication is established between the rectifier and the SMU.
Rectifying SMU Faults
The common SMU faults are as follows:
l The SMU is faulty, for example, when one of the following occurs: SMU breakdown, startup failure, LCD failure, and keyboard operation failure.
l The SMU does not generate an alarm when a fault occurs.
l The SMU generates an alarm (false alarm) when the system runs properly.
l Communication is interrupted when the SMU monitors the subordinate equipment.
l The SMU fails to control or monitor all the modules when these modules run properly and communications cables are connected properly.
l The SMU fails to monitor and control AC distribution and DC distribution when AC and DC power is distributed normally and communications cables are connected properly.
l Parameters cannot be set or operating information cannot be viewed on the SMU.
