Huawei ETP4890-A2 48V Embedded DC Power System

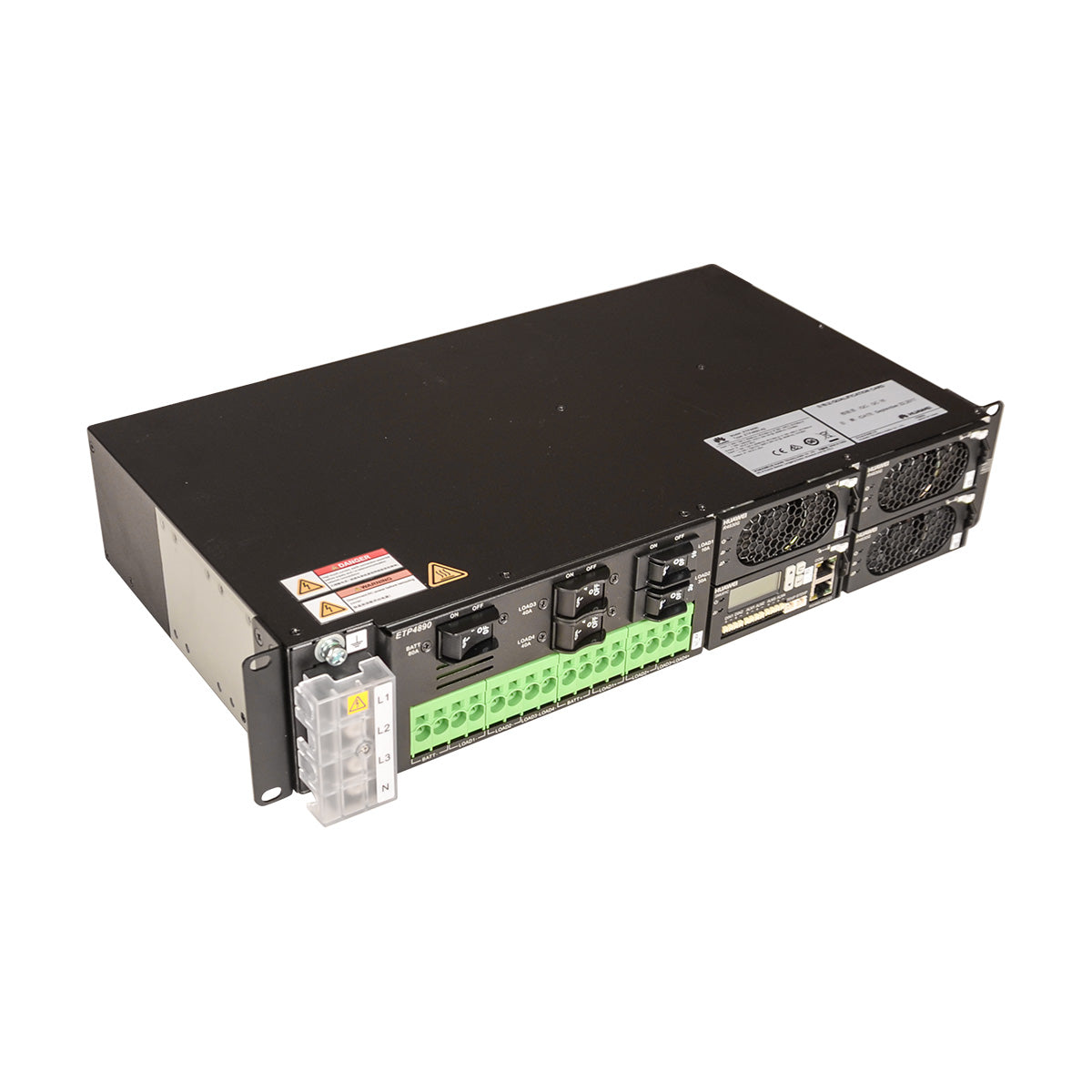

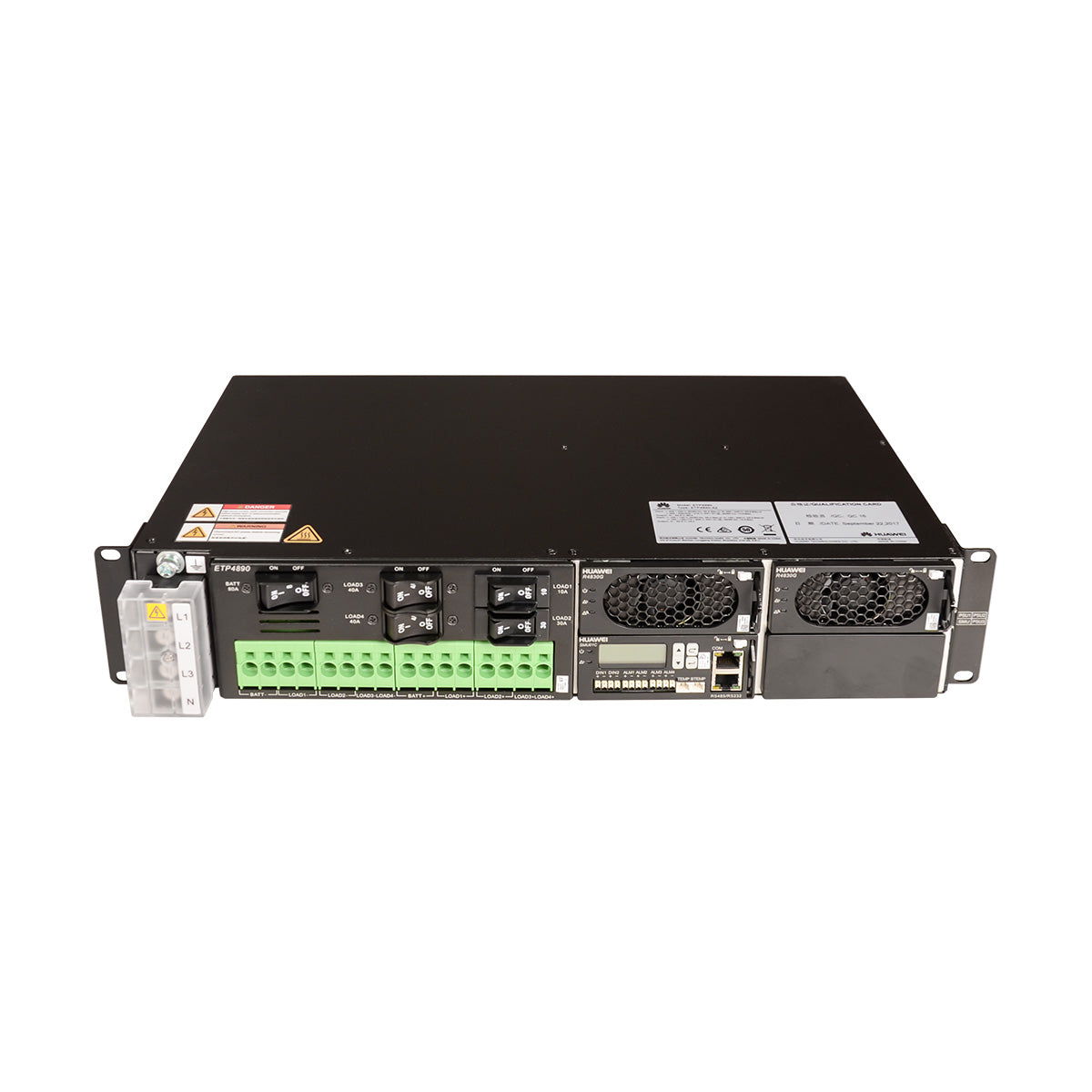

Huawei ETP4890-A2 Embedded Power Overview
The ETP4890-A2 is a box-type 2U power system that supplies power for –48 V DC communications equipment. It uses 15 A or 30 A rectifiers and provides a maximum output current of 90 A.
The site monitoring unit (SMU) performs communication and alarm reporting, monitorsand controls the power system, monitors the environment, and reports faults in a timelymanner.
Monitor module SMU01A, SMU01B, SMU01C are also optional. One SMU01C is configurated by default. The SMU01C connects to the power and environment over YDN protocol and accessnetwork host over master/slave protocols. Both Rectifiers and the SMU are hot-swappable.
ETP4890-A2 is primarily used to supply reliable power to communications equipment such as Huawei OLTs, routers, switches, and transmission systems.
Key Features
- Supports a wide voltage range of 85 V AC to 300 V AC.
- Provides comprehensive battery management.
- The SMU01A communicates with Huawei Network Ecosystem (NetEco) and third-party network management systems (NMSs) over various security protocols, such as the Simple Network Management Protocol (SNMP) and Hypertext Transfer Protocol Secure (HTTPS), featuring flexible networking. It provides WebUI and implements remote unattended management.
- The SMU01B supports Huawei master/slave protocols and access network point-to-point protocols, which allows Huawei access network communications equipment to connect to the U2000.
- Displays information on a liquid crystal display (LCD) and provides buttons for operations.
- Supports electronic labels.
- Rectifiers and the site monitoring unit (SMU) are hot-swappable.
- Allows high-efficiency and standard-efficiency rectifiers with the same capacity to coexist.
Huawei ETP4890-A2 Datasheet
| Item | ETP4890-A2 Configuration | ||
| PDU | AC input | 220 V AC single-phase (default mode) 110 V AC dual-live wire 220/380 V AC three-phase, four-wire |
|
| DC power distribution | Battery circuit breaker | One 1-pole 80 A circuit breaker (BATT) | |
| Load circuit breaker | Two 1-pole 40 A circuit breakers (LOAD3, LOAD4), one 1-pole 30 A circuit breaker (LOAD2), and one 1-pole 10 A circuit breaker (LOAD1) |
||
| SMU | The following SMUs are supported: • One SMU01A • One SMU01B • One SMU01C |
||
| Rectifier |
The following rectifiers are supported: • Two to three R4830G1s • Two to three R4830N2s • Two to three R4815G1s • Two to three R4815N1s NOTE: • The R4830G1 and R4830N2 can be installed together. • The R4815G1 and R4815N1 can be installed together. |
||
| Item | Specification |
| AC Input mode and Voltage | 220 V AC single-phase compatible with |
| 220/380 V AC three-phase, four-wire | |
| Input range: 85 V AC to 300 V AC | |
| (phase voltage) | |
| Rated input: 220 V AC to 240 V AC | |
| (phase voltage) | |
| 110 V AC dual-live-wire | |
| Input range: 85 V AC to 300 V AC | |
| (line voltage) | |
| Rated input: 220 V AC to 240 V AC | |
| (line voltage) | |
| AC Input frequency | 45–66 Hz (rated frequency: 50/60 Hz) |
| Power factor | ≥ 0.99 (rated load) |
| Input voltage frequency | 45 Hz to 65 Hz |
| DC Output voltage range | -42 V DC- -58 V DC |
| Maximum output power (W) | 4800 |
| Surge protection capability | For AC power ports, |
| Differential mode:5 kA | |
| Common mode: 5 kA | |
| Dimension (mm) | 442(W)×255(D)×86.1(2U,H) |
| Weight (kg) | ≤10 (fully loaded) |
| Operating temperature | -40ºC to +70ºC |
| Operating humidity | 5%–95% RH (non-condensing) |
| Storage humidity | 5%–95% RH (non-condensing) |
