Huawei  ETP4890-B3A2 Overview
ETP4890-B3A2 90A AC/DC converter, with 3*30A rectifier module, 1 monitoring module, 8 LOAD, 2 BATT

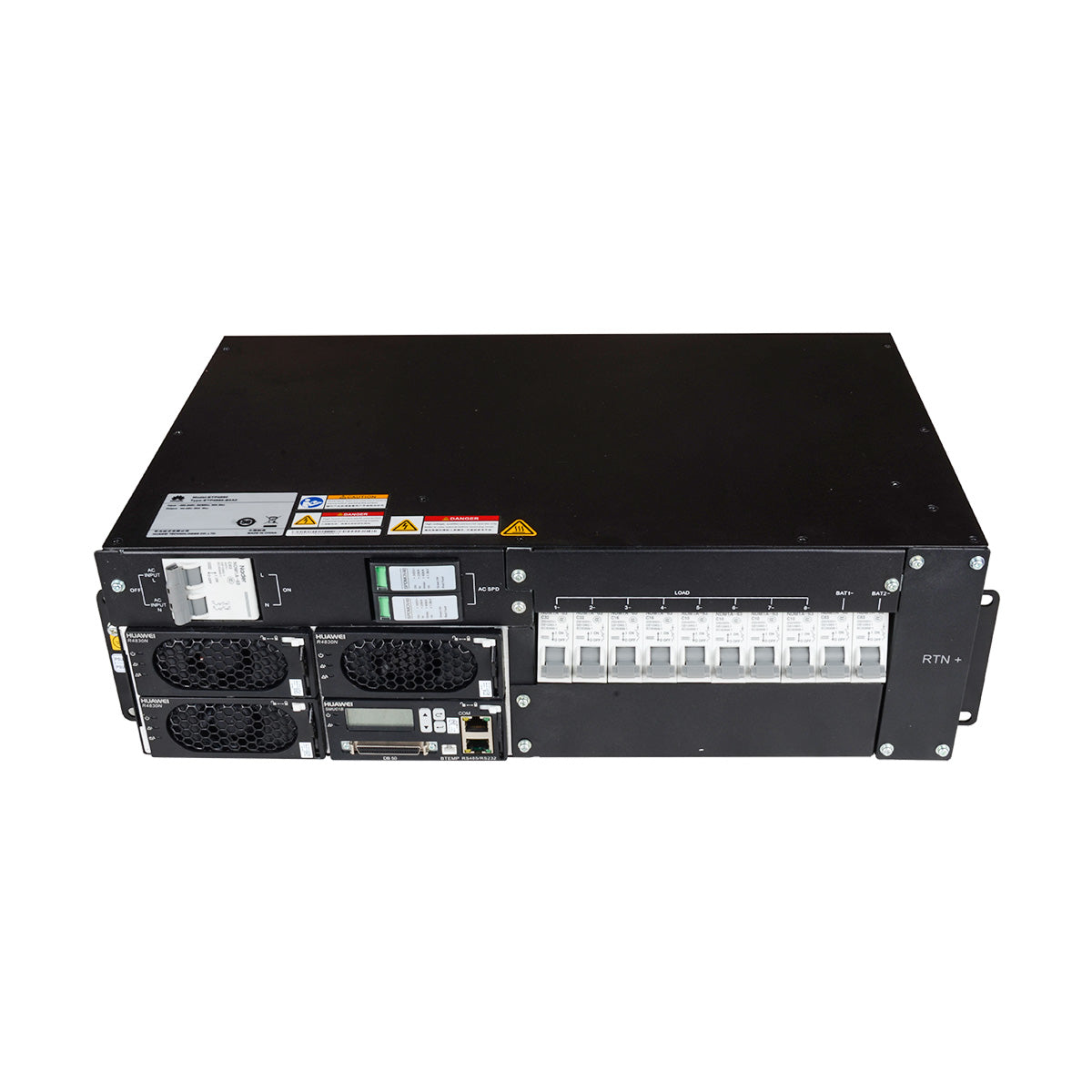

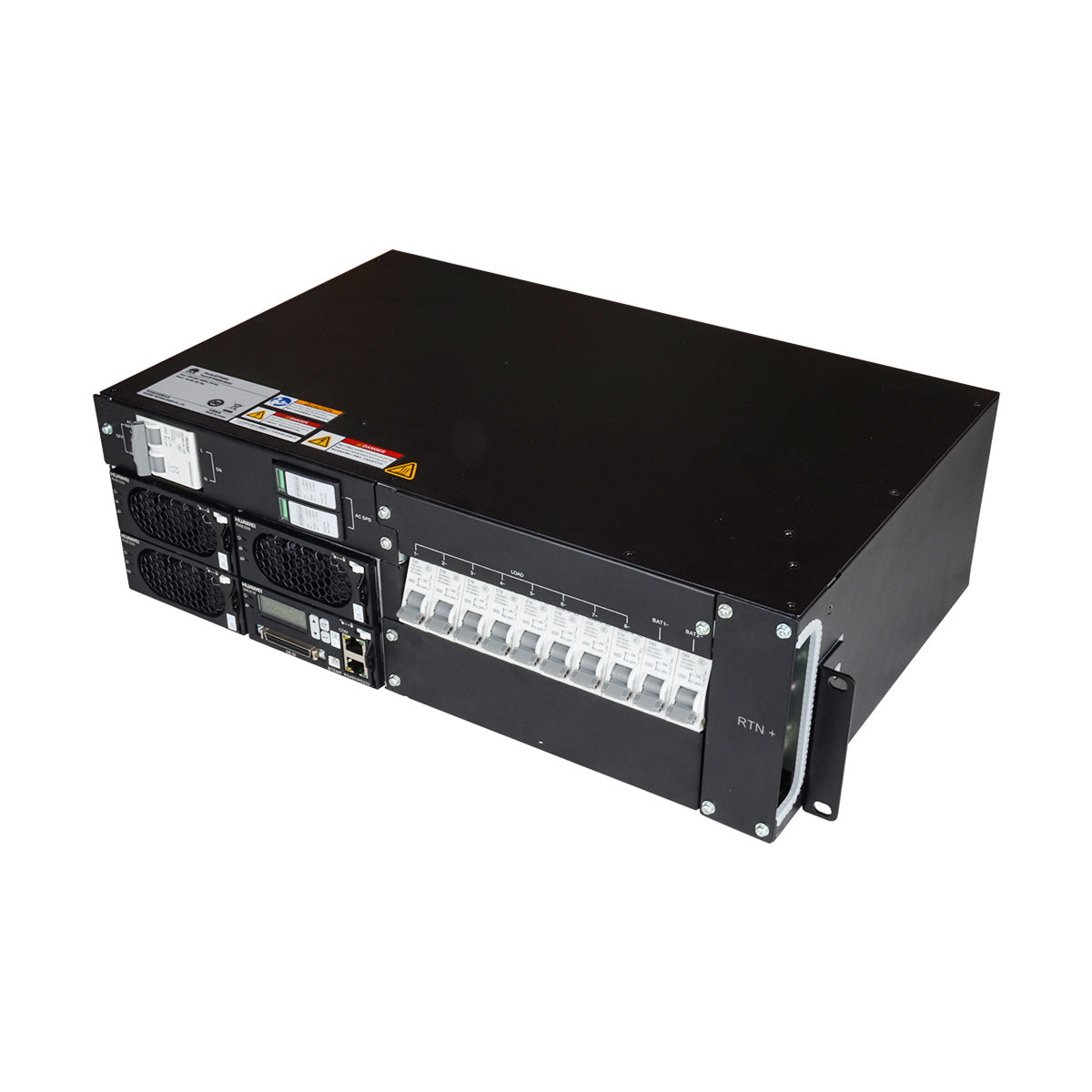

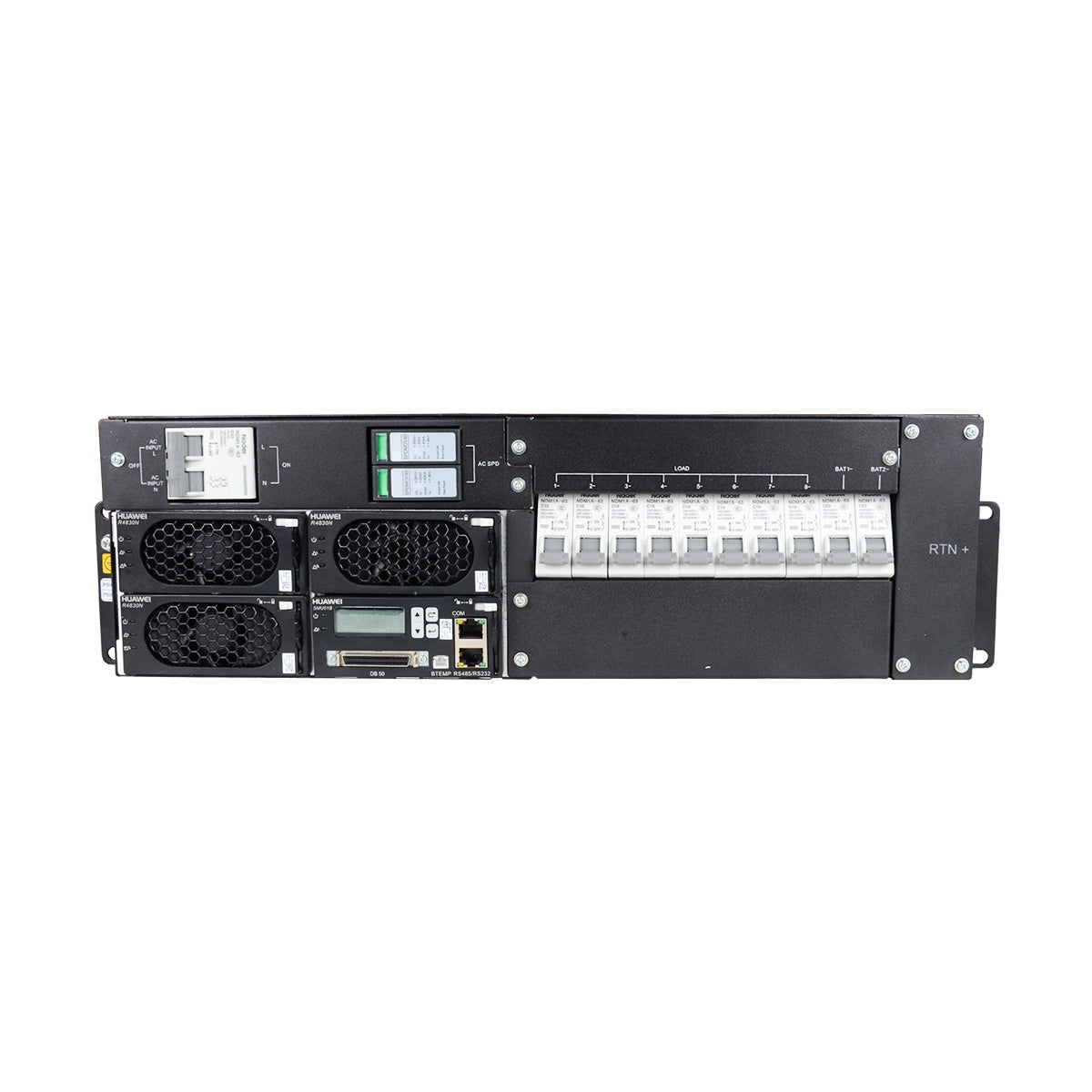

ETP4890-B3A2 is an embedded 3U telecom power system that supplies power to -48 V DC communications equipment with a maximum current of 90A.

ETP4890-B3A2 has three rectifier slots, supporting a maximum of three R4830G1, or R4830N2 rectifier. One SMU01C is configurated by default.

The site monitoring unit (SMU) performs communication and alarm reporting, monitorsand controls the power system, monitors the environment, and reports faults in a timelymanner.

The SMU01C connects to the power and environment over YDN protocol and accessnetwork host over master/slave protocols. Both Rectifiers and the SMU are hot-swappable

ETP4890-B3A2 is primarily used to supply reliable power to communications equipment such as Huawei OLTs, routers, switches, and transmission systems.


Figure 1: ETP4890-B3A2 Model Name Description


Key Features

  • Reliable -48V DC Power Supply – Converts AC input power into stable DC power for telecom equipment, with a maximum output current of 90A.

  • High Power Capacity – Delivers up to 4,815W of output power to support demanding telecom applications.

  • Wide AC Input Voltage Range – Supports 85–300V AC input for flexible deployment in different power environments.

  • Intelligent Monitoring & Alarms – The SMU monitoring unit monitors system operating status and reports faults and alarms in a timely manner.

  • Hot-Swappable Modules – Supports hot-swapping of rectifier modules and the monitoring unit for easier maintenance.

  • Comprehensive Battery Management – Supports battery connection and monitoring to help maintain power continuity during AC power interruptions.

  • High Power Factor – Power factor of up to 0.99 for efficient power utilization.

  • Compact 3U Design – Space-efficient form factor suitable for telecom equipment cabinets.

  • Wide Application Compatibility – Suitable for Huawei OLTs, routers, switches, and optical transmission equipment


Huawei ETP4890-B3A2 Datasheet
Item Specification
Input ~200~240V, 50/60Hz, 30A Max
Output -48V, 90A Max
Input voltage frequency 50 Hz to 60 Hz
Maximum output power (W) 4815
Dimension (mm) 500(W)×370(D)×215(3U,H)
Weight (kg) ≤15 (fully loaded)
