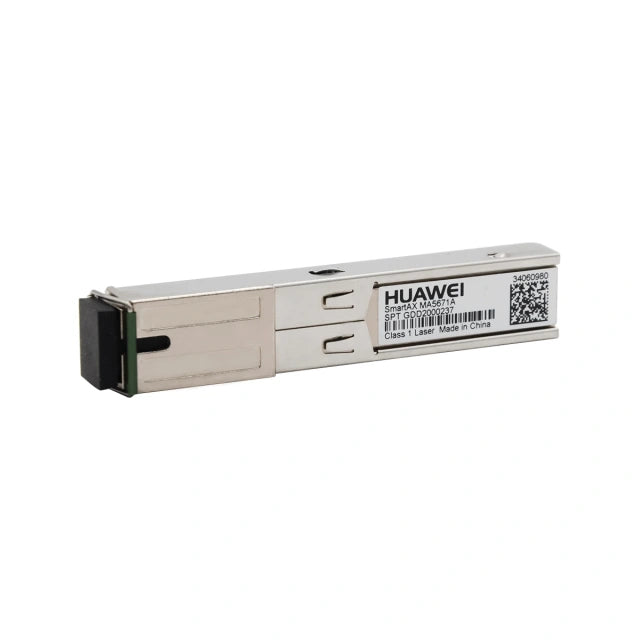

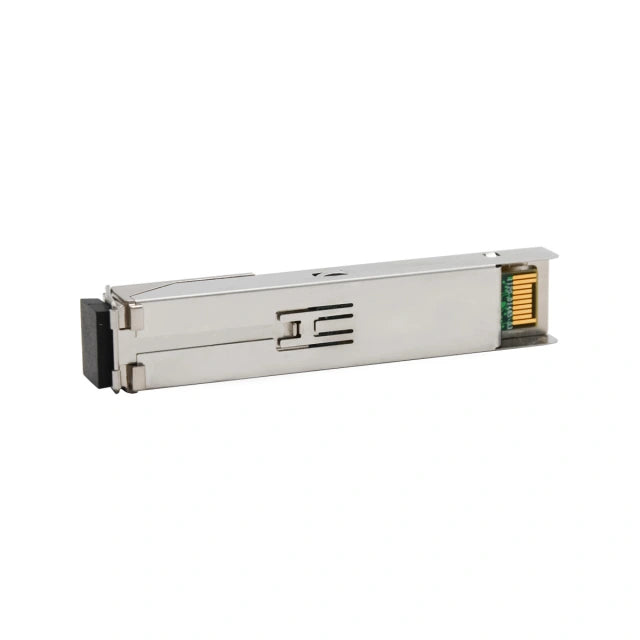

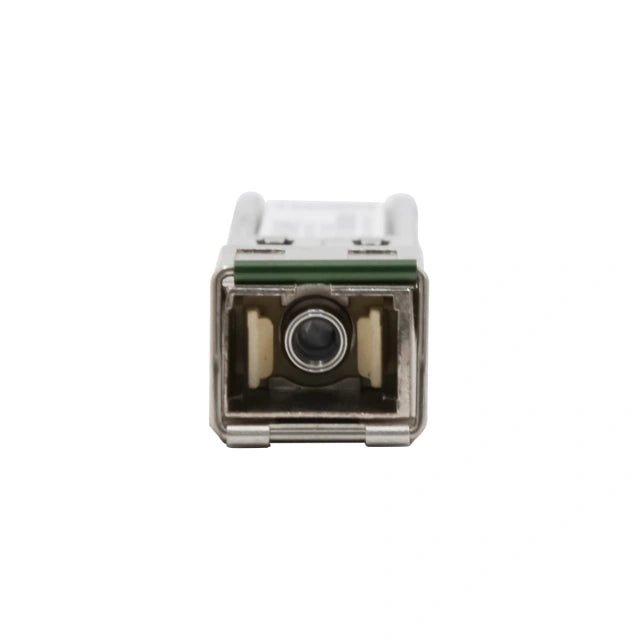

GPON MA5671A ONU SFP Introduction
The MA5671A is a mini-PON access device developed by Huawei dedicated for the radio bearer solution. It applies to PON network reconstruction for switches and routers and wireless base station backhaul.
GPON MA5671A ONU SFP Datasheet
Specifications | ||
Optical Port Indicators | ||
Parameter | Value | |
Transmission rate | TX: 1.244 Gbit/s RX: 2.488 Gbit/s |
|
Standard compliance | ITU-T G.984 | |
Connector type | SC/APC | |
Maximum transmission distance |
20 km | |
RX sensitivity | ≤ - 27 dBm | |
Overload optical power | ≥ - 8 dBm | |
TX optical power | 0.5 dBm to 5.0 dBm | |
Extinction ratio (ER) | ≥ 10 dB | |
Tburst_on duration | ≤12.8 ns | |
Tburst_off duration | ≤12.8 ns | |
Average shutdown optical power |
≤ -45 dBm | |
-20 dB spectral width | ≤ 1 nm | |
SMSR | ≥30 dB | |
TX wavelength range | 1290 nm to 1330 nm | |
TX laser type | DFB | |
RX wavelength rage | 1480 nm to 1500 nm | |
RX PD type | APD | |
Electrical Port Indicators | ||
Parameter | Value | |
Interface type | SGMII | |
Interface bandwidth | 1 GE/2.5 GE | |
TX-end input level standard | CML | |
TX-end electrical port coupling mode | DC | |
TX-end differentiated input signal swing |
200 mV to 1600 mV | |
TX enabling voltage |
2-3.3 V (disabled) ≤ 0.8 (enabled) |
|
Ttxdisable_on duration of the TX_Disable module | ≤ 2 ms | |
Ttxdisable_off duration of the TX_Disable module |
≤ 100 us | |
RX+/- output level standard |
CML | |
RX+/- output coupling mode |
AC | |
RX+/- output signal swing |
300 mV to 1200 mV | |
IIC interface rate |
≤ 90 kHz |
|
LOS Assert | ≥ -45 dBm | |
LOS De assert | ≤ -29 dBm | |
Power Consumption | ||
Power Consumption | ≤ 2. 0 W | |
Power Supply Voltage |
+3.3 V DC (ripple and noise ≤ 100mV) |
|
Power Supply Current |
≤ 610 mA TX VCC ≤ 500 mA RX VCC ≤ 500 mA |
|
Mechanical Specifications | ||
Dimensions | 12.5 mm72 mm14.1 mm | |
Weight |
(With fiber caps): 19 g (Without fiber caps): 18 g |
