Huawei H902GPHF Board Overview

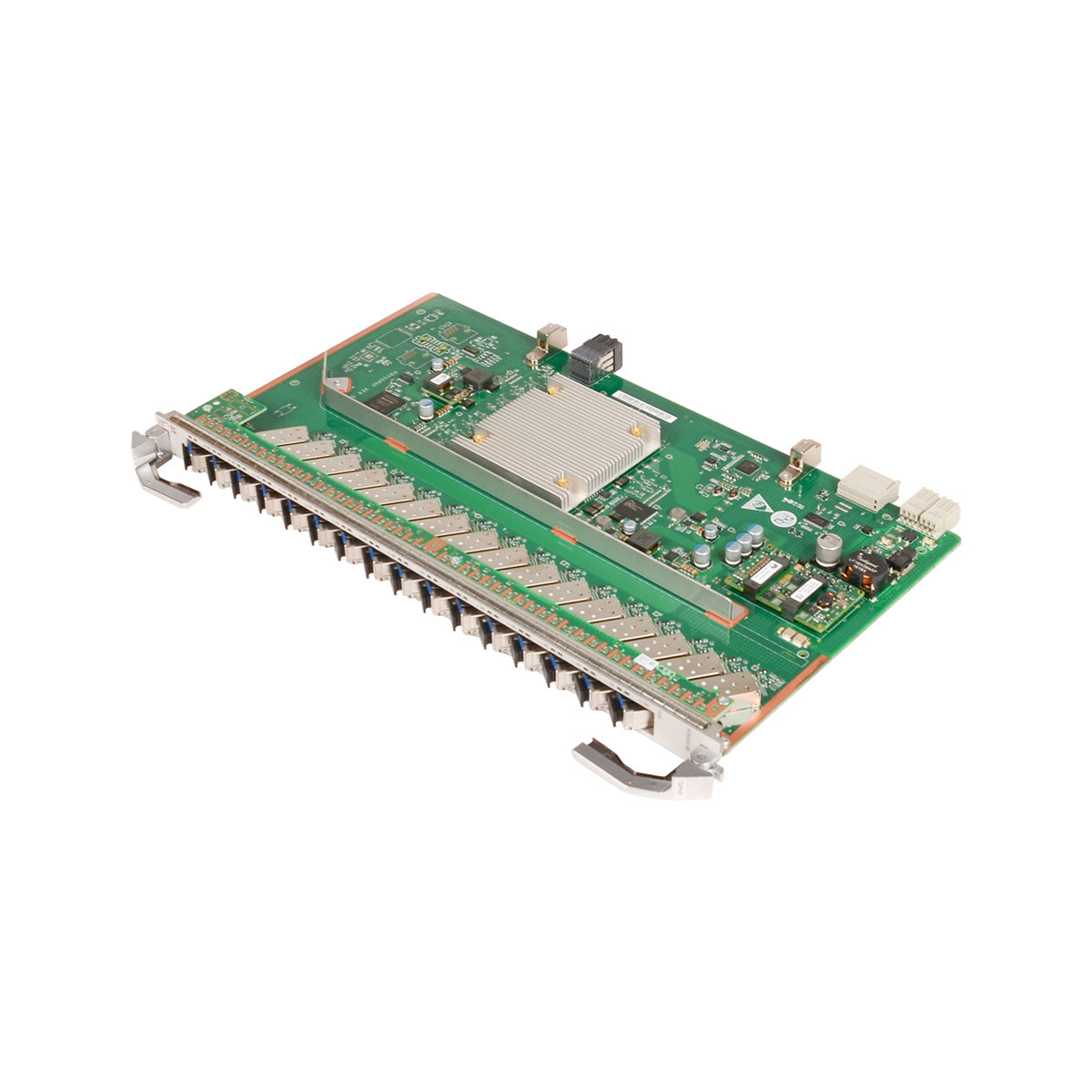

The H902GPHF board is a 16-port GPON interface board applied to the Huawei MA5800 series OLT MA5800-X2/MA5800-X7/MA5800-X15/MA5800-X17. It works with the optical network unit (ONU) to provide GPON access services.
The H902GPHF card will come with 16pcs C+ module by default or you can choose to come with C++/B+ module.
Technical Specifications of Huawei H902GPHF Board
| Specification | H901GPHF/H902GPHF | H901GPSF |
| Application scenario | FTTC/B/D, D-CCAP, FTTH, and FTTO/FTTM | FTTH |
| Port quantity | 16 | 16 |
| Forwarding capability | 40 Gbit/s | 40 Gbit/s |
| Port rate | Upstream: 1.244 Gbit/s | Upstream: 1.244 Gbit/s |
| Downstream: 2.488 Gbit/s | Downstream: 2.488 Gbit/s | |
| Maximum split ratio | 1: 128 | 1: 128 |
| ONU-based shaping | Yes | Yes |
| Controlled optical signal transmission of the optical module | Yes | Yes |
| Temperature query and high temperature alarm | Yes | Yes |
| Automatic shutdown at high temperature | Yes | Yes |
| Energy conservation for service boards | Yes | Yes |
| Maximum distance difference between 2 ONUs under the same PON port | 40 km | 40 km |
| MAC address table size | 131072 | 16384 |
| Downstream FEC | Yes | Yes |
| Upstream FEC | Yes | Yes |
| Rogue ONT detection and isolation | Yes | Yes |
| Assured bandwidth | 1238784 kbit/s | 1238784 kbit/s |
| T-CONTs per GPON port | 1024 | 1024 |
| ONUs per GPON port | 128 | 128 |
| GEM ports per board | 16384 | 16384 |
| GEM ports per GPON port | 3872 | 3872 |
| Service flows per board | 16368 | 16368 |
| 9216-byte jumbo frames | Yes | No |
| Routes/ARP table size | 196608 | 65536 |
| 1588v2 | Yes | No |
| NTP | Yes | Yes |
| HQoS | Yes | No |
| Security (Anti-DoS, Anti-MAC/IP Spoofing) | Yes | Yes |
| Y.1731 PM | Yes | No |
| PON ISSU | Yes | Yes |
| D-CCAP | Yes | No |
| GPON type B protection (single homing) | Yes | Yes |
| GPON type B protection (dual homing) | Yes | No |
| GPON Type C protection (single homing) | Yes | Yes |
| GPON type C protection (dual homing) | Yes | No |
| Power budget per GPON port | Class B+ (28.5 dB, most common), | |
| Class C+ (32 dB, long reach transmission) | ||
| Class C++: 35 dB | ||
| Bandwidth per T-CONT | 1 Mbit/s (in the minimum delay mode) | |
| 128 kbit/s (in the maximum bandwidth usage mode) | ||
Mapping between MA5800 OLT boards and software versions
| BoardName | Software Versions Supported by This Board | Life Cycle Status | Substitution Relationship | |
| MA5800-X17/X15/X7 | MA5800-X2 | |||
| Control board | ||||
| H901MPLA | All versions | N/A | N/A | Replaceable with the H902MPLA board |
| H902MPLA | V100R017C00SPC207 | N/A | N/A | N/A |
| V100R017C10 and later versions | ||||
| H901MPLB | All versions | N/A | N/A | N/A |
| H901MPSC | N/A | V100R017C10 and later versions | N/A | N/A |
| H901MPLE | V100R019C10 and later versions | N/A | N/A | N/A |
| Upstream interface board | ||||
| H901NXED | All versions | V100R016C00SPC105 and later versions | N/A | Replaceable with the H901OXEG |
| Universal interface board | ||||
| H901CIUA | All versions | N/A | N/A | Replaceable with the H902CIUA board |
| Power interface board | ||||
| H901PILA | All versions | N/A | N/A | Replaceable with the H902PILA board |
| H901PISA | N/A | V100R017C10 and later versions | N/A | N/A |
| H901PISB | N/A | V100R017C10 and later versions | N/A | N/A |
| GPON interface board | ||||
| H901GPHF | All versions | V100R016C00SPC105 and later versions | N/A | Replaceable with the H901CSHF/H901CGHF/H902GPHF/H902CSHF board |
| H901GPSF | V100R016C00 and later versions | V100R016C00SPC105 and later versions | N/A | Replaceable with the H901GPHF/H901CGHF/H901CSHF/H902GPHF/H902CSHF board |
| XG-PON interface board | ||||
| H901XGHD | All versions | V100R016C00SPC105 and later versions | N/A | Replaceable with the H901XSHF/H902XSHD board |
| H901XGSF | V100R016C00-V100R017C10 | N/A | Replaceable with the H901XSHF board | |
| V100R018C00 and later versions | ||||
| XGS-PON interface board | ||||
| H901TWED | V100R017C00 and later versions | N/A | Replaceable with the H902TWHD board | |
| H901XSHF | V100R018C00-V100R018C10 | N/A | N/A | |
| V100R019C00 and later versions | ||||
| H902XSHD | V100R017C10-V100R019C00 | N/A | Replaceable with the H901XSHF board | |
| V100R019C10 and later versions | ||||
| H902TWHD | V100R018C00-V100R019C00 | N/A | N/A | |
| V100R019C10 and later versions | ||||
| PON Combo interface board | ||||
| H901CGID | V100R018C00 and later versions | N/A | Replaceable with the H901CGHF/H902CGHD/H902CSHD board | |
| H901CGHF | V100R018C00SPH313 | N/A | N/A | |
| V100R018C10SPH108 | ||||
| V100R019C00 and later versions | ||||
| H901CSHF | V100R018C00SPH313 | N/A | Replaceable with the H902CSHF board | |
| V100R018C10SPH108 | ||||
| V100R019C00 and later versions | ||||
| H902CGHD | V100R018C00-V100R019C00 | N/A | Replaceable with the H901CGHF/H902CSHD board | |
| V100R019C10 and later versions | ||||
| H902CSHD | V100R018C00-V100R019C00 | N/A | Replaceable with the H901CSHF/H902CSHF board | |
| V100R019C10 and later versions | ||||
| Flex-PON interface board | ||||
| H901FLHF | V100R019C00 and later versions | N/A | N/A | |
| TDM service processing board | ||||
| H901EDSH | V100R016C00 and later versions | V100R016C00SPC105 and later versions | N/A | N/A |
| GE/FE optical interface board | ||||
| H901OGHK | All versions | V100R016C00SPC105 and later versions | N/A | N/A |
| 10GE/GE optical interface board | ||||
| H901OXHD | All versions | V100R016C00SPC105 and later versions | N/A | Replaceable with the H901OXEG board |
| H901OXEG | V100R018C00 and later versions | N/A | N/A | N/A |
| IP backhaul service board | ||||
| H902CRED | V100R019C00 | N/A | N/A | N/A |
| V100R019C10 and later versions | ||||
| FAN monitoring board | ||||
| H901FMLA | All versions | N/A | N/A | N/A |
| H901FMMA | V100R016C00 and later versions | N/A | N/A | N/A |
| H901FMSA | N/A | V100R017C10 and later versions | N/A | N/A |
