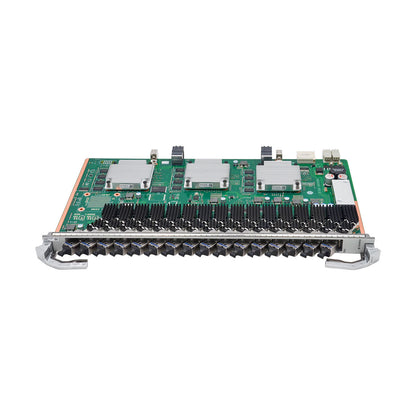

Huawei H906CGHF Board

Regular price $0.00
Regular price Sale price $0.00
Regular price $0.00
Regular price Sale price $0.00

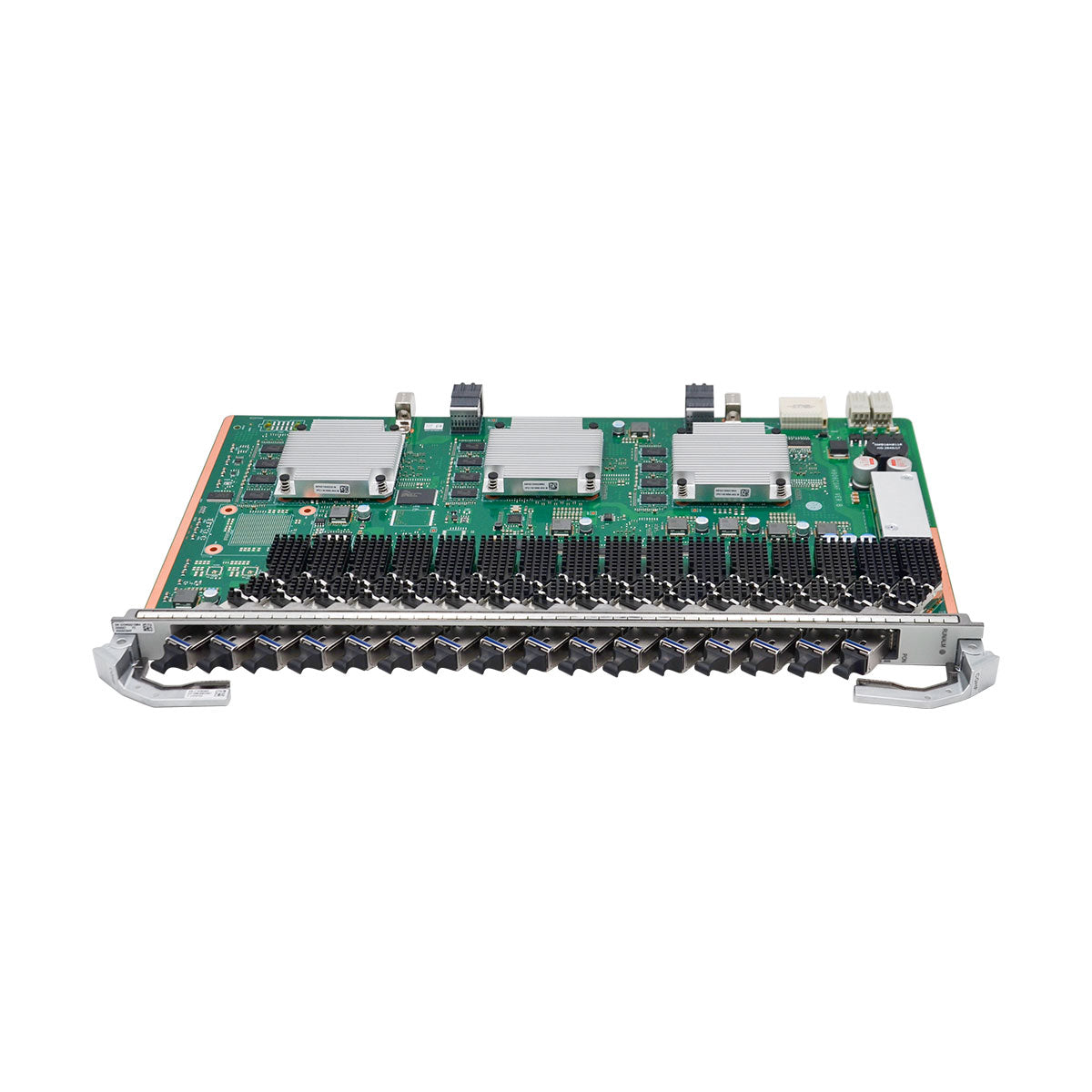

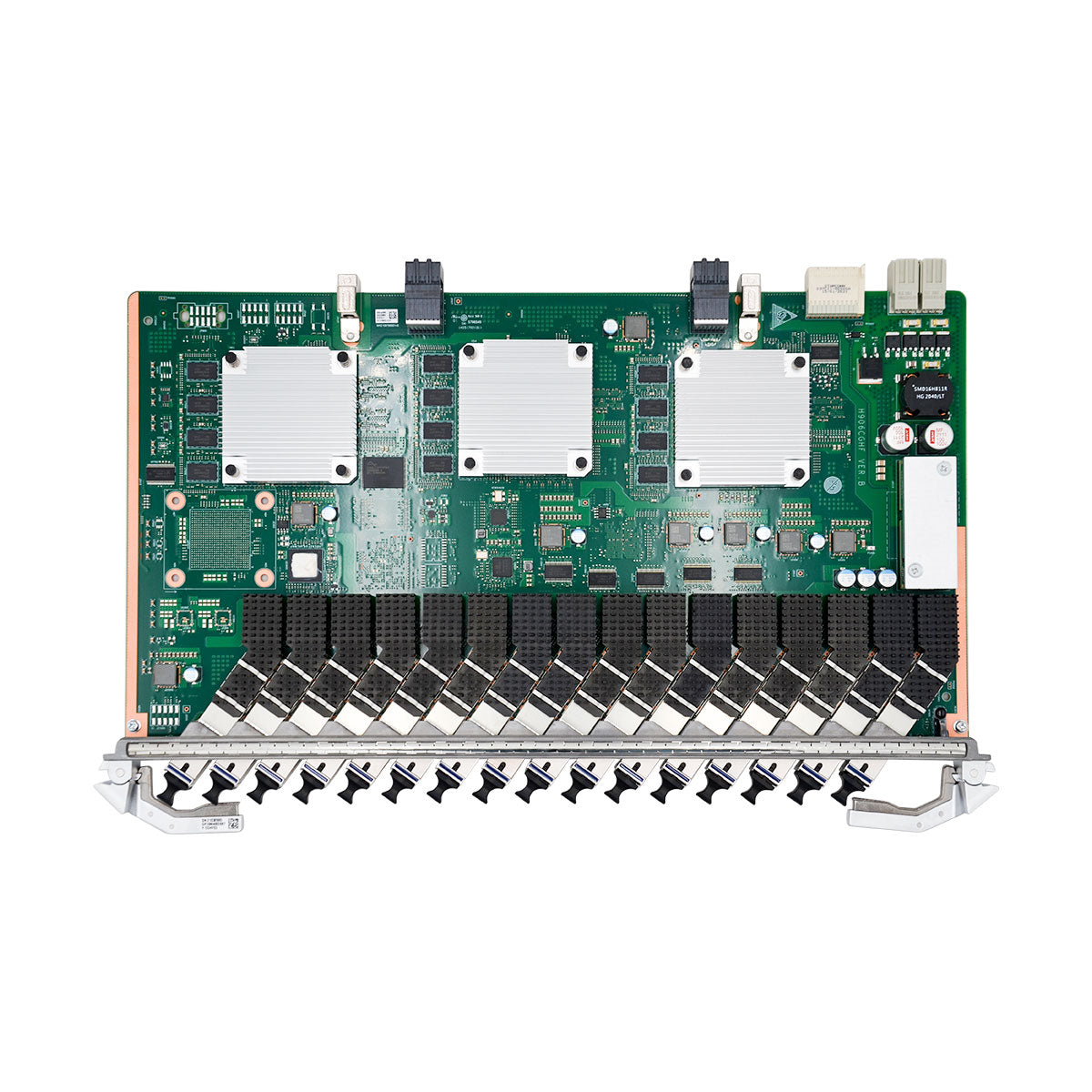

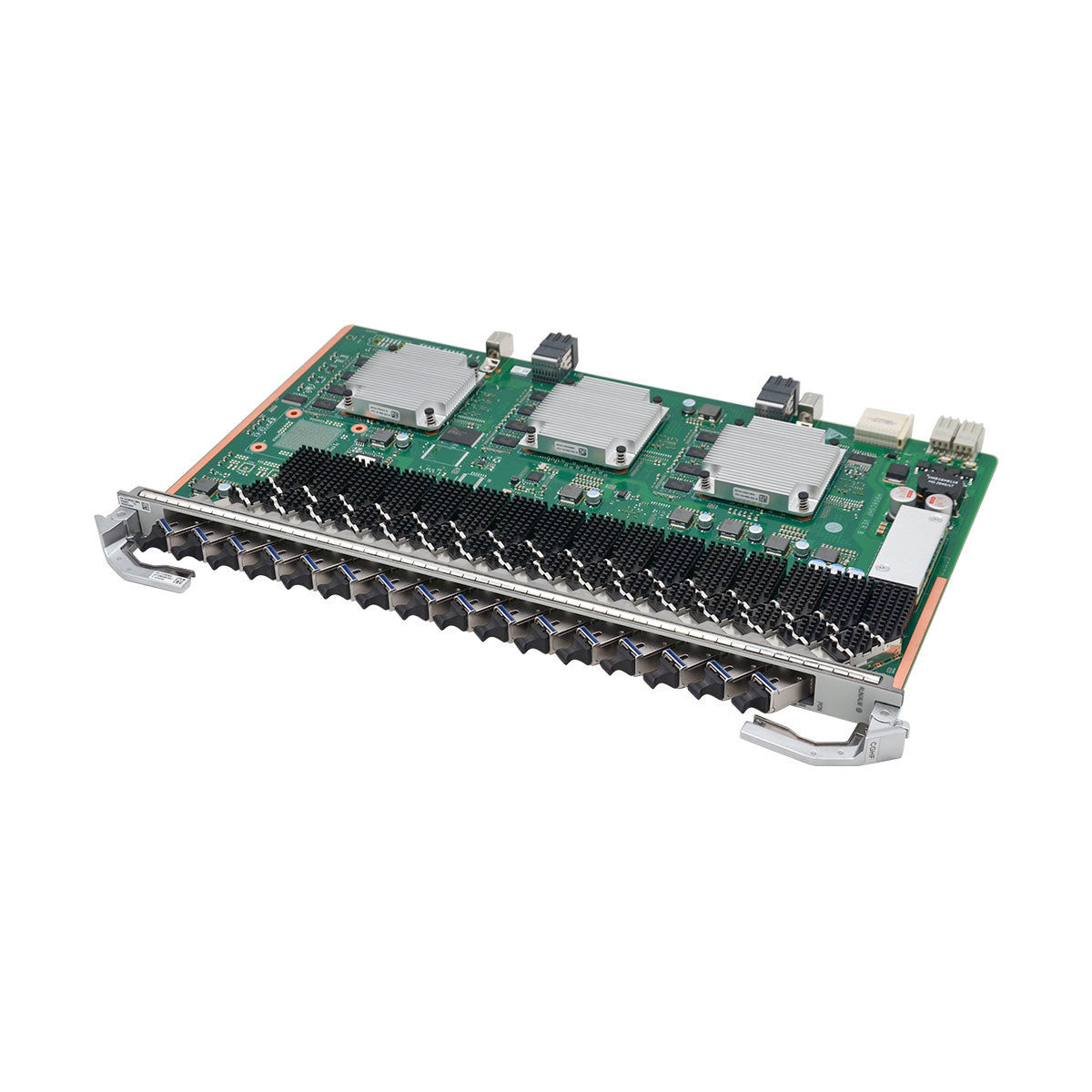

Huawei H906CGHF Board Overview

The H906CGHF board is a 16-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

H906CGHF can be applied to the Huawei MA5800 series OLT MA5800-X2/MA5800-X7/MA5800-X15/MA5800-X17

16* XGPON & GPON ports (SFP+) Max. split radio: 1:256

The H906CGHF card will come with 16pcs N2a module by default or you can choose to come with D1 module.

H906CGHF application scenario table

Technical Specifications of Huawei H906CGHF Board
Specification
Service ports
GPON Port 16 XG-PON & GPON ports
GPON SFP+ Module Specification
Type One-fiber bi-directional optical module
Operating Wavelength GPON channel:
Tx: 1490 nm
Rx: 1310 nm
XG-PON channel:
Tx: 1577 nm
Rx: 1270 nm
Encapsulation Type SFP+
Port Rate GPON channel:
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XG-PON channel:
Tx: 9.953 Gbit/s
Rx: 2.488 Gbit/s
Minimum Output Optical Power GPON channel: 3 dBm
XG-PON channel: 4 dBm
Maximum Output Optical Power GPON channel: 7 dBm
XG-PON channel: 8 dBm
Maximum Receiver Sensitivity GPON channel: -32 dBm
XG-PON channel: -29.5 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power GPON channel: -12 dBm
XG-PON channel: -9 dBm
Extinction Ratio 8.2 dB
Function
Forwarding capability 200 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON port GPON: 1024
XG-PON: 2048
Service flows per PON board 16352
Maximum frame size 2052 bytes
9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUs under the same PON port 40 km
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 48 W
Maximum: 106 W
Operating temperature -40°C to +65°C
XG-PON&GPON Combo PON Optical Module (SFP+)

Type

One-fiber bidirectional optical module, D1

One-fiber bidirectional optical module, N2a

No.

1

2

Operating Wavelength

  • GPON channel:
    • Tx: 1490 nm
    • Rx: 1310 nm
  • XG-PON channel:
    • Tx: 1577 nm
    • Rx: 1270 nm
  • GPON channel:
    • Tx: 1490 nm
    • Rx: 1310 nm
  • XG-PON channel:
    • Tx: 1577 nm
    • Rx: 1270 nm

Encapsulation Type

SFP+

SFP+

Port Rate

  • GPON channel:
    • Tx: 2.488 Gbit/s
    • Rx: 1.244 Gbit/s
  • XG-PON channel:
    • Tx: 9.953 Gbit/s
    • Rx: 2.488 Gbit/s
  • GPON channel:
    • Tx: 2.488 Gbit/s
    • Rx: 1.244 Gbit/s
  • XG-PON channel:
    • Tx: 9.953 Gbit/s
    • Rx: 2.488 Gbit/s

Minimum Output Optical Power

  • GPON channel: 1.5 dBm
  • XG-PON channel: 1 dBm
  • GPON channel: 3 dBm
  • XG-PON channel: 4 dBm

Maximum Output Optical Power

  • GPON channel: 5 dBm
  • XG-PON channel: 6 dBm
  • GPON channel: 7 dBm
  • XG-PON channel: 8 dBm

Maximum Receiver Sensitivity

  • GPON channel: -28 dBm
  • XG-PON channel: -26.5 dBm
  • GPON channel: -32 dBm
  • XG-PON channel: -29.5 dBm

Optical Connector Type

SC

SC

Optical Fiber Type

Single-mode

Single-mode

Overload Optical Power

  • GPON channel: -8 dBm
  • XG-PON channel: -7 dBm
  • GPON channel: -12 dBm
  • XG-PON channel: -9 dBm

Extinction Ratio

8.2 dB

8.2 dB


Mapping between MA5800 OLT boards and software versions
BoardName Software Versions Supported by This Board Life Cycle Status Substitution Relationship
MA5800-X17/X15/X7 MA5800-X2
Control board
H901MPLA All versions N/A N/A Replaceable with the H902MPLA board
H902MPLA V100R017C00SPC207 N/A N/A N/A
V100R017C10 and later versions
H901MPLB All versions N/A N/A N/A
H901MPSC N/A V100R017C10 and later versions N/A N/A
H901MPLE V100R019C10 and later versions N/A N/A N/A
Upstream interface board
H901NXED All versions V100R016C00SPC105 and later versions N/A Replaceable with the H901OXEG
Universal interface board
H901CIUA All versions N/A N/A Replaceable with the H902CIUA board
Power interface board
H901PILA All versions N/A N/A Replaceable with the H902PILA board
H901PISA N/A V100R017C10 and later versions N/A N/A
H901PISB N/A V100R017C10 and later versions N/A N/A
GPON interface board
H901GPHF All versions V100R016C00SPC105 and later versions N/A Replaceable with the H901CSHF/H901CGHF/H902GPHF/H902CSHF board
H901GPSF V100R016C00 and later versions V100R016C00SPC105 and later versions N/A Replaceable with the H901GPHF/H901CGHF/H901CSHF/H902GPHF/H902CSHF board
XG-PON interface board
H901XGHD All versions V100R016C00SPC105 and later versions N/A Replaceable with the H901XSHF/H902XSHD board
H901XGSF V100R016C00-V100R017C10 N/A Replaceable with the H901XSHF board
V100R018C00 and later versions
XGS-PON interface board
H901TWED V100R017C00 and later versions N/A Replaceable with the H902TWHD board
H901XSHF V100R018C00-V100R018C10 N/A N/A
V100R019C00 and later versions
H902XSHD V100R017C10-V100R019C00 N/A Replaceable with the H901XSHF board
V100R019C10 and later versions
H902TWHD V100R018C00-V100R019C00 N/A N/A
V100R019C10 and later versions
PON Combo interface board
H901CGID V100R018C00 and later versions N/A Replaceable with the H901CGHF/H902CGHD/H902CSHD board
H901CGHF V100R018C00SPH313 N/A N/A
V100R018C10SPH108
V100R019C00 and later versions
H901CSHF V100R018C00SPH313 N/A Replaceable with the H902CSHF board
V100R018C10SPH108
V100R019C00 and later versions
H902CGHD V100R018C00-V100R019C00 N/A Replaceable with the H901CGHF/H902CSHD board
V100R019C10 and later versions
H902CSHD V100R018C00-V100R019C00 N/A Replaceable with the H901CSHF/H902CSHF board
V100R019C10 and later versions
Flex-PON interface board
H901FLHF V100R019C00 and later versions N/A N/A
TDM service processing board
H901EDSH V100R016C00 and later versions V100R016C00SPC105 and later versions N/A N/A
GE/FE optical interface board
H901OGHK All versions V100R016C00SPC105 and later versions N/A N/A
10GE/GE optical interface board
H901OXHD All versions V100R016C00SPC105 and later versions N/A Replaceable with the H901OXEG board
H901OXEG V100R018C00 and later versions N/A N/A N/A
IP backhaul service board
H902CRED V100R019C00 N/A N/A N/A
V100R019C10 and later versions
FAN monitoring board
H901FMLA All versions N/A N/A N/A
H901FMMA V100R016C00 and later versions N/A N/A N/A
H901FMSA N/A V100R017C10 and later versions N/A N/A
