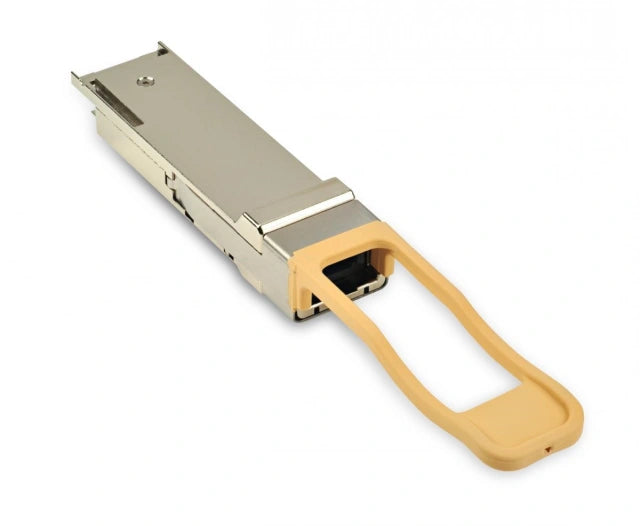

QSFP-40G-eSR4 02313URU Introduction
The HUAWEI QSFP-40G-eSR4 is a high-speed optical transceiver module designed for data centers and high-performance computing networks. It supports 40 Gigabit Ethernet connections and is typically used for short-reach data transmission over multimode fiber (MMF). The "eSR4" designation indicates its extended reach capability, typically up to 300 meters on OM3 fiber or 400 meters on OM4 fiber.
Huawei Original QSFP-40G-eSR4 Modules can be plugged into Huawei switch.
QSFP-40G-eSR4 Target transmission distance [km] 8-strand or 12-strand, type B, female connector
Multimode fiber (OM2) (with diameter of 50 μm): 82 m
Multimode fiber (OM3) (with diameter of 50 μm): 300 m
Multimode fiber (OM4) (with diameter of 50 μm): 400 m
QSFP-40G-eSR4 02313URU Specifications
Item | Parameters |
Basic Information | |
Module name | QSFP-40G-eSR4 |
Part Number | 02313URU |
Model | QSFP-40G-eSR4 |
Form factor | QSFP+ |
Application standard/Type | 40GBASE-eSR4 10GBASE-SR (four lanes) |
Connector type | MPO |
Optical fiber type | MMF |
Type of the end face of the fiber ceramic ferrule | PC or UPC |
Working case temperature [°C (°F)] | 0°C to 70°C (32°F to 158°F) |
DDM options | Supported |
Transmission rate [bit/s] | 40Gbit/s |
Target transmission distance [km] | 8-strand or 12-strand, type B, female connector |
Multimode fiber (OM2) (with diameter of 50 μm): 82 m | |
Multimode fiber (OM3) (with diameter of 50 μm): 300 m | |
Multimode fiber (OM4) (with diameter of 50 μm): 400 m | |
Modal bandwidth [MHz*km] | Multimode fiber (OM2): 500 MHz*km |
Multimode fiber (OM3): 2000 MHz*km | |
Multimode fiber (OM4): 4700 MHz*km | |
Transmitter Optical Characteristics | |
Center wavelength [nm] | 850 nm |
Maximum Tx optical power (AVG) [dBm] | 0.5 dBm |
Minimum Tx optical power (AVG) [dBm] | -7.6 dBm |
Minimum extinction ratio [dB] | 3.0 dB |
Receiver Optical Characteristics | |
Rx sensitivity (OMA) [dBm] | -11.1 dBm |
Overload power (AVG) [dBm] | 2.4 dBm |
