By Huawei

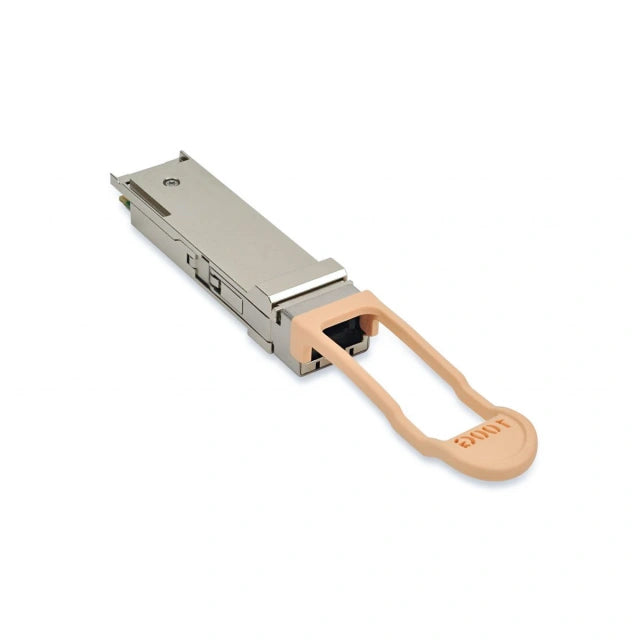

Huawei QSFP28-100G-SR4 100m Modules

Regular price $0.00
Regular price Sale price $0.00
Availability: In stock
SKU: 02311GBW
Regular price $0.00
Regular price Sale price $0.00
QSFP28-100G-SR4 Introduction


The QSFP28-100G-SR4 is a high-speed optical transceiver module designed for short-range data communication. It supports 100 Gigabit Ethernet (100G) over distances of up to 100 meters using multimode fiber (MMF).
Huawei Original QSFP28-100G-SR4 Optical Modules can be plugged into Huawei switch.
MPO/PC (8-strand or 12-strand, type B, female connector)
QSFP28-100G-SR4 Target transmission distance [km]
Multimode fiber (OM3): 70 m
Multimode fiber (OM4): 100 m

QSFP28-100G-SR4 Specifications
Item Parameters
Basic Information
Module name QSFP28-100G-SR4
Part Number 02311GBW
Model QSFP28-100G-SR4
Form factor QSFP28
Application standard 100GBASE-SR4
Connector type MPO/PC (8-strand or 12-strand, type B, female connector)
Optical fiber type MMF
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Digital diagnostic monitoring (DDM) Supported
Transmission rate [bit/s] 100 Gbit/s
Target transmission distance [km] Multimode fiber (OM3): 70 m
Multimode fiber (OM4): 100 m
Transmitter Optical Characteristics
Center wavelength [nm] 850 nm
Maximum Tx optical power [dBm] 2.4 dBm
Minimum Tx optical power [dBm] -8.4 dBm
Minimum extinction ratio [dB] 2 dB
Receiver Optical Characteristics
Rx sensitivity [dBm] -8.5 dBm
Overload power [dBm] 2.4 dBm
