Huawei S5700-28C-EI-24S Switch
Couldn't load pickup availability
S5700-28C-EI-24S Hardware Description
Introduction
S5700-28C-EI-24S with 20*100/1000BASE-X ports, 4*combo ports (10/100/1000BASE-T + 100/1000BASE-X), 2 power module slots, hot-swappable power modules are optional: 2*AC, 2*DC, 1*AC+1*DC, 1*AC or 1*DC.
Huawei S5700 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in extensive enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.
Key Features
20*10/100/1000BASE-X ports
4*combo ports (10/100/1000BASE-T + 100/1000BASE-X)
Memory (RAM) 256MB
Flash 32MB

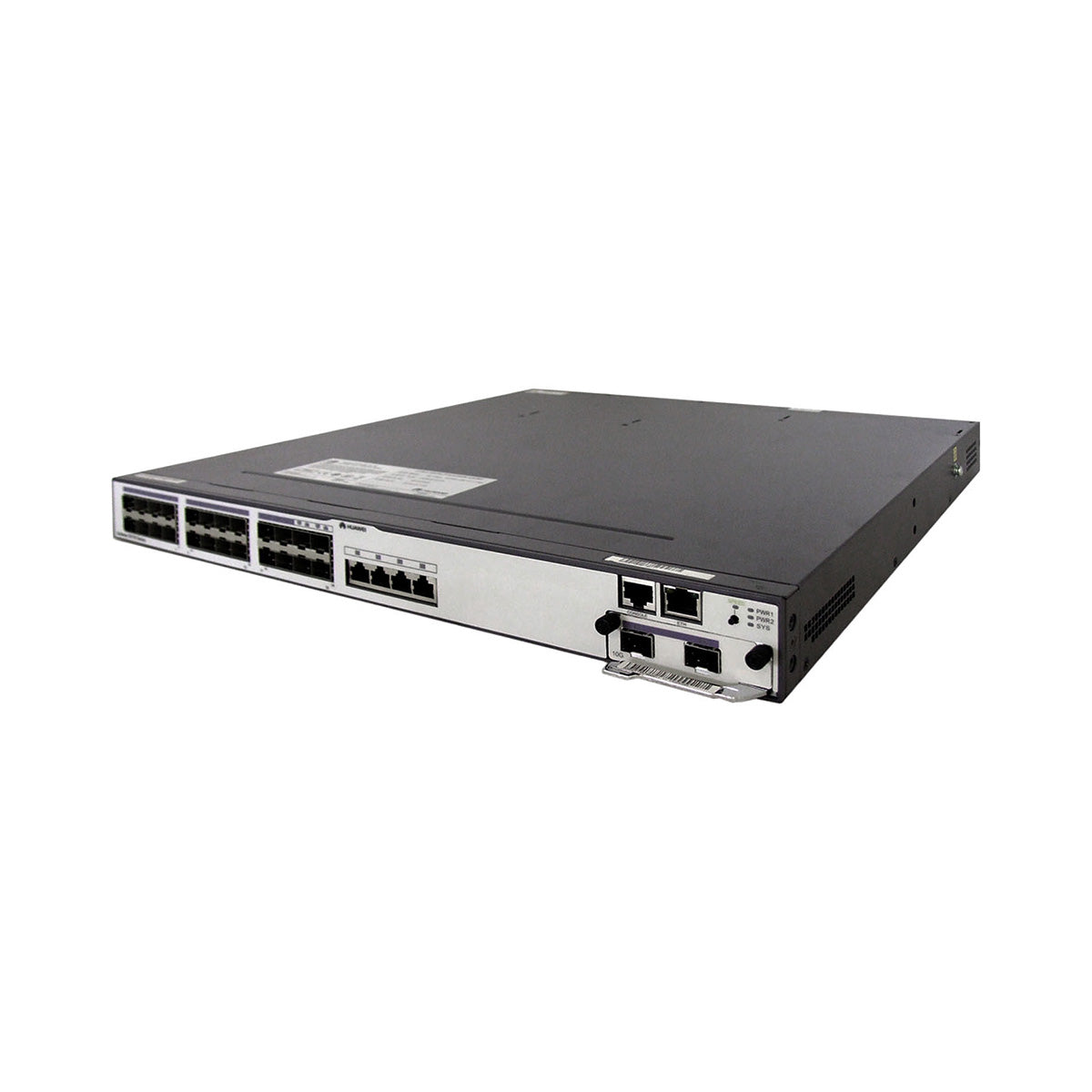

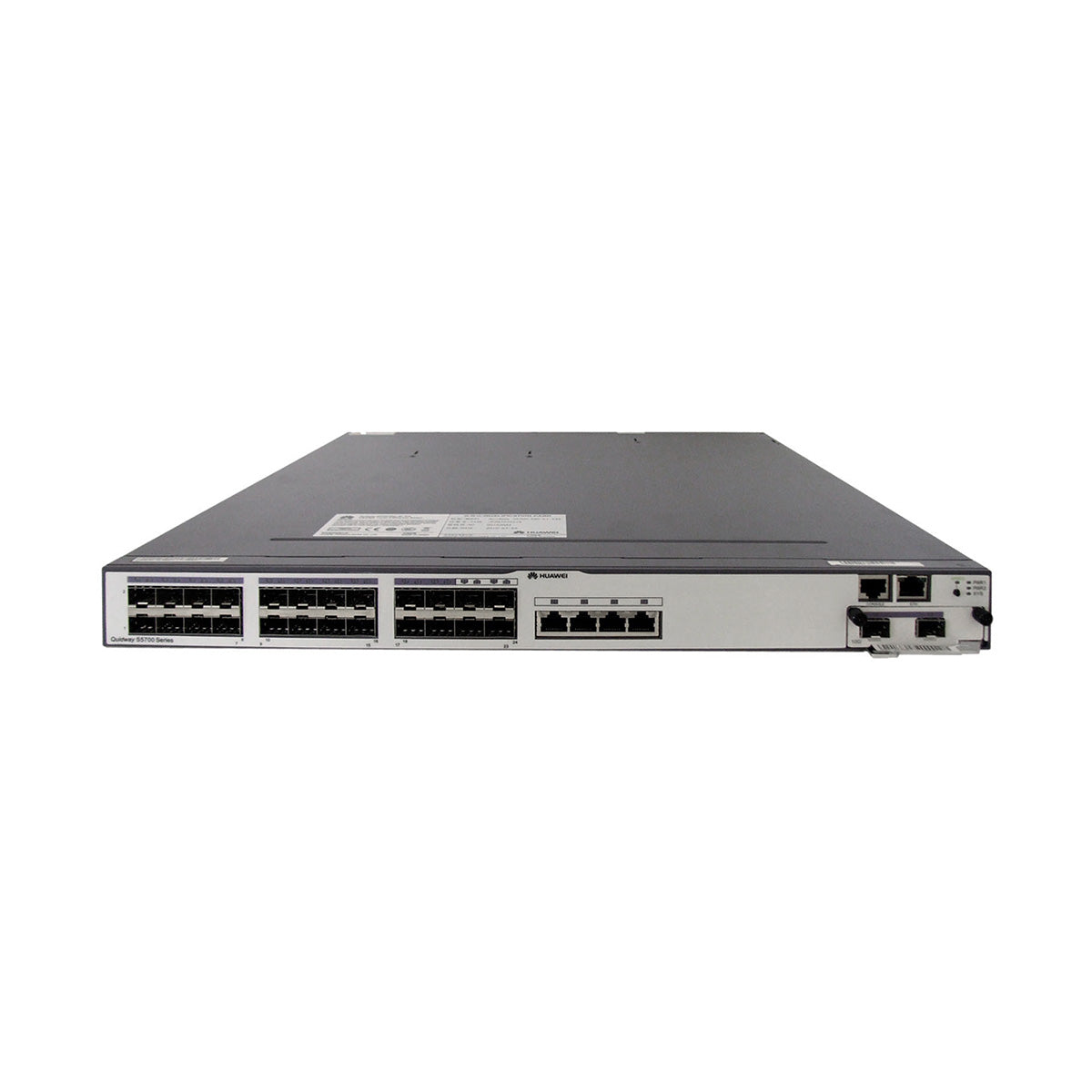

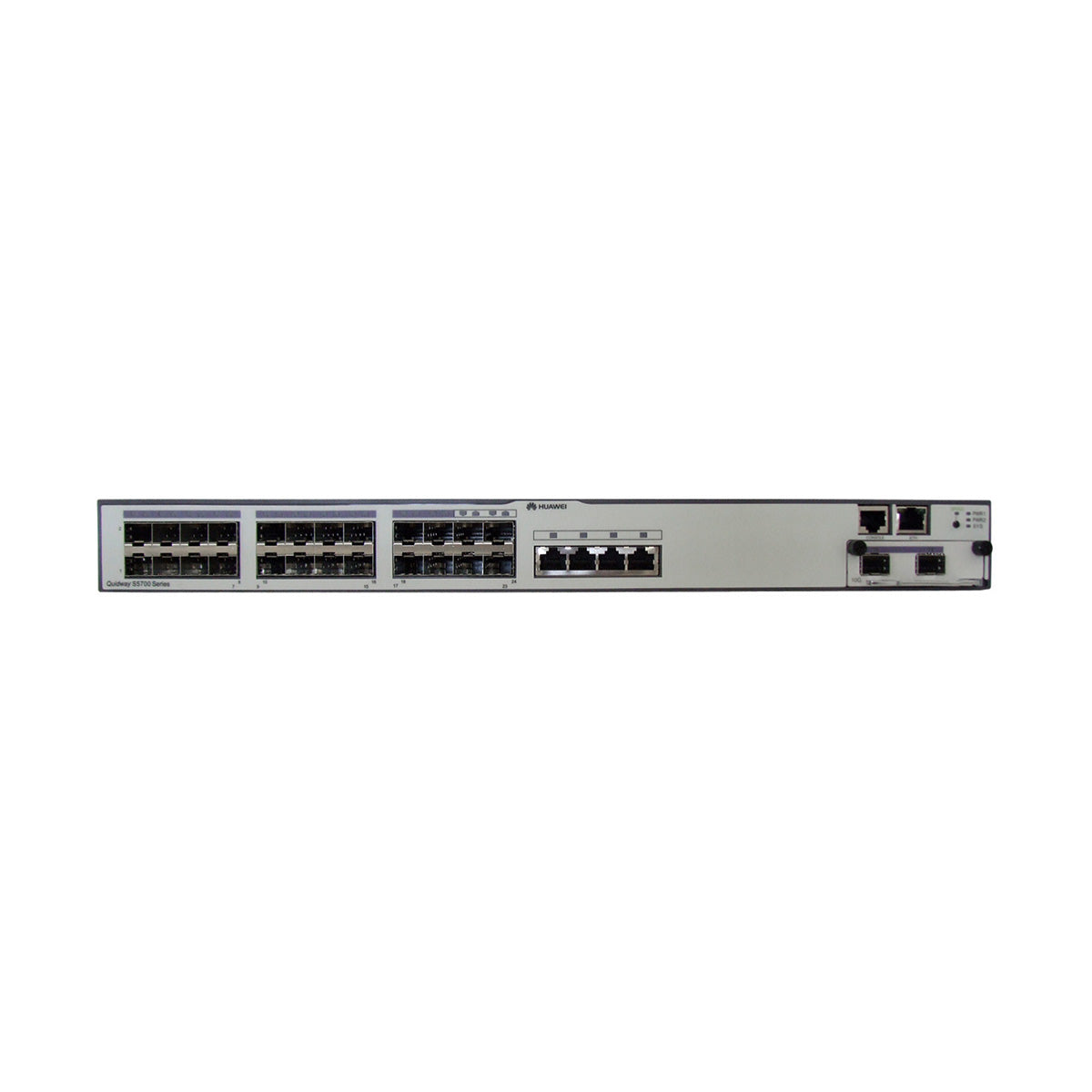

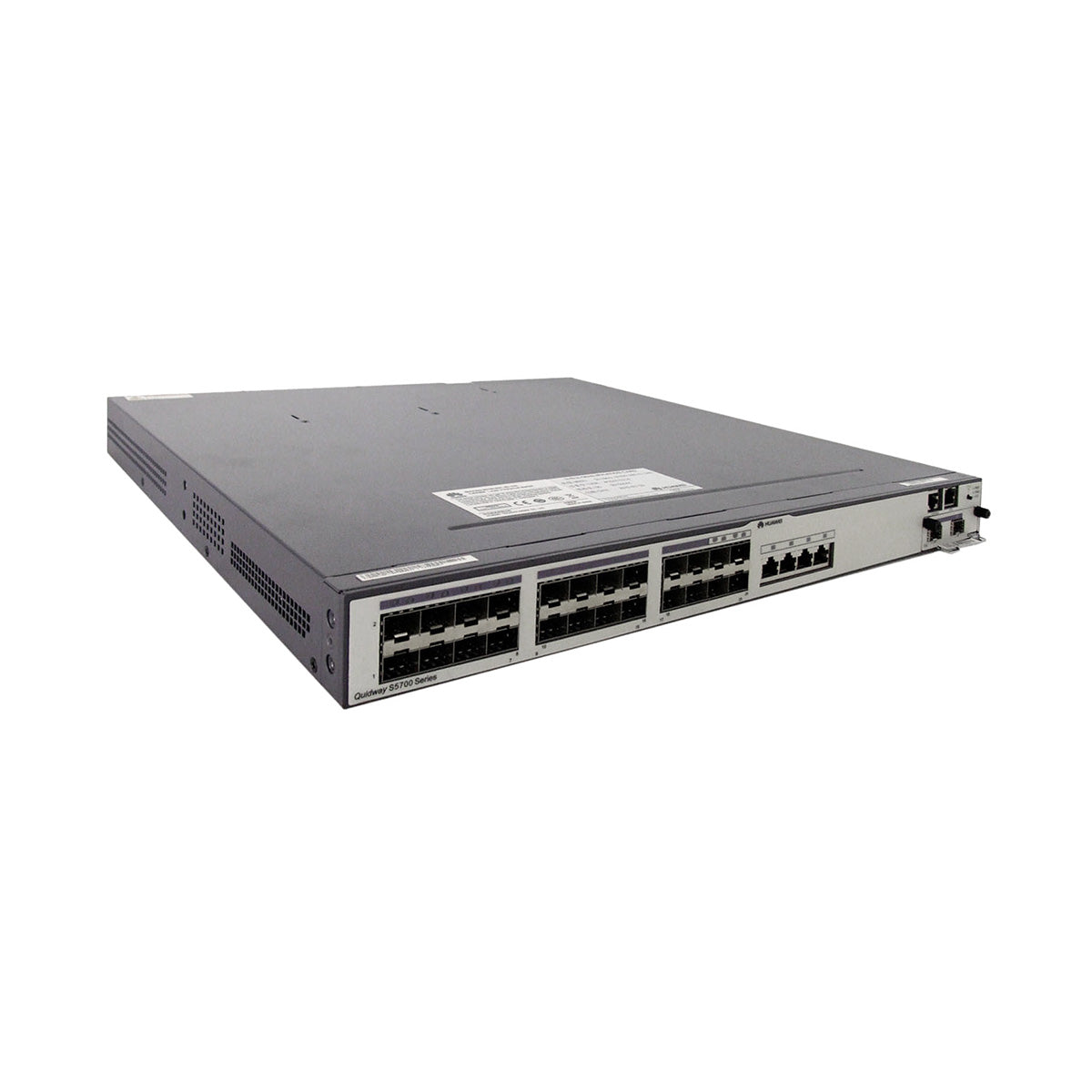

Appearance and Structure
|
1 |
Twenty 100/1000BASE-X ports Applicable modules:
|
2 |
Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) Modules applicable to combo optical ports:
|
|
3 |
One console port |
4 |
One ETH management port |
|
5 |
Front card slot NOTE:
Card supported:
|
6 |
ESD jack NOTE:
Before installing or maintaining a switch, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack. |
|

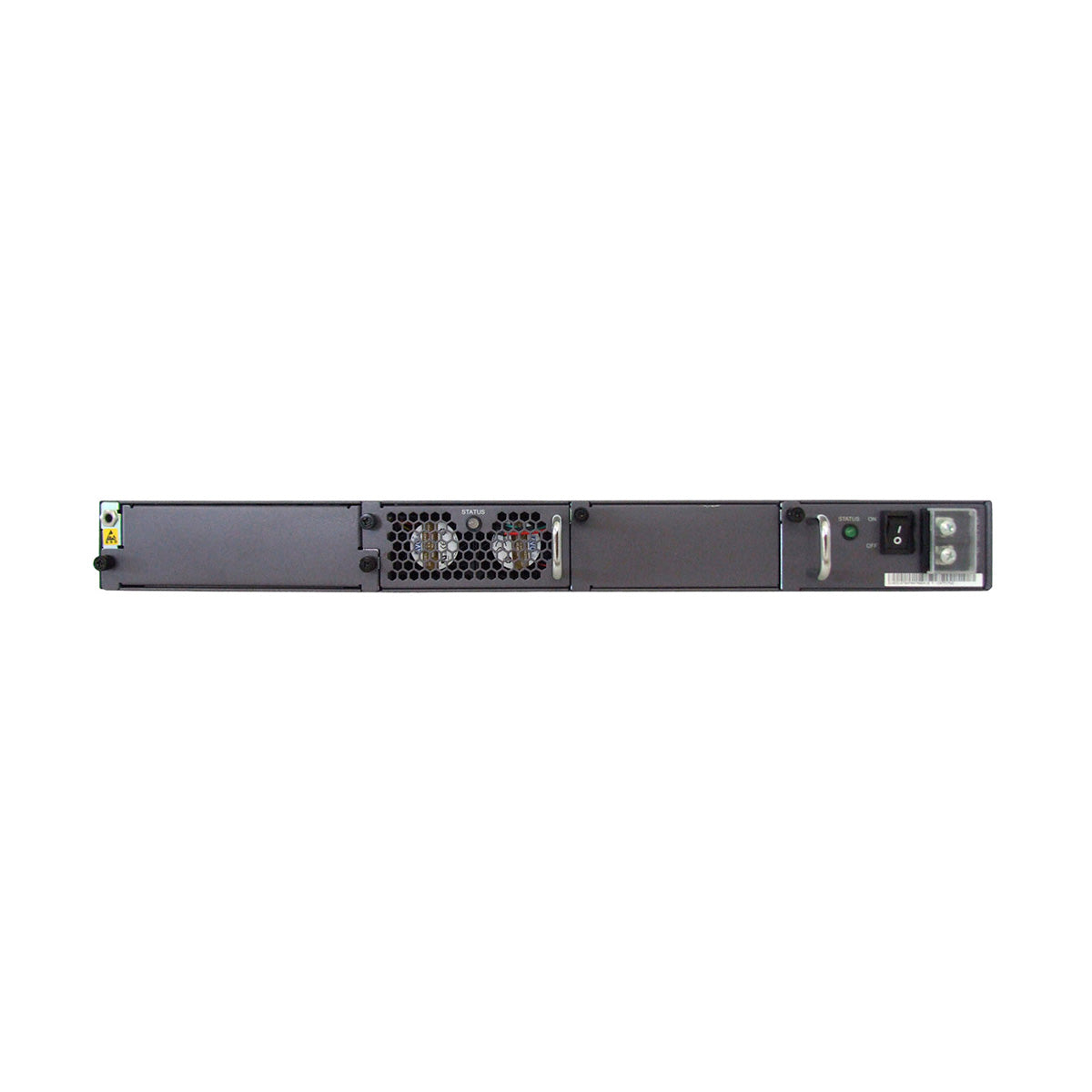

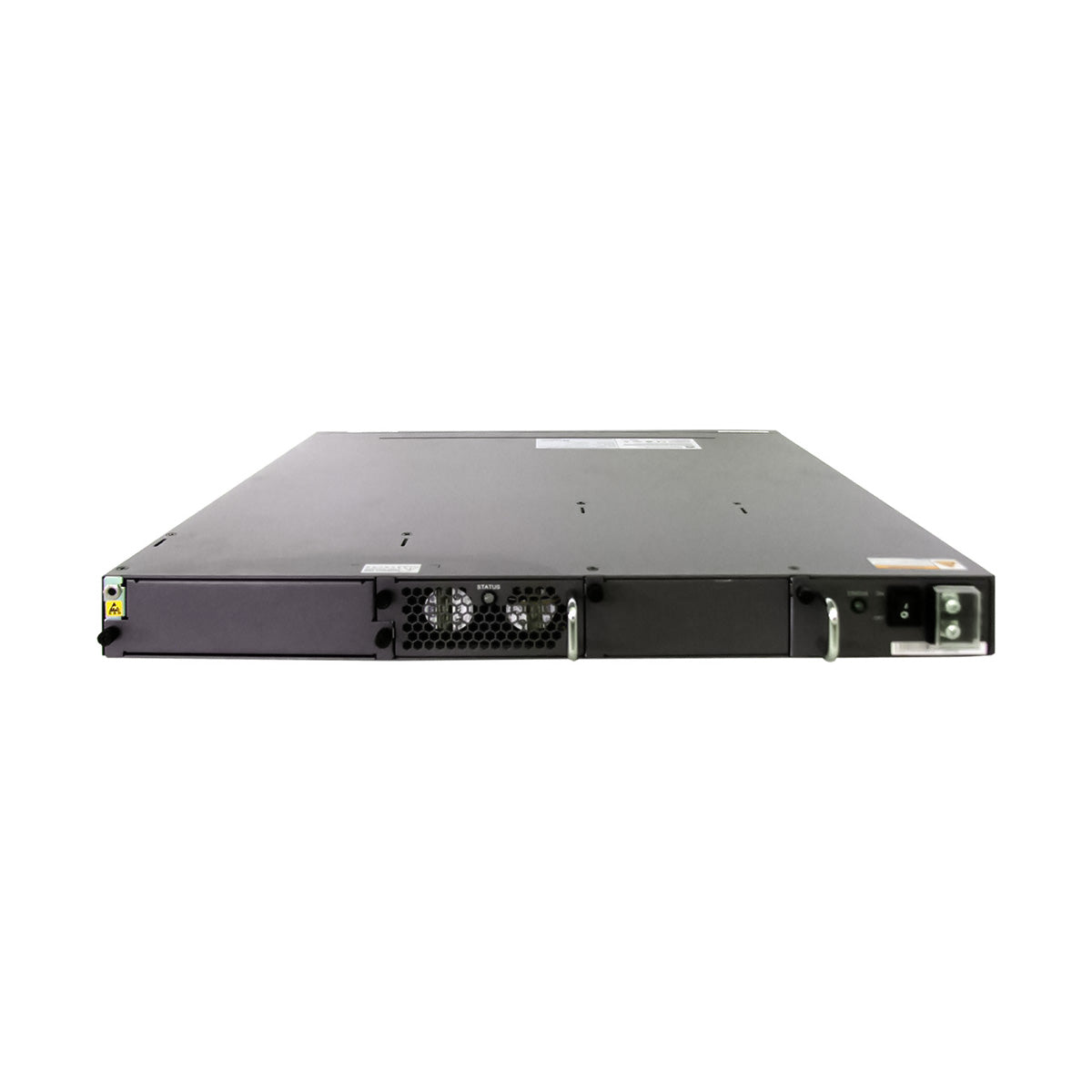

7 |
Rear card slot NOTE:
Card supported:
|
8 |
Fan slot NOTE:
Applicable fan module: CX7E1FANA fan module |
|
9 |
Power module slot 2 NOTE:
Applicable power modules:
|
10 |
Power module slot 1 NOTE:
Applicable power modules:
|
Port Description
Attributes of a 100/1000BASE-X port
|
Attribute |
Description |
|---|---|
|
Connector type |
LC/PC |
|
Optical interface attributes |
Depend on the optical module used |
|
Standards compliance |
IEEE802.3z |
|
Working mode |
100/1000 Mbit/s auto-sensing |
Technical specifications
|
Item |
Description |
|---|---|
|
Memory (RAM) |
256 MB |
|
Flash |
32 MB |
|
Mean time between failures (MTBF) |
52.80 years when no interface card is configured, 41.33 years when a 2-port 10GE interface card is configured, 50.00 years when a 4-port GE front card is configured, 26.52 years when a 4-port 10GE front card is configured |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
±2 kV in common mode |
|
Power supply surge protection |
|
|
Dimensions (H x W x D) |
43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
|
Weight |
|
|
Stack ports |
Two stack ports available on each stack card |
|
RPS |
Not supported |
|
PoE |
Not supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC |
|
Maximum power consumption (100% throughput, full speed of fans) |
63 W |
|
Operating temperature |
0°C to 50°C (32°F to 122°F) |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 41 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
|
|
Certification |
|
|
Part number |
02352350 |
