Huawei S5720-32X-EI-24S-AC Switch

$0.00
$0.00
Availability: 100 in stock
SKU: 02359579
Tags:
Collections:
S5720-32X-EI-24S-AC
$0.00
$0.00

S5720-32X-EI-24S-AC Hardware Description



Introduction

Huawei S5720-32X-EI-24S-AC with 24*100/1000BASE-X ports, 4*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2* QSFP+ stack optical ports,1*AC power input fixed.


The S5720 series switches are energy-saving gigabit Ethernet switches, building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720 series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solutions.



Key Features

24*100/1000BASE-X ports

4*10/100/1000BASE-T ports

4*10GE SFP+ ports

2* QSFP+ stack optical ports

Memory (RAM)  2GB

Flash  512MB



Appearance and Structure

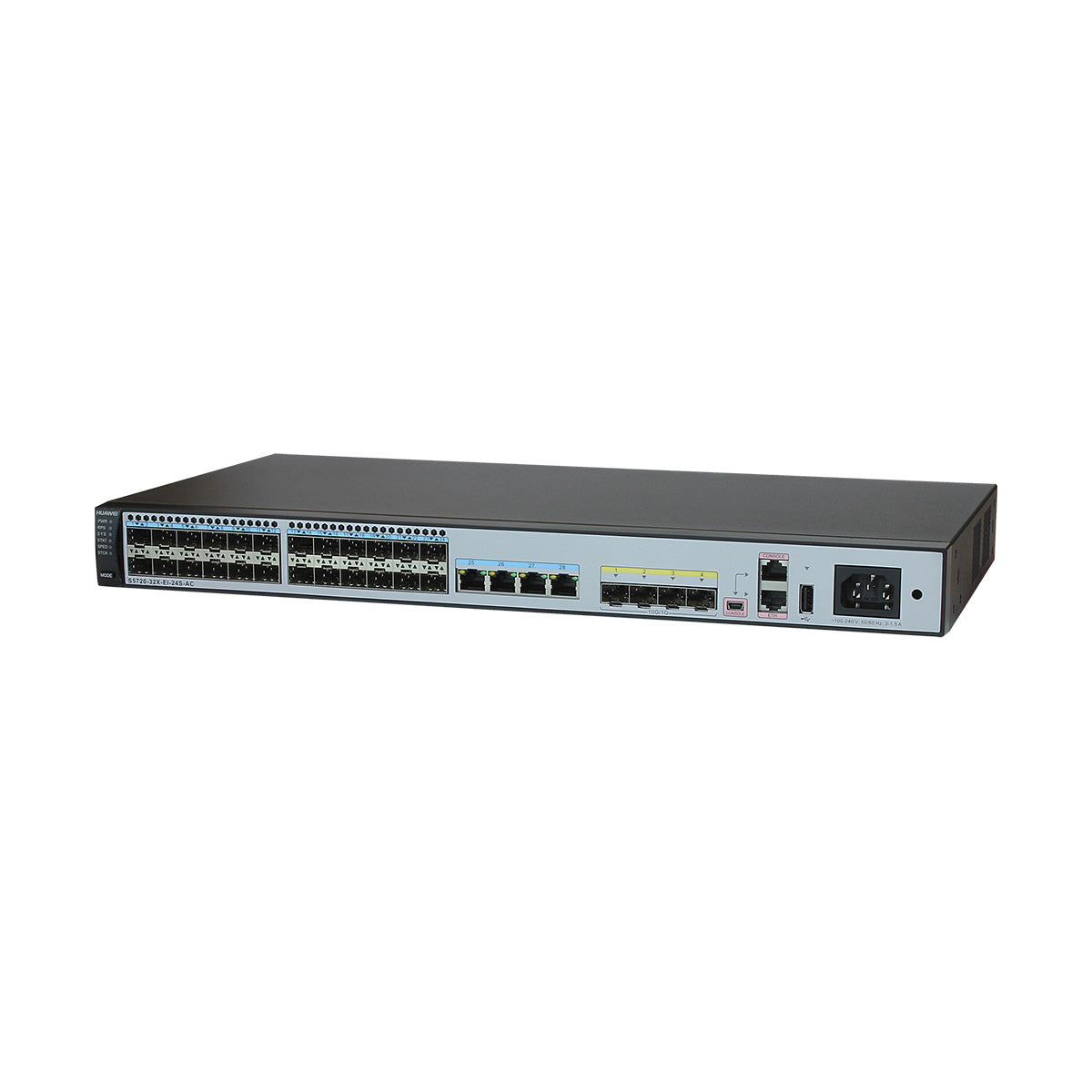

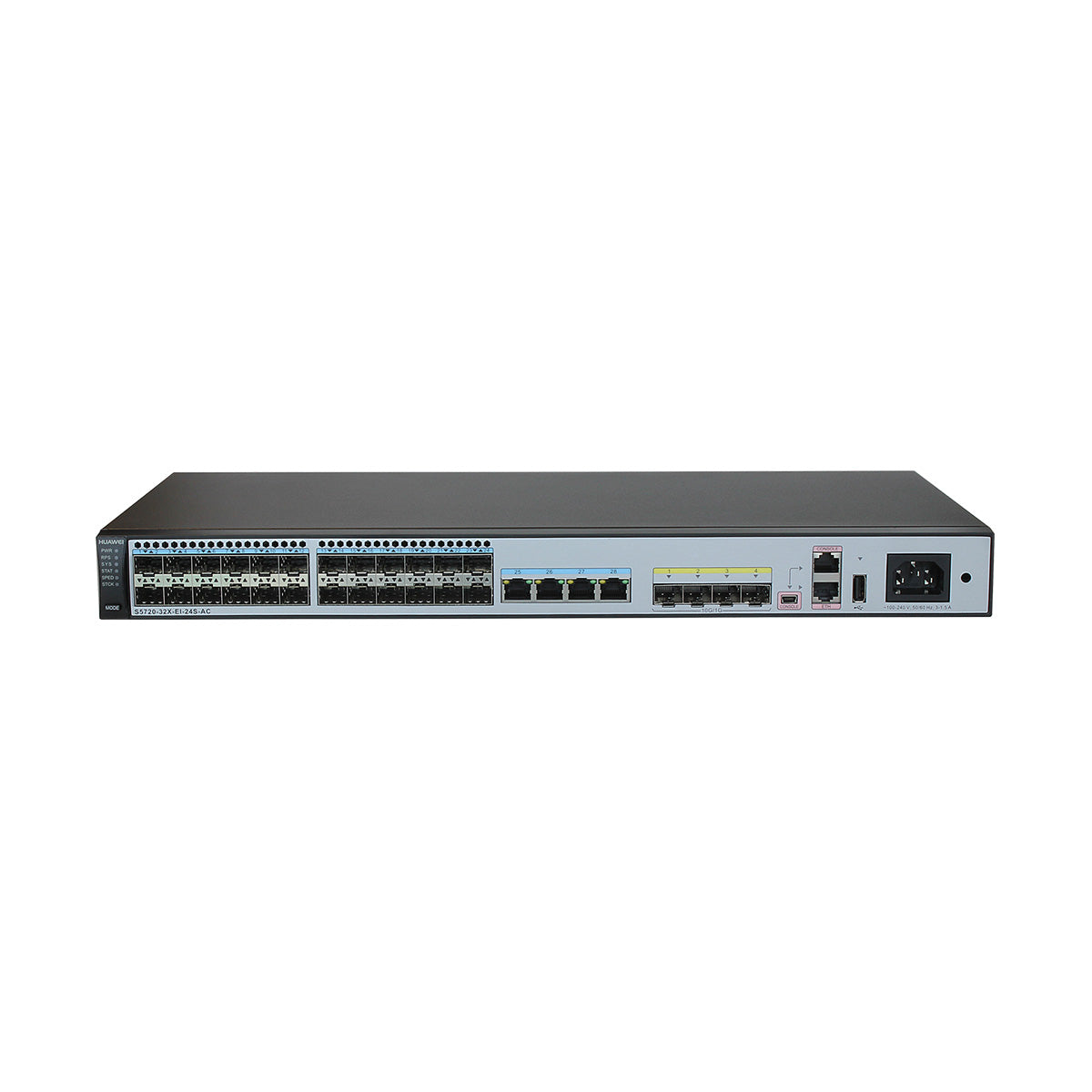

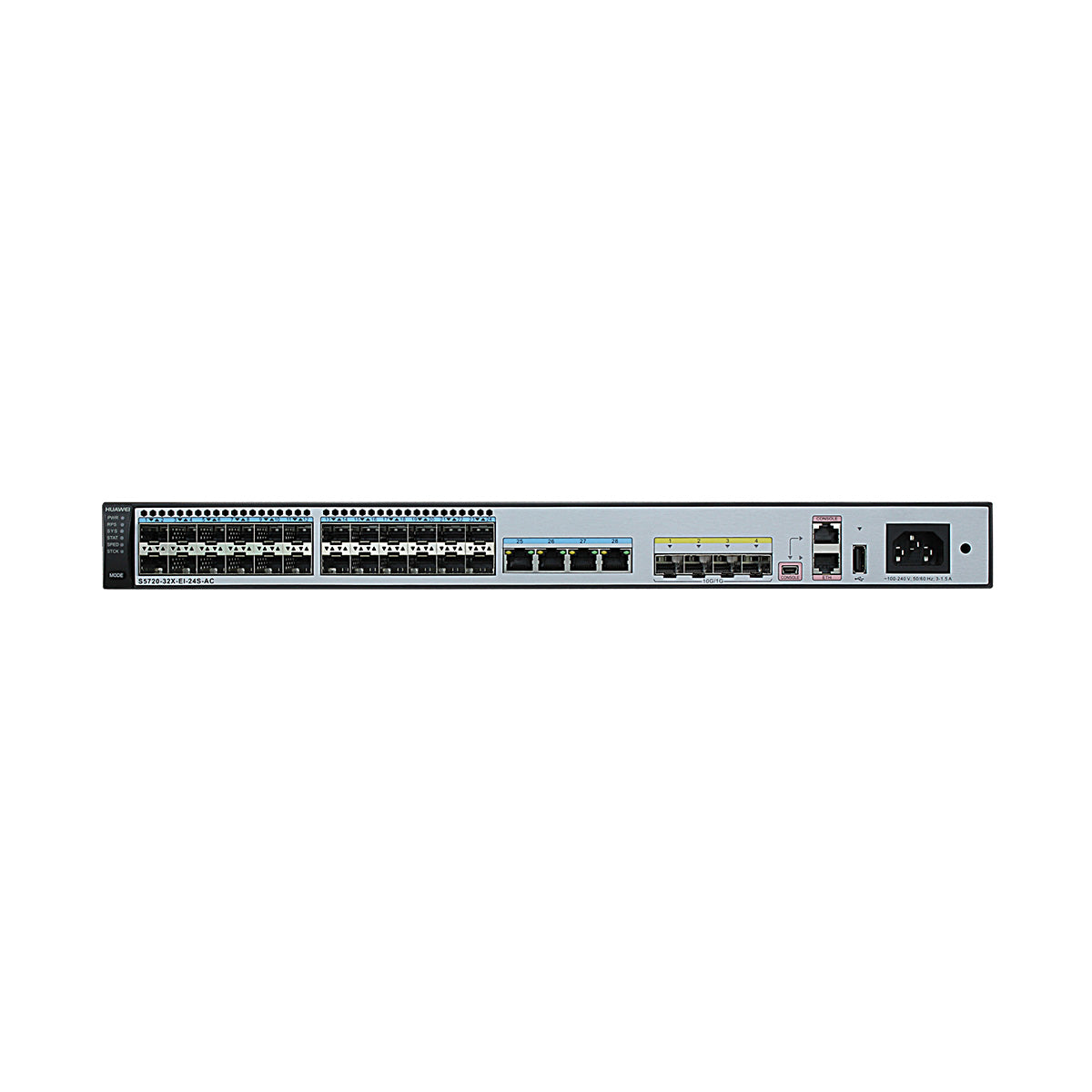

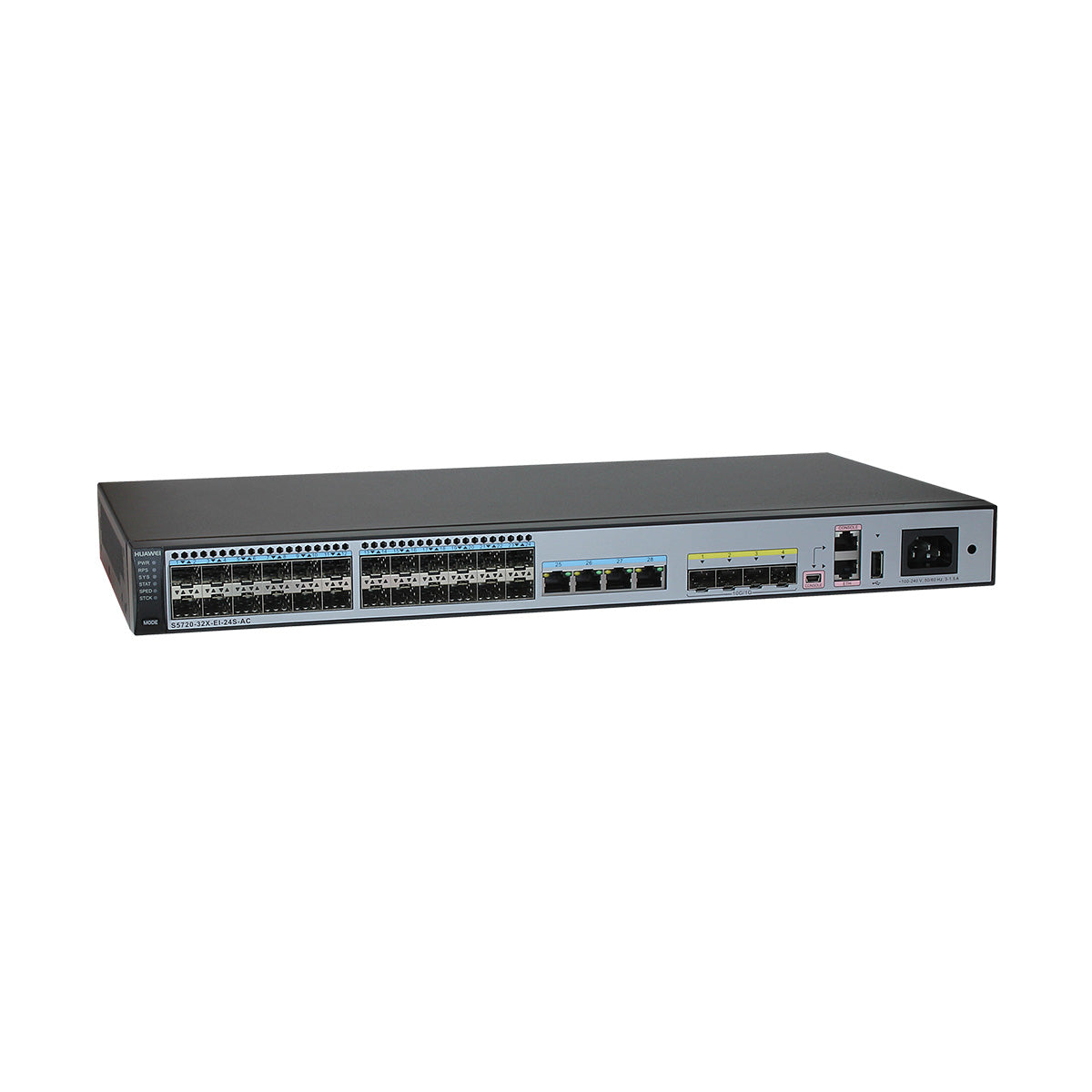

S5720-32X-EI-24S-AC Appearance

1

Twenty-four 100/1000BASE-X ports

Applicable modules:
  • FE optical module
  • GE optical module
  • GE-CWDM optical module
  • GE copper module (works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s)

2

Four 10/100/1000BASE-T ports

3

Four 10GE SFP+ ports

Applicable modules and cables:
  • GE optical module
  • GE-CWDM optical module
  • GE-DWDM optical module
  • GE copper module (only 1000 Mbit/s supported)
  • 10GE SFP+ optical module (OSXD22N00 not supported)
  • 10GE-CWDM optical module
  • 10GE-DWDM optical module (applicable in V200R009C00 and later versions)
  • 1 m, 3 m, and 10 m SFP+ high-speed copper cables
  • 5 m SFP+ high-speed copper cable (applicable in V200R009C00 and later versions)
  • 3 m and 10 m AOC cables

4

One mini USB port

5

One console port

NOTE:

It is used with a console cable. The console cable is not delivered with the switch and needs to be separately purchased if needed.

6

One ETH management port

7

One USB port

8

AC socket

NOTE:

It is used with an AC power cable.

9

Jack for AC power cable locking strap

NOTE:
The AC power cable locking strap is not delivered with the switch.

10

Ground screw

NOTE:
It is used with a ground cable.

11

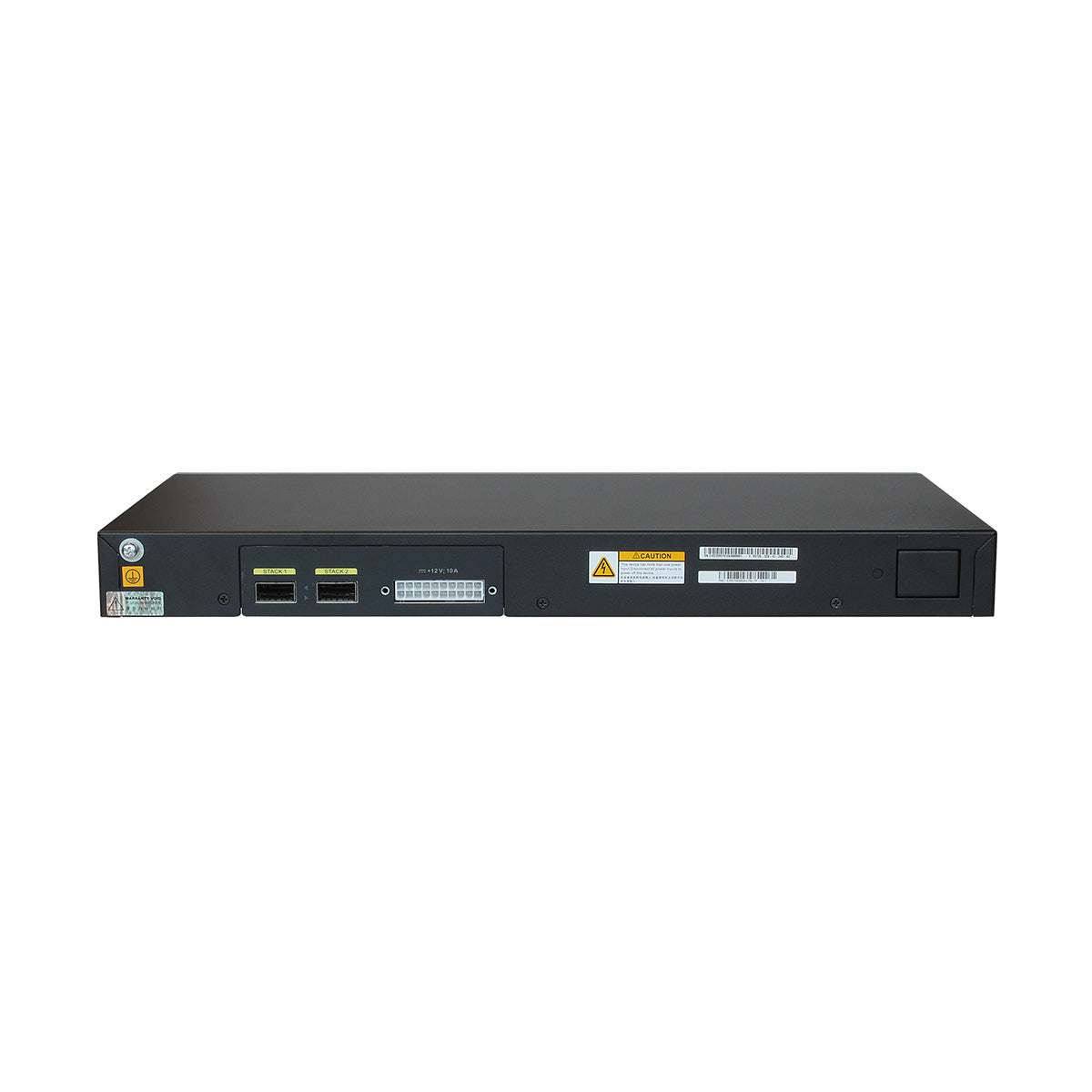

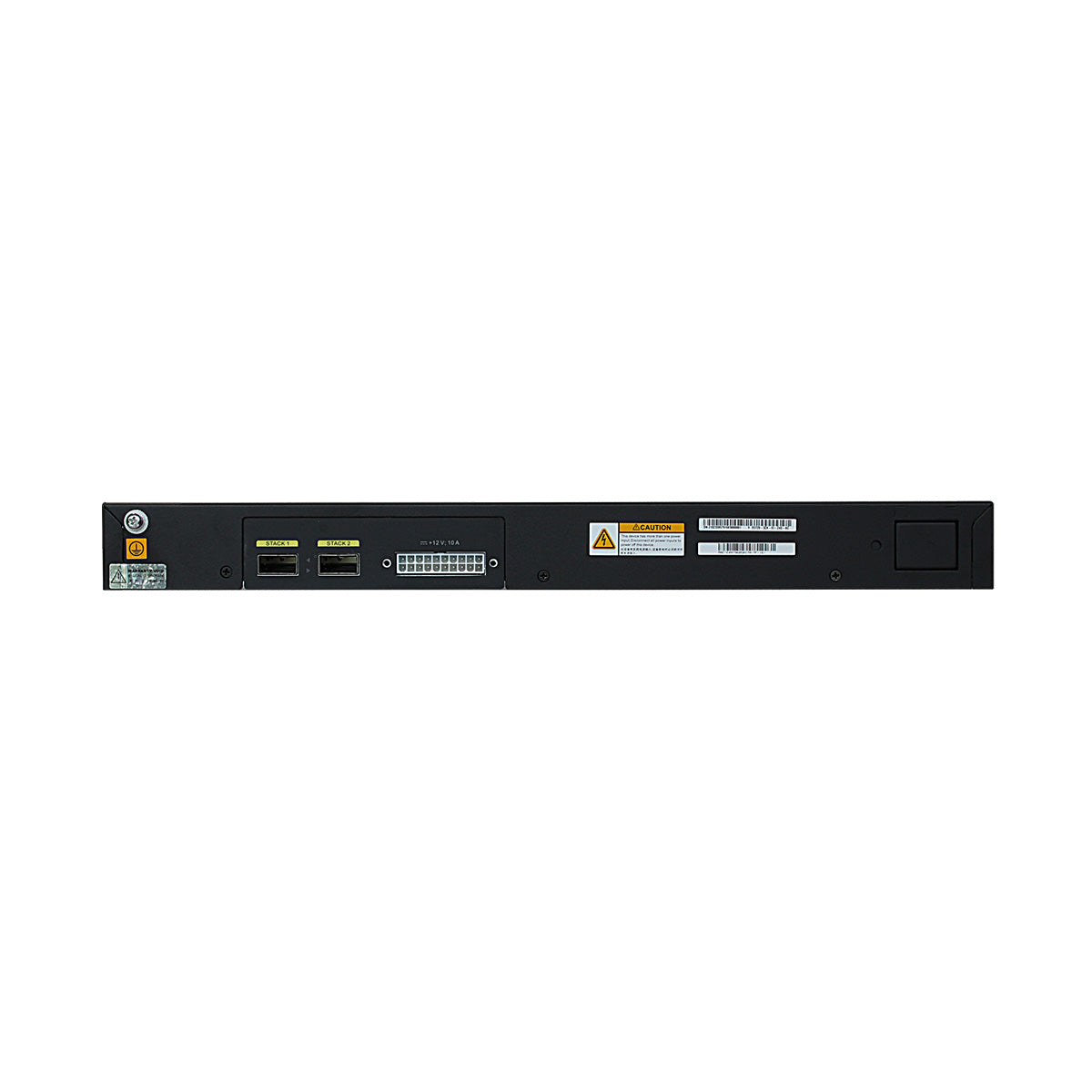

Two QSFP+ stack optical ports

Applicable modules and cables:
  • QSFP+ optical module (only QSFP-40G-SR4 and QSFP-40G-iSR4 supported)
  • 1 m, 3 m, and 5 m QSFP+ high-speed copper cables

12

RPS socket

NOTE:

It is used with an RPS cable, which is not hot swappable.

Port Description

Attributes of a 10/100/1000BASE-T Ethernet electrical port

Attribute

Description

Connector type

RJ45

Standards compliance

IEEE802.3, IEEE802.3u, IEEE802.3ab

Working mode

10/100/1000 Mbit/s auto-sensing

Maximum transmission distance

100 m

​​​​​

Attributes of a 1000BASE-X Ethernet optical port

Attribute

Description

Connector type

LC/PC

Optical port attributes

Depend on the optical module used

Standards compliance

IEEE802.3z

Working mode

1000 Mbit/s

​​

Attributes of a 10GE SFP+ port

Attribute

Description

Connector type

LC/PC

Optical port attributes

Depend on the optical module used

Standards compliance

IEEE802.3ae

Working mode

GE/10GE auto-sensing

​

Attributes of a QSFP+ stack optical port

Attribute

Description

Connector type

MPO

Optical port attributes

Depend on the optical module used

Standards compliance

IEEE802.3ae

​

Technical specifications

Item

Description

Memory (RAM)

2 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

82.54 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 237.3 mm (1.72 in. x 17.4 in. x 9.34 in.)

Weight (with packaging)

4.5 kg (9.92 lb)

Stack ports
  • Two fixed QSFP+ stack ports on the rear card

RTC

Supported

RPS

Supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption (100% throughput, full speed of fans)

58.9 W
Typical power consumption (30% of traffic load)
  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption

55.46 W

Operating temperature
0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 49.3 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number

02359579
