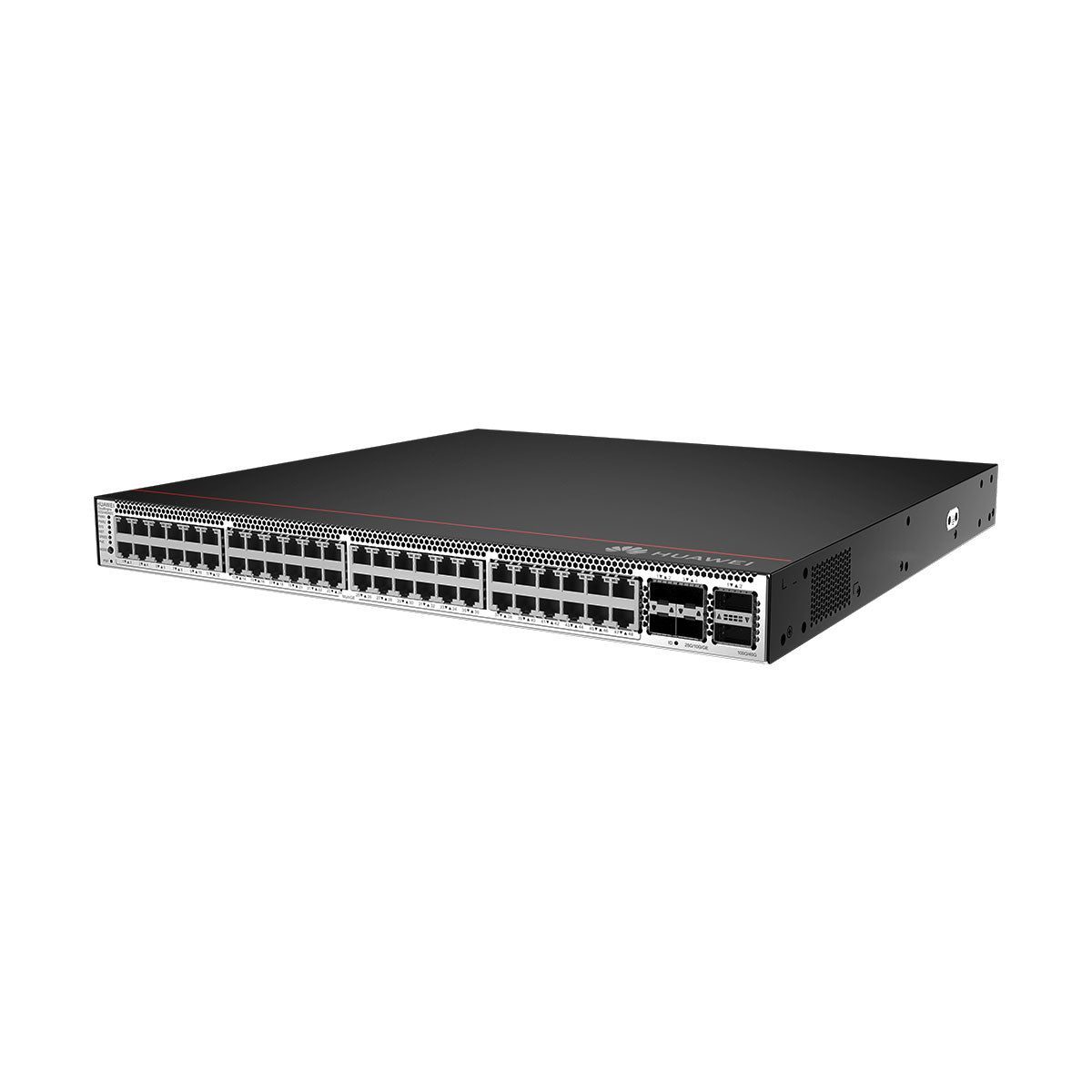

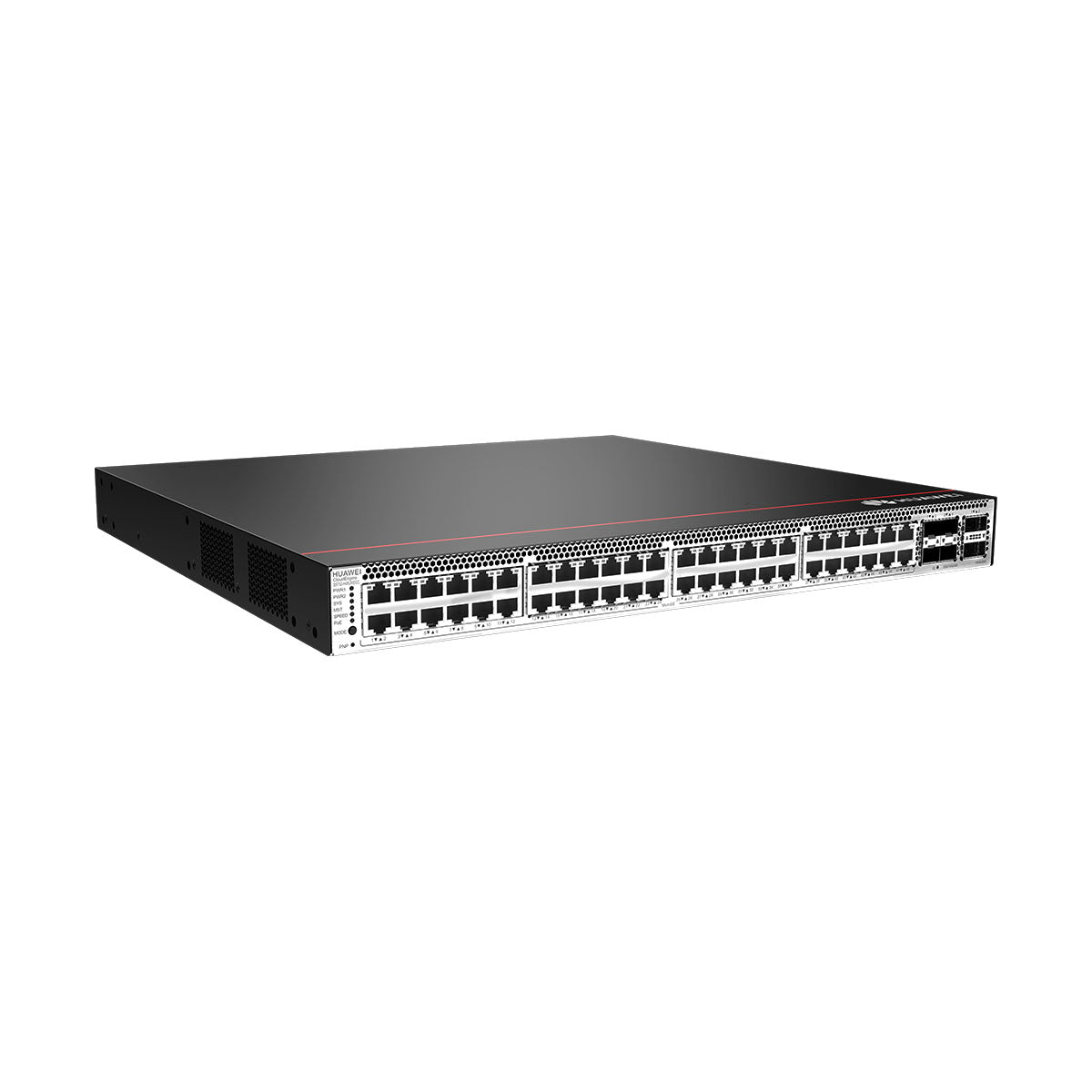

Huawei S5732-H48UM2CC Switch
Couldn't load pickup availability
S5732-H48UM2CC Hardware Description
Introduction
This Huawei switch supports 48*100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports), 4*1GE/10GE/25GE SFP28 optical ports, 2*40GE/100GE QSFP28 optical ports, 2 power module slots, hot-swappable power modules are optional: 2*AC, 2*DC, 1*AC+1*DC, 1*AC or 1*DC.
The Huawei CloudEngine S5732-H series switches are the next-generation enhanced all-optical Ethernet switches developed by Huawei. The CloudEngine S5732-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features.
Key Features
48*100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports)
4*1GE/10GE/25GE SFP28 optical ports
2*40GE/100GE QSFP28 optical ports
Memory (RAM) 4GB
Flash 2GB

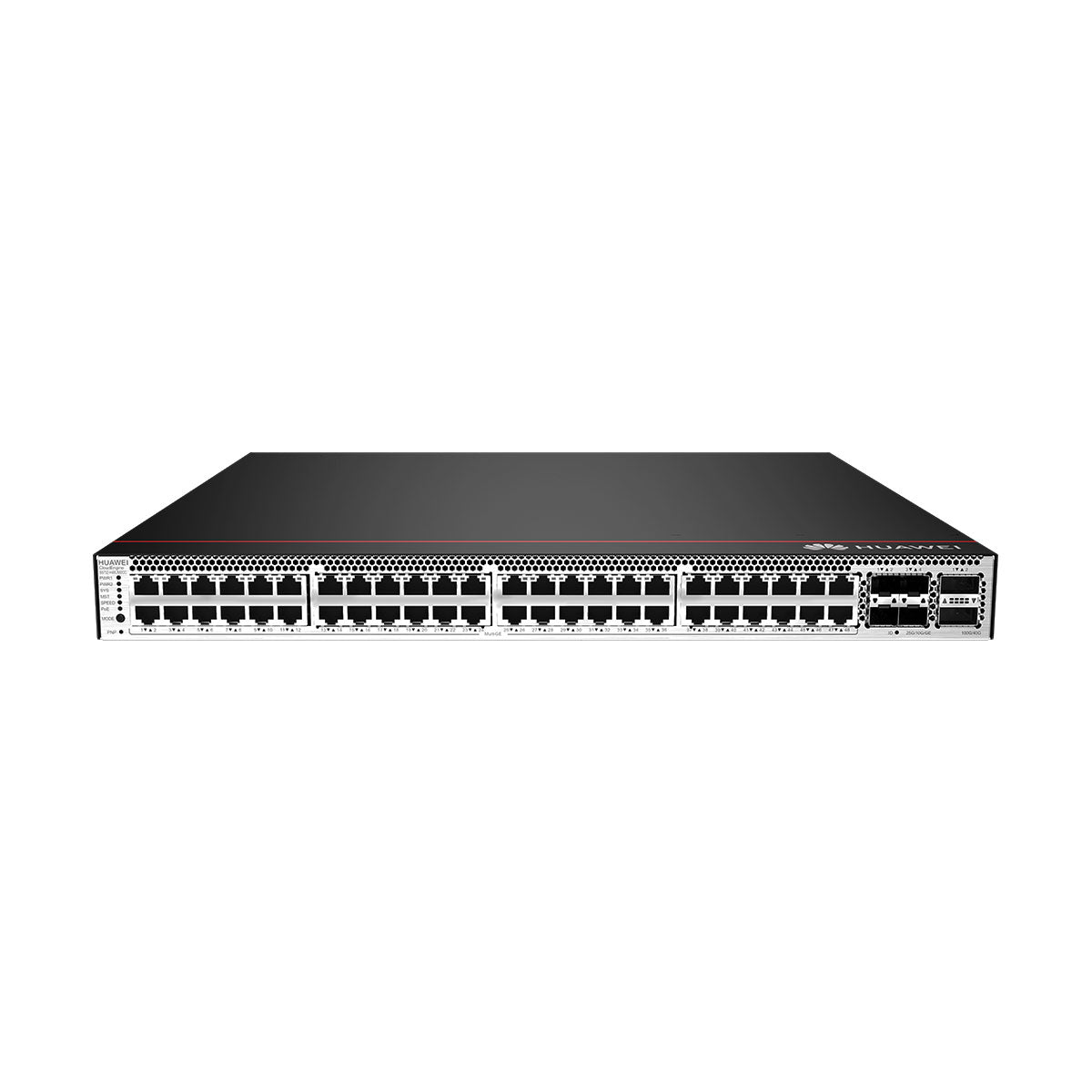

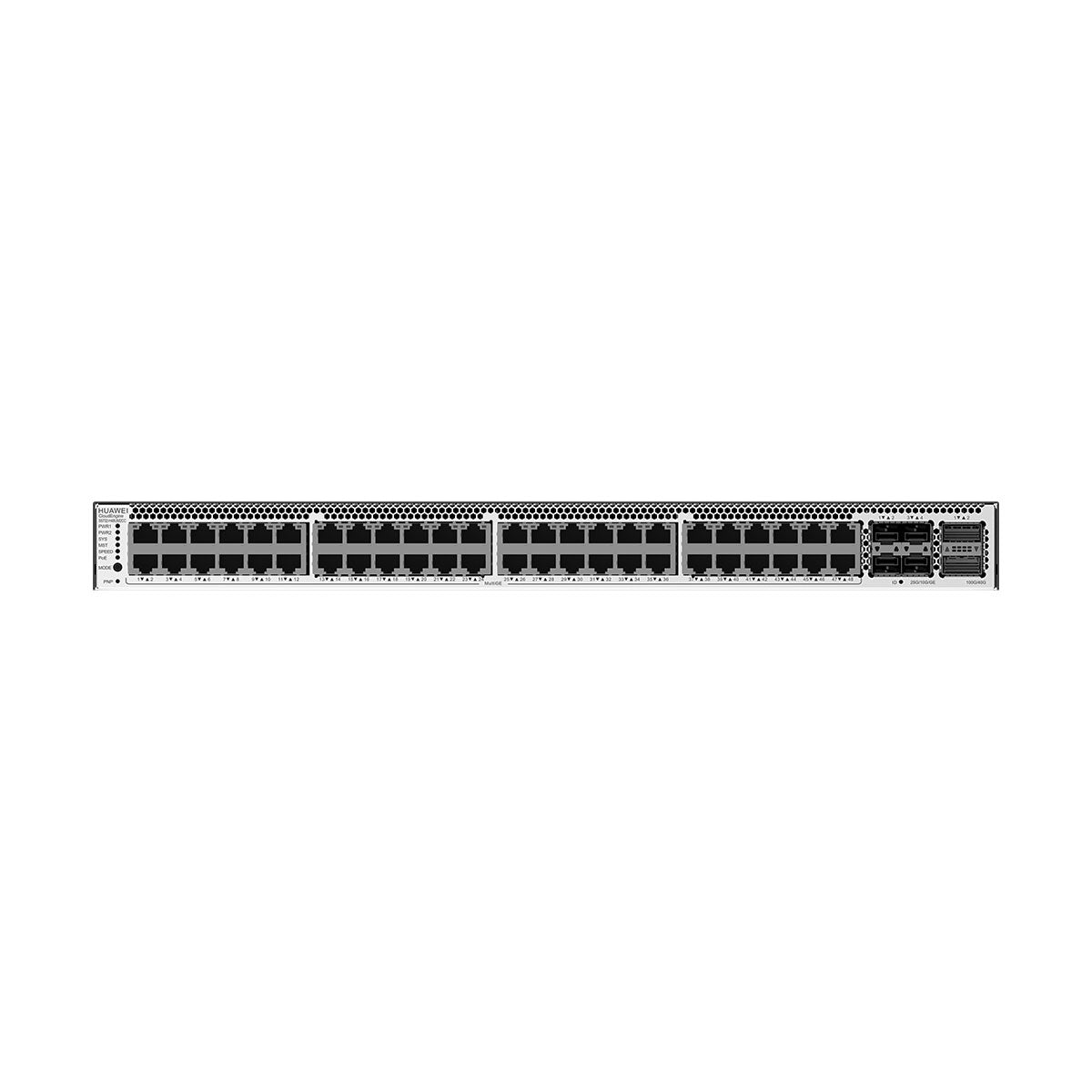

Appearance and Structure
|
1 |
One PNP button NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
2 |
Forty-eight 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports) |
|
3 |
Four 1GE/10GE/25GE SFP28 optical ports Applicable modules and cables:
|
4 |
Two 40GE/100GE QSFP28 optical ports Applicable modules and cables:
NOTE:
You can run the set device port-config-mode enable command to change the working mode of SFP28 and QSFP28 optical ports. By default, the working mode of SFP28 and QSFP28 optical ports is "4 x 25GE + 2 x 40GE". If any QSFP28 optical port is configured to work at 100 Gbit/s or split into four 25GE ports, the four SFP28 optical ports become unavailable. |
|
5 |
Ground screw NOTE:
It is used with a ground cable.
|
6 |
One USB port |
|
7 |
One console port |
8 |
One ETH management port |
|
9 |

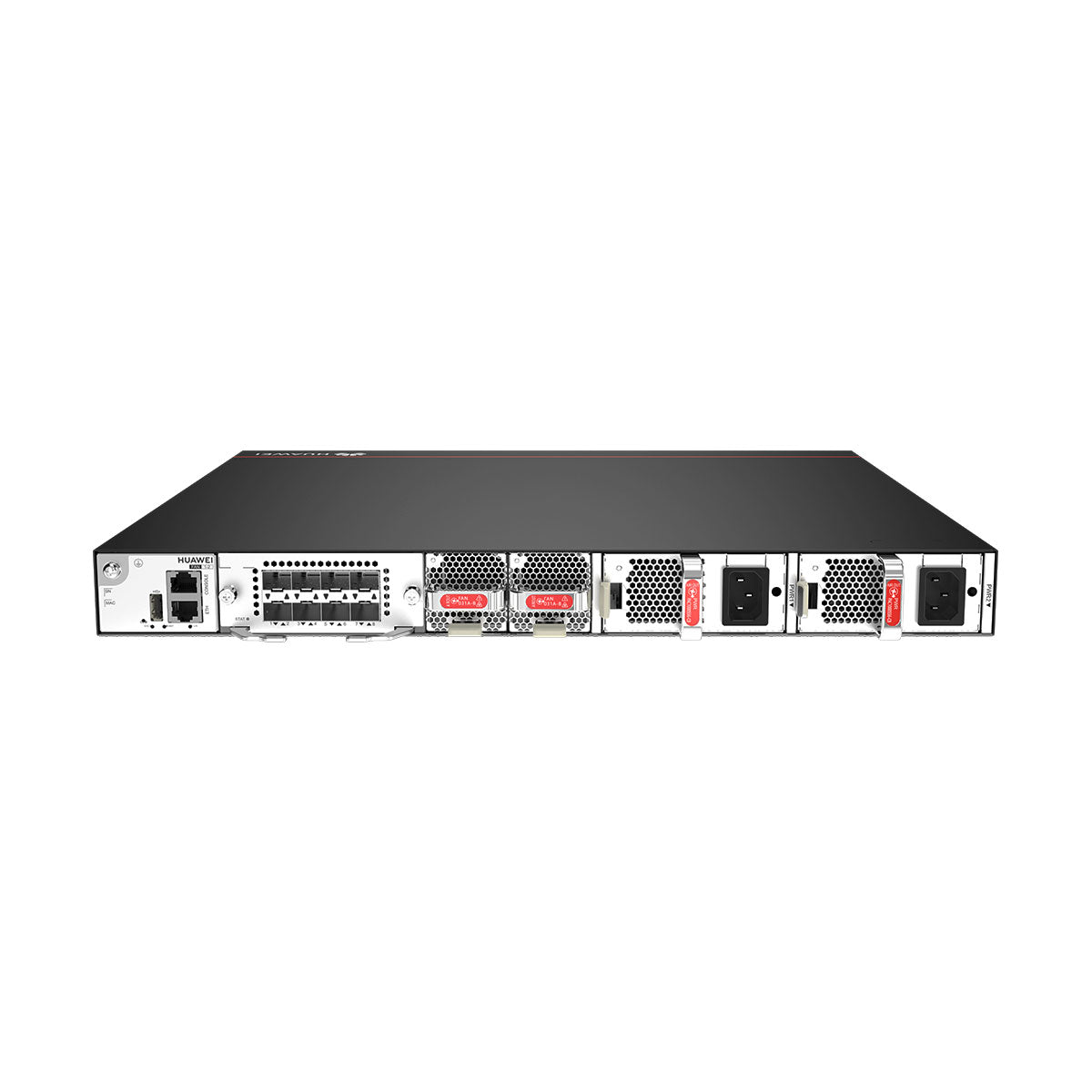

Rear card slot NOTE:
Applicable card:
|
10 |
Fan module slot 1 NOTE:
Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust)) |
|
11 |
Fan module slot 2 NOTE:
Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust)) |
12 |
Power module slot 1 NOTE:
Applicable power module:
|
|
13 |
Power module slot 2 NOTE:
Applicable power module:
|
- |
- |
Port Description
Attributes of a 100M/1000M/2.5GE/5GE/10GE BASE-T port
|
Attribute |
Description |
|---|---|
|
Connector type |
RJ45 |
|
Standards compliance |
IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3an |
|
Working Mode |
100/1000/2500/5000/10000 Mbit/s auto-sensing |
Maximum transmission distances of different cables on multi-GE ports
|
Cable Type (6-a-1 Bundle) |
Multi-GE Port (Different Rates) |
|||
|---|---|---|---|---|
|
100M/1000M |
2.5GE |
5GE |
10GE |
|
|
Category 5e unshielded twisted pair (Cat5e UTP) |
100 m |
100 m |
Not recommended due to high risk |
Not supported |
|
Category 5e shielded twisted pair (Cat5e STP) |
100 m |
100 m |
100 m |
Not supported |
|
Category 6 unshielded twisted pair (Cat6 UTP) |
100 m |
100 m |
100 m Not recommended due to high risk |
Not supported |
|
Category 6 shielded twisted pair (Cat6 STP) |
100 m |
100 m |
100 m |
Not supported |
|
Category 6A unshielded twisted pair (Cat6A U/UTP) |
100 m |
100 m |
100 m Not recommended due to high risk |
Not supported |
|
Category 6A foiled/unshielded twisted pair (Cat6A F/UTP) |
100 m |
100 m |
100 m |
100 m |
|
Category 6A shielded twisted pair (Cat6A STP) |
100 m |
100 m |
100 m |
100 m |
|
Category 7 twisted pair (Cat7) |
100 m |
100 m |
100 m |
100 m |
Attributes of a 1GE/10GE/25GE SFP28 optical port
|
Attribute |
Description |
|---|---|
|
Connector Type |
LC/PC |
|
Optical port attributes |
Depending on the optical module or cable in use |
|
Standards compliance |
IEEE802.3z, IEEE802.3ae, and IEEE802.3by |
|
Working mode |
|
Attributes of a QSFP28 optical port
|
Attribute |
Description |
|---|---|
|
Connector type |
MPO/LC |
|
Optical port attributes |
Depend on the optical module used |
|
Standards compliance |
IEEE802.3ba |
Technical specifications
|
Item |
Description |
|---|---|
|
Memory (RAM) |
4 GB |
|
Flash |
2 GB in total. To view the available flash memory size, run the display version command. |
|
Mean time between failures (MTBF) |
32.38 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±6 kV |
|
Power supply surge protection |
|
|
Dimensions (H x W x D) |
|
|
Weight (including package) |
Without power modules: 8.4 kg (18.52 lb) Including one power module: 9.5 kg (20.94 lb) |
|
Stack ports |
Any Ethernet electrical ports (10GE), optical ports on the front panel (25GE/40GE/100GE), or optical ports on the card (10GE/25GE/40GE/100GE) |
|
RTC |
Supported |
|
RPS |
Not supported |
|
PoE |
Supported |
|
Rated voltage range |
|
|
Maximum voltage range |
|
|
Maximum power consumption (100% throughput, full speed of fans) |
|
|
Typical power consumption (30% of traffic load, tested according to ATIS standard) |
215 W (without card) |
|
Operating temperature |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module. |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 59.2 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
|
Certification |
|
|
Part number |
02353HUB 02353HUB-002 02353SJT 02353SJT-001 02353SJT-003 02353SJT-004 02353SJT-010 02353SJT-011 02353SJT-013 02353SJT-014 02353SJT-015 02353SJT-016 02353SJT-018 02353SJT-019 |
