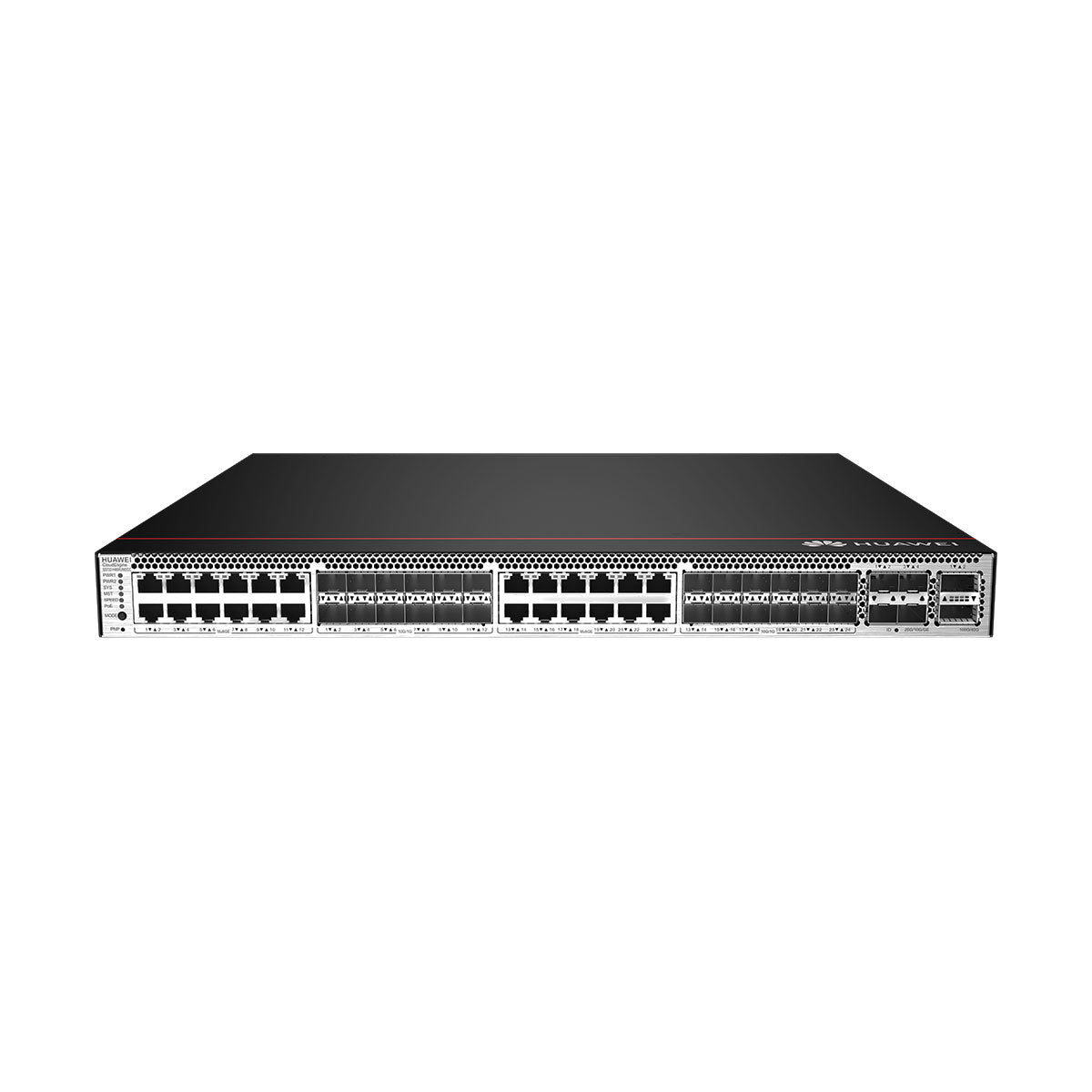

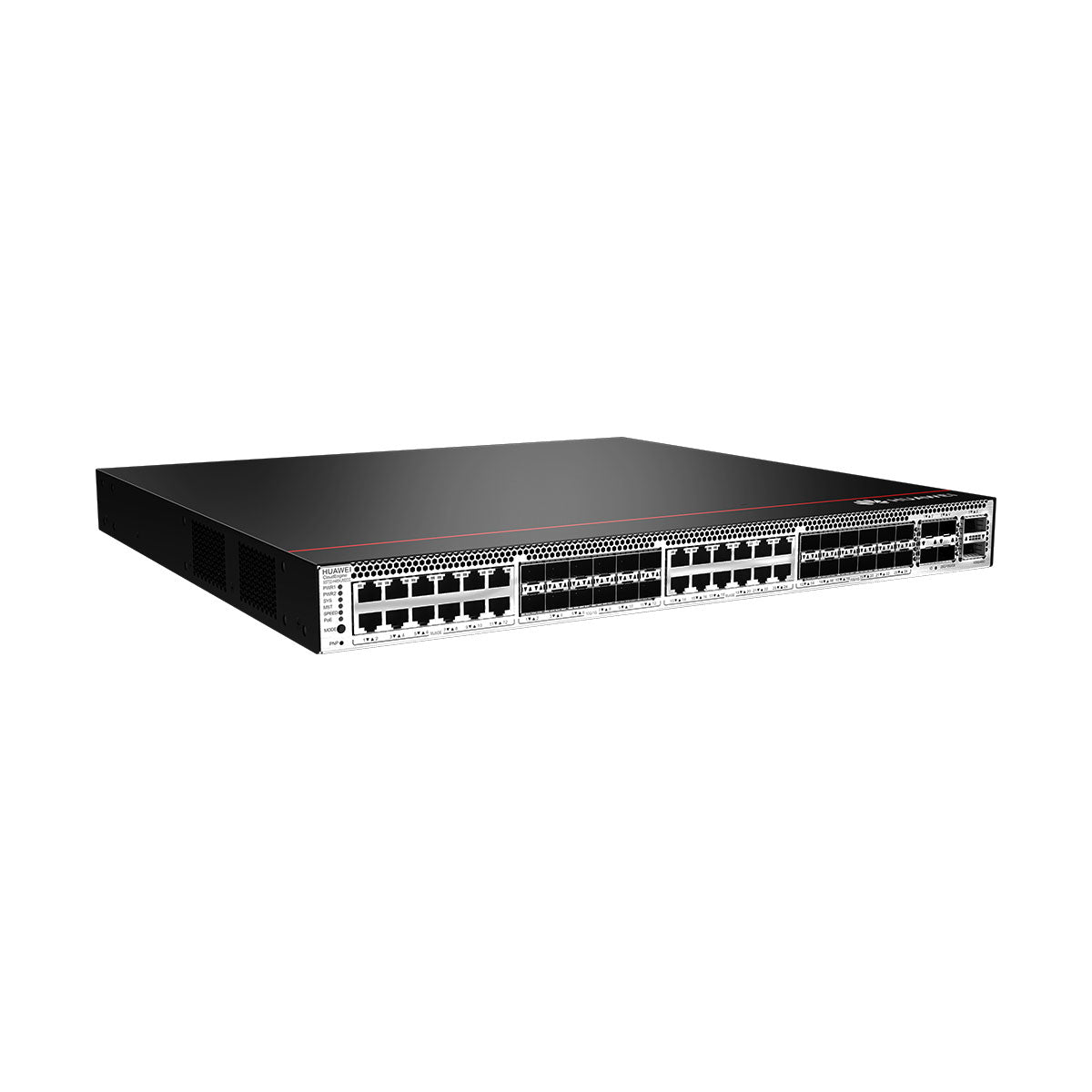

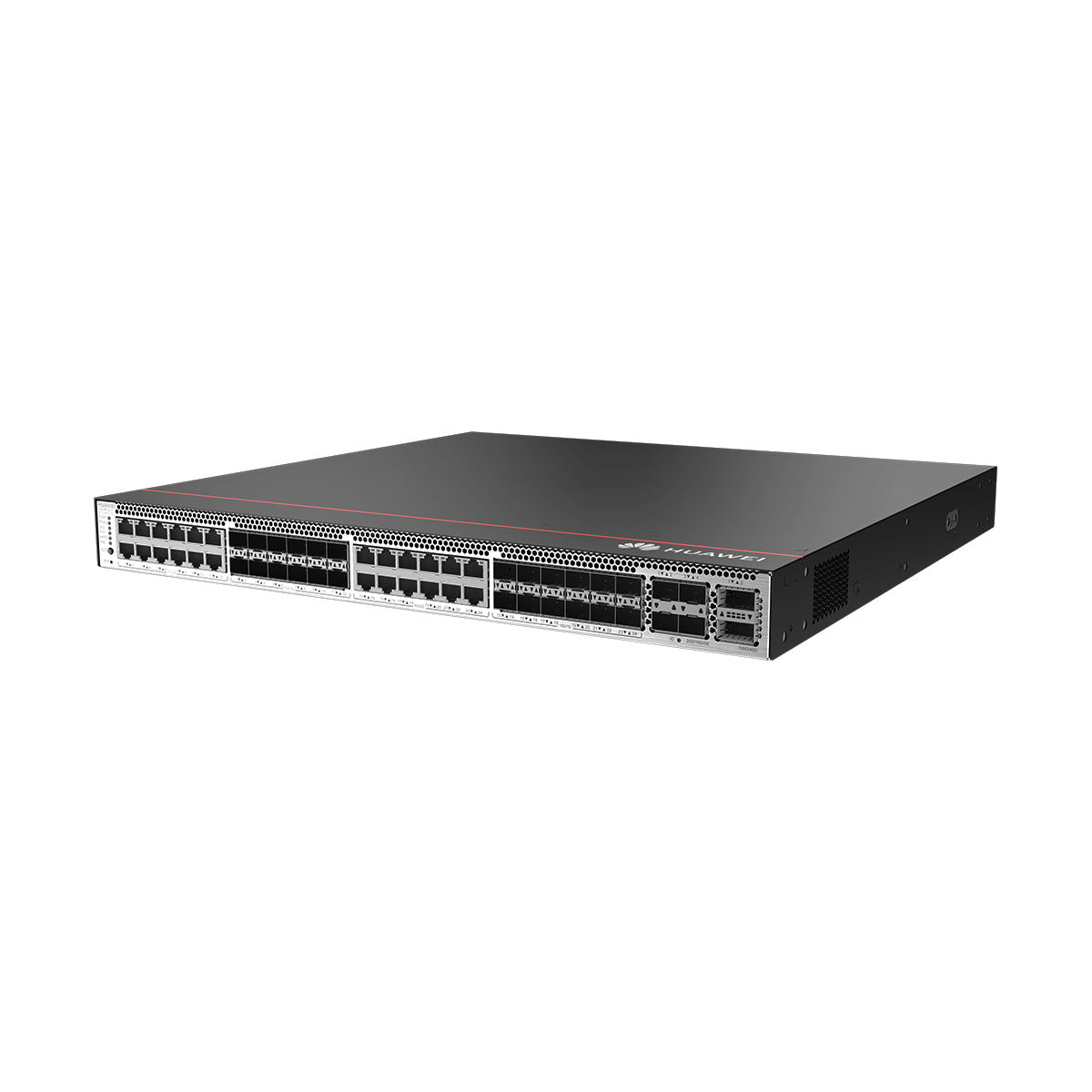

Huawei S5732-H48XUM2CC Switch

$0.00
$0.00
Availability: 100 in stock
SKU: 02353MLH
Tags:
Collections:
S5732-H48XUM2CC
$0.00
$0.00

S5732-H48XUM2CC Hardware Description



Introduction

This Huawei switch supports 48*100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports), 24*10GE SFP+ ports, 4*1GE/10GE/25GE SFP28 optical ports, 2*40GE/100GE QSFP28 optical ports, 2 power module slots, hot-swappable power modules are optional: 2*AC, 2*DC, 1*AC+1*DC, 1*AC or 1*DC.

The Huawei CloudEngine S5732-H series switches are the next-generation enhanced all-optical Ethernet switches developed by Huawei. The CloudEngine S5732-H builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features.



Key Features

48*100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports)

24*10GE SFP+ ports

4*1GE/10GE/25GE SFP28 optical ports

2*40GE/100GE QSFP28 optical ports

Memory (RAM)  4GB

Flash  2GB



Appearance and Structure

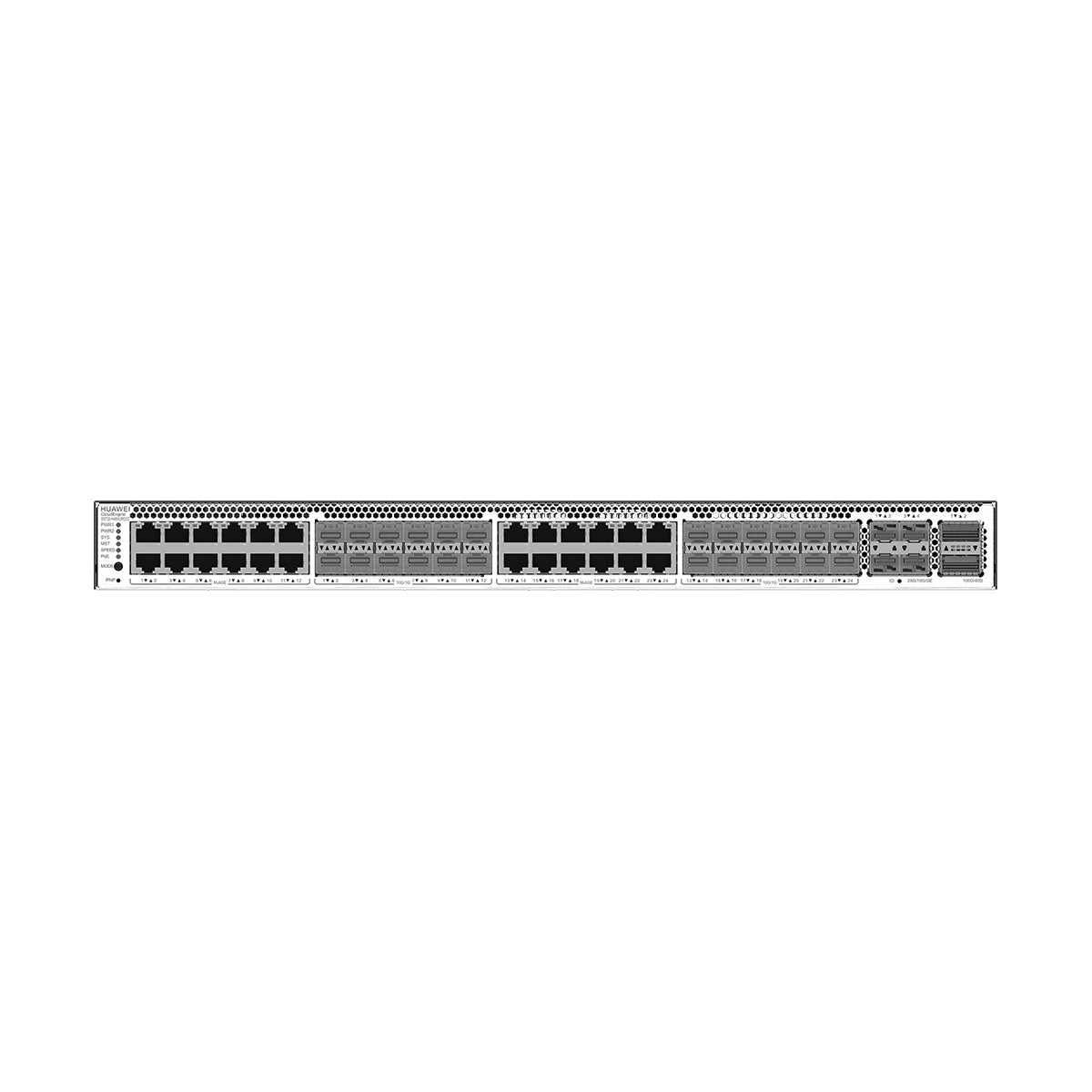

S5732-H48XUM2CC Appearance

1

One PNP button

NOTICE:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

2

Twenty-four PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T ports (multi-GE ports)

NOTE:

The S5732-H48XUM2CC is a hybrid optical-electrical switch. You can use one multi-GE port and one 10GE SFP+ optical port together by connecting them through a hybrid cable. This cable is composed of copper cores terminated on RJ45 connectors and optical fibers terminated on LC connectors. The typical application scenario is as follows:

  • The copper cores connect a multi-GE port of a switch to a PoE_IN port of an AP to allow the switch to supply power to the AP while no data is transmitted over this cable.

  • The optical fibers connect a SFP+ optical port on the switch to a SFP+ optical port of the AP to transmit data.

3

Twenty-four 10GE SFP+ ports

Applicable modules and cables:
  • GE optical module
  • GE-CWDM optical module
  • GE-DWDM optical module
  • GE copper module
  • 10GE SFP+ optical module (OSXD22N00 not supported)
  • 10GE-CWDM optical module
  • 10GE-DWDM optical module
  • 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
  • 3 m and 10 m SFP+ AOC cables
  • 0.5 m and 1.5 m SFP+ dedicated stack cables (supported by the last 16 SFP+ ports and used only for zero-configuration stacking)
  • First-generation Hybrid Cable
NOTE:

It is recommended that optical fibers in the first-generation hybrid cables be fusion spliced onsite. If you assemble optical fibers in hybrid cables in mechanical splicing mode, only SFP-10G-iLR-S optical modules are supported.

4

Four 1GE/10GE/25GE SFP28 optical ports

Applicable modules and cables:
  • GE optical module
  • GE-CWDM optical module
  • GE-DWDM optical module
  • GE copper module (100M/1000M auto-sensing)
  • 10GE SFP+ optical module (OSXD22N00 not supported)
  • 10GE-CWDM optical module
  • 10GE-DWDM optical module
  • PEN remote optical modules (V200R024C00 and later versions)
  • 25GE SFP28 Optical Module
  • 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
  • 3 m and 10 m SFP+ AOC cables
  • 1 m, 3 m, and 5 m SFP28 high-speed copper cables
  • 3 m, 5 m, 7 m, and 10 m SFP28 AOC cables

5

Two 40GE/100GE QSFP28 optical ports

Applicable modules and cables:
  • QSFP+ optical module
  • QSFP28 optical module
  • 1 m, 3 m, and 5 m QSFP+ high-speed copper cables
  • 10 m QSFP+ AOC cable
  • 1 m, 3 m, and 5 m QSFP28 high-speed copper cables
  • 10 m QSFP28 AOC cable
  • 2 m QSFP28 dedicated stack cable (supported in V200R020C10 and later versions)
NOTE:

You can run the set device port-config-mode enable command to change the working mode of SFP28 and QSFP28 optical ports. By default, the working mode of SFP28 and QSFP28 optical ports is "4 x 25GE + 2 x 40GE".

If any QSFP28 optical port is configured to work at 100 Gbit/s or split into four 25GE ports, the four SFP28 optical ports become unavailable.

6

Ground screw

NOTE:
It is used with a ground cable.

7

One USB port

8

One console port

9

One ETH management port

10

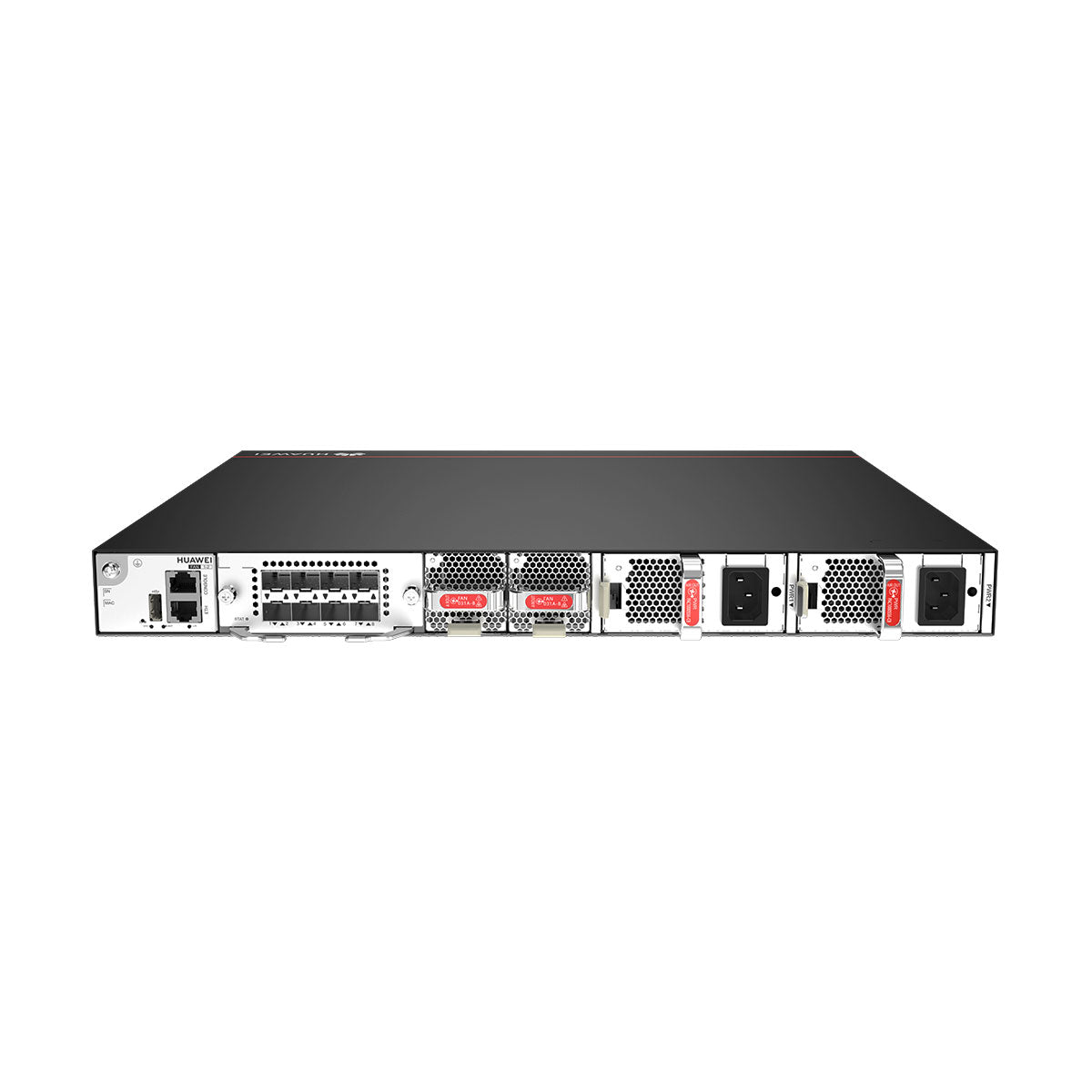

Rear card slot

NOTE:
Applicable card:
  • S7X08000
  • S7Y08000
  • S7Q02001 (02313UBW) (applicable in V200R022C00 and later versions)
  • S7Q02001 (02313UBW-002) (applicable in V200R022C00 and later versions)
  • S7C02000 (applicable in V200R022C00 and later versions)

11

Fan module slot 1

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

12

Fan module slot 2

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

13

Power module slot 1

NOTE:

Applicable power module:

  • PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module)
  • PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module)
  • PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
  • PDC1000S56-CB (1000 W PoE DC Power Module) (applicable in V200R021C00 and later versions)
  • PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust)) (applicable in V200R021C10 and later versions)

14

Power module slot 2

NOTE:

Applicable power module:

  • PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module)
  • PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module)
  • PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
  • PDC1000S56-CB (1000 W PoE DC Power Module) (applicable in V200R021C00 and later versions)
  • PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust)) (applicable in V200R021C10 and later versions)

Port Description

Attributes of a 100M/1000M/2.5GE/5GE/10GE BASE-T port

Attribute

Description

Connector type

RJ45

Standards compliance

IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3an

Working Mode

100/1000/2500/5000/10000 Mbit/s auto-sensing

​​​​​​​​​

Maximum transmission distances of different cables on multi-GE ports

Cable Type (6-a-1 Bundle)

Multi-GE Port (Different Rates)

100M/1000M

2.5GE

5GE

10GE

Category 5e unshielded twisted pair (Cat5e UTP)

100 m

100 m
  • 55 m
  • 100 m (6-a-1 bundle only for the first 30 m)

Not recommended due to high risk

Not supported

Category 5e shielded twisted pair (Cat5e STP)

100 m

100 m

100 m

Not supported

Category 6 unshielded twisted pair (Cat6 UTP)

100 m

100 m

100 m

Not recommended due to high risk

Not supported

Category 6 shielded twisted pair (Cat6 STP)

100 m

100 m

100 m

Not supported

Category 6A unshielded twisted pair (Cat6A U/UTP)

100 m

100 m

100 m

Not recommended due to high risk

Not supported

Category 6A foiled/unshielded twisted pair (Cat6A F/UTP)

100 m

100 m

100 m

100 m

Category 6A shielded twisted pair (Cat6A STP)

100 m

100 m

100 m

100 m

Category 7 twisted pair (Cat7)

100 m

100 m

100 m

100 m

​

 PoE power supply capabilities of multi-GE ports when different power supply media are used

Power Supply Medium (Cable Diameter)

Power Received by an AP

AP-Side Voltage

Maximum Power Supply Distance

Category 5e Ethernet cable (AWG23)

53 W (class 6)

47.2 V

100 m

51 W (class 6)

45.0 V

150 m

Category 6 or 6A Ethernet cable (AWG24)

55 W (class 6)

47.2 V

100 m

52 W (class 6)

45.0 V

150 m

Hybrid cable (1.5 mm2)

57 W (class 6)

52.2 V

100 m

55 W (class 6)

50.8 V

150 m

54 W (class 6)

50.0 V

180 m

54 W (class 6)

49.4 V

200 m

52 W (class 6)

48.0 V

250 m

51 W (class 6)

46.5 V

300 m



Attributes of a 10GE SFP+ port

Attribute

Description

Connector type

LC/PC

Optical port attributes

Depend on the optical module used

Standards compliance

IEEE802.3ae

Working mode

GE/10GE auto-sensing

​

Attributes of a 1GE/10GE/25GE SFP28 optical port

Attribute

Description

Connector Type

LC/PC

Optical port attributes

Depending on the optical module or cable in use

Standards compliance

IEEE802.3z, IEEE802.3ae, and IEEE802.3by

Working mode
  • When a 25GE optical module or cable is connected to a port, the port can automatically adjust its rate to 25 Gbit/s.
  • When a 10GE optical module or cable is connected to a port, the port can automatically adjust its rate to 10 Gbit/s.
  • Before installing a GE optical module or copper module on a port, run the port mode ge command to configure the port to work at 1 Gbit/s.

​

Attributes of a QSFP28 optical port

Attribute

Description

Connector type

MPO/LC

Optical port attributes

Depend on the optical module used

Standards compliance

IEEE802.3ba

​​

Technical specifications

Item

Description

Memory (RAM)

4 GB

Flash

2 GB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

32.38 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection
  • Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
  • Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)

Weight (including package)

8.2 kg (18.08 lb)

Stack ports

Any Ethernet electrical ports (10GE), optical ports on the front panel (10GE/25GE/40GE/100GE), or optical ports on the card (10GE/25GE/40GE/100GE)

RTC

Supported

RPS

Not supported

PoE

Supported

Rated voltage range
  • AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz
  • High-Voltage DC input: 240 V DC
  • DC input: -48 V DC to -60 V DC

Maximum voltage range
  • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
  • High-Voltage DC input: 190 V DC to 290 V DC
  • DC input: -38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)
  • Not providing the PoE function: 338 W (without card)
  • 100% PoE loads: 1980 W (PoE: 1440 W, without card)

Typical power consumption (30% of traffic load, tested according to ATIS standard)

231 W (without card)

Operating temperature
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient temperature is lower than 0°C (32°F).

The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module.

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 63.1 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number

02353MLH

02353MLH-001

02353MLH-002


Return and Exchange Policy

Thank you for choosing Huatelecom! We value your trust and strive to provide high-quality products and exceptional service. Below is our comprehensive return and exchange policy to ensure your rights are protected.

1. Return Policy

  • Eligibility for Returns (Quality Issues Only):
    If the product has quality defects that affect its normal usage, you are eligible to apply for a return within 7 calendar days of receiving the product. The following conditions must be met:

    1. The product must be unused, with all original packaging, accessories, and manuals intact.
    2. A valid proof of purchase (order number, invoice, etc.) must be provided.
    3. Clear evidence of the defect, such as photos or videos, must be submitted for verification.

  • Shipping Costs for Returns:
    If the return is due to quality issues, Huatelecom will cover the international shipping costs for returning the product.

  • Refund Processing:
    Once the returned product is received and inspected, the refund will be processed within 7 business days. The refund will be issued through the original payment method, and processing times may vary depending on your payment provider.

2. Exchange Policy

  • Eligibility for Exchanges (Quality Issues Only):
    You may request an exchange if the product develops a quality issue within 15 calendar days of receipt. The conditions for eligibility are:

    1. The product must be returned with all original packaging, accessories, and manuals.
    2. Proof of purchase and evidence of the defect must be provided.

  • Shipping Costs for Exchanges:
    Huatelecom will bear the international shipping costs for the exchange.

  • Exchange Process:
    Upon receiving the defective product, we will inspect it and send a replacement product within 7 business days.

3. Warranty Service

  • Coverage During the Warranty Period:
    For products within the warranty period, if quality issues arise, we will provide a replacement free of charge with your next order. No additional shipping costs will be incurred for the replacement.

  • Out-of-Warranty Repairs:
    For products outside the warranty period, repairs can be arranged. However, customers will need to cover theround-trip international shipping costs for sending the product to us and receiving it back after repair.

4. Damages or Loss During Shipping

  • For Customers Who Purchased Shipping Insurance:
    If the product is damaged or lost during shipping, the insurance company will compensate for the loss. Customers must:

    1. Submit a compensation claim within 15 calendar days of the order being shipped.
    2. Provide required documentation, such as photos of the damaged packaging, damaged product, or proof of non-delivery.
    3. Huatelecom will assist in the claim process to ensure timely resolution.

  • For Customers Without Shipping Insurance:
    If you choose not to purchase shipping insurance, Huatelecom will not be liable for any damages or losses incurred during transit.

5. Application Process for Returns, Exchanges, or Claims

  1. For further assistance, please reach out to us:

    • Email: sales@huatelecom.com
    • Phone: +852 44652638
    • Business Hours: Monday to Friday, 9:00 AM - 6:00 PM (GMT+8)
      Provide your order number, issue description, and supporting evidence (photos, videos, etc.).

  2. Request Review:
    Our team will review your application within 1-3 business days and notify you of the outcome.

  3. Return or Exchange Process:

    • If approved, you will receive instructions on how to return the product or proceed with the exchange.
    • For insurance claims, we will assist in coordinating with the insurance company.

  4. Refund or Replacement:
    Once the product is received and inspected, we will process your refund, exchange, or warranty claim promptly.

6. Important Notes

  • Timeframes:

    • Returns must be initiated within 7 days of receipt.
    • Exchanges must be requested within 15 days of receipt.
    • Warranty replacements depend on the warranty terms for the specific product.

  • Condition of Returned Products:
    Products must be returned in their original condition with all accessories and packaging intact. Damaged, altered, or incomplete items may not qualify for returns or exchanges.

  • Shipping Insurance:
    We highly recommend purchasing shipping insurance to protect against potential damages or losses during transit.

  • Non-Eligible Returns/Exchanges:

    • Products with intentional damage or misuse.
    • Issues reported beyond the specified timeframes.
    • Non-Huatelecom products or items purchased from unauthorized channels.

At Huatelecom, your satisfaction is our top priority. Thank you for trusting us with your business!
