S7703  Hardware Description

Introduction

Huawei S7703 Switch is one of the S7700 series smart switches, and the S7700 series switches are smart routing switches designed for next-generation enterprise networks. The S7700 series switches can offer voice, video, and data services, helping enterprises build routing and switching integrated end-to-end networks.

The S7700 series design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability.

The S7703 chassis provides two system power supply slots: PWR1 and PWR2, which support DC and AC power modules. PWR1 is in area A, and PWR2 is in area B. Area A and area B act as a hot backup of each other.

The S7703 chassis is 4 U high (1 U = 44.45 mm). When the chassis has no cable management frame installed, the dimensions (H x W x D) are 175 mm x 442 mm x 517.4 mm. When the chassis has cable management frames installed, the dimensions (H x W x D) are 175 mm x 442 mm x 585 mm.

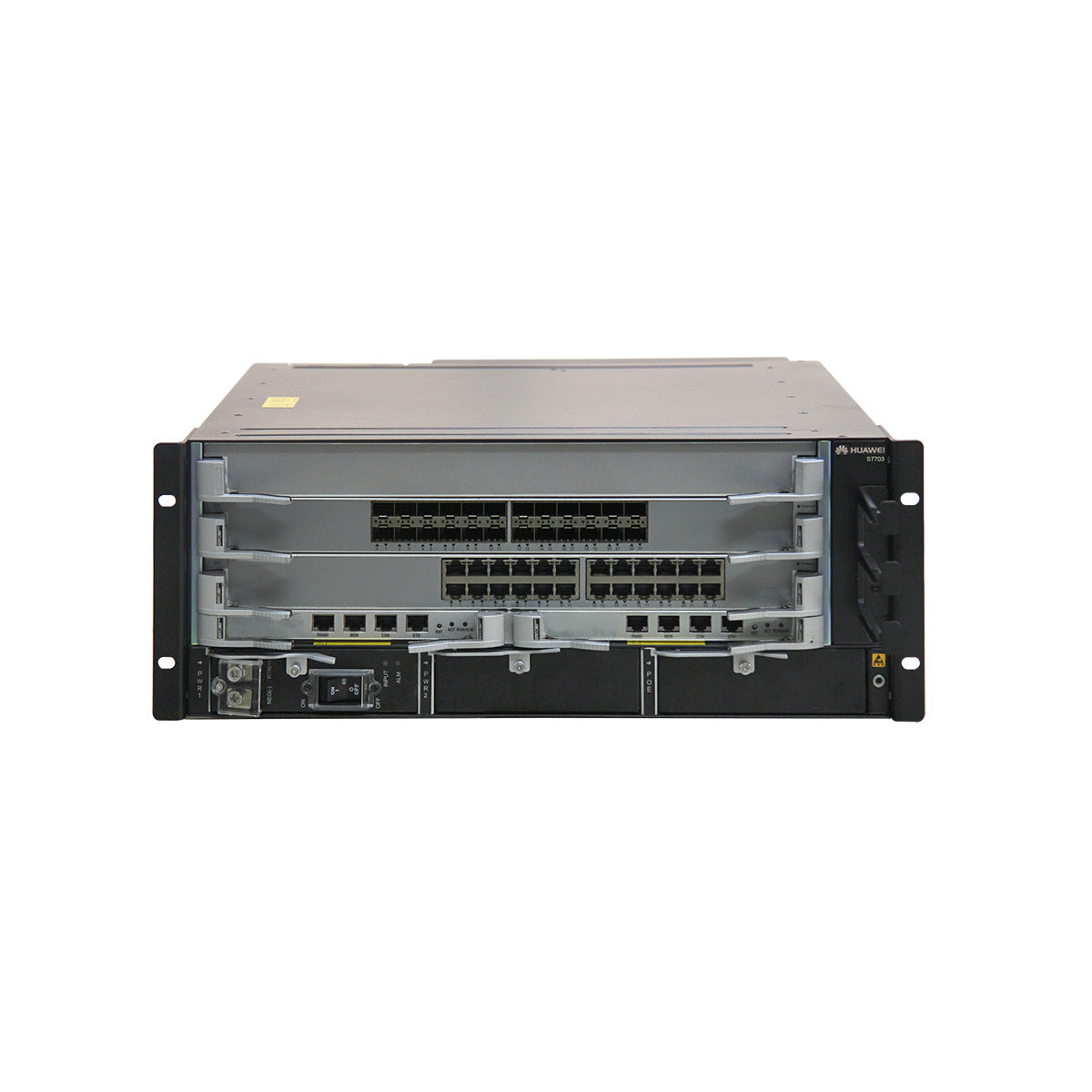

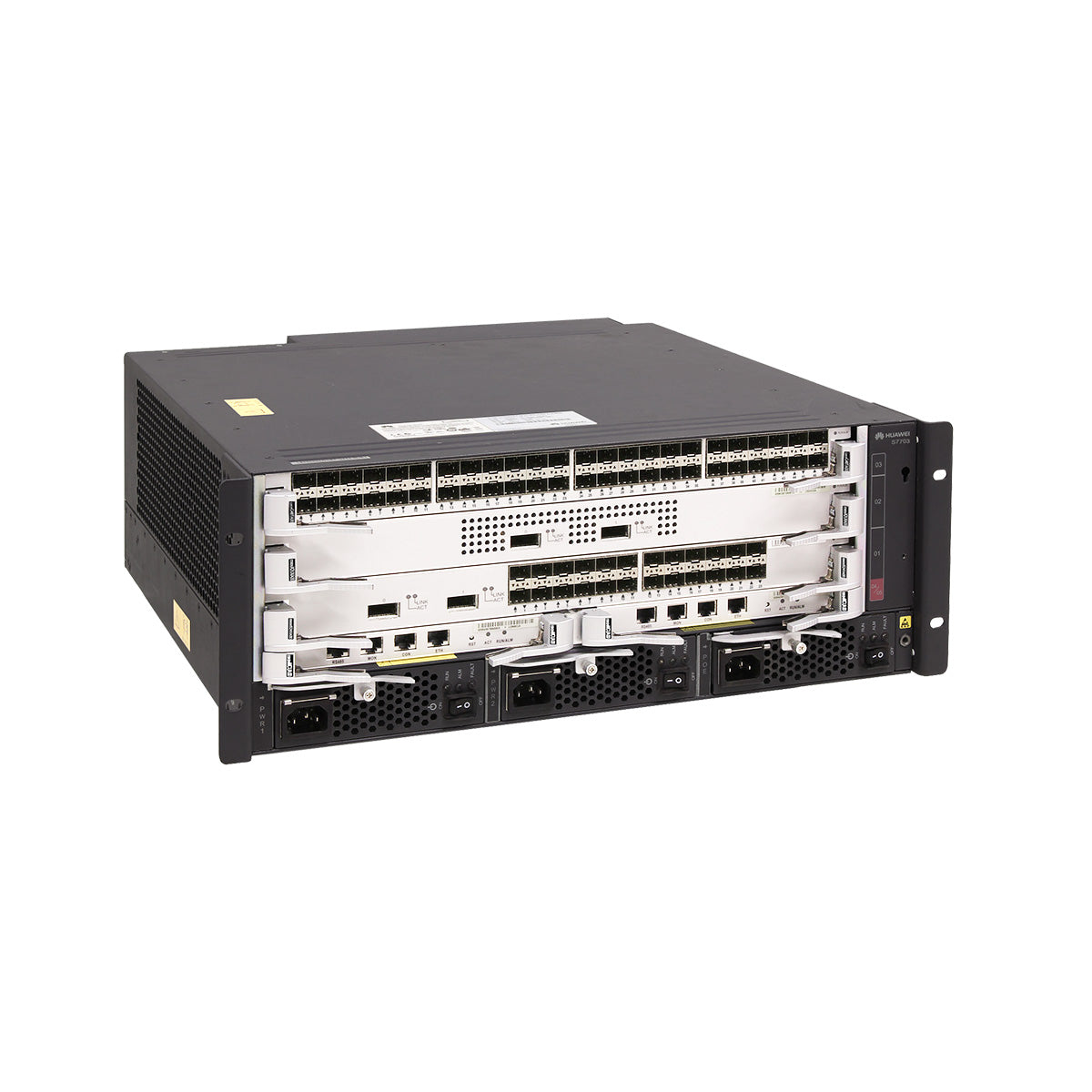

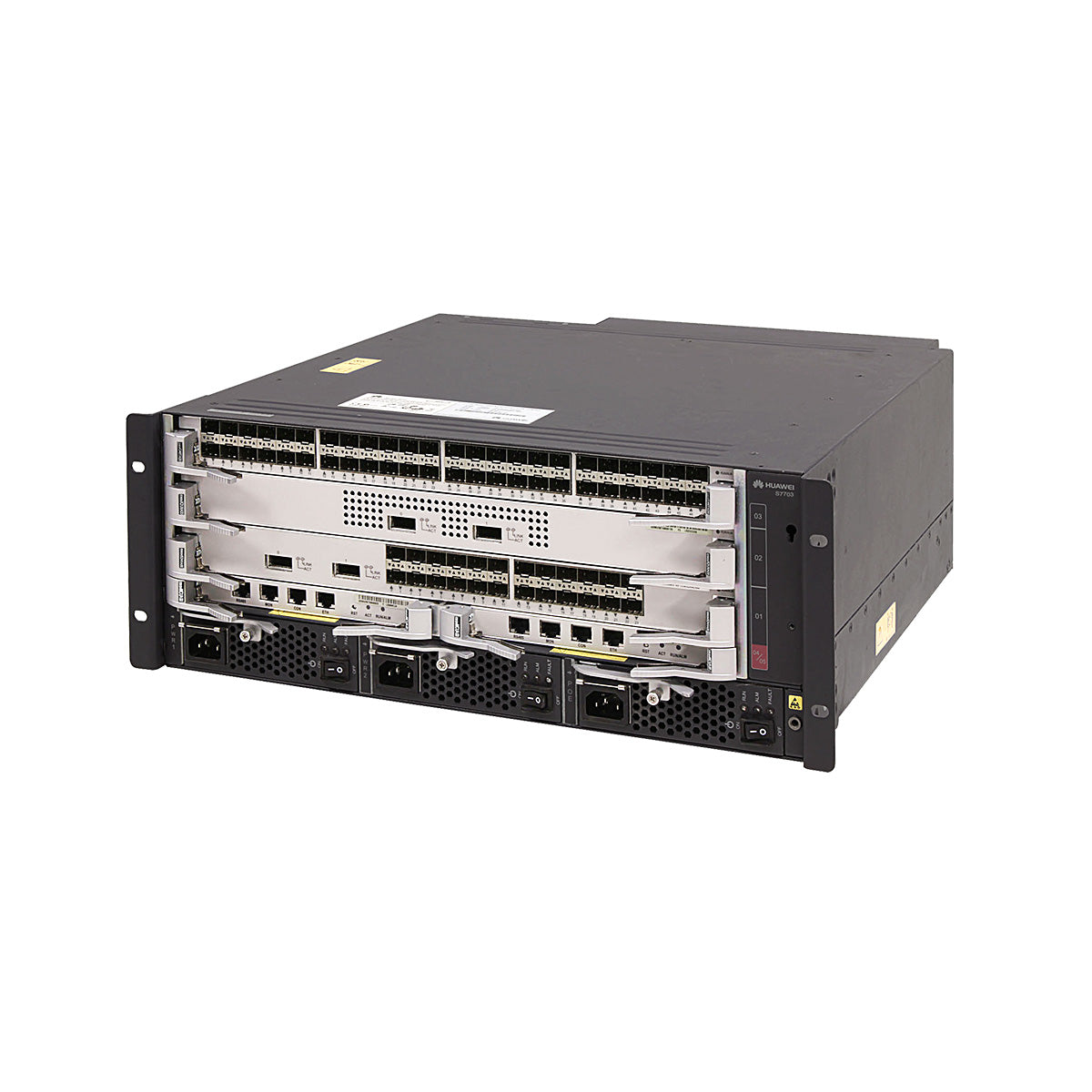

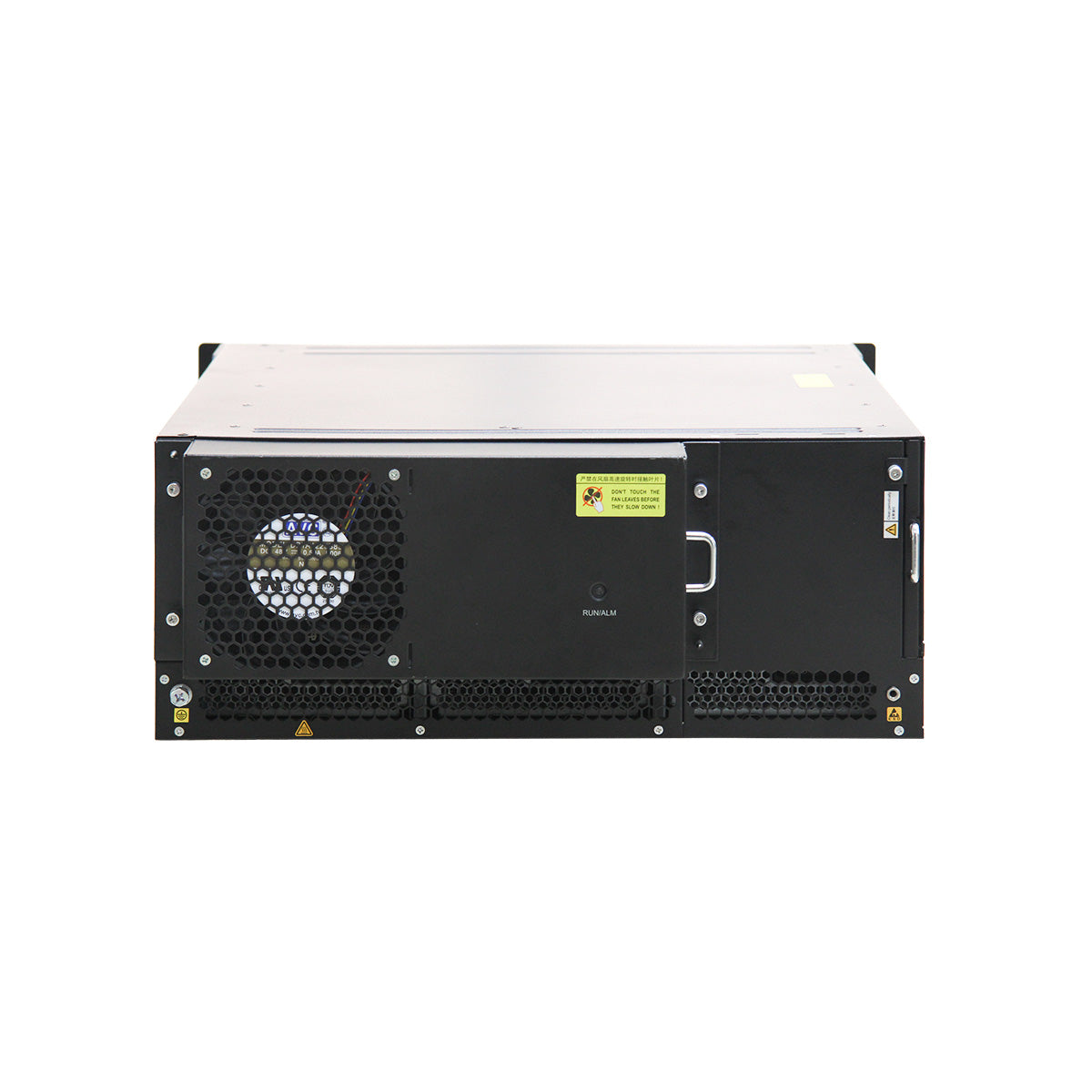

Appearance and Structure

1. Three of the following service cards can be installed:

  • Value-Added Service Unit
  • Open Service Platform Unit
  • 100M Interface Card
  • 1000M Interface Card
  • GE/10GE Interface Card
  • 10GE Interface Card
  • 40GE Interface Card
  • 40GE/100GE Interface Card
  • 100GE Interface Card
NOTE:

The cards supported by a switch depend on the software version. For details, see Info-finder.

2. Two MPUs

3. A pair of mounting brackets

NOTE:

The mounting brackets are used to secure the chassis in the cabinet.

4. Two power modules

5. One PoE power modules

  • 2200 W AC Power Module
  • 800 W AC Power Module
  • 2200 W DC Power Module (Supported in V200R006C00 and later versions)
  • 3000 W AC Power Module (Supported in V200R012C00 and later versions)
NOTE:

For details, see Power Module.

6. Front ESD jack

NOTE:

The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

7. Cable management frames

NOTE:

Cable management frames are used to route cables.

-

-



Technical specifications

Item

Description

LPU slots

3

MPU slots

2

Fan slots

1

System power supply slots

2

PoE power supply slots

1

Maximum port density
  • V100R006C00: 144xFE, 144xGE, 36x10GE
  • V200R001C00: 144xFE, 144xGE, 120x10GE
  • V200R002C00 to V200R007C00: 144xFE, 144xGE, 120x10GE, 6x40GE
  • V200R008C00 to V200R009C00: 144xFE, 144xGE, 120x10GE, 6x40GE, 6x100GE
  • V200R010C00 to V200R019C00: 144xFE, 144xGE, 144x10GE, 24x40GE, 12x100GE
  • V200R019C00 to V200R020C10: 144xFE, 144xGE, 144x10GE, 24x40GE, 18x100GE
  • V200R021C00 and later versions: 144xFE, 144xGE, 144x10GE, 36x40GE, 18x100GE

Installation

In an N66E or N68E cabinet

CSS

Not supported

PoE
  • Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). V200R012C00 and later versions support 3000 W AC power supply
  • PoE power module backup: no backup
  • Maximum output power: 3000 W

Maximum power consumption (fully configured, no PoE power supply)

NOTE:

The heat dissipation value of a chassis equals the current power consumption of the chassis.

1000 W

Power specifications
  • DC input voltage

    Rated voltage: -48 V DC/-60 V DC

    Maximum voltage range:
    • 1600 W DC power module: -38.4 V DC to -72 V DC
    • 2200 W DC power module: -40 V DC to -72 V DC
  • AC input voltage

    Rated voltage: 110 V AC/220 V AC, 50/60 Hz

    Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.)

  • HVDC input voltage (3000 W AC)

    Rated voltage: 240 V DC

    Maximum voltage range: 190 V DC to 290 V DC

Dimensions (H x W x D, without rack-mounting brackets)
  • With cable management frames (4 U high): 175 mm x 442 mm x 585 mm (6.9 in. x 17.4 in. x 23.0 in.)
  • Without cable management frames (4 U high): 175 mm x 442 mm x 517.4 mm (6.9 in. x 17.4 in. x 20.37 in.)

Weight (empty/fully configured)

10 kg/31.6 kg (22.0 lb/69.7 lb)

Reliability and availability
  • Mean time between failures (MTBF): 33.8 years
  • Availability: 0.9999964
NOTE:

The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.

Environment specifications
  • Operating temperature and altitude:

    -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)

    1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).

    4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)

  • Relative humidity: 5% RH to 95% RH (noncondensing)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Storage altitude: < 5000 m (16404 ft.)

Noise at normal temperature (acoustic power)

≤ 72 dB(A)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number
  • Integrated S7703 chassis: 02113304
  • S7703 chassis, FCC certified: 02113959
