S9703 Hardware Description

Introduction

S9700 series terabit routing switches (S9700 for short), high-end switches designed for nextgeneration campus networks and data centers, to implement service aggregation. Based on Huawei Versatile Routing Platform (VRP), S9700 provides high L2/L3 switching capabilities and integrates diversified services such as MPLS VPN, hardware IPv6, desktop cloud, video conferencing, and wireless access. In addition, S9700 also provides various reliability technologies including in-service software upgrade, non-stop forwarding, hardware OAM/BFD, and ring network protection. These technologies improve customers’ network operation efficiency, maximize the device running time, and reduce customers’ total cost of ownership (TCO).

The S9703 chassis is 4 U high (1 U = 44.45 mm). When the chassis has no cable management frame installed, the dimensions are 442 mm x 489 mm x 175 mm (W x D x H). When the chassis has cable management frames installed, the dimensions are 442 mm x 585 mm x 175 mm (W x D x H).

Huawei S9703 AC bundle including assembly chassis EH1BS9703E00

  • 2xMCUA Main Board
  • 2x800W AC power module
  • With 3 service slots.
  • Forwarding perfomance: 2160Mpps
  • Switching capacity: 2.88/5.76Tbps
  • Non-POE

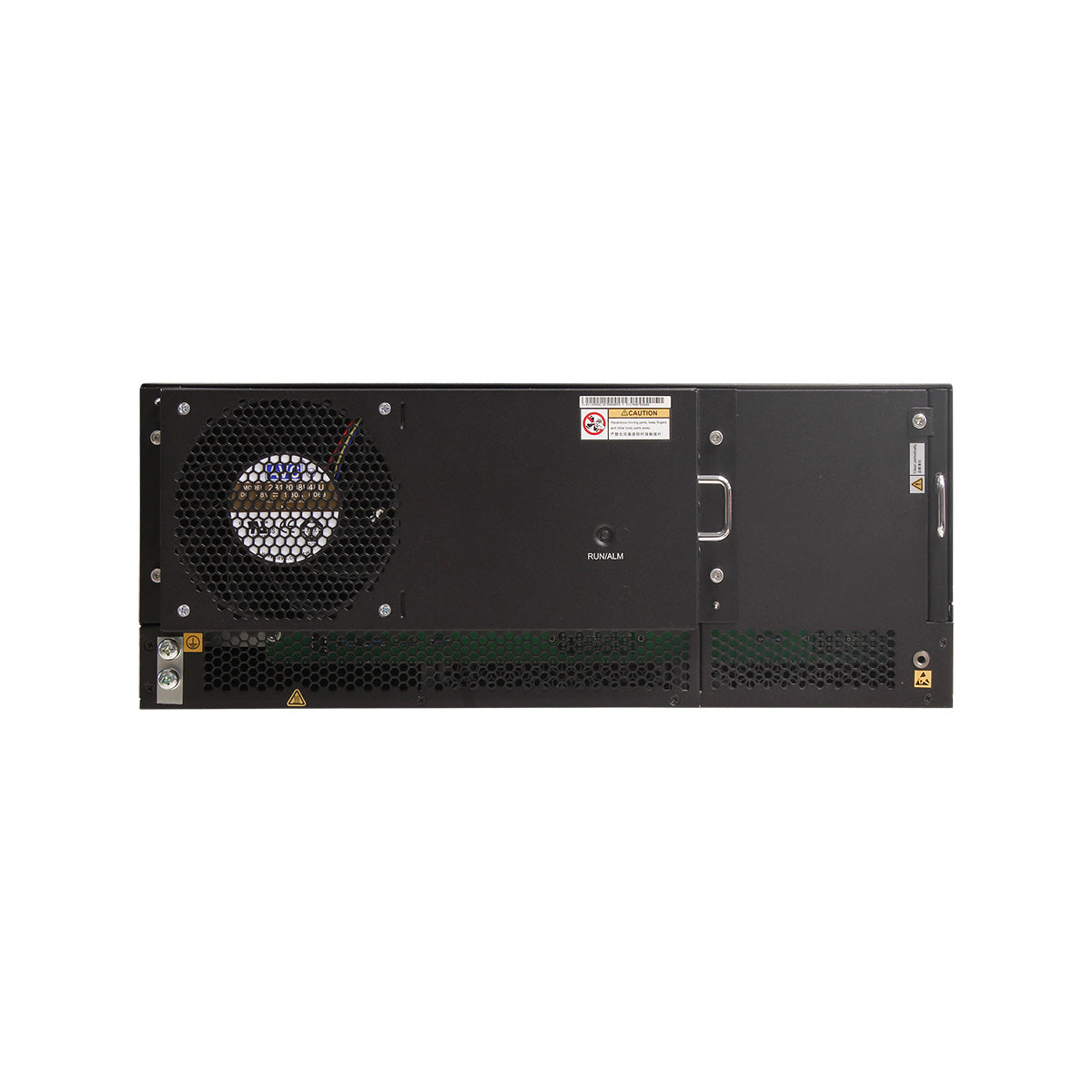

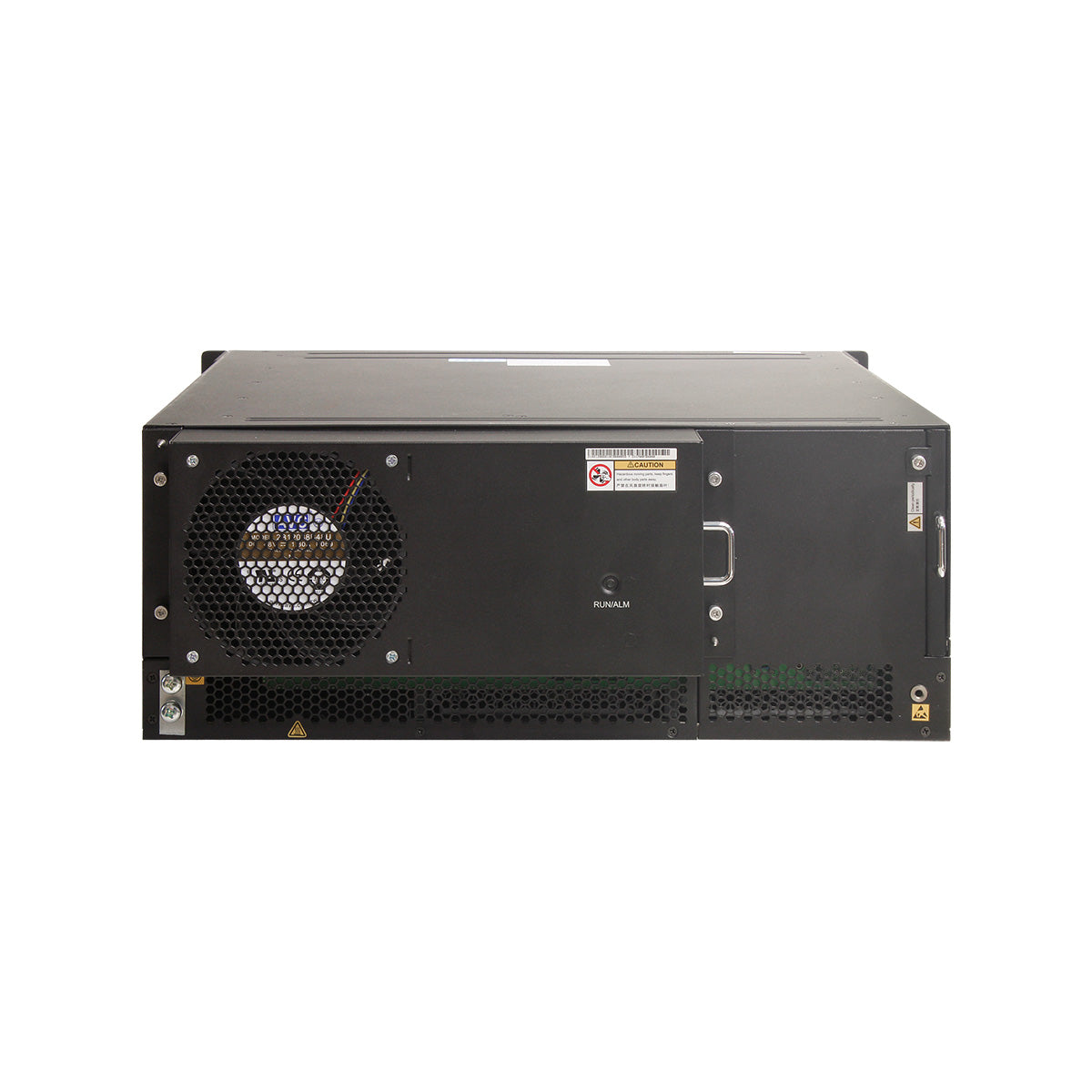

Appearance and Structure

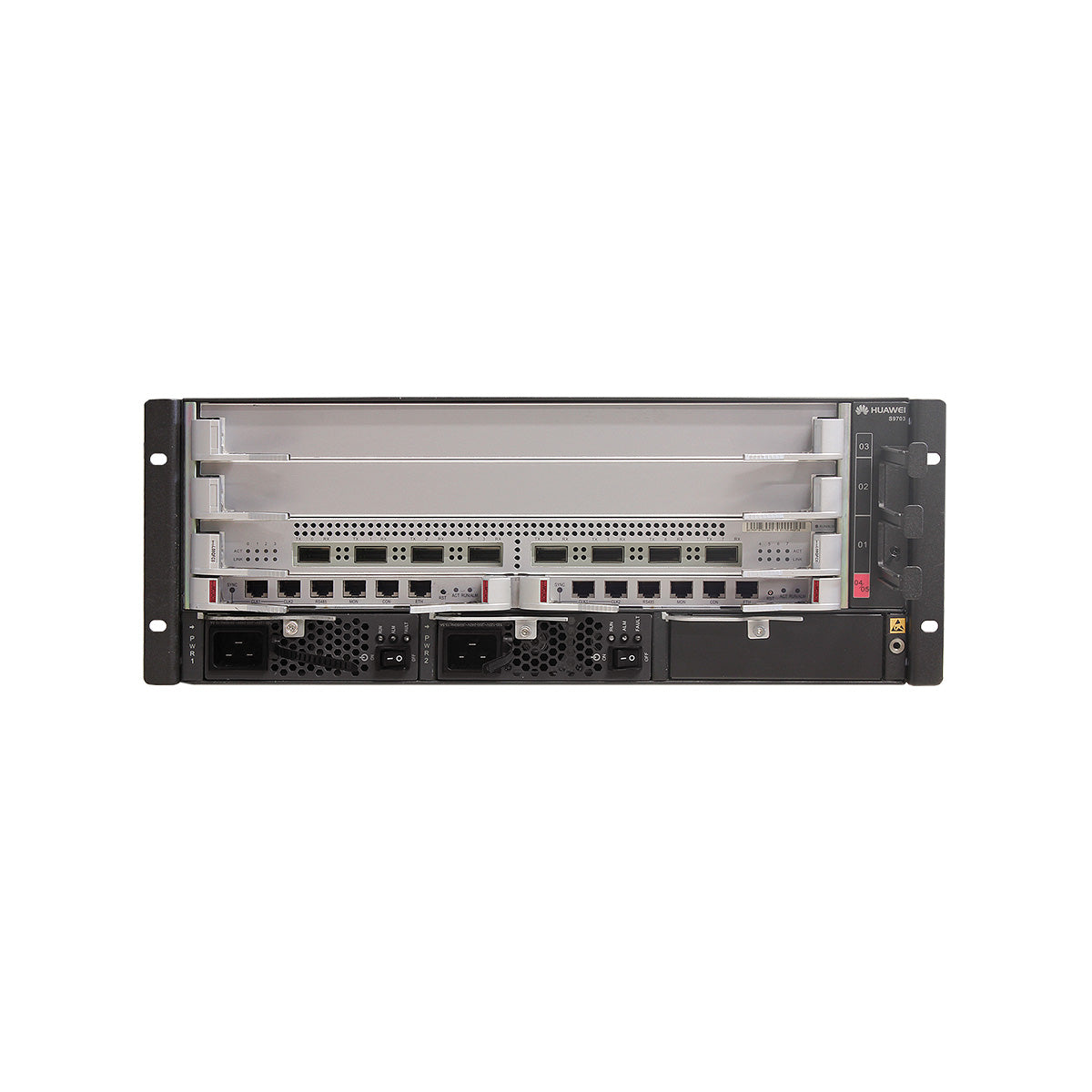

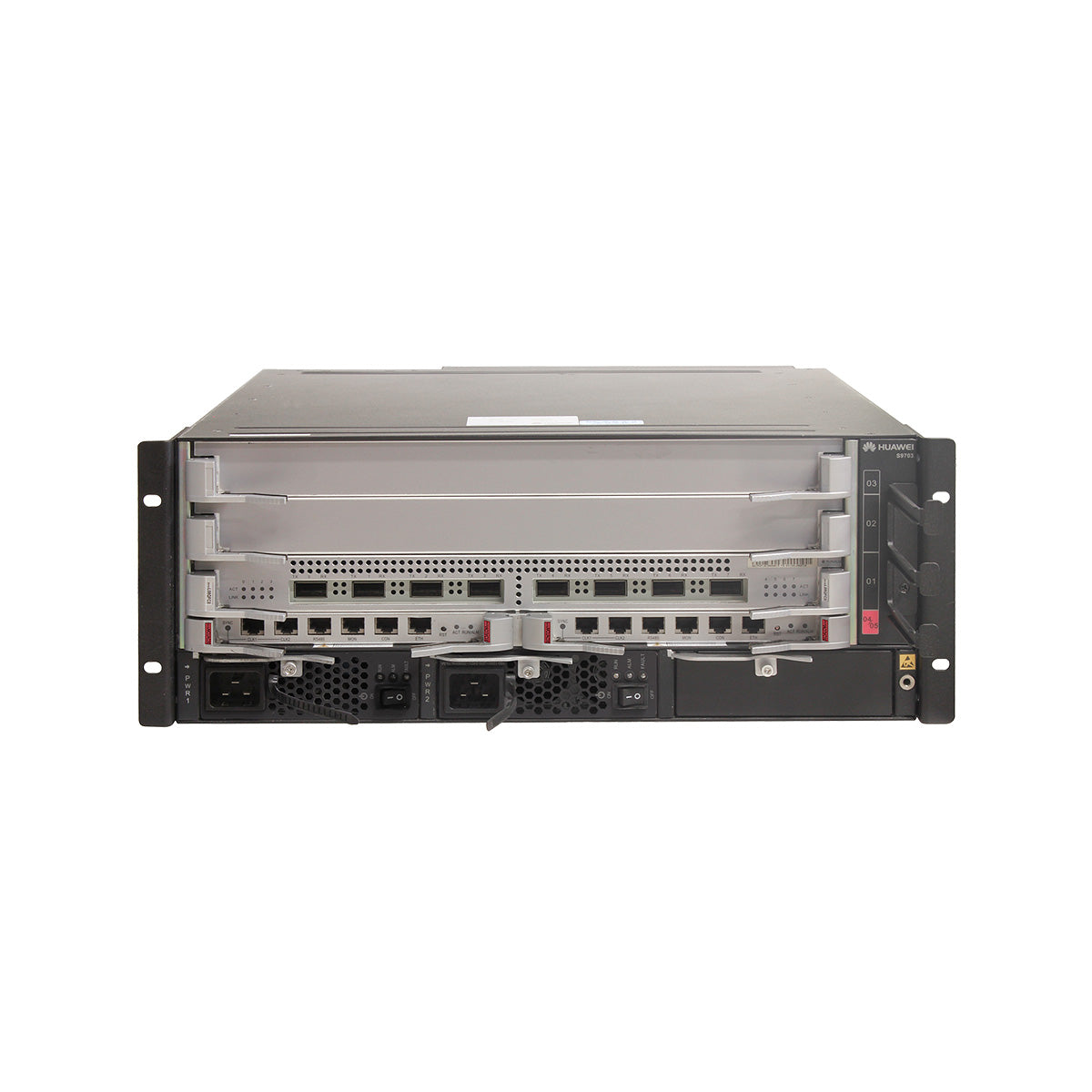

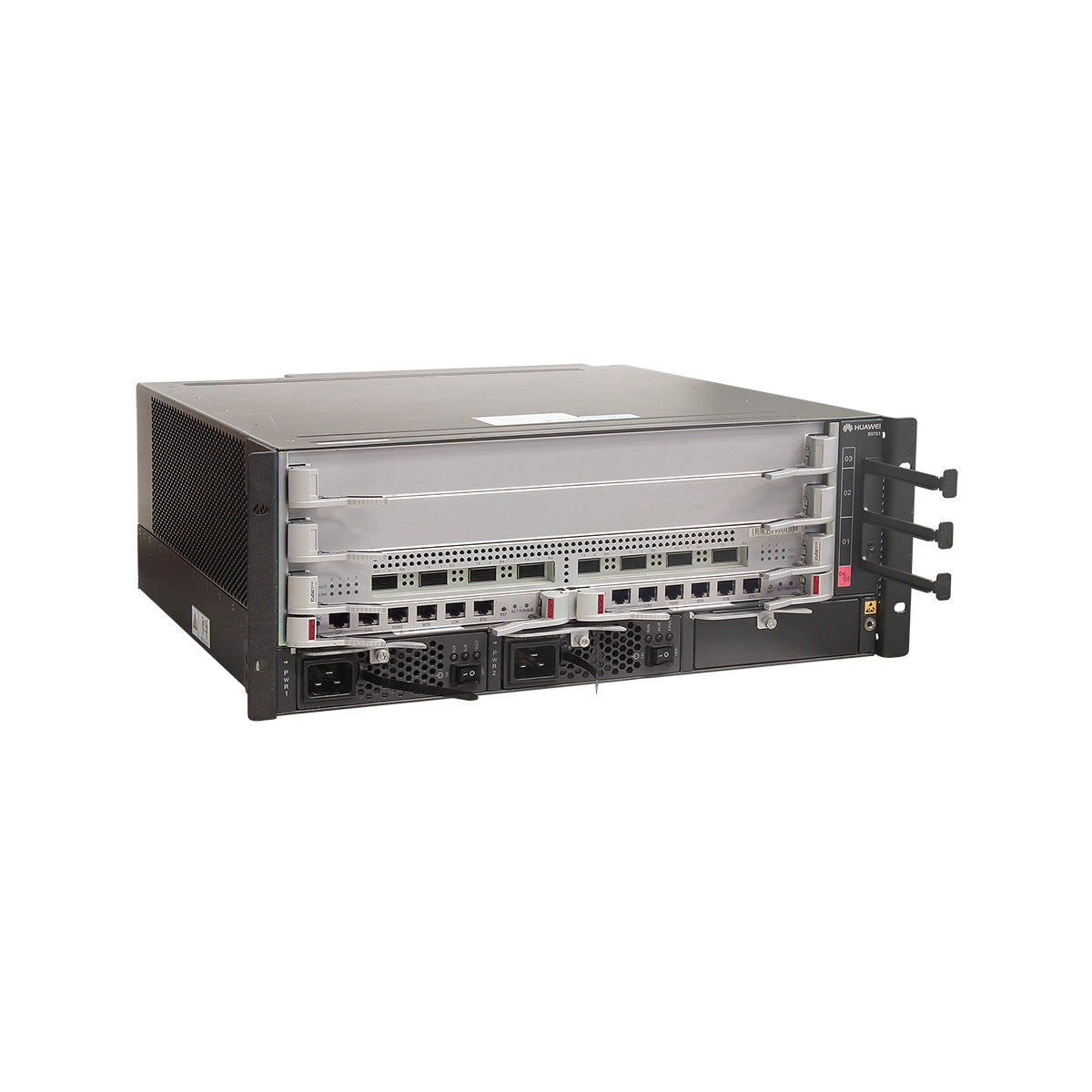

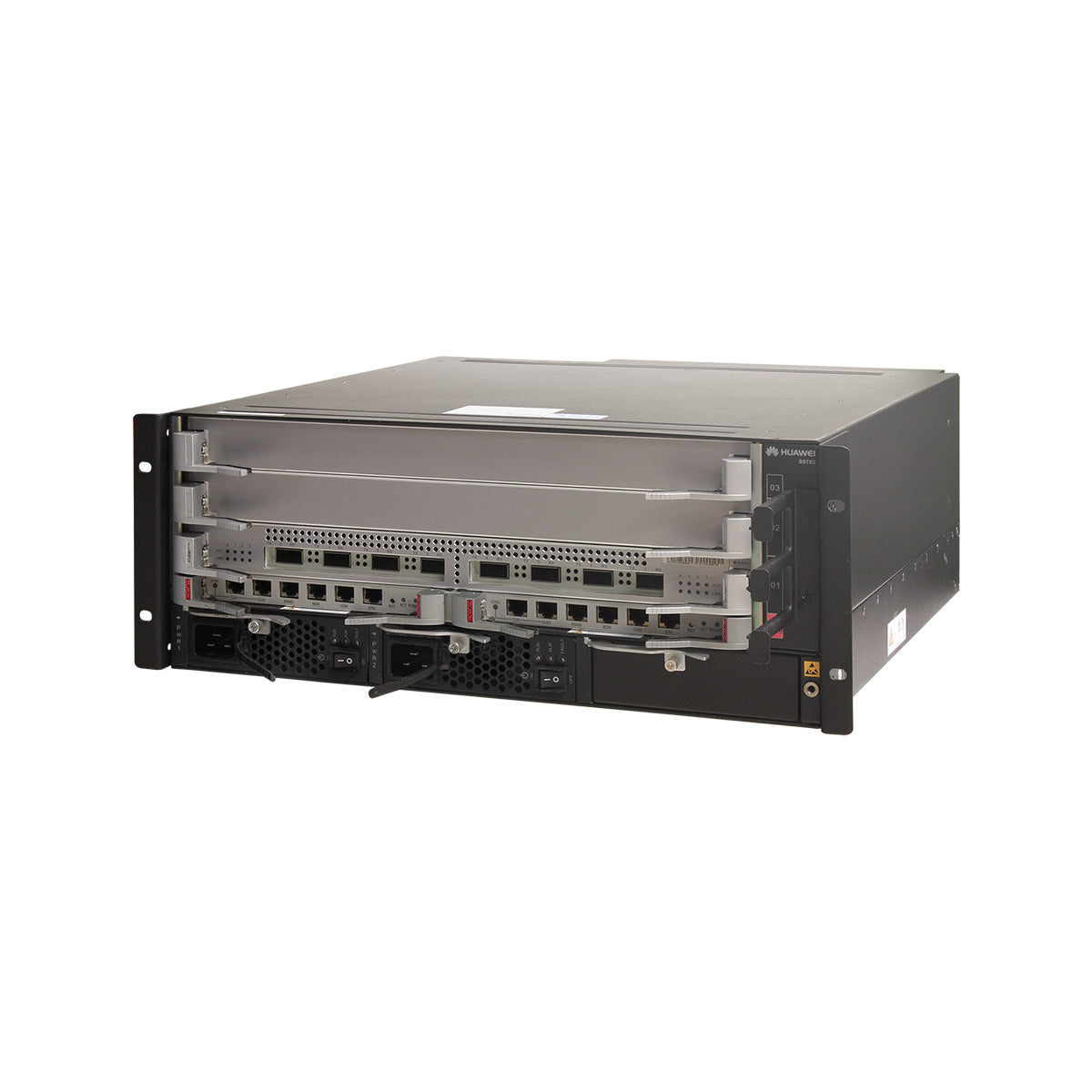

1. Three of the following service cards can be installed:
  • Value-Added Service Unit
  • Open Service Platform Unit
  • 100M Interface Card
  • 1000M Interface Card
  • GE/10GE Interface Card
  • 10GE Interface Card
  • 40GE Interface Card
  • 40GE/100GE Interface Card
  • 100GE Interface Card
NOTE:

The cards supported by a switch depend on the software version. For details, see Hardware Query Tool.

 2. Two MPUs 3. A pair of mounting brackets
NOTE:

The mounting brackets are used to secure the chassis in the cabinet.
4. Two power modules 5. Reserved slot
NOTE:

Install a filler panel in the reserved slot.

6. Front ESD jack

NOTE:

The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.
7. Cable management frames
NOTE:

Cable management frames are used to route cables.

 - -

Technical specifications

Item

Description

LPU slots

3

MCU slots

2

Fan slots

1

Power slots

2

Maximum port density
  • V200R001C00: 144xFE, 144xGE, 120x10GE
  • V200R002C00 and V200R003C00: 144xFE, 144xGE, 120x10GE, 24x40GE
  • V200R005C00 to V200R007C10: 144xFE, 144xGE, 144x10GE, 24x40GE
  • V200R008C00 to V200R009C00: 144xFE, 144xGE, 144x10GE, 24x40GE, 6x100GE
  • V200R010C00 to V200R013C00: 144xFE, 144xGE, 144x10GE, 24x40GE, 12x100GE

Installation

In an N66E or N68E cabinet

CSS

Not supported

Maximum power consumption (fully loaded)

NOTE:
The heat dissipation value of a chassis equals the current power consumption of the chassis.

1185 W

Power specifications
  • DC input voltage

    Rated voltage: -48 V DC/-60 V DC

    Maximum voltage range: -40 V DC to -72 V DC

  • AC input voltage

    Rated voltage: 110 V AC/220 V AC, 50/60 Hz

    Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.)

  • HVDC input voltage (3000 W AC)

    Rated voltage: 240 V DC

    Maximum voltage range: 190 V DC to 290 V DC

Dimensions (W x D x H, excluding rack-mounting brackets)
  • With cable management frames: 442 mm x 585 mm x 175 mm (17.4 in. x 23.0 in. x 6.89 in. (4 U))
  • Without cable management frames: 442 mm x 489 mm x 175 mm (17.4 in. x 19.3 in. x 6.89 in. (4 U))

Weight (empty/fully loaded)

11 kg/32.6 kg (24.3 lb/71.9 lb)

Reliability and availability
  • Mean time between failures (MTBF): 33.8 years
  • Mean time to repair (MTTR): 64 minutes
  • Availability: 0.9999964
NOTE:

The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.

Environment specifications
  • Operating temperature and altitude:

    -60 m to +1800 m (197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)

    1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).

    4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)

  • Operating relative humidity: 5% RH to 95% RH (noncondensing)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Storage altitude: < 5000 m (16404 ft.)
  • Storage relative humidity: 5% RH to 95% RH (noncondensing)

Noise at normal temperature (acoustic power)

≤ 72 dB(A)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number
  • S9703 chassis: 02113547
  • S9703 chassis, FCC certified: 02113611
