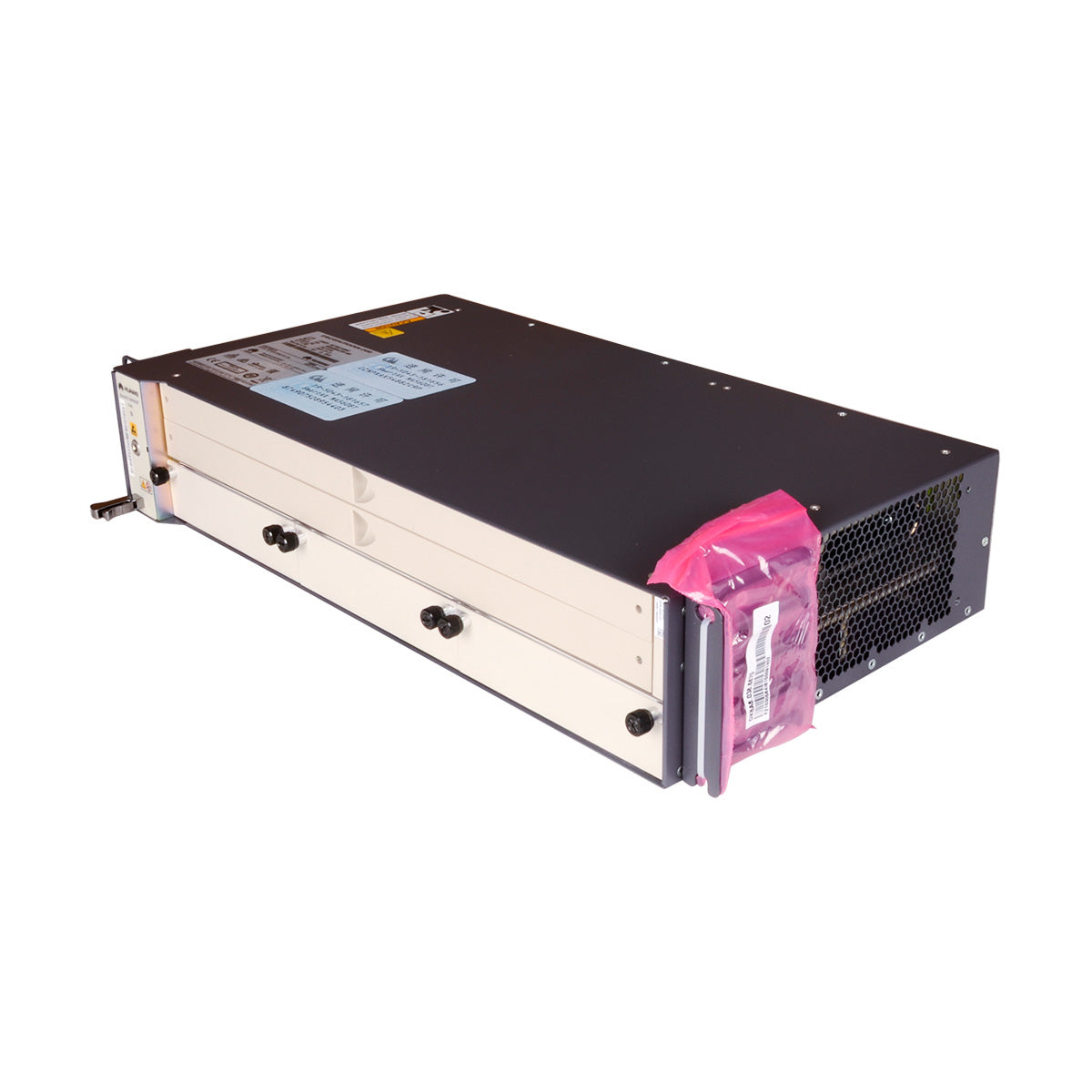

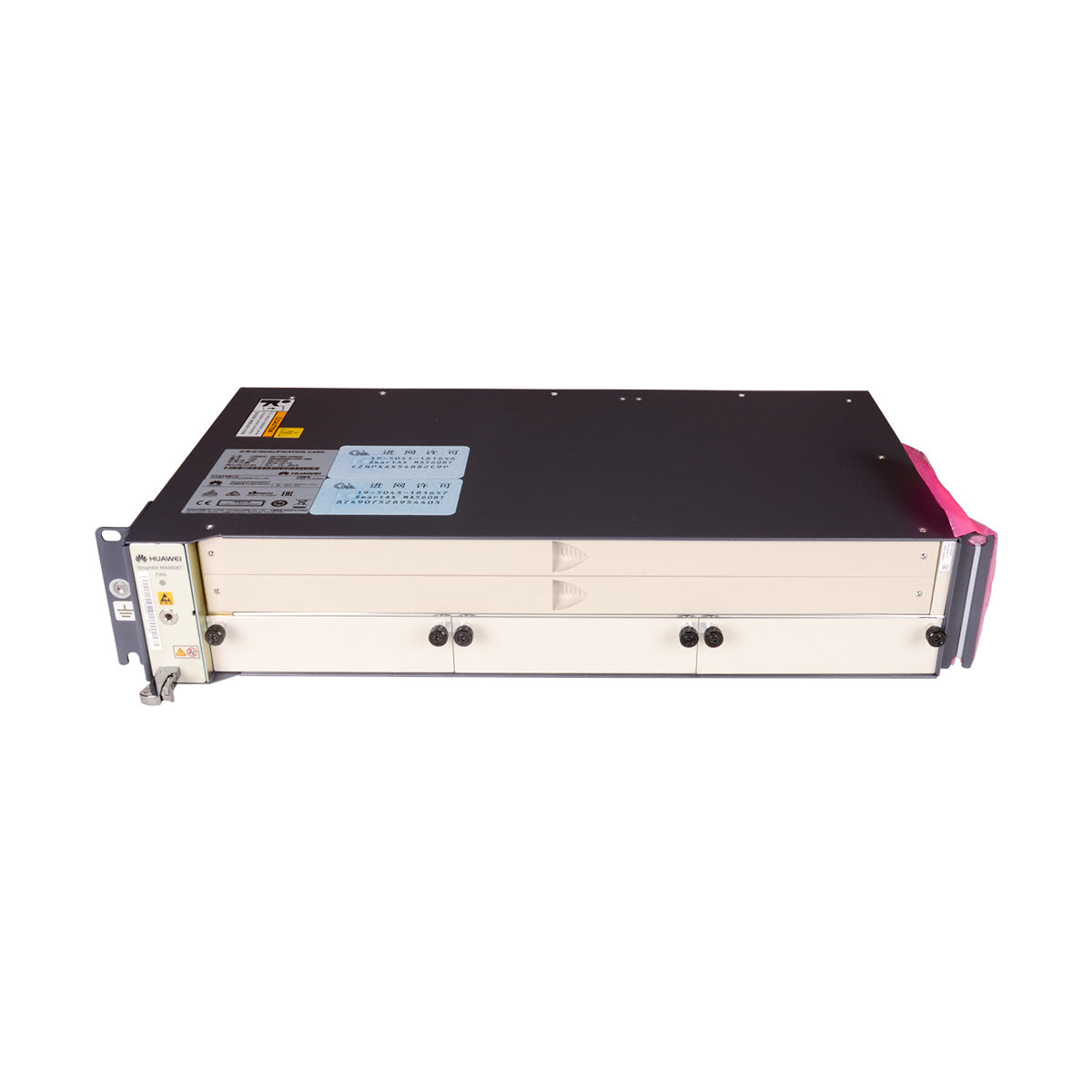

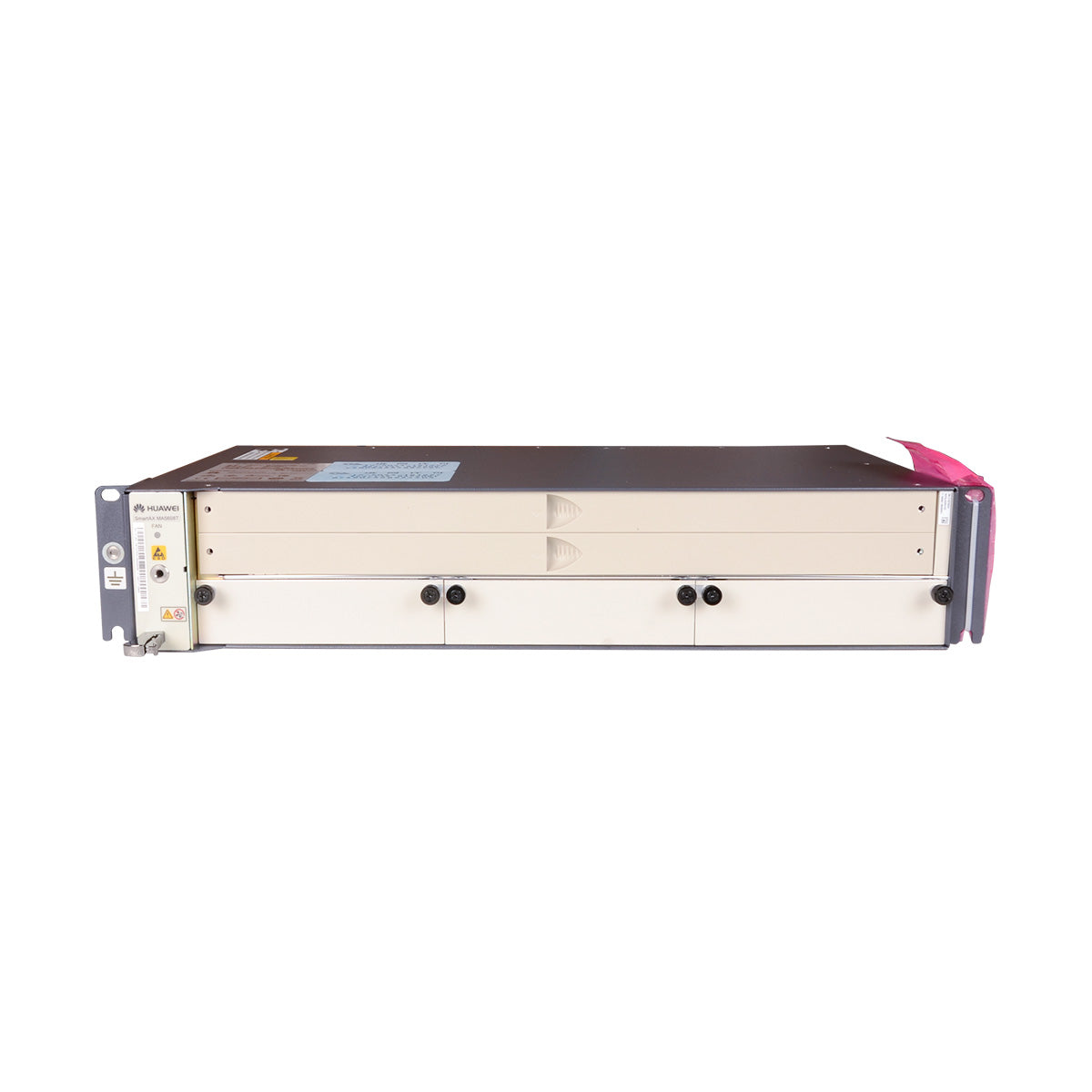

Huawei SmartAX MA5608T OLT Overview

The Huawei SmartAX MA5608T is a compact, high-performance Optical Line Terminal (OLT) designed for space-constrained fiber access scenarios such as residential neighborhoods, building basements, and outdoor cabinets. As the smallest model in Huawei’s MA5600T series, it uniquely integrates the functions of an aggregation switch and an edge router.

Product Features
  • Form Factor: 2U height, 19-inch rack-mountable chassis.
  • Capacity: Supports up to 4,096 GPON subscribers, with a switching capacity of up to 720 Gbit/s.
  • Slot Configuration:

-2 Service Slots: Compatible with GPON, 10G GPON, or Ethernet P2P cards.
-2 Control Board Slots: Normally equipped with MCUD (GE) or MCUD1 (10GE) boards for management and uplink connectivity.
-1 Power Slot: Redundant power supply options, supporting AC or DC (-48V) input.

  • Access Modes: Supports GPON, 10G GPON, EPON, P2P, as well as legacy services including ADSL2+, VDSL2, and POTS.
  • Environmental Resilience: Operates within a wide temperature range of -40°C to +65°C (-40°F to +149°F).
Huawei SmartAX MA5608T OLT Specification
Huawei MA5608T OLT Specification
Maintenance port Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1
Number of serial ports for local/remote maintenance: 1
Monitoring port Number of environment monitoring serial ports: 1
Maximum number of ADSL2+ ports in a subrack 128
Maximum number of VDSL2 ports in a subrack 128
Maximum number of EFM SHDSL ports in a subrack 64  NOTE: The MA5608T only supports the EFM SHDSL ports.
Maximum number of TDM SHDSL ports in a subrack 32
Maximum number of POTS ports in a subrack 128
Maximum number of ISDN BRA ports in a subrack 64
Maximum number of ISDN PRA ports in a subrack 64
Maximum number of GPON ports in a subrack 32
Maximum number of 10G GPON ports in a subrack 16
Maximum number of P2P FE ports in a subrack 96
Maximum number of P2P GE ports in a subrack 96
Management ports
Outband management Ethernet port (RJ-45) MCUD/MCUD1
Local serial port (Console) MCUD/MCUD1
Upstream ports
GE optical port MCUD1: 2 Ports Board
MCUD:4 Ports Board
ETHB/SPUF: 8 Ports Board
10GE optical port MCUD1: 2 Ports Board
SPUF: 8 Ports Board
E1 port TOPA: 16 Ports Board
STM-1 upstream optical port TOPA: 2 Ports Board
Service ports
GPON port GPBD/GPBH: 8 Ports Board
GPFD: 16 Ports Board
10G GPON port XGBC: 4 Ports Board
XGBD: 8 Ports Board
P2P GE optical port OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board
P2P FE optical port OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board
Ethernet optical port ETHB: 8 Ports Board
E1 port H802EDTB: 16 Ports Board
ADSL2+ ADPD/ADPM/ADPE : 64 Ports Board
VDSL2 VDRD : 24 Ports Board
VDMF/VCMM : 48 Ports Board
VDPM/VDQM/VDPE/VDPD/VCPE : 64 Ports Board
EFM SHDSL SHLM : 16 Ports Board
SHGM : 32 Ports Board
TDM SHDSL H802EDTB: 16 Ports Board
POTS ASPB : 64 Ports Board
ADSL2+&POTS CAME : 48 Ports Board
VDSL2&POTS CVME : 48 Ports Board
CCPE : 64 Ports Board
ISDN BRA DSRD/DSRE :32 Ports Board
Power parameters
Power supply mode DC or AC
Rated voltage DC power supply: -48 V / -60 V AC power supply: 110 V / 220 V
Working voltage range DC power supply: -38.4 V to -72 V AC power supply: 100 V to 240 V
Maximum input current DC power supply: 10 A AC power supply: 6 A
Working environment temperature -40°C to +65°C
Working environment humidity 5% RH to 95% RH
Atmosphere pressure 61 kPa to 106 kPa
Altitude < 4000 m
Device Specifications
Dimensions (W x D x H, excluding mounting brackets) 442mm×244.5mm×88.1mm
Dimensions (W x D x H, including mounting brackets) 535mm×244.5mm×88.1mm, for ETSI cabinet NOTE:ETSI standard dimension is to add the ETSI mounting bracket on the IEC mounting bracket.
482.6mm×244.5mm×88.1mm, for IEC cabinet
Weight (empty chassis) 3.55KG



Technical specifications of MA5680T/MA5683T/MA5608T Series OLT
Item MA5600T(ETSI)/MA5680T MA5600T(IEC)/MA5680T MA5603T/MA5683T MA5608T
Supported cabinet Indoor cabinet: N63E-22, N66E-18 Indoor cabinet: N66E-22 Indoor cabinet: N66E-18 Indoor cabinet: N63E-22
Outdoor cabinet: F01D500, F01D2000 Outdoor cabinet: none Outdoor cabinet: F01D500, F01S300 Outdoor cabinet: F01S200
Board configuration 2 slots for control boards 2 slots for control boards 2 slots for control boards 2 slots for control boards
16 slots for service boards 14 slots for service boards 6 slots for service boards 2 slots for service boards
1 slot for the universal interface board 1 slot for the universal interface board 1 slot for the universal interface board 2 slots for the power interface board.
2 slots for upstream interface boards 2 slots for upstream interface boards 2 slots for upstream interface boards
2 slots for power interface boards. 2 slots for power interface boards. 2 slots for power interface boards.
Switching capacity of the backplane bus 3.2 Tbit/s 1.5 Tbit/s (H801MABO) 720 Gbit/s
2 Tbit/s (H802MABO)
Supported control board and its switching capacity SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode
SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode
SCUB: 48 Gbit/s
SCUF: 128 Gbit/s
System Layer 2 packet forwarding rate SCUN: 726 Mpps in active/standby mode or 1452 Mpps in load-sharing mode MCUD/MCUD1: 190 Mpps in active/standby mode or 380 Mpps in load-sharing mode
SCUH: 1428 Mpps in active/standby mode or 2856 Mpps in load-sharing mode
SCUB: 72 Mpps
SCUF: 190 Mpps
Switching/Forwarding delay Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
BER in full load BER of a port when the port transmits data in full load < 10 e-7
System reliability specifications System: redundant configuration.
System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 45 years.
NOTE:
Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the MA5600T/MA5603T/MA5608T is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.
Maximum number of ADSL2+ ports in a subrack 1024 896 384 128
Maximum number of VDSL2 ports in a subrack 1024 896 384 128
Maximum number of EFM SHDSL ports in a subrack 512 448 192 64
Maximum number of TDM SHDSL ports in a subrack 256 224 96 32
Maximum number of POTS ports in a subrack 1024 896 384 128
Maximum number of ISDN BRA ports in a subrack 512 448 192 64
Maximum number of ISDN PRA ports in a subrack 64 56 64 64
Maximum number of GPON ports in a subrack 256 224 96 32
Maximum number of 10G GPON ports in a subrack 128 112 48 16
Maximum number of P2P FE ports in a subrack 768 672 288 96
Maximum number of P2P GE ports in a subrack 768 672 288 96
Maximum number of upstream ports (GE ports in the GIU slot) in a subrack 8 8 8 -
Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack 4 4 4 -
Maximum number of upstream ports (PON ports in the GIU slot) in a subrack 2 (in the active/standby mode) 2 (in the active/standby mode) 2 -
Maximum number of upstream ports (ports on the control board) in a subrack SCUN/SCUK: 8 x GE (in the load-sharing mode) MCUD: 8 x GE (in the load-sharing mode)
SCUH: 8 x 10GE (in the load-sharing mode) MCUD1: 4 x GE + 2 x 10GE (in the load-sharing mode)
SCUB/SCUF: 4 x GE (in the active/standby mode)
Maximum number of extended subracks connected to a master subrack 32 32 32 -
Maximum number of ONUs supported by each subrack For Layer 2 applications, the maximum number of ONUs supported by each subrack is determined based on the number of MAC addresses and service flows supported by the control board, as well as the number of MAC addresses and service flows planned for the ONUs.
For Layer 3 applications, the maximum number of ONUs supported by each subrack is determined based on the number of routes and ARP entries supported by the control board.
