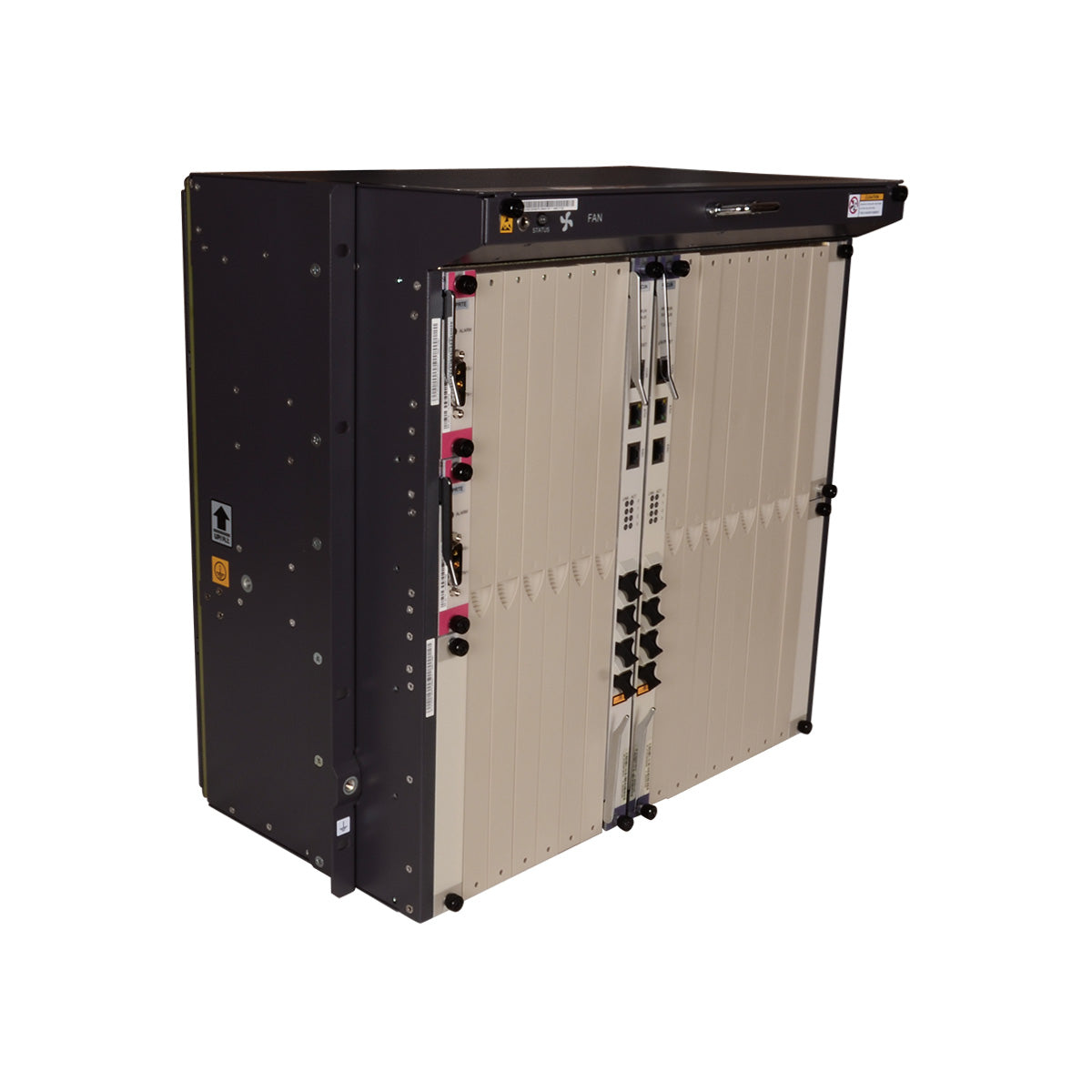

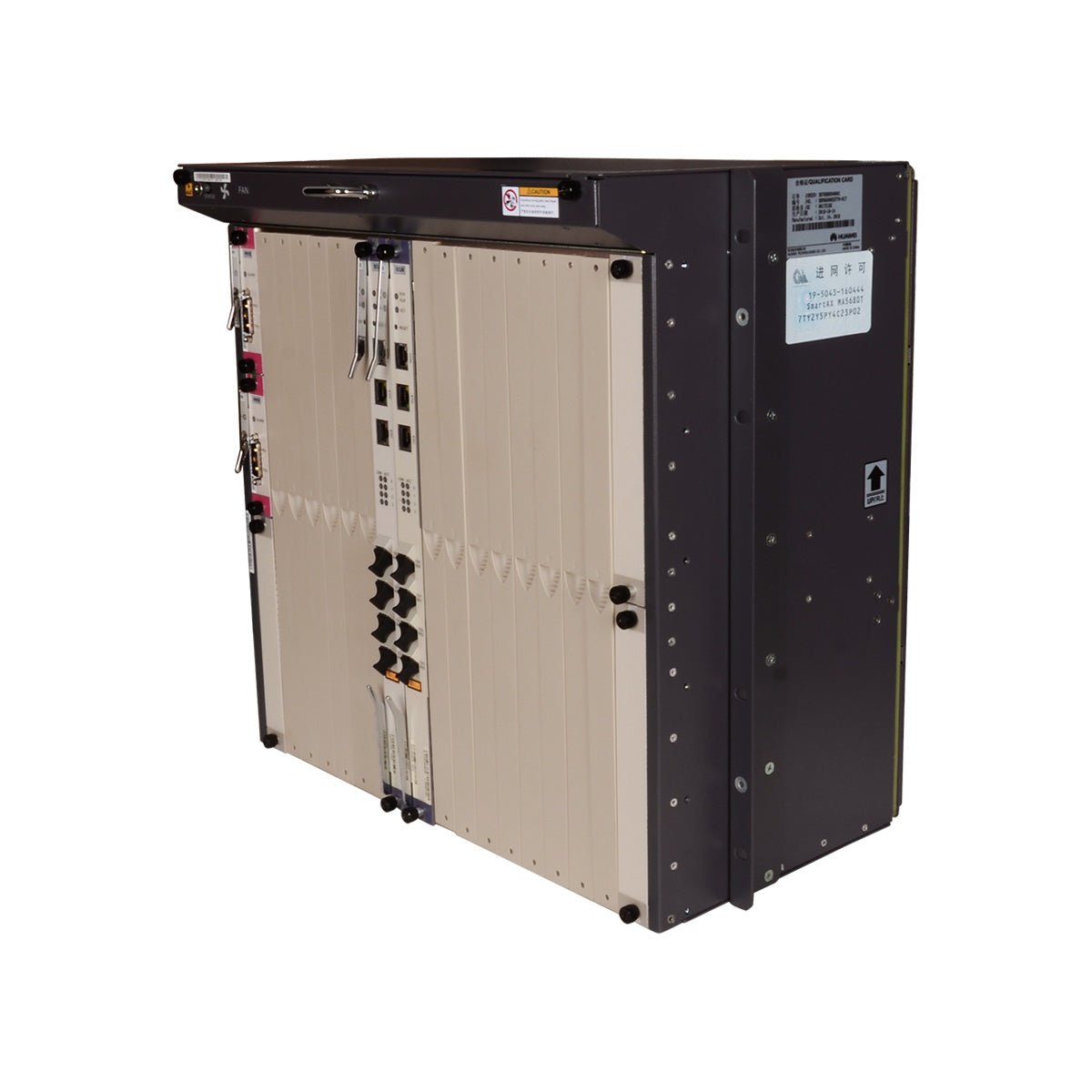

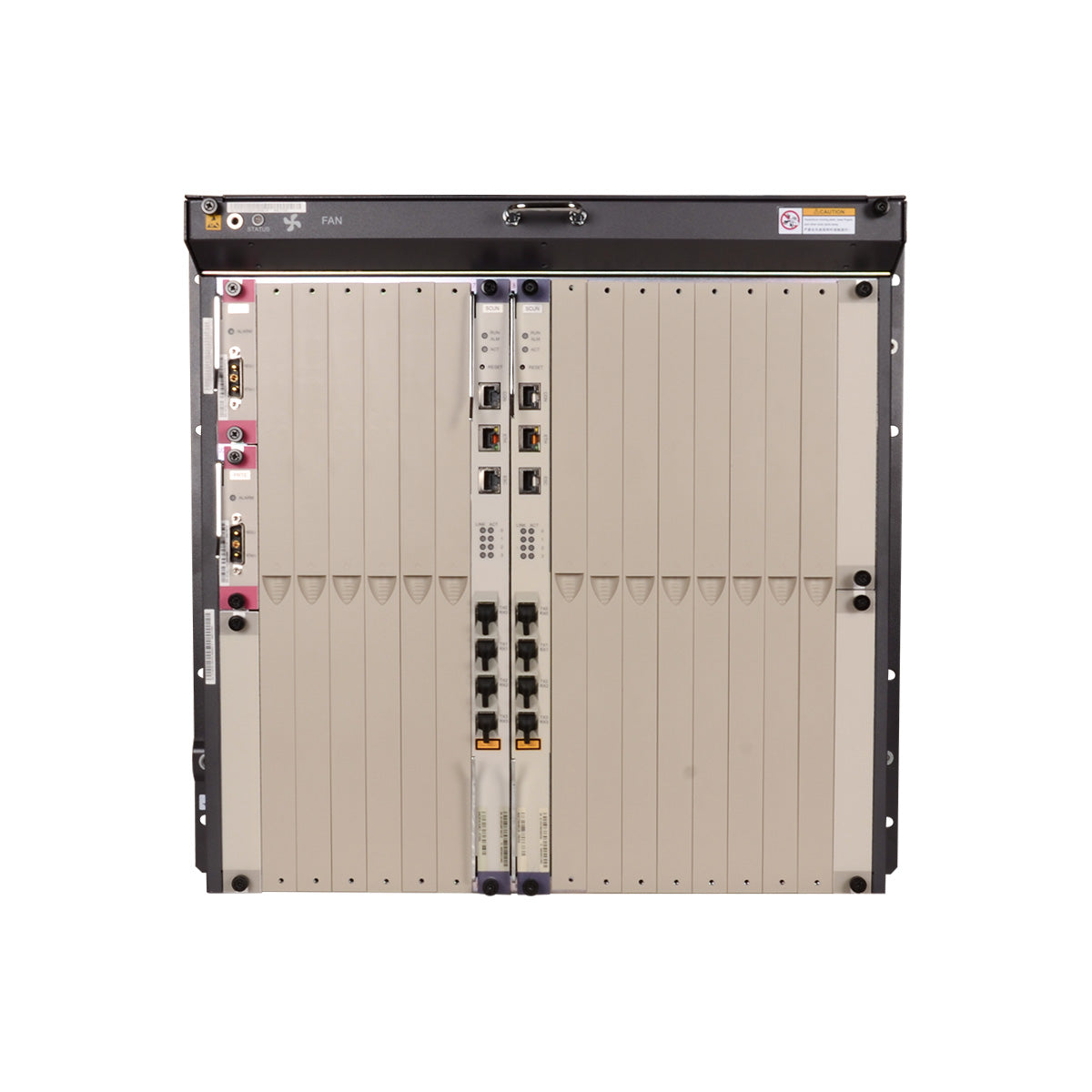

Huawei SmartAX MA5680T OLT Overview
Huawei MA5680T is a large-capacity carrier-grade OLT that supports integrated fiber-copper access and access-aggregation integration. It offers 14 or 16 service slots, supports ADSL2+, VDSL2, Vectoring, SuperVector, SHDSL, POTS, GPON, 10G GPON, and P2P access modes, and provides Internet access, voice, and video services to subscribers. Compatible with FTTH/FTTB/FTTC, it meets triple-play, base station transmission, and IP private line needs. With rich interfaces, H-QoS, and AES-128 encryption, it ensures reliable, secure multi-service delivery.
Product Features
- HetAN: The MA5680T serves as the CO OLT and supports multiple network construction modes and diversified access media to provide access for home users, mobile users, and enterprise users. Such a heterogeneous access network (HetAN) wins popularity.
- All-in-One: The integrated fiber-copper access platform and the access-aggregation integration capability of the MA5600T effectively ensure the smooth evolution of the access network.
- Aggregation Management for Remote Sites: The OLT supports aggregation management and plug-and-play for remote sites. This eliminates the need for on-site software commissioning and OSS system integration, which simplifies device management.
- Triple Protection: The MA5680T provides 3 protection mechanisms on the network side, access side, and device to ensure that services are not interrupted.
- Environment-Friendly and Energy-Saving: The MA5680T complies with the European Union's (EU's) Code of Conduct (CoC) standard. It features an energy-saving design that optimizes power consumption, noise, and heat dissipation. This makes the OLT an environmentally friendly device and minimizes the total cost of operation (TCO).
Huawei SmartAX MA5680T OLT Specification
| Huawei MA5680T OLT Specification | |
| System performance | |
| Backplane bus switching capacity | 3.2 Tbit/s |
| System L2 packet forwarding rate | SCUB: 72 Mpps |
| SCUN: 726 Mpps(Active/Standby mode), 1452 Mpps(Load-sharing mode) | |
| SCUF: 190 Mpps | |
| SCUH: 1428 Mpps(Active/Standby mode), 2856 Mpps(Load-sharing mode) | |
| Control board switching capacity | SCUB: 48 Gbit/s |
| SCUN: 480 Gbit/s(Active/Standby mode), 960Gbit/s(Load-sharing mode) | |
| SCUF: 128 Gbit/s | |
| SCUH: 960 Gbit/s(Active/Standby mode), 1920Gbit/s(Load-sharing mode) | |
| Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
| Supported Service Board | |
| Uplink Boards | GICF(2*GE Uplink Board) |
| X2CS(2*10GE Uplink Board) | |
| Service Board | GPBD(8-port Gpon with SFP B+/C+/C++) |
| GPBH(8-port Gpon with SFP B+/C+/C++) | |
| GPFD(16-port Gpon with SFP B+/C+/C++) | |
| XGBD(8-port 10G GPON with SFP+ N1/N2a) | |
| EPBD(8-port Epon with SFP PX20/PX20+/PX20++) | |
| EPFD(16-port Epon with SFP PX20/PX20+/PX20++) | |
| XEBD(8-port 10G EPON with SFP+ PRX30) | |
| Board Slot | |
| Control board slot | 7, 8 |
| Service board slot | 1-6, 9-16 |
| upstream interface board slot | 17, 18 |
| Universal interface board slot | 0 |
| Power board slot | 19, 20 |
| Upstream/Cascading Port | |
| GE/10GE ports (Control board) | SCUN/SCUK: 8 x GE (in the load-sharing mode) SCUH: 8 x GE/10GE (in the load-sharing mode) SCUB/SCUF: 4 x GE (in the active/standby mode) |
| Access port | |
| GPON ports | 224 |
| XG-PON ports | N/A |
| XGS-PON ports | N/A |
| GE/FE ports | 672 |
| 10GE ports | N/A |
| SuperVector ports | N/A |
| Vectoring ports | 768 |
| ADSL2+ ports | N/A |
| VDSL2 ports | 896 |
| POTS ports | 448 |
| SHDSL ports | 448 |
| ISDN ports | 448 |
| System Parameters | |
| Bandwidth per slot | N/A |
| Bit error rate (BER) in full load | <10 e-7 |
| System availability for the typical configuration | >99.999% |
| System forwarding capacity | N/A |
| Switching capacity of the control board | SCUN/SCUK: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode SCUB: 48 Gbit/s SCUF: 128 Gbit/s |
| MAC address | SCUN/SCUK: 32768 SCUH: 134072 |
| Access ONT | SCUN/SCUK: 8192 SCUH: 16384 |
| IPv4 routing table | SCUN/SCUK: 5120 SCUH: 12288 |
| IPv6 routing table | SCUN/SCUK: 5120 SCUH: 6144 |
| ARP table | SCUN/SCUK: 8192 SCUH: 16384 |
| Supported cabinet | |
| Indoor cabinet | N66E-22 |
| Outdoor cabinet | N/A |
| Physical Parameters | |
| Dimensions ( W x D x H, excluding mounting brackets) | 442 mm x 275.8 mm x 441.7mm |
| Dimensions ( W x D x H, including mounting brackets of IEC standard) | N/A |
| Maximum Weight at full configuration | 30.54 kg |
| Power Supply | |
| Power supply mode | DC |
| Rated voltage | -48 V/-60 V |
| Working voltage range | -38.4 V to -72 V |
| Maximum input current | 40 A |
| Environmental Parameters | |
| Ambient temperature (for normal device running) | -40 °C to +65 °C |
| Ambient temperature (for normal device startup) | -25 °C to +65 °C |
| Ambient humidity | 5%RH to 95%RH |
| Atmospheric pressure | 70 kPa to 106 kPa |
| Altitude | ≤4000 m |
Technical specifications of MA5680T/MA5683T/MA5608T Series OLT
| Item | MA5600T(ETSI)/MA5680T | MA5600T(IEC)/MA5680T | MA5603T/MA5683T | MA5608T |
| Supported cabinet | Indoor cabinet: N63E-22, N66E-18 | Indoor cabinet: N66E-22 | Indoor cabinet: N66E-18 | Indoor cabinet: N63E-22 |
| Outdoor cabinet: F01D500, F01D2000 | Outdoor cabinet: none | Outdoor cabinet: F01D500, F01S300 | Outdoor cabinet: F01S200 | |
| Board configuration | 2 slots for control boards | 2 slots for control boards | 2 slots for control boards | 2 slots for control boards |
| 16 slots for service boards | 14 slots for service boards | 6 slots for service boards | 2 slots for service boards | |
| 1 slot for the universal interface board | 1 slot for the universal interface board | 1 slot for the universal interface board | 2 slots for the power interface board. | |
| 2 slots for upstream interface boards | 2 slots for upstream interface boards | 2 slots for upstream interface boards | ||
| 2 slots for power interface boards. | 2 slots for power interface boards. | 2 slots for power interface boards. | ||
| Switching capacity of the backplane bus | 3.2 Tbit/s | 1.5 Tbit/s (H801MABO) | 720 Gbit/s | |
| 2 Tbit/s (H802MABO) | ||||
| Supported control board and its switching capacity | SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode | MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode | ||
| SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode | ||||
| SCUB: 48 Gbit/s | ||||
| SCUF: 128 Gbit/s | ||||
| System Layer 2 packet forwarding rate | SCUN: 726 Mpps in active/standby mode or 1452 Mpps in load-sharing mode | MCUD/MCUD1: 190 Mpps in active/standby mode or 380 Mpps in load-sharing mode | ||
| SCUH: 1428 Mpps in active/standby mode or 2856 Mpps in load-sharing mode | ||||
| SCUB: 72 Mpps | ||||
| SCUF: 190 Mpps | ||||
| Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. | |||
| BER in full load | BER of a port when the port transmits data in full load < 10 e-7 | |||
| System reliability specifications | System: redundant configuration. | |||
| System availability for the typical configuration: > 99.999% | ||||
| Mean time between failures (MTBF): about 45 years. | ||||
| NOTE: | ||||
| Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the MA5600T/MA5603T/MA5608T is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers. | ||||
| Maximum number of ADSL2+ ports in a subrack | 1024 | 896 | 384 | 128 |
| Maximum number of VDSL2 ports in a subrack | 1024 | 896 | 384 | 128 |
| Maximum number of EFM SHDSL ports in a subrack | 512 | 448 | 192 | 64 |
| Maximum number of TDM SHDSL ports in a subrack | 256 | 224 | 96 | 32 |
| Maximum number of POTS ports in a subrack | 1024 | 896 | 384 | 128 |
| Maximum number of ISDN BRA ports in a subrack | 512 | 448 | 192 | 64 |
| Maximum number of ISDN PRA ports in a subrack | 64 | 56 | 64 | 64 |
| Maximum number of GPON ports in a subrack | 256 | 224 | 96 | 32 |
| Maximum number of 10G GPON ports in a subrack | 128 | 112 | 48 | 16 |
| Maximum number of P2P FE ports in a subrack | 768 | 672 | 288 | 96 |
| Maximum number of P2P GE ports in a subrack | 768 | 672 | 288 | 96 |
| Maximum number of upstream ports (GE ports in the GIU slot) in a subrack | 8 | 8 | 8 | - |
| Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack | 4 | 4 | 4 | - |
| Maximum number of upstream ports (PON ports in the GIU slot) in a subrack | 2 (in the active/standby mode) | 2 (in the active/standby mode) | 2 | - |
| Maximum number of upstream ports (ports on the control board) in a subrack | SCUN/SCUK: 8 x GE (in the load-sharing mode) | MCUD: 8 x GE (in the load-sharing mode) | ||
| SCUH: 8 x 10GE (in the load-sharing mode) | MCUD1: 4 x GE + 2 x 10GE (in the load-sharing mode) | |||
| SCUB/SCUF: 4 x GE (in the active/standby mode) | ||||
| Maximum number of extended subracks connected to a master subrack | 32 | 32 | 32 | - |
| Maximum number of ONUs supported by each subrack | For Layer 2 applications, the maximum number of ONUs supported by each subrack is determined based on the number of MAC addresses and service flows supported by the control board, as well as the number of MAC addresses and service flows planned for the ONUs. | |||
| For Layer 3 applications, the maximum number of ONUs supported by each subrack is determined based on the number of routes and ARP entries supported by the control board. | ||||
