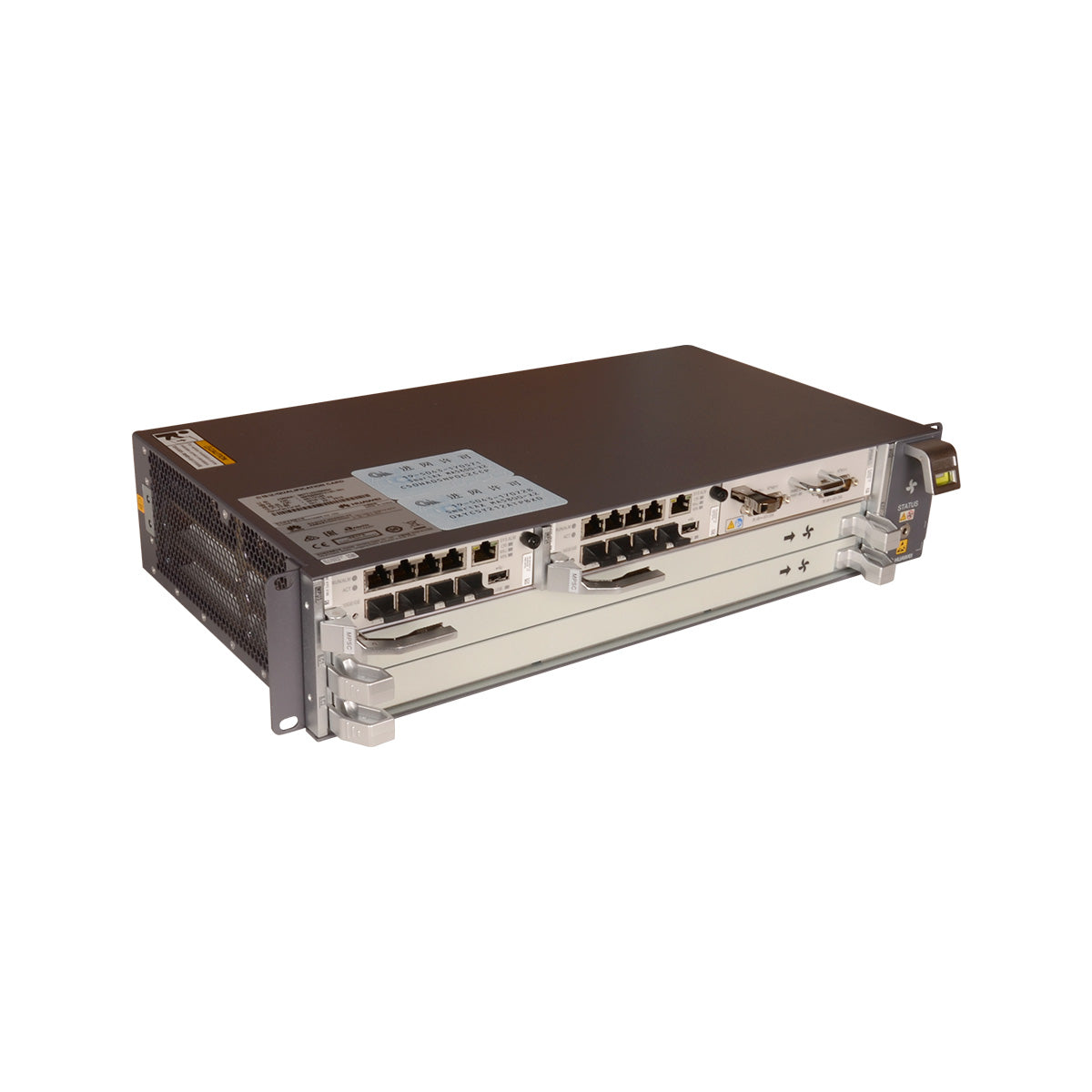

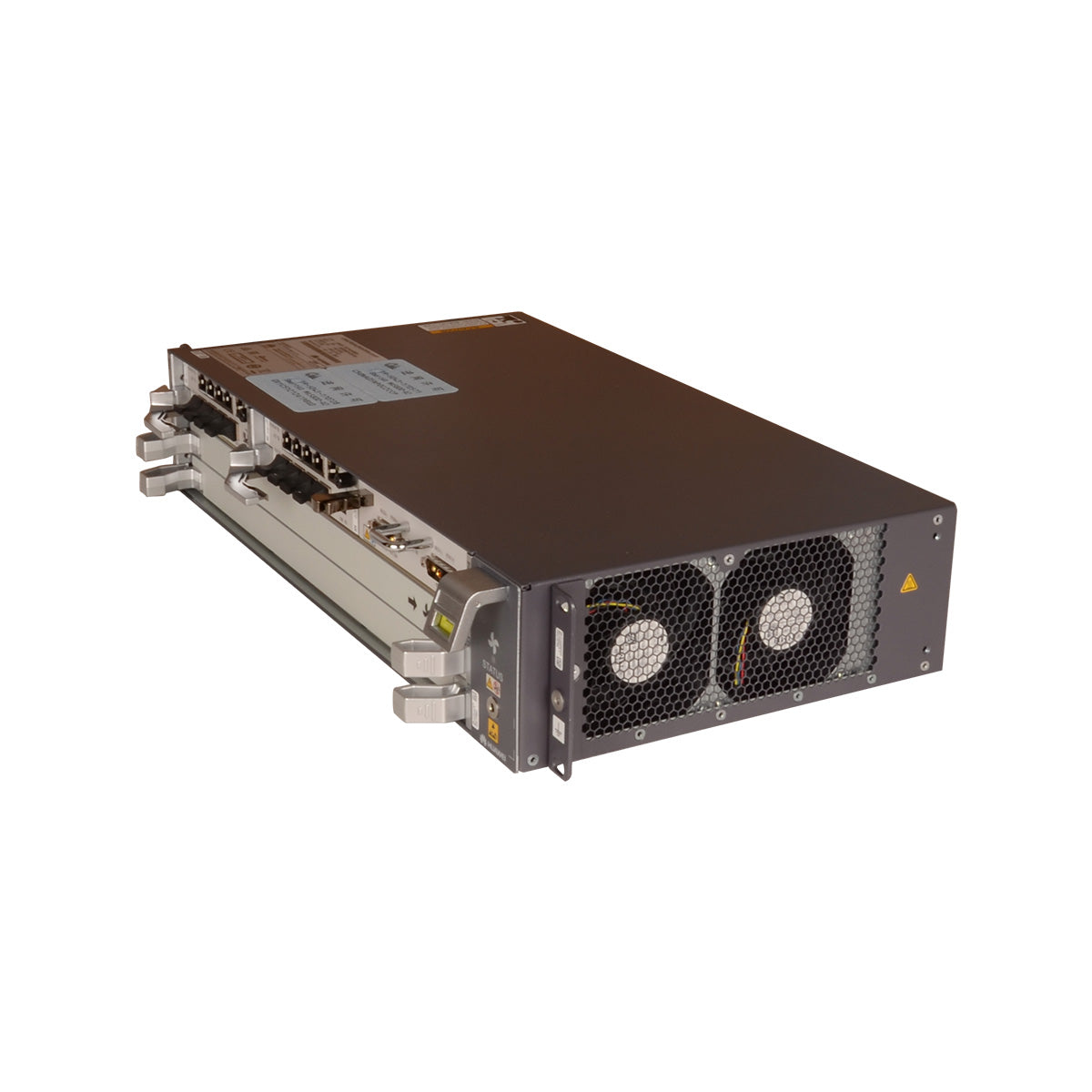

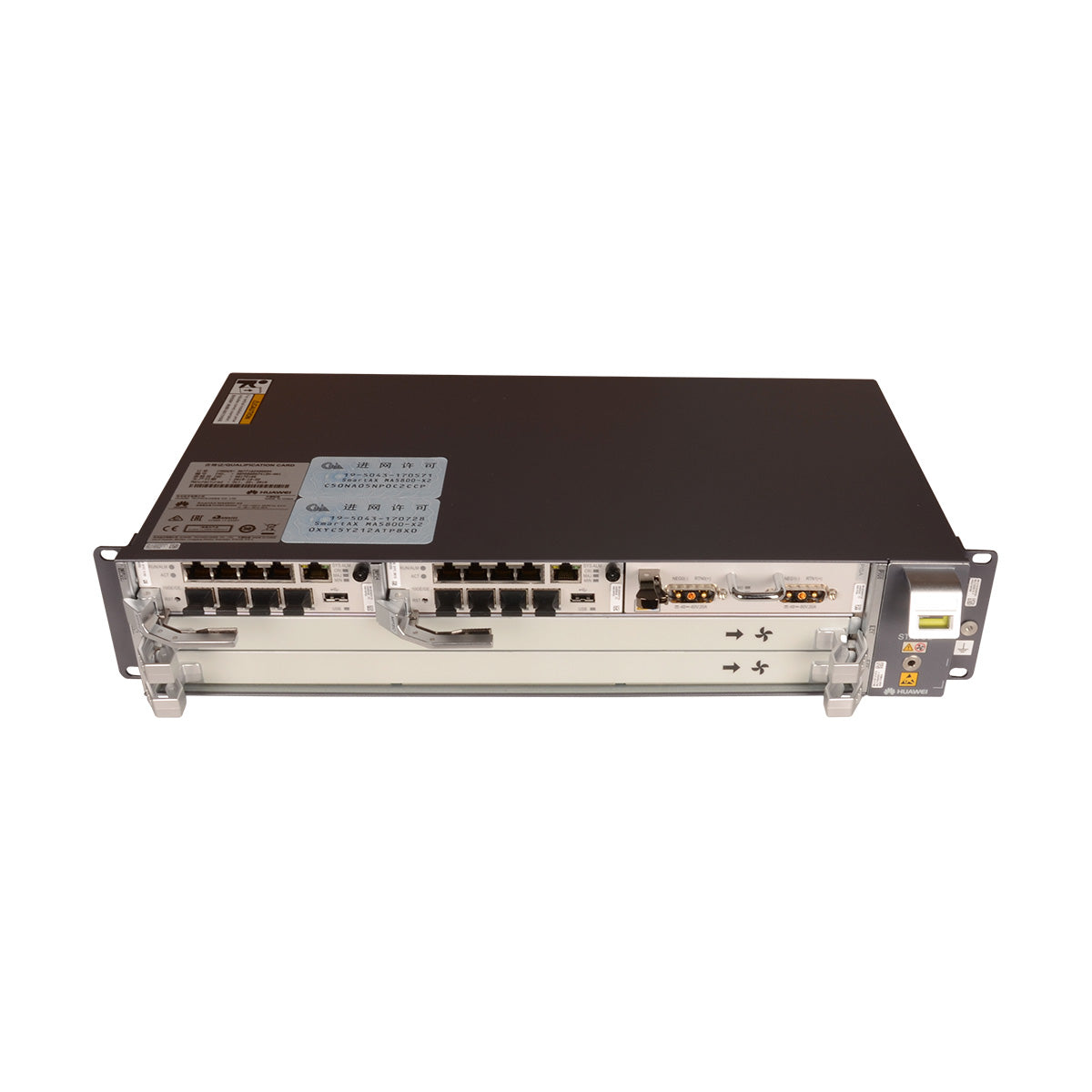

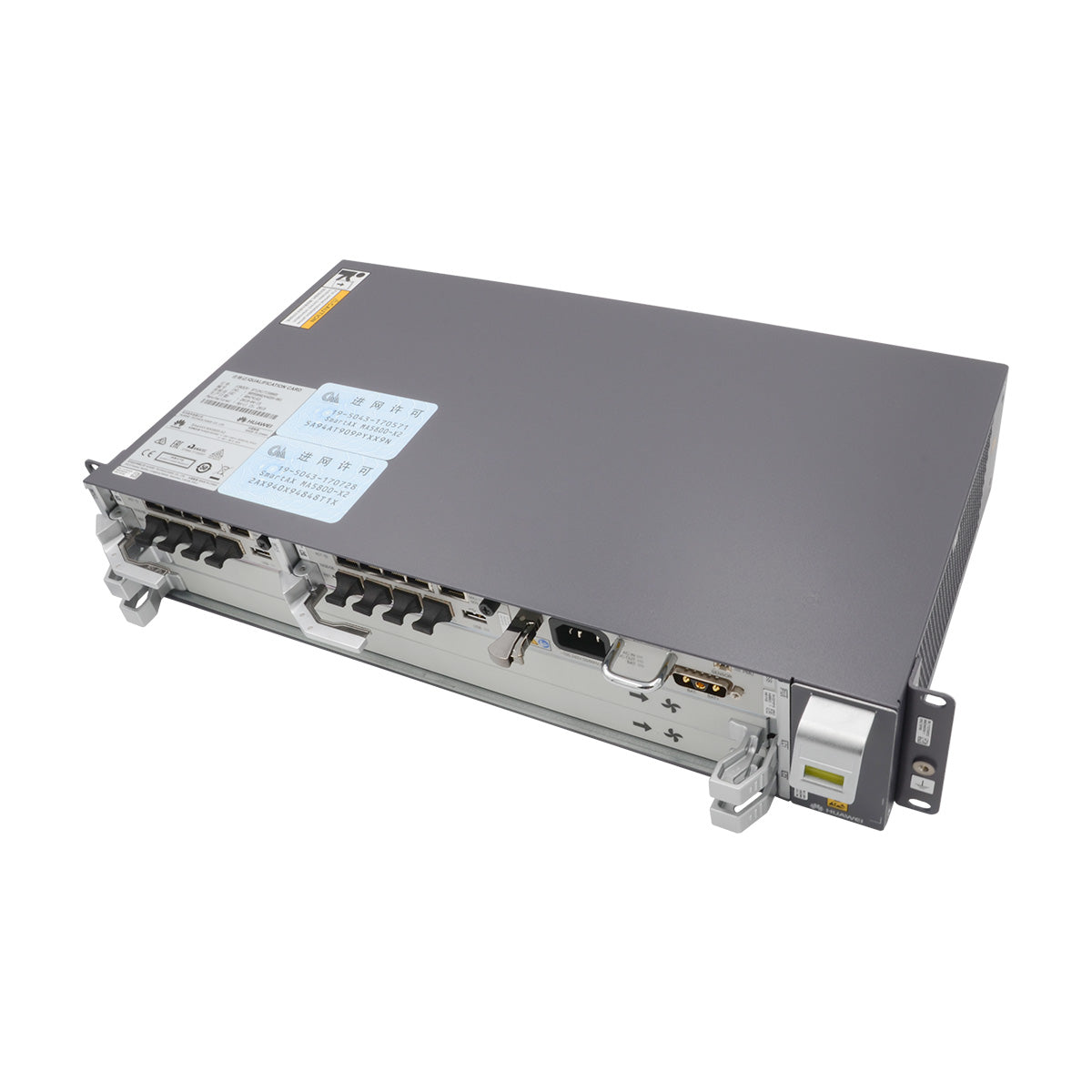

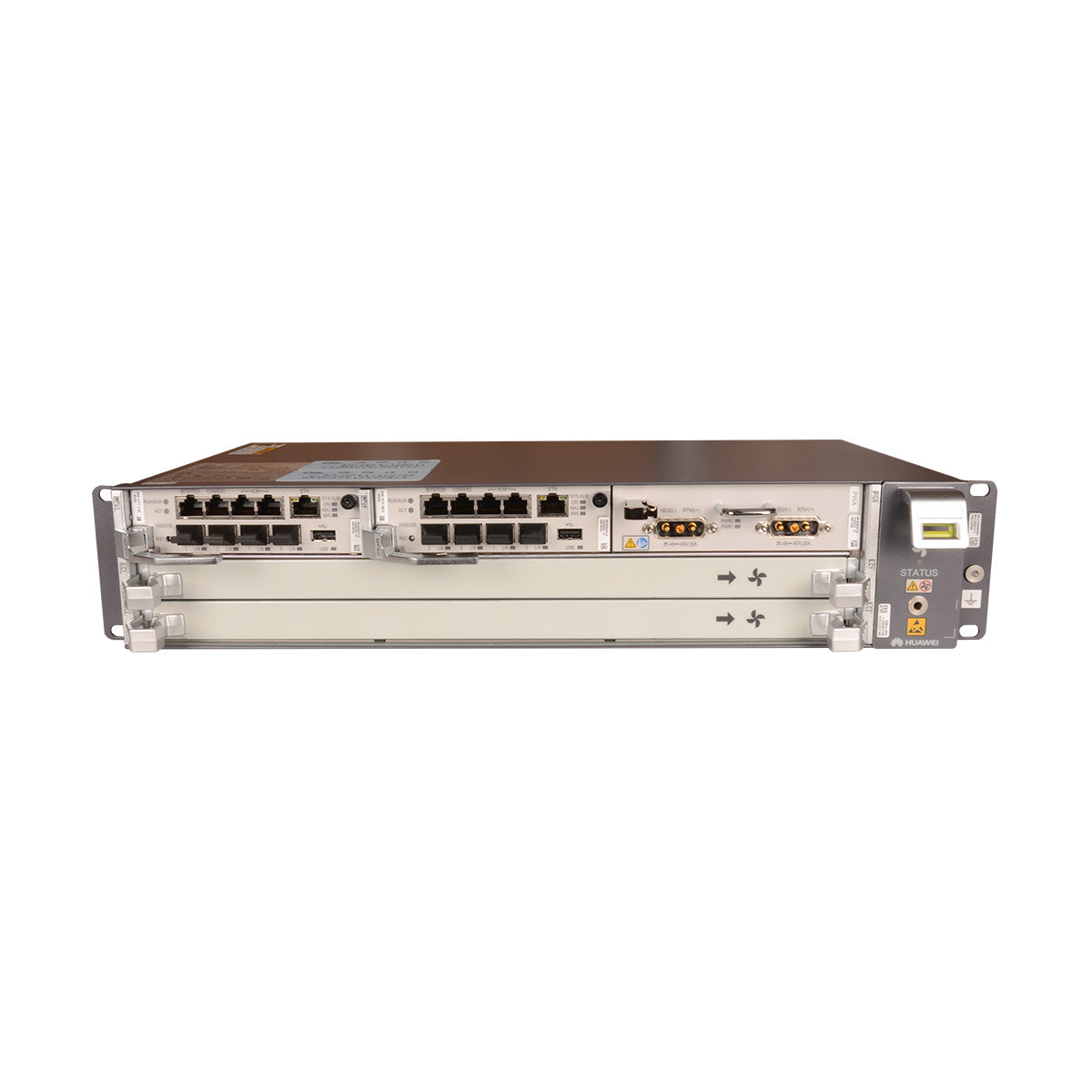

Huawei SmartAX MA5800-X2 OLT

Regular price $0.00
Regular price Sale price $0.00
Availability: 100 in stock
Regular price $0.00
Regular price Sale price $0.00
Huawei SmartAX MA5800-X2 OLT Overview

MA5800-X2 is a compact next-generation Huawei Optical Line Terminal (OLT) designed for high-capacity FTTH and FTTx deployments. It delivers carrier-grade performance, ultra-high bandwidth aggregation, and supports PON/10G PON/GE/10GE/100GE in one platform.

An MA5800-X2 service subrack provides 5 slots, 2 for control boards, 1 for the power board, and 2 for service boards. H901BPSB is the backplane supported by the MA5800-X2.

MA5800-X2 with 2 service board slots, perfect choice for operators and ISPs looking to scale broadband networks efficiently with future-ready architecture.

Figure: Configuration of boards in the MA5800-X2

Technical Specifications of Huawei SmartAX MA5800 OLT
Item MA5800-X17 MA5800-X15 MA5800-X7 MA5800-X2
Supported cabinet N63E-22, N66E-18 N66E-22 N63E-22, N66E-22 N63E-22
Board configuration Control board slots: 9, 10 Control board slots: 8, 9 Control board slots: 8,9 Control board slots: 3,4
Service board or upstream interface board slots: 1–8, 11–19 Service board or upstream interface board slots: 1–7, 10–17 Service board or upstream interface board slots: 1–7 Service board or upstream interface board slots: 1–2
Universal interface board slot: 0 Universal interface board slot: 0 Universal interface board slot: 0 Does not support the universal interface board.
Power board slots: 20, 21 Power board slots: 18,19 Power board slots: 10, 11 Power board slot: 0
Dimensions (W x D x H) (mm) Excluding mounting ears: 493 x 287 x 486 Excluding mounting ears: 442 x 287 x 486 Excluding mounting ears: 442 x 268.7 x 263.9 Excluding mounting ears: 442 x 268.7 x 88.1
Including mounting ears: 535 x 287 x 486 Including mounting ears: 482.6 x 287 x 486 Including IEC mounting ears: 482.6 x 268.7 x 263.9
Including ETSI mounting ears: 535 x 268.7 x 263.9
Including IEC mounting ears: 482.6 x 268.7 x 88.1
Including ETSI mounting ears: 535 x 268.7 x 88.1
Maximum weight (including mounting brackets) 45 kg 35 kg 26 kg 9.4 kg
Maximum input current 60 A 60 A 40 A DC power supply: 20 A
AC power supply: 8 A
Power supply mode DC power support (dual backup) DC power support (dual backup)
AC power supply + battery for backup
Working voltage range –38.4 V DC to –72 V DC DC power supply: –38.4 V to –72 V
AC power supply: 100–240 V
Rated voltage –48 V/–60 V DC power supply: –48 V/–60 V
AC power supply: 110 V/220 V
Ambient temperature –40°C to +65°C
The MA5800 can start up at a lowest temperature of –25°C.
NOTE:
The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack.
Ambient humidity 5%–95% RH
Atmospheric pressure 70–106 kPa
Altitude < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the MA5800 varies with the altitude.
Switching capacity of the control board (load sharing mode) MPLA: 3.6 Tbit/s MPSA: 248 Gbit/s
MPLB: 7 Tbit/s
Maximum bandwidth per service slot (load sharing mode) MPLA: 100 Gbit/s MPSA: 40 Gbit/s
MPLB: 200 Gbit/s
Maximum number of concurrent 4K video users 16000 8000 2000
Maximum number of MAC addresses 262143
Maximum number of IPv4 routing tables 65536
Maximum number of IPv6 routing tables 16384
Maximum number of ARP tables 131072 32768
Switching/Forwarding delay Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
Bit error rate (BER) in full load A BER smaller than 10 e-10 for a port that transmits data in full load
System reliability specifications System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 45 years
NOTE:
Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the MA5800 is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.
GPON ports 272 240 112 32
XG-PON ports 272 240 112 32
XGS-PON ports 272 240 112 32
GE ports 816 720 336 96
10GE ports 408 360 168 16

Mapping Between Huawei SmartAX MA5800 OLT Boards and Software Versions
BoardName Software Versions Supported by This Board Substitution Relationship
MA5800-X17/X15/X7 MA5800-X2
Control board
H901MPLA All versions N/A Replaceable with the H902MPLA/H903MPLA board
H902MPLA Compatible in V100R017C00SPC207 N/A Replaceable with the H901MPLA/H903MPLA board
V100R017C10 and later versions
H903MPLA Compatible in V100R018C00SPH317 N/A Replaceable with the H901MPLA/H902MPLA board
V100R019C1x and later versions
H901MPLB All versions N/A Replaceable with the H902MPLB board
H902MPLB V100R019C1xSPH202 and later versions N/A Replaceable with the H901MPLB board
H903MPLB-G01 V100R020C10 and later versions N/A N/A
H901MPSC N/A V100R017C10 and later versions Replaceable with the H901MPSA board
WARNING:
When the H901MPSA board is used to replace the H901MPSC board, configurations exceeding the specifications may be lost.
NOTE:
H901MPSC and H901MPSA are not slot compatible.
H901MPSA-G N/A V100R019C1xSPH202 and later versions Replaceable with the H901MPSC board
NOTE:
H901MPSC and H901MPSA are not slot compatible.
Upstream interface board
H901NXED All versions V100R016C00SPC105 and later versions Replaceable with the H901OXEG/H902OXEG/H902NXED board
H902NXED Compatible in V100R016C00-V100R019C00 Replaceable with the H901OXEG/H902OXEG/H901NXED board
V100R019C1x and later versions
H902NCEB V100R019C1xSPC100 and later versions N/A N/A
Universal interface board
H901CIUA All versions N/A Replaceable with the H902CIUA board
H902CIUA Compatible in V100R018C00SPH315 N/A Replaceable with the H901CIUA board
V100R019C1x and later versions
H906CIUA V100R020C10 and later versions N/A N/A
Power interface board
H901PILA All versions N/A Replaceable with the H902PILA board
H902PILA Compatible in V100R017C10-V100R019C00 N/A Replaceable with the H901PILA board
V100R019C1x and later versions
H903PILA V100R020C10 and later versions N/A N/A
H901PISA N/A V100R017C10 and later versions N/A
H901PISB N/A V100R017C10 and later versions Replaceable with the H902PISB board
H902PISB N/A Compatible in V100R017C10-V100R019C1x Replaceable with the H901PISB board
V100R019C1xSPH202 and later versions
GPON interface board
H901GPHF All versions V100R016C00SPC105 and later versions Replaceable with the H901CSHF/H903CSHF/H901CGHF/H902GPHF/H902CSHF/H902CGHF/H901FLHF/H902FLHF/H903FLHF board
H902GPHF Compatible in V100R015C00-V100R019C00 Replaceable with the H901GPHF/H901CSHF/H903CSHF/H901CGHF/H902CSHF/H902CGHF/H901FLHF/H902FLHF/H903FLHF board
V100R019C1x and later versions
H903GPHF Compatible in V100R016C00-V100R020C00 Replaceable with the H901CSHF/H903CSHF/H901CGHF/H901GPHF/H902GPHF/H902CSHF/H902CGHF/H901FLHF/H902FLHF/H903FLHF board
V100R020C10 and later versions
H901GPSF V100R016C00 and later versions V100R016C00SPC105 and later versions Replaceable with the H901GPHF/H901CGHF/H901CSHF/H902GPHF/H902CGHF/H902CSHF/H902GPSF/H901FLHF/H902FLHF/H903FLHF board
H902GPSF Compatible in V100R016C00-V100R019C1x Replaceable with the H901GPHF/H901GPSF/H901CGHF/H901CSHF/H902GPHF/H902CGHF/H902CSHF/H903CSHF/H901FLHF/H902FLHF/H903FLHF board
V100R019C20 and later versions
XG-PON interface board
H901XGHD All versions V100R016C00SPC105 and later versions Replaceable with the H901XSHF/H902XSHD/H902XSHF board
H901XGSF Compatible in V100R016C00-V100R017C10 Replaceable with the H901XSHF/H902XSHF board
V100R018C00 and later versions
XGS-PON interface board
H901TWED V100R017C00 and later versions Replaceable with the H902TWHD/H901FLHF/H902FLHF board
H901XSHF Compatible in V100R018C00-V100R018C10 Replaceable with the H902XSHF board
V100R019C00 and later versions
H902XSHF Compatible in V100R018C00SPH317 Replaceable with the H901XSHF board
Compatible in V100R018C10-V100R019C1x
V100R019C20 and later versions
H902XSHD Compatible in V100R017C10-V100R019C00 Replaceable with the H901XSHF/H902XSHF board
V100R019C1x and later versions
H902TWHD Compatible in V100R018C00-V100R019C00 Replaceable with the H901FLHF/H902FLHF board
V100R019C1x and later versions
PON Combo interface board
H901CGID V100R018C00 and later versions Replaceable with the H901CGHF/H902CGHD/H902CGHF board
H901CGHF Compatible in V100R018C00SPH313 Replaceable with the H902CGHF board
Compatible in V100R018C10SPH108
V100R019C00 and later versions
H902CGHF Compatible in V100R018C00SPH313 Replaceable with the H901CGHF board
Compatible in V100R018C10SPH108
Compatible in V100R019C00
V100R019C1x and later versions
H901CSHF Compatible in V100R018C00SPH313 Replaceable with the H902CSHF/H903CSHF board
Compatible in V100R018C10SPH108
V100R019C00 and later versions
H902CSHF Compatible in V100R018C00SPH313 Replaceable with the H901CSHF/H903CSHF board
Compatible in V100R018C10SPH108
Compatible in V100R019C00
V100R019C1x and later versions
H903CSHF Compatible in V100R019C00-V100R020C00 Replaceable with the H901CSHF/H902CSHF board
V100R020C10 and later versions
H902CGHD Compatible in V100R018C00SPH313 Replaceable with the H901CGHF/H902CGHF board
Compatible in V100R018C10SPH108
Compatible in V100R019C00
V100R019C1x and later versions
H902CSHD Compatible in V100R018C00SPH313 Replaceable with the H901CSHF/H902CSHF/H903CSHF board
Compatible in V100R018C10SPH108
Compatible in V100R019C00
V100R019C1x and later versions
Flex-PON interface board
H901FLHF V100R019C00 and later versions Replaceable with the H902FLHF/H903FLHF/H902XSHF/H901XSHF board
H902FLHF Compatible in V100R019C00-V100R019C1x Replaceable with the H901FLHF/H903FLHF/H902XSHF/H901XSHF board
V100R019C1xSPH202 and later versions
H903FLHF V100R019C00 and later versions Replaceable with the H901FLHF/H902FLHF board
TDM service processing board
H901EDSH V100R016C00 and later versions V100R016C00SPC105 and later versions N/A
GE/FE optical interface board
H901OGHK All versions V100R016C00SPC105 and later versions Replaceable with the H902OGHK board
H902OGHK Compatible in V100R016C00-V100R019C1x Replaceable with the H901OGHK board
V100R019C20 and later versions
10GE/GE optical interface board
H901OXHD All versions V100R016C00SPC105 and later versions Replaceable with the H901OXEG/H902OXEG/H902OXHD board
H902OXHD Compatible in V100R016C00-V100R019C1x Replaceable with the H901OXEG/H902OXEG/H901OXHD board
V100R019C1xSPH202 and later versions
H901OXEG V100R018C00 and later versions N/A Replaceable with the H902OXEG board
H902OXEG Compatible in V100R018C00 N/A N/A
Compatible in V100R018C10
Compatible in V100R019C00
Compatible in V100R019C1x
V100R019C1xSPH210
FAN monitoring board
H901FMLA All versions N/A Replaceable with the H902FMLA
H902FMLA Compatible in V100R017C10-V100R019C00 N/A N/A
V100R019C1x and later versions
H901FMMA V100R016C00 and later versions N/A Replaceable with the H903FMMA
H903FMMA Compatible in V100R017C10-V100R019C00 N/A N/A
V100R019C1x and later versions
H901FMSA N/A V100R017C10 and later versions N/A
