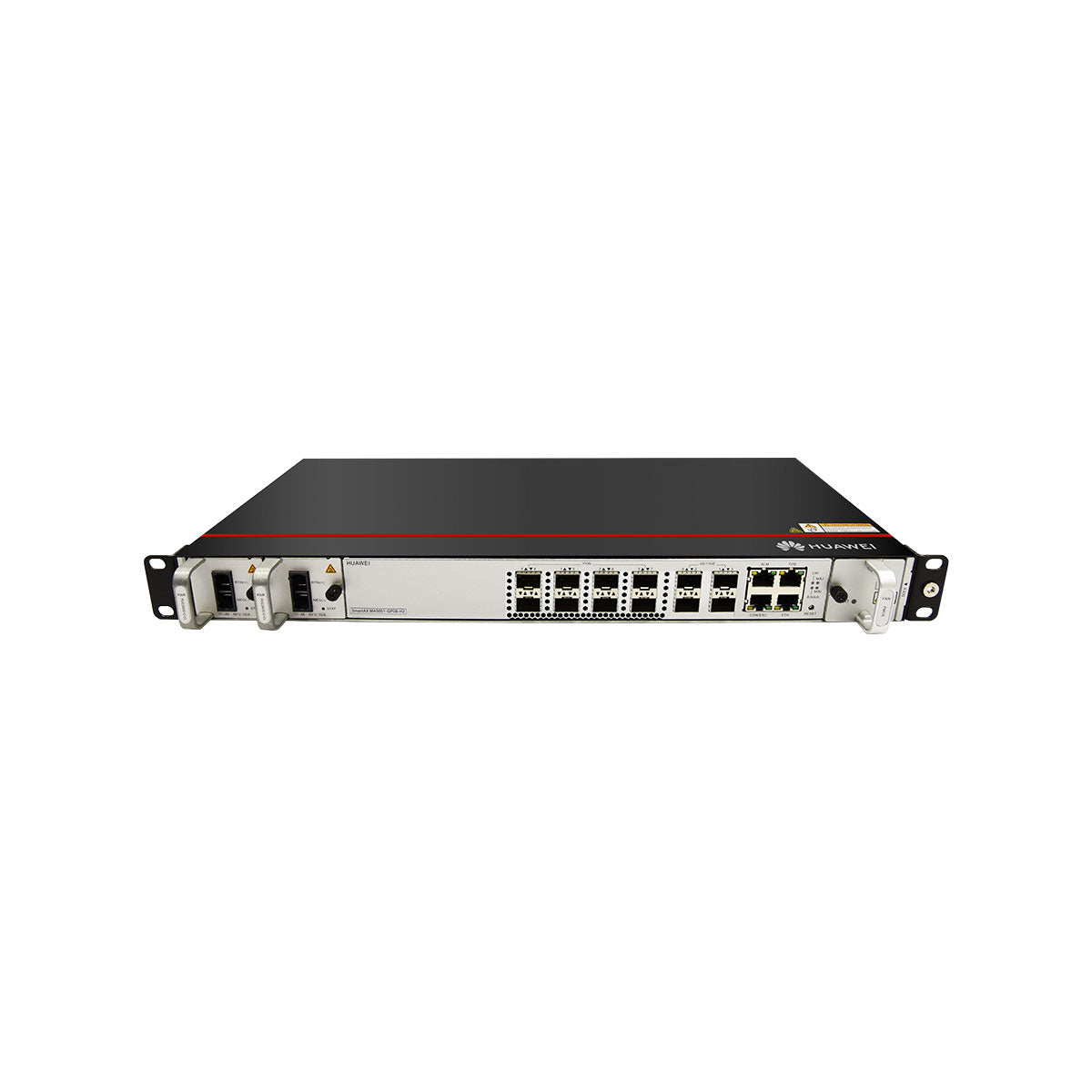

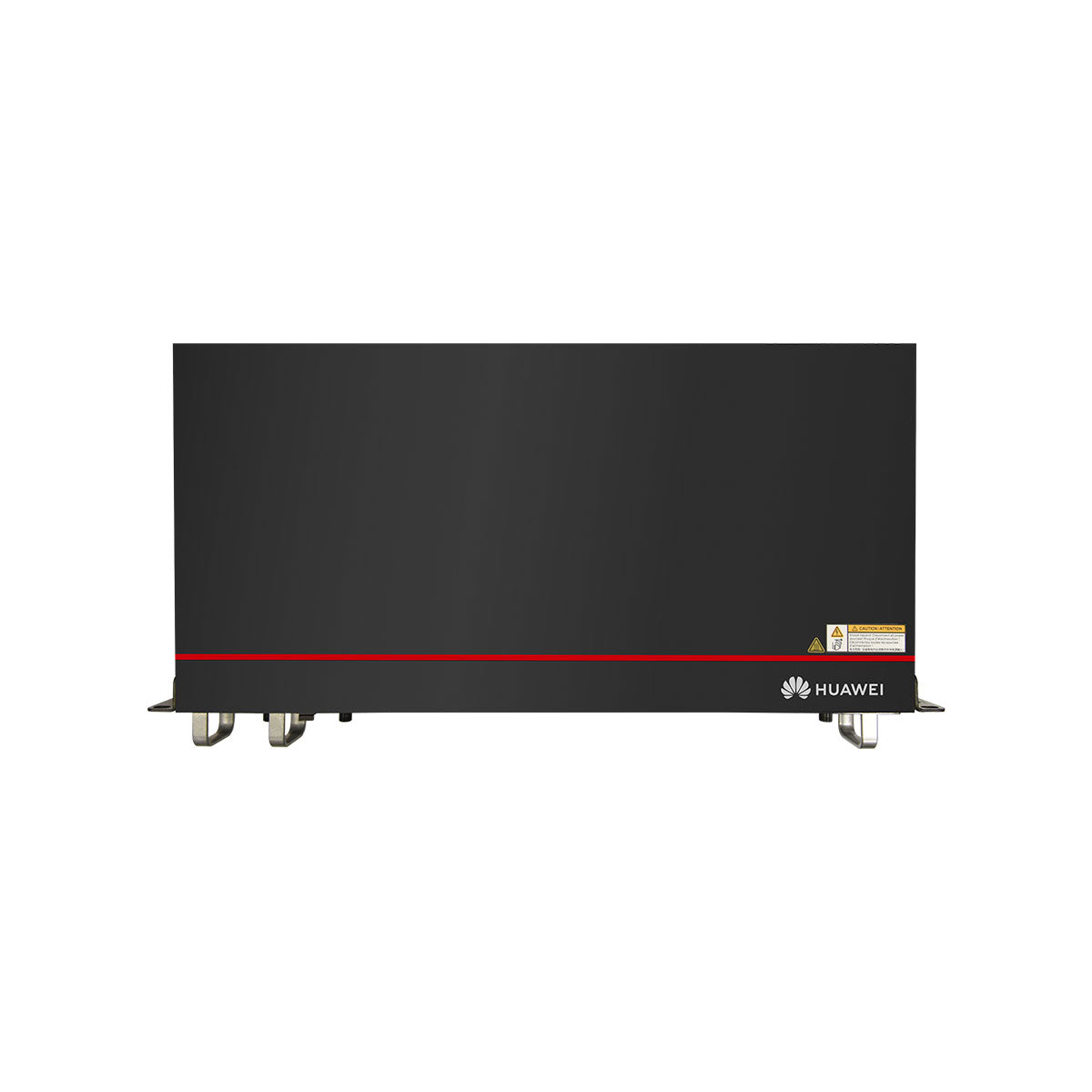

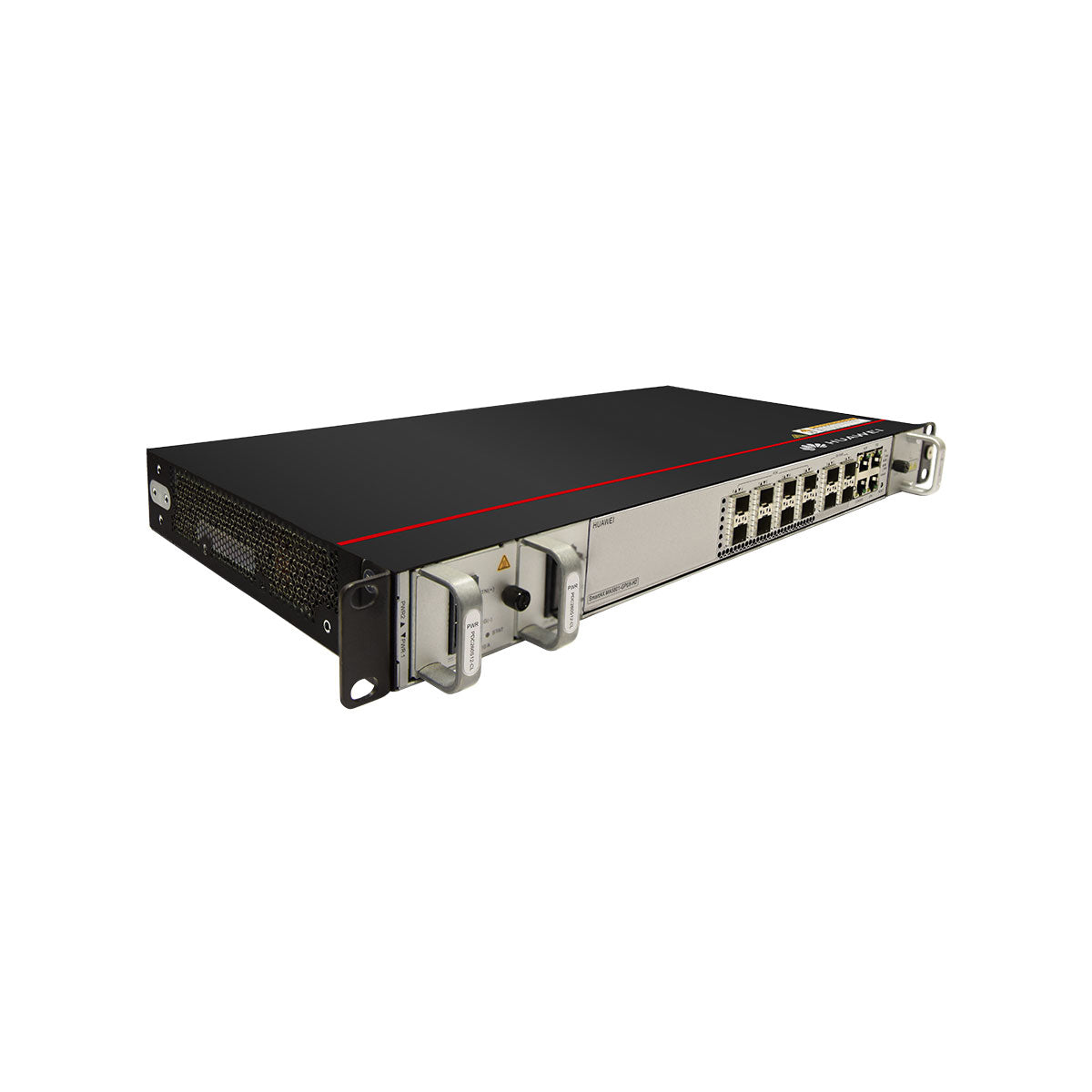

Huawei SmartAX MA5801-GP08-H2 OLT Overview
The Huawei MA5801-GP08-H2 is a compact, low-density GPON OLT (Optical Line Terminal) for FTTH (Fiber to the Home) with 8 GPON ports, 4 GE/10GE upstream ports, supports dual AC/DC power, and offers flexible deployment in small cabinets for various network scenarios, providing reliable and efficient optical access with high availability and simplified O&M.
Technical Specifications of Huawei SmartAX MA5801-GP08-H2 OLT
| Huawei MA5801-GP08-H2 OLT Datasheet | |||
| Switching capacity of the system | 140 Gbit/s | ||
| MAC address | 32768 | ||
| Access ONT | 1024 | ||
| IPv4 routing table | 8192 | ||
| IPv6 routing table | 4096 | ||
| ARP table | 16384 | ||
| Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load | ||
| Upstream ports | 4 GE/10GE | ||
| Service ports | 16 GPON | ||
| Dimensions (W x D x H) (mm) |
1U height
Excluding mounting ears: 442 x 220 x 43.6 Including IEC mounting ears: 482.6 x 220 x 43.6 Including ETSI mounting ears: 531 x 220 x 43.6 |
||
| Maximum weight(including mounting brackets) | 5 kg | ||
| Technical specification | |||
| Maximum input current | DC power supply: 6 A
AC power supply: 2.5 A |
||
| Working voltage range | DC power supply: –38.4 V to –72 V
AC power supply: 100 V to 240 V |
||
| Ambient temperature | –40°C to +65°C
The device can start up at a lowest temperature of –25°C. NOTE: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. |
||
| Ambient humidity | 5% RH to 95% RH | ||
