By NOKIA

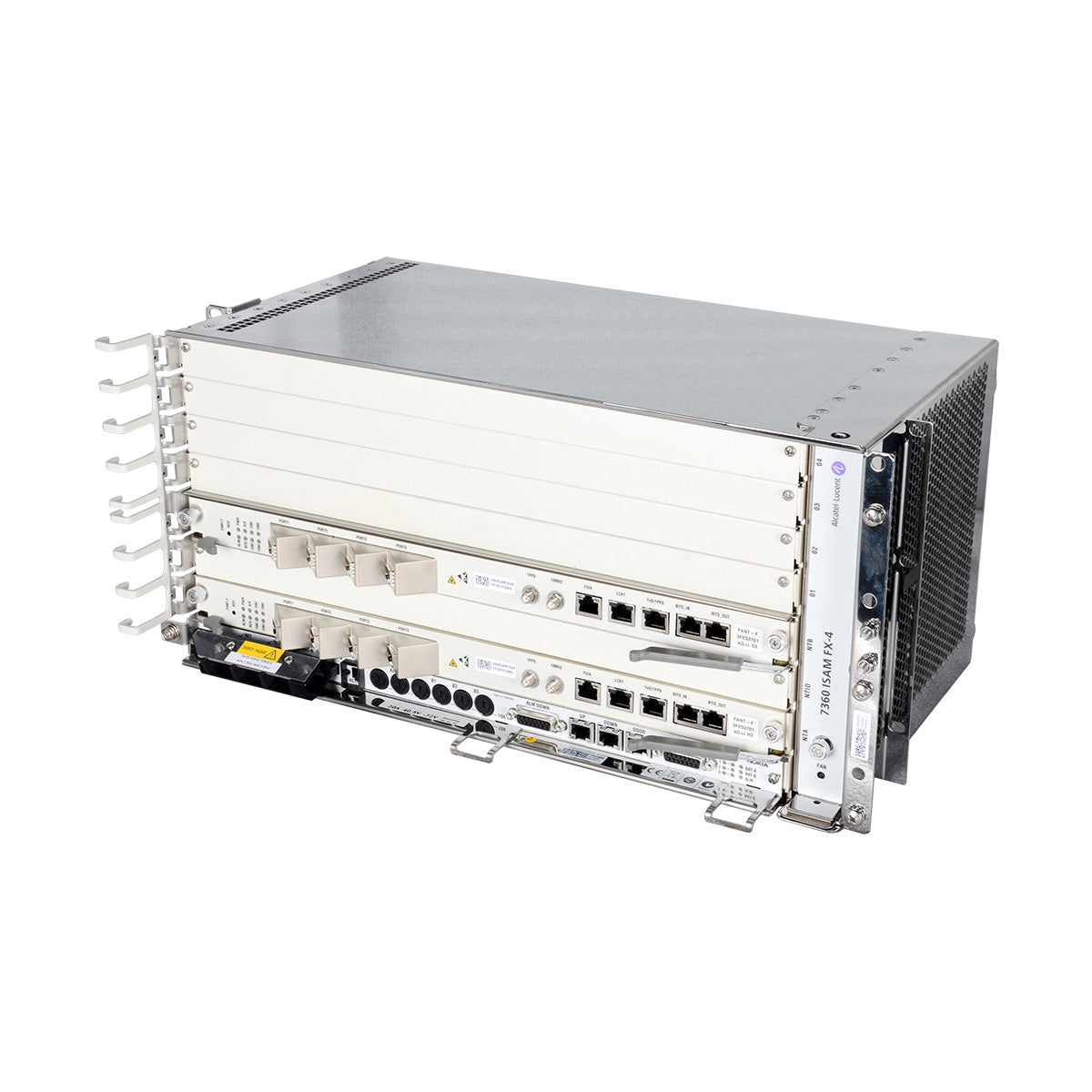

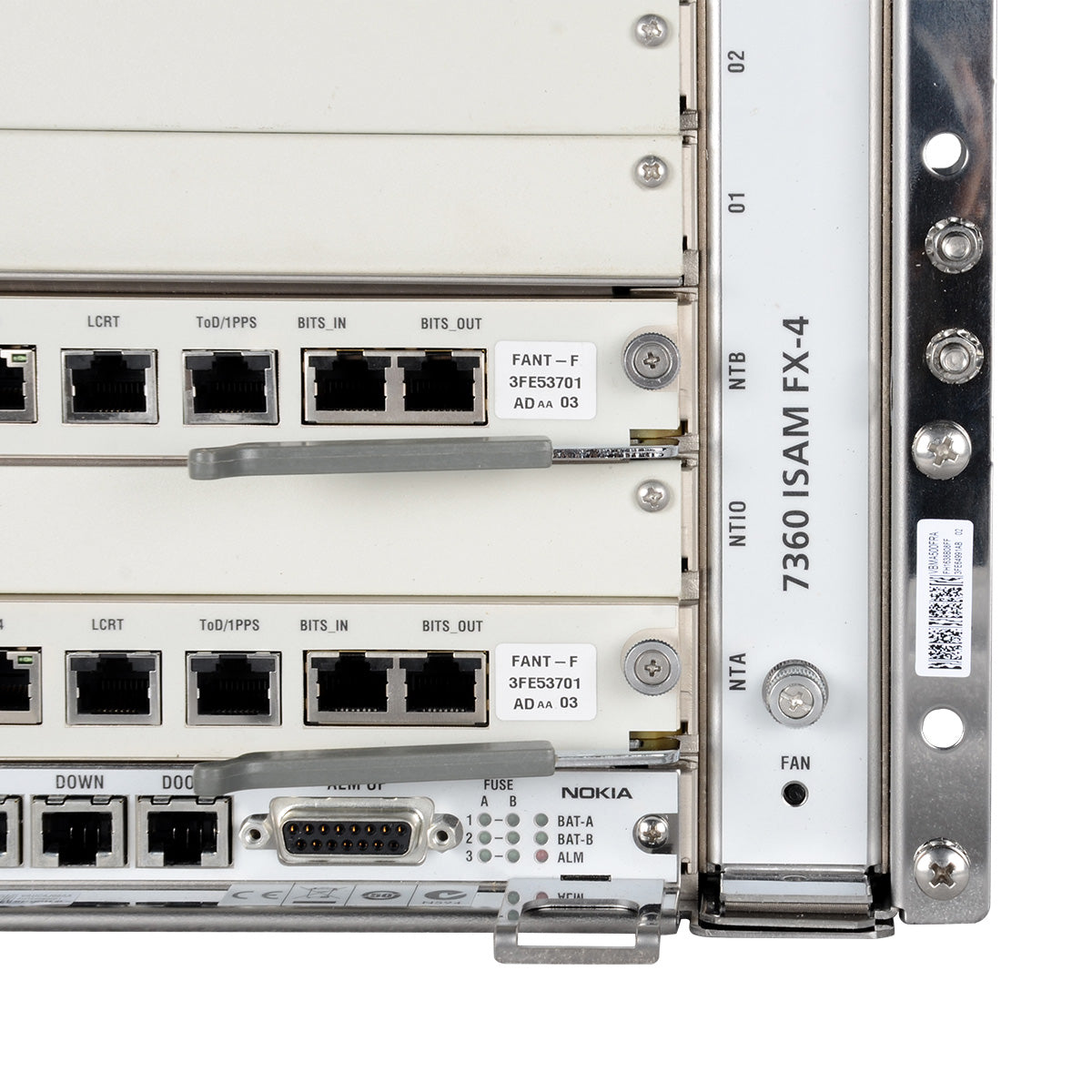

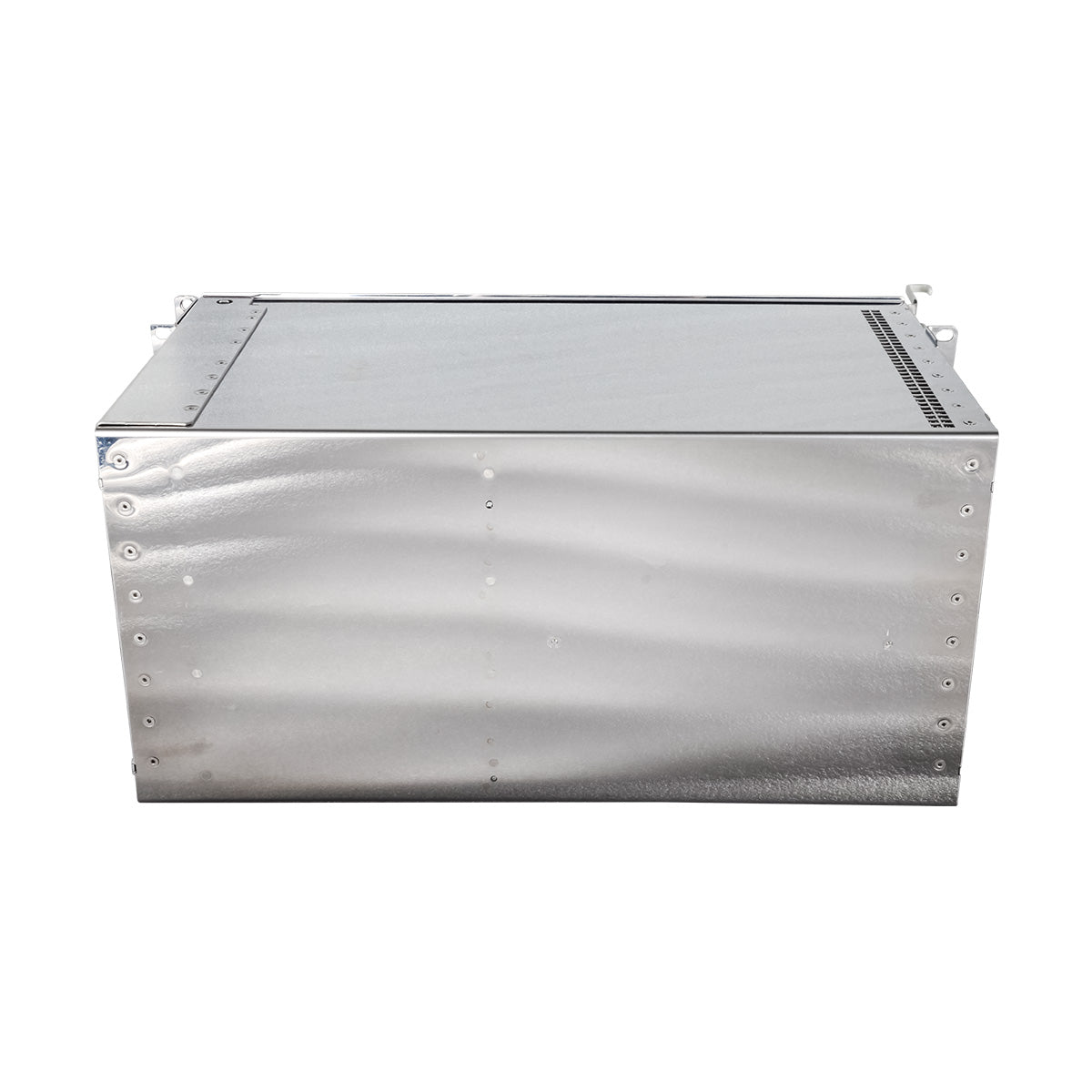

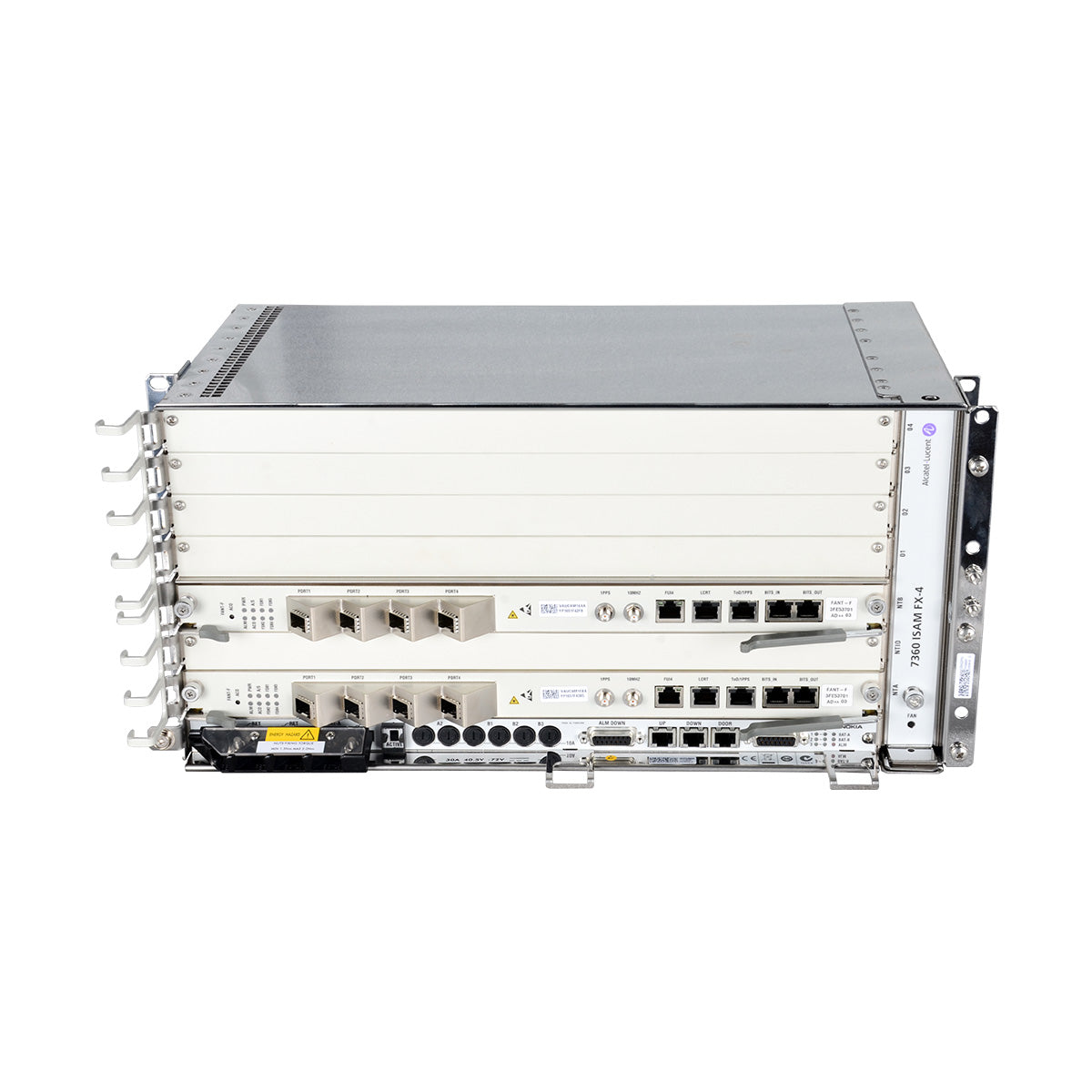

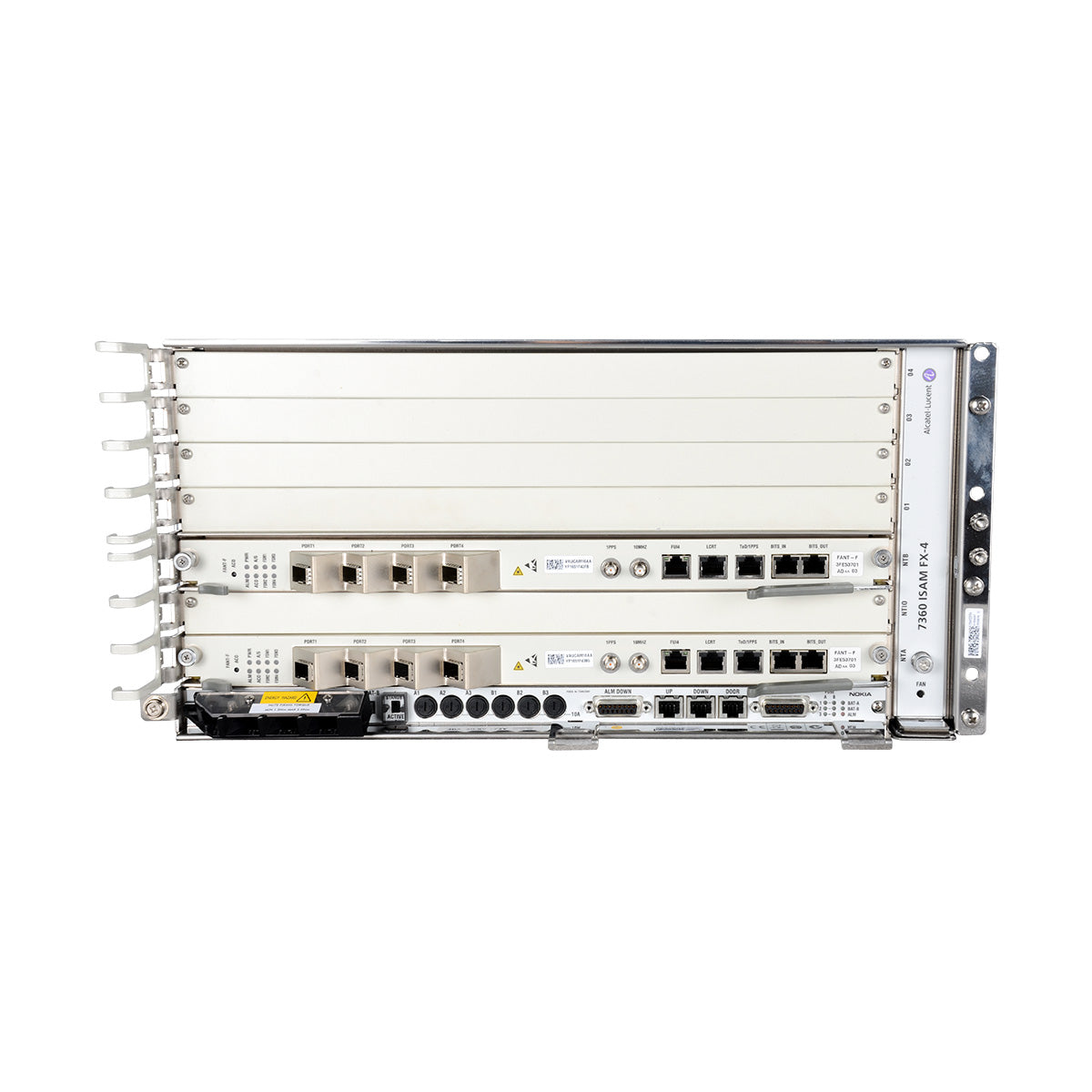

Alcatel-Lucent NOKIA 7360 ISAM FX-4

Regular price $0.00
Regular price Sale price $0.00
Availability: 200 in stock
Tags:
Regular price $0.00
Regular price Sale price $0.00
7360 ISAM FX-4 Overvie
Alcatel-Lucent NOKIA 7360 ISAM FX-4 with 2*FANT-F NT card, and 1*NGFC-G power unit, provides 4 service slots and supports a non-blocking, 2*100Gb/s per slot, VDSL2, point-to-point, GPON, EPON (with DPoE) and 10G PON services.

The Nokia 7360 Intelligent Services Access Manager (ISAM) FX is a high-capacity access node designed to deliver ultra-broadband services to any number of users in a rapid and cost-effective way. Because there is no single solution to bring ultra-broadband to the masses, the 7360 ISAM FX supports a mix of services including VDSL2 with vectoring, point-to-point, GPON, EPON (with
DPoE) and 10G PON services. High-bandwidth throughput is guaranteed by backplane technology that enables dual 100Gb/s backplane connections to each line termination (LT) slot.

Alcatel-Lucent NOKIA 7360 ISAM FX-4 with 2*FANT-F NT card, and 1*NGFC-G power unit, provides 4 service slots and supports a non-blocking, 2*100Gb/s per slot, VDSL2, point-to-point, GPON, EPON (with DPoE) and 10G PON services.

High-capacity backplane: 2 100Gb/s per slot

High-capacity 480Gb/s controllers (NT) with 40Gb/s network capacity (can be used as uplink, downlink or direct user link)

Optional Network Termination Input Output (NTIO) for an additional 80Gb/s network capacity

Simultaneous support of passive optical network (PON), pointto-point, POTS and VDSL2 with vectoring

Basic 7360 ISAM FX network topology

Basic 7360 ISAM FX network topology

Alcatel-Lucent/ NOKIA 7360 ISAM FX-4 Datasheet
Item Alcatel-Lucent NOKIA 7360 ISAM FX-4
Switching capacity of the system FANT-F: 480Gb/s switching matrix (bidirectional)
High-capacity backplane 2 x 100 Gb/s  per slot
Service Slots 4
Power supply Input – 48/60V DC nominal
Fully redundant power feeding (branch A and B)
Operating temperature range -40⁰C to 65⁰C (-40⁰F to 149⁰F)
Relative humidity 5% to 93% (non-condensing)
Dimensions Height: 223 mm. (8.77 in) (5 RU)
(W x D x H) (mm) Width: 445 mm (17.52 in); can be used in 19-in. racks
Depth: 280 mm (11.02 in)
Rack-mounting pitch of 25 mm (0.984 in)
