7360 ISAM FX-8 Overvie
The NOKIA Alcatel-Lucent 7360 Intelligent Services Access Manager (ISAM) FX is a high-capacity access node designed to deliver ultra-broadband services to any number of users in a fast and cost-effective way. The 7360 FX supports a mix of services including VDSL2 with vectoring, point-to-point, GPON, EPON (with DPoE), and 10G PON services. Supports GPON and universal next-generation PON (universal NG-PON) technology for the cost-efficient introduction of 10 Gb/s symmetric and asymmetric services with XGS-PON. Backplane technology guarantees high-bandwidth throughput, which enables dual 100Gb/s backplane connections to each line termination (LT) slot.
Alcatel-Lucent NOKIA 7360 ISAM FX-8 with 2xFANT-F, 1xNGFC-E, provides 8 service slots and supports 2×100 Gb/s per slot, VDSL2 with vectoring, GPON, EPON (with DPoE) and 10G PON services.
High-capacity backplane: 2 100Gb/s per slot
High-capacity 480Gb/s controllers (NT) with 40Gb/s network capacity (can be used as uplink, downlink or direct user link)
Optional Network Termination Input Output (NTIO) for an additional 80Gb/s network capacity
Simultaneous support of passive optical network (PON), point-to-point, POTS, and VDSL2 with vectoring

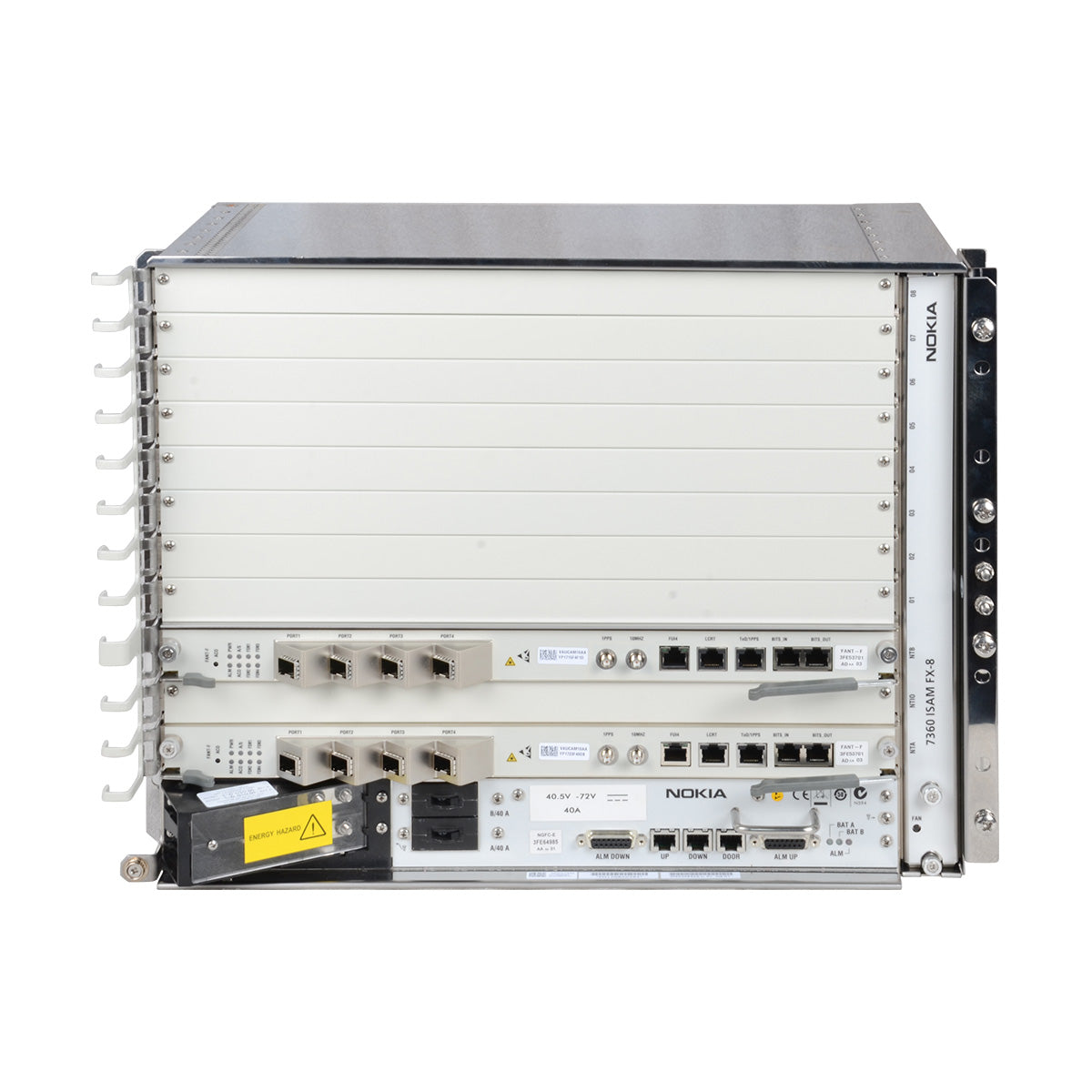

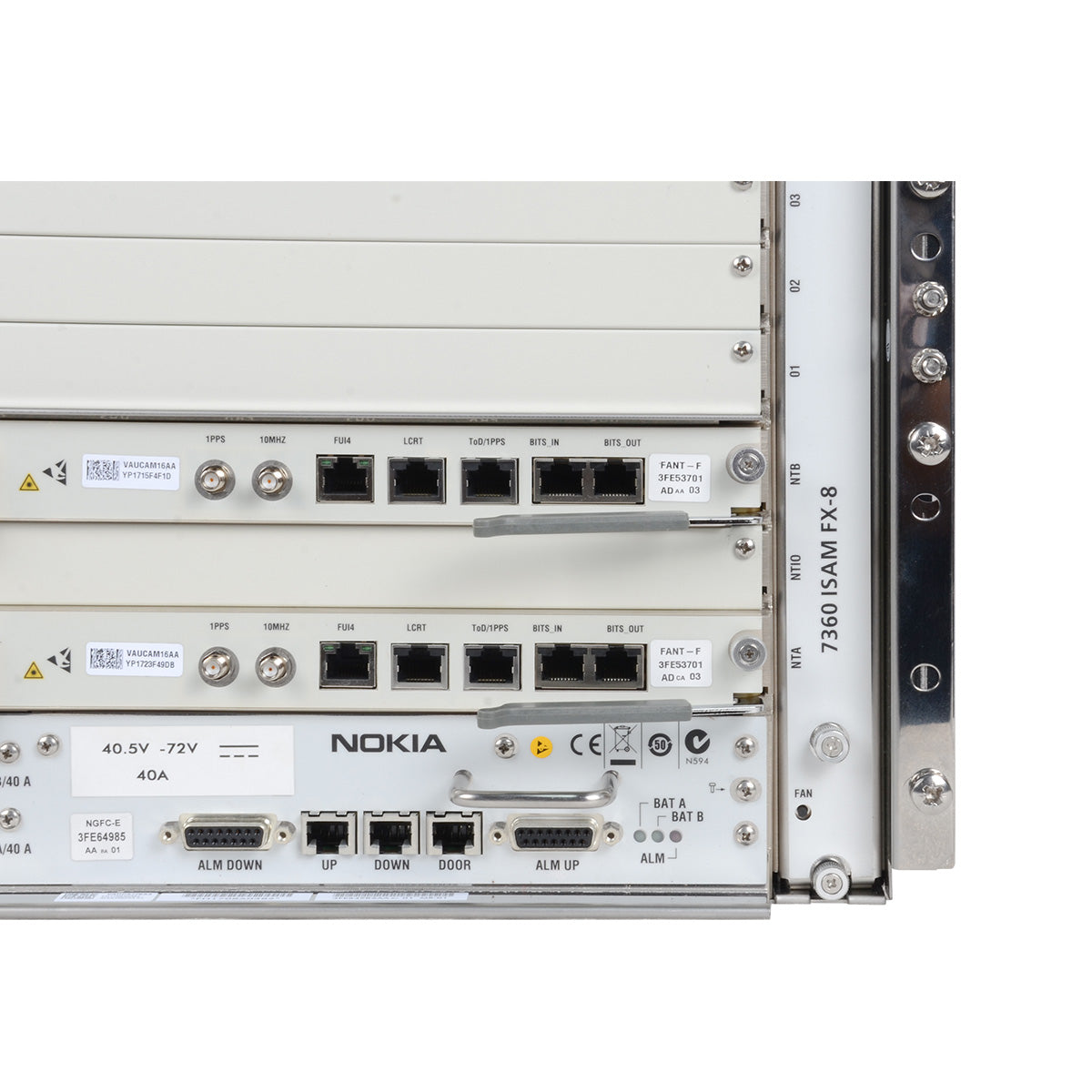

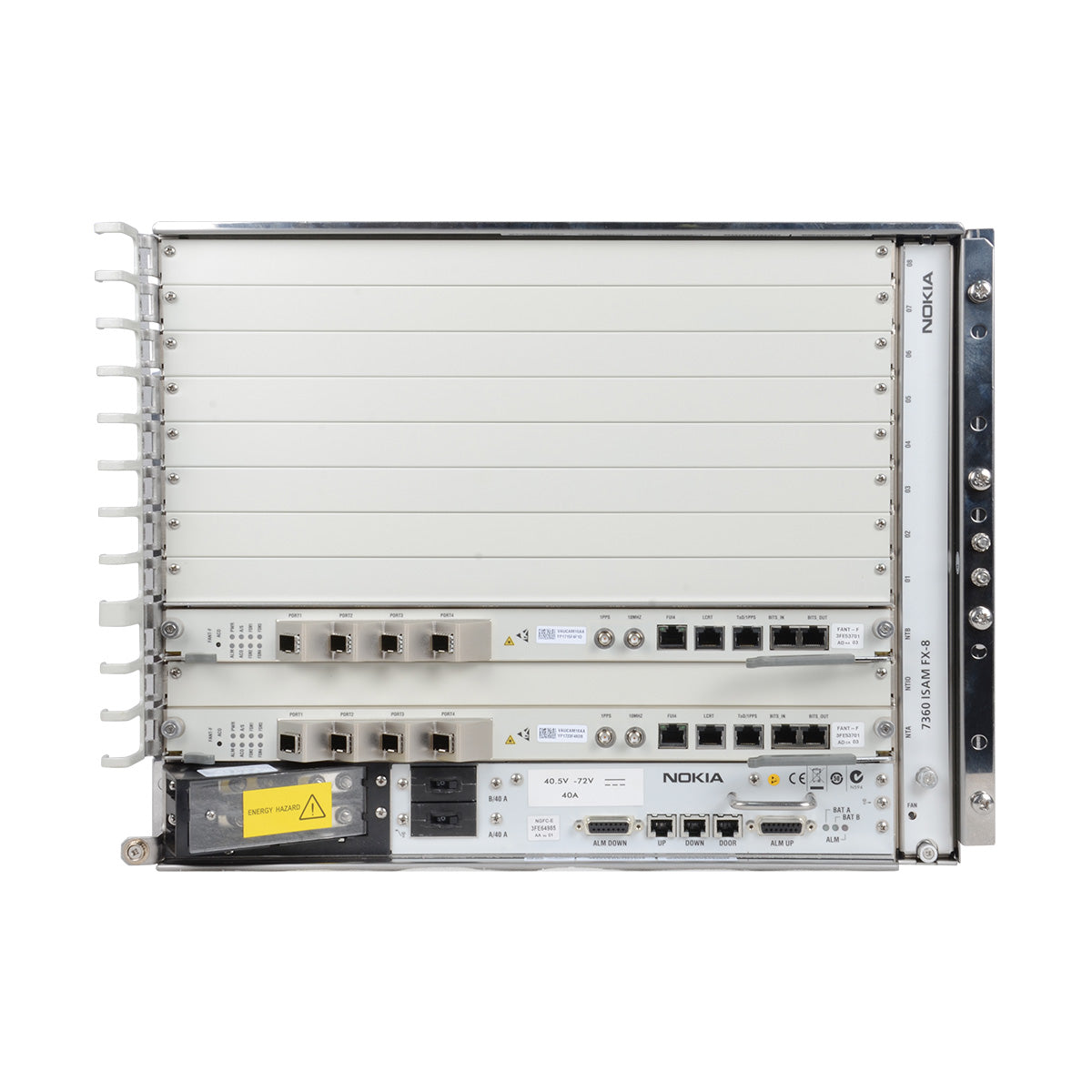

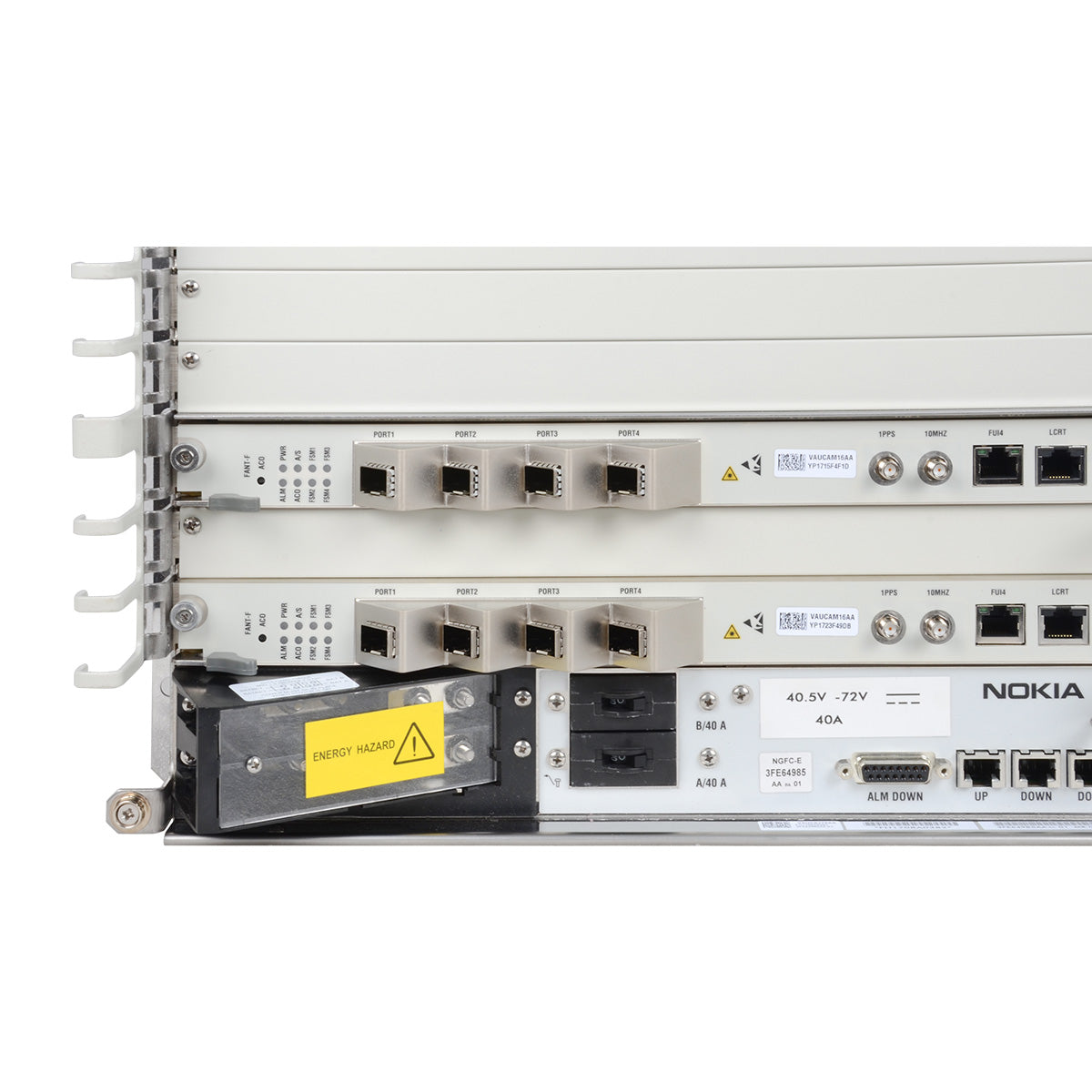

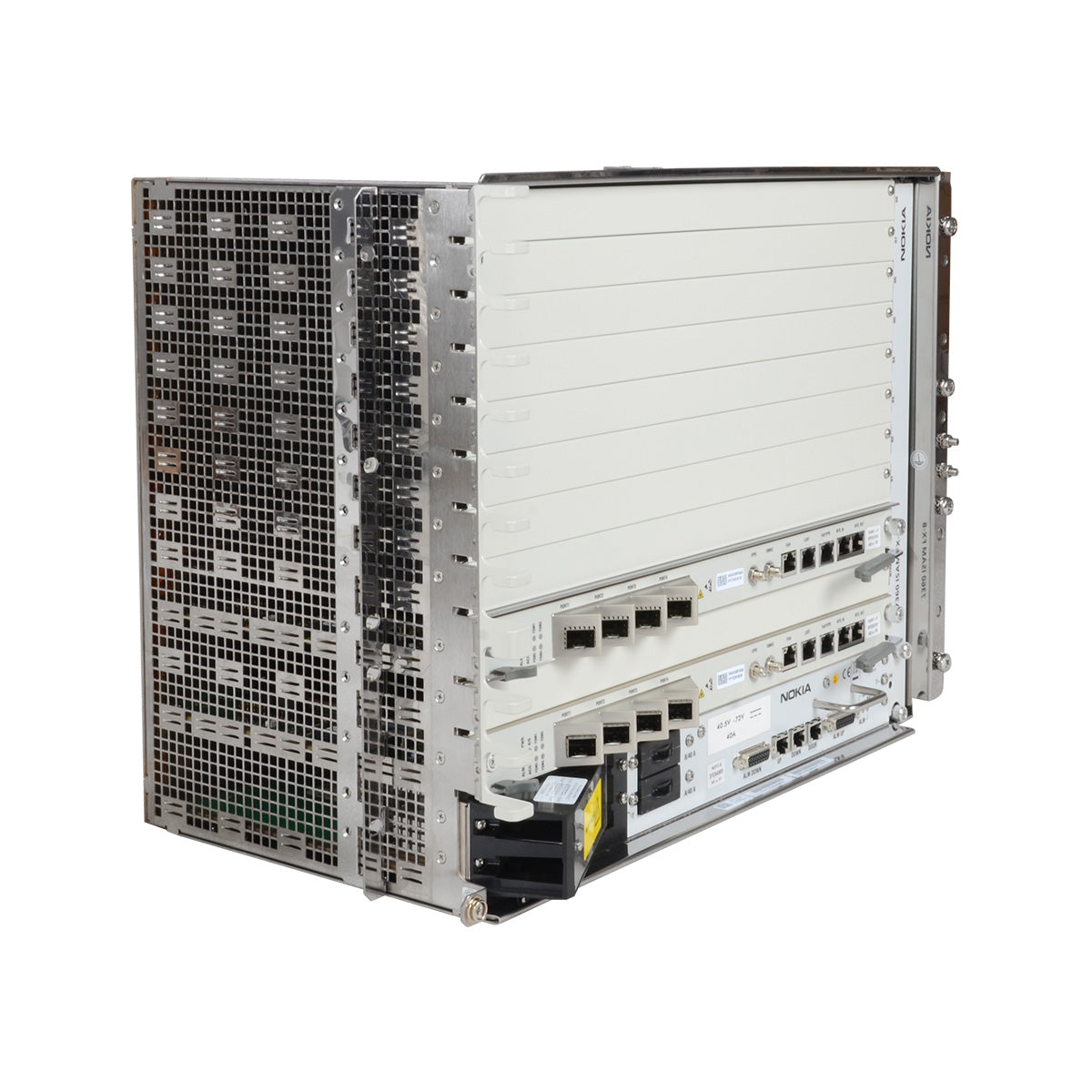

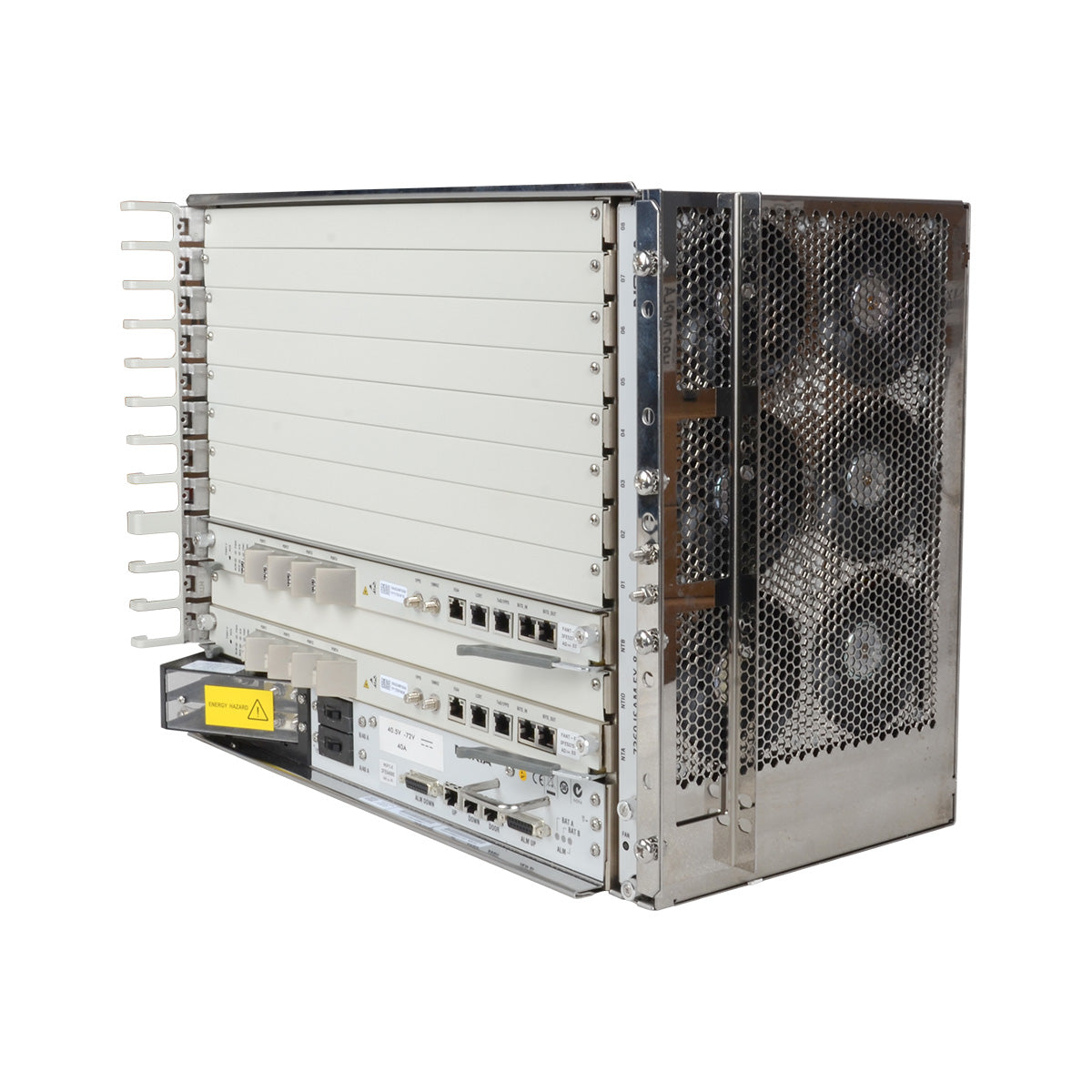

Alcatel-Lucent NOKIA 7360 ISAM FX-8
Item | Alcatel-Lucent NOKIA 7360 ISAM FX-8 |
Switching capacity of the system | FANT-F: 480Gb/s switching matrix (bidirectional) |
High-capacity backplane | 100 Gb/s per slot |
Service Slots | 8 |
Power supply | Input – 48/60V DC nominal |
Fully redundant power feeding (branch A and B) | |
Operating temperature range | -40⁰C to 65⁰C (-40⁰F to 149⁰F) |
Relative humidity | 5% to 93% (non-condensing) |
Dimensions | Height: 223 mm. (8.77 in) (5 RU) |
(W x D x H) (mm) | Height: 360mm (14.17in) (8 RU) Width: 445mm (17.52in); can be used in 19in racks Depth: 280mm (11.02in) |
Rack-mounting pitch of 25 mm (0.984 in) |
