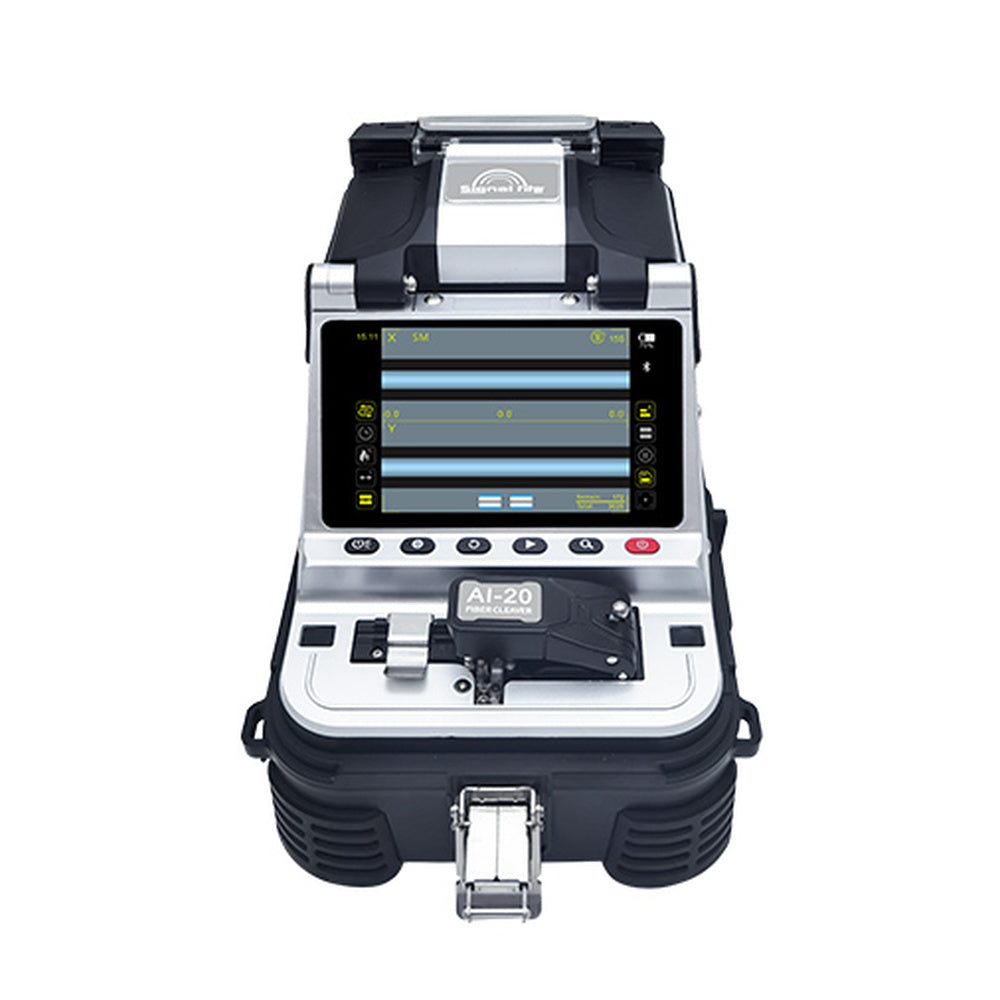

Signal fireSignal Fire AI-20 Fiber Fusion Splicer
Signal Fire AI-20 Fiber Fusion Splicer
$0.00
$0.00
Signal Fire AI-30 Fiber Fusion Splicer Overview

The Signal Fire AI-30 is a fourth-generation trunk line optical fiber fusion splicer designed for high-efficiency fiber installation, maintenance, and long-distance fiber optic cable projects.

It features a highly integrated design combining fiber fusion splicing, an electric one-step fiber cleaver, Optical Power Meter (OPM), and Visual Fault Locator (VFL) in one compact unit. With 6-motor core alignment, 0.05 μm alignment accuracy, 320× magnification, 6s splicing, and 15s heating, the AI-30 provides fast and precise fiber splicing for telecom, FTTH, trunk line, railway, security monitoring, and other fiber infrastructure applications.

100KM Trunk Line Fusion Splicer. The fourth generation trunk line optical fiber fusion splicer, built-in high precision delay return electric one-step fiber cleaver



Differentce between AI-20 and AI-30
  • AI-30 (Upgraded AI-20 version): 100KM Trunk Line Fiber Fusion Splicer with higher 0.05μm alignment accuracy, improved fiber-core imaging, and enhanced splicing stability. AI-30 fiber core is clearer and more visible, and the fusion loss and stability are better. It is fully capable of longer distance mainline fiber optic cable fusion splicing projects.
  • AI-20: 80KM Trunk Line Fiber Fusion Splicer.



Signal Fire AI-30 Fiber Fusion Splicer Key Features
  • 6-motor core alignment with fiber alignment accuracy up to 0.05 μm
  • 6-second fast splicing and 15-second heating
  • Built-in electric one-step fiber cleaver with delayed return function
  • Built-in OPM and VFL for convenient fiber testing and troubleshooting
  • 320× magnification for clear fiber core observation
  • 5-inch TFT color display
  • Supports SMF, MMF, DSF, NZ-DSF, G.654 and BIF/G.657 fibers
  • 7800 mAh lithium battery, supporting up to 240 fusion splicing and heating cycles
  • 1-second startup for quick field operation
  • 3-in-1 fiber holder for bare fiber, pigtail, drop cable, patch cord and multi-fiber cable
  • Bluetooth 4.2 and mobile APP for data synchronization, software updates and equipment management
  • Compact 4.5 kg complete set including machine, case and accessories
  • Designed for outdoor construction and demanding environments, including high-altitude and cold/dry conditions


Signal Fire AI-30 Fiber Fusion Splicer Datasheet
Item Specification
Model AI-30
Fiber Alignment Core / Cladding Alignment
Motor 6 motors
Fiber Alignment Accuracy 0.05 μm
Splicing Time 6 s
Heating Time 15 s
Splicing Mode Automatic focusing core alignment; conventional / high-precision welding
Splicing Method Automatic / Semi-automatic
Supported Fiber Types SMF (G.652), MMF (G.651), DSF (G.653), G.654, NZ-DSF (G.655), BIF (G.657)
Cladding Diameter 80–150 μm
Coating Diameter 100–1000 μm
Splicing Loss 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS/NZDS)
Fiber Cleaver High-precision delayed-return electric one-step cleaver
Cleaver Cutting Points 24
VFL 15 mW; 2 Hz flashing / steady-on
OPM Wavelengths 850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 / 1650 nm
OPM Measurement Range -50 to +30 dBm
OPM Accuracy < ±0.3 dB (-50 to +3 dBm)
Magnification 320× (X or Y single display); 200× (X & Y dual display)
Fiber Holder 3-in-1; SM/MM, multi-core cable, bare fiber, pigtail, jumper, drop cable
Cutting Length 8–16 mm for ≤250 μm coating; 16 mm for 250–1000 μm coating
Compatible Heat Shrink Tubes 60 / 50 / 40 / 25 mm
Tensile Test Standard 2 N
Display 5-inch TFT color display
Battery 7800 mAh lithium battery
Battery Capacity Approx. 240 cores continuous splicing & heating
Charging Time ≤3.5 h
Boot Time Approx. 1 s
Wireless Communication Bluetooth 4.2, 2.4 GHz
Wireless Range Up to 60 m
Data Storage 1,000 groups in machine; additional data can be stored on server
Software Update Mobile APP via Bluetooth
Return Loss >60 dB
Power Supply AC 100–240 V, 50/60 Hz
Output DC 13.5 V / 4.8 A
Operating Temperature -15°C to +50°C
Operating Humidity <95% RH, non-condensing
Operating Altitude 0–5,000 m
Maximum Wind Speed ≤15 m/s
Protection Waterproof, dustproof and drop-resistant
