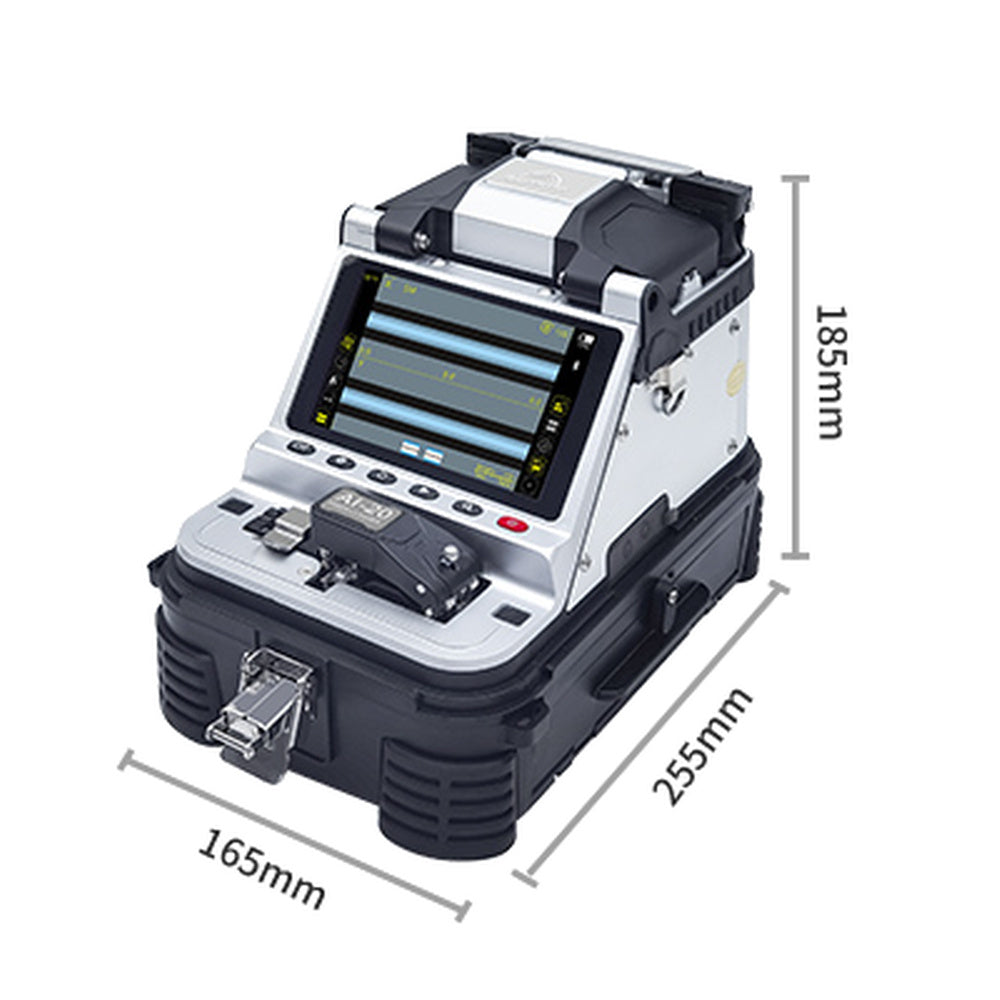

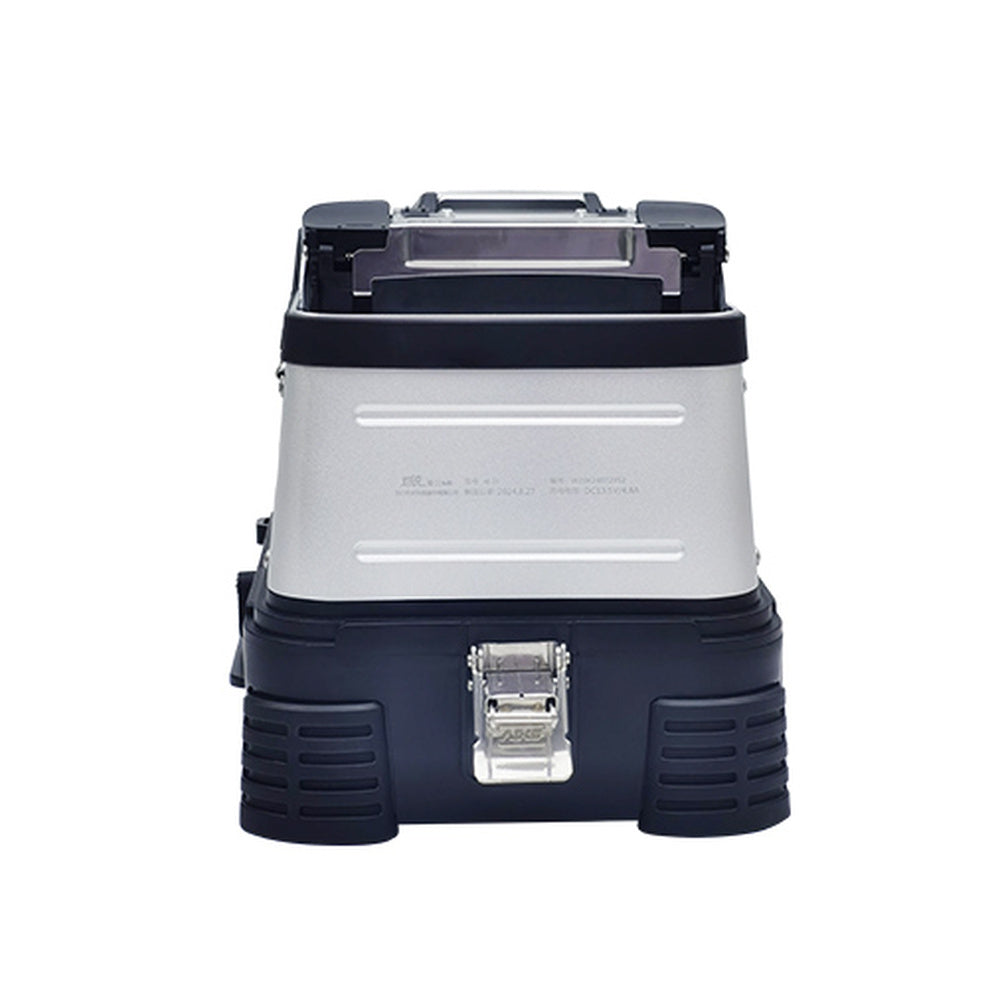

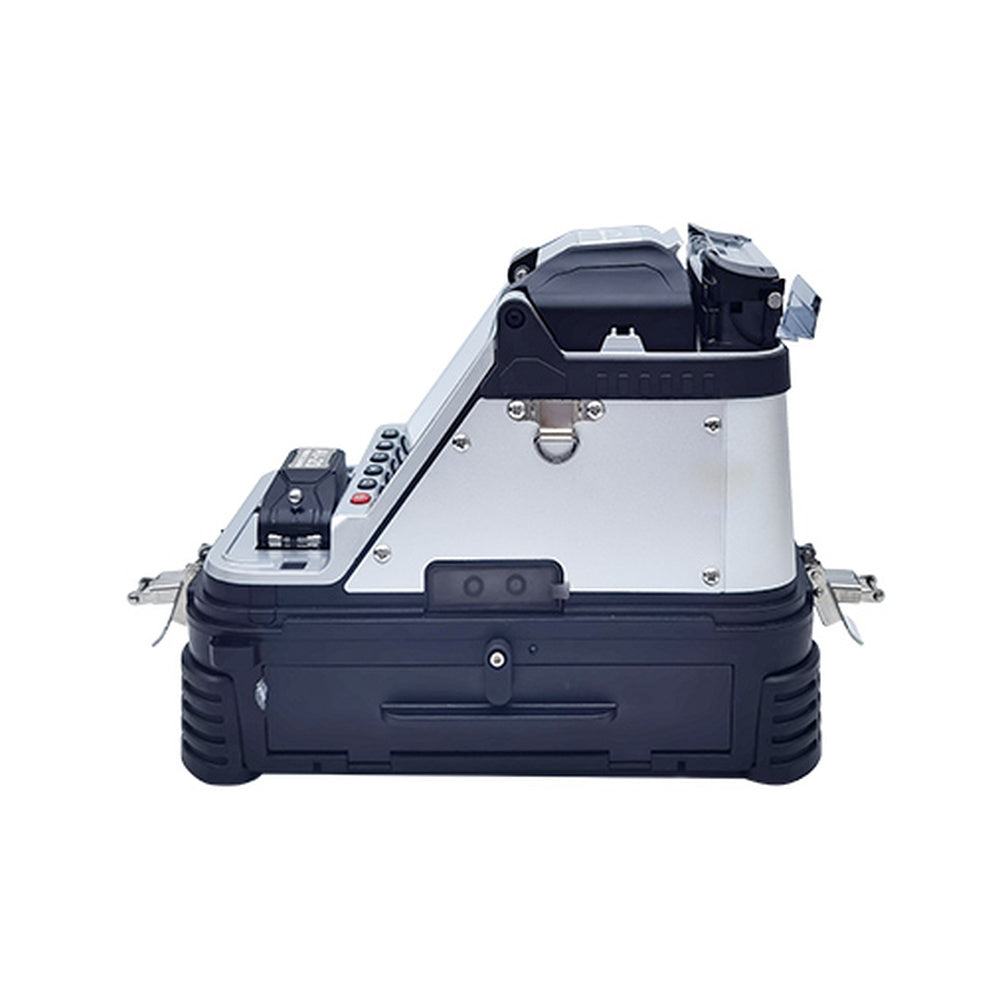

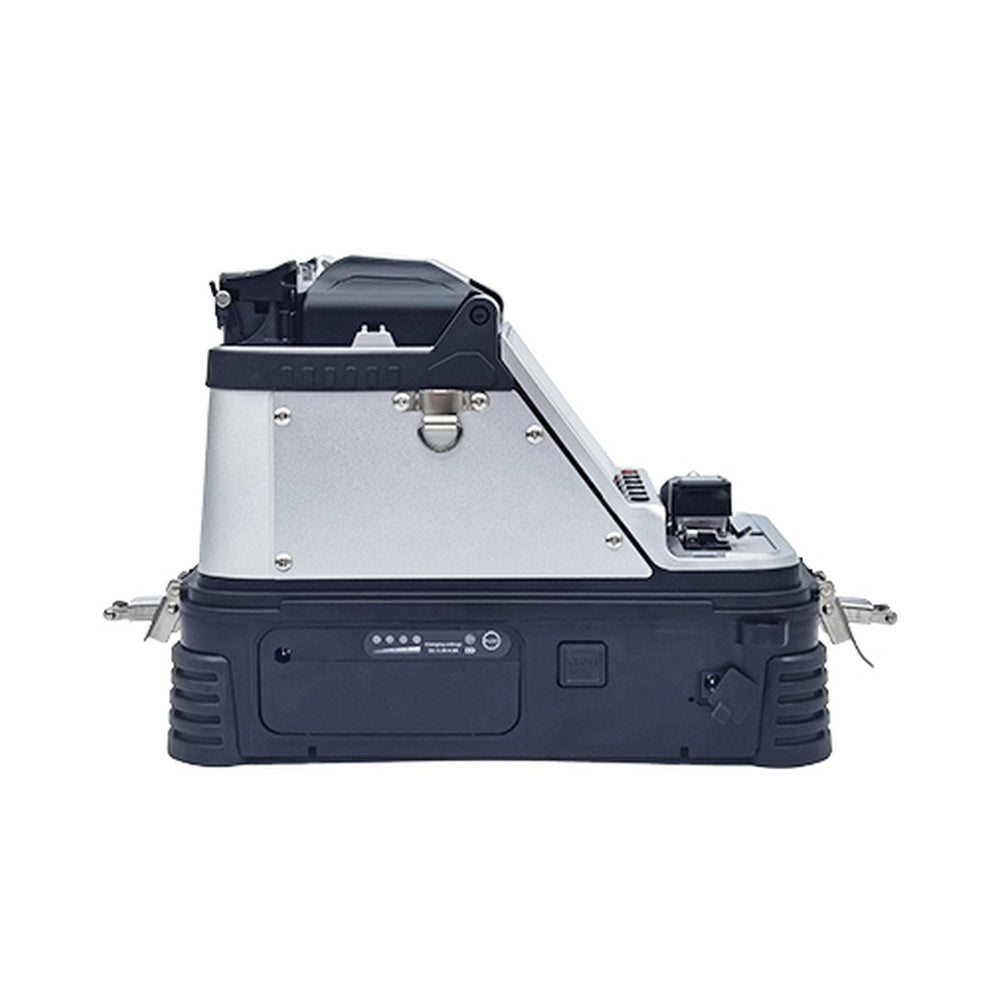

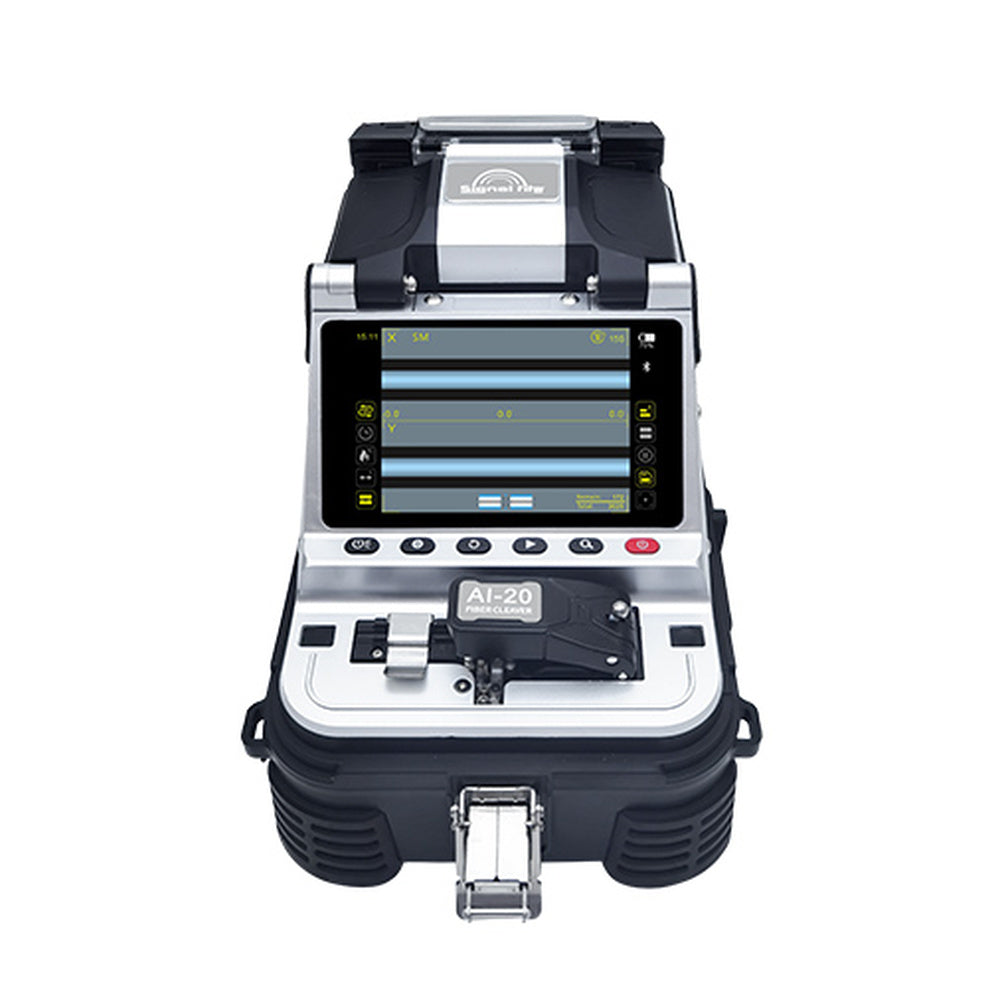

Signal Fire AI-20 Fiber Fusion Splicer

$0.00
$0.00
Availability: In stock
Tags:
Collections:
$0.00
$0.00
Signal Fire AI-20 Fiber Fusion Splicer Overview

The Signal Fire AI-20 is a compact and highly integrated fiber fusion splicer designed for FTTH, FTTx, telecom, and outdoor fiber installation and maintenance. It combines core/cladding alignment, a built-in high-precision electric fiber cleaver, Optical Power Meter (OPM), and Visual Fault Locator (VFL) in one unit.

With 6-motor alignment, 6-second splicing, 15-second heating, a 5-inch color display, and a 7800mAh battery supporting approximately 240 continuous fusion and heating cycles, the AI-20 provides an efficient solution for field fiber installation and maintenance.



Differentce between AI-20 and AI-30

  • AI-30 (Upgraded AI-20 version): 100KM Trunk Line Fiber Fusion Splicer with higher 0.05μm alignment accuracy, improved fiber-core imaging, and enhanced splicing stability. AI-30 fiber core is clearer and more visible, and the fusion loss and stability are better. It is fully capable of longer distance mainline fiber optic cable fusion splicing projects.
  • AI-20: 80KM Trunk Line Fiber Fusion Splicer.

Signal Fire AI-20 Fiber Fusion Splicer Key Features

  • Core/Cladding Alignment: 6-motor alignment system with 0.1μm alignment accuracy.

  • Fast Fusion Splicing: Approx. 6-second splicing time and 15-second heating time.

  • Built-in Electric Cleaver: High-precision one-step electric fiber cleaver with delayed return function.

  • Integrated OPM & VFL: Built-in Optical Power Meter and 15mW Visual Fault Locator for fiber testing and troubleshooting.

  • Wide Fiber Compatibility: Supports SMF, MMF, DSF, G.654, NZ-DSF, and bend-insensitive G.657 fibers.

  • 3-in-1 Fiber Holder: Supports single/multimode fiber, bare fiber, pigtail, patchcord, drop cable, and multi-core cable.

  • Long Battery Life: 7800mAh lithium battery supports approximately 240 continuous fusion and heating cycles.

  • 320× Magnification: 5-inch TFT color display with up to 320× magnification.

  • Mobile App Connectivity: Bluetooth 4.2 enables data synchronization, splicing record management, and software updates.

  • Rugged Field Design: Waterproof, dustproof, and drop-resistant for outdoor fiber construction and maintenance.

  • Compact & Portable: Designed for field installation, maintenance, emergency repair, and climbing operations.


Signal Fire AI-20 Fiber Fusion Splicer Datasheet
Parameter Specification
Model AI-20
Alignment Method Core / Cladding Alignment
Motor 6 motors
Alignment Accuracy 0.1 μm
Splicing Time 6 sec
Heating Time 15 sec, adjustable
Fiber Type SMF/G.652, MMF/G.651, DSF/G.653, G.654, NZ-DSF/G.655, BIF/G.657
Cladding Diameter 80–150 μm
Typical Splicing Loss 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS/NZDS)
Splicing Mode Automatic / Semi-automatic
Fiber Cleaver High-precision electric one-step cleaver
VFL 15 mW; 2 Hz flashing / steady-on
OPM Wavelengths 850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 / 1650 nm
OPM Measurement Range -50 to +30 dBm
OPM Accuracy < ±0.3 dB (-50 to +3 dBm)
Magnification 320× (single-axis) / 200× (dual-axis)
Display 5-inch TFT color screen
Battery 7800 mAh lithium battery
Battery Cycles Approx. 240 fusion and heating cycles
Charging Time ≤ 3.5 hours
Boot Time 1 sec
Data Storage 1,000 groups locally; exportable
Wireless Bluetooth 4.2, 2.4 GHz, up to 60 m
Power Supply AC 100–240V, 50/60Hz
Operating Temperature -15°C to +50°C
Operating Humidity <95% RH, non-condensing
Operating Altitude 0–5,000 m
Protection Waterproof, dustproof, drop-resistant
