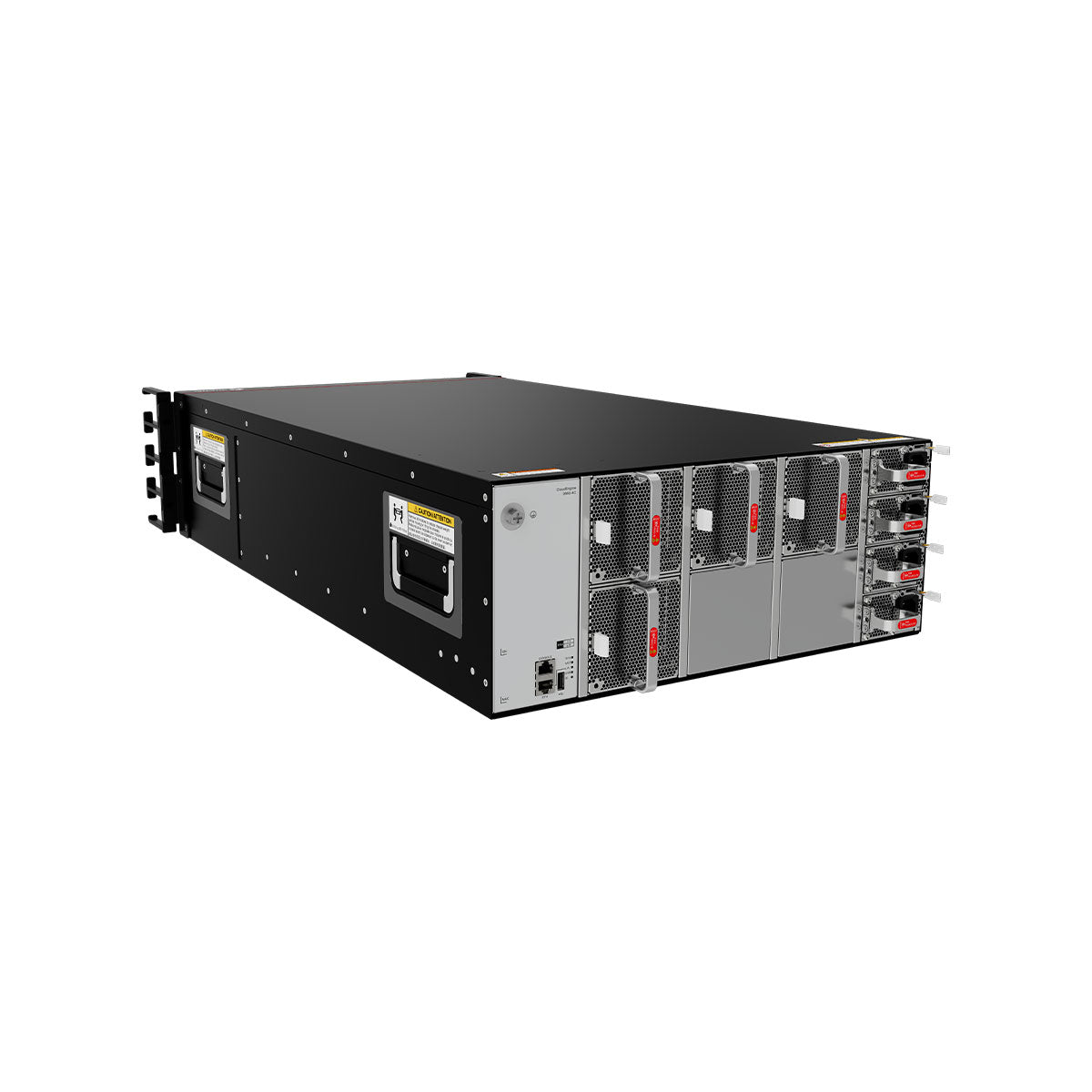

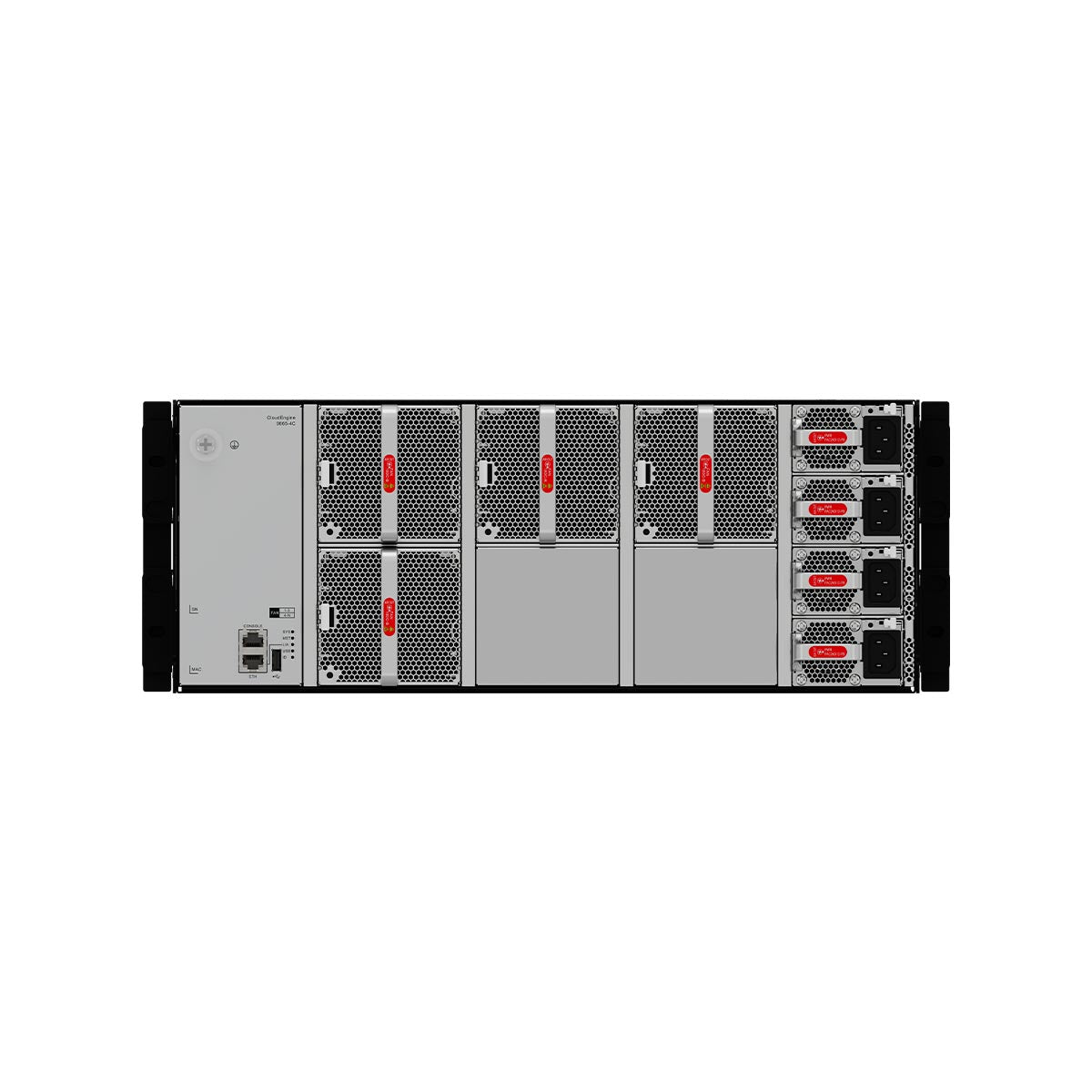

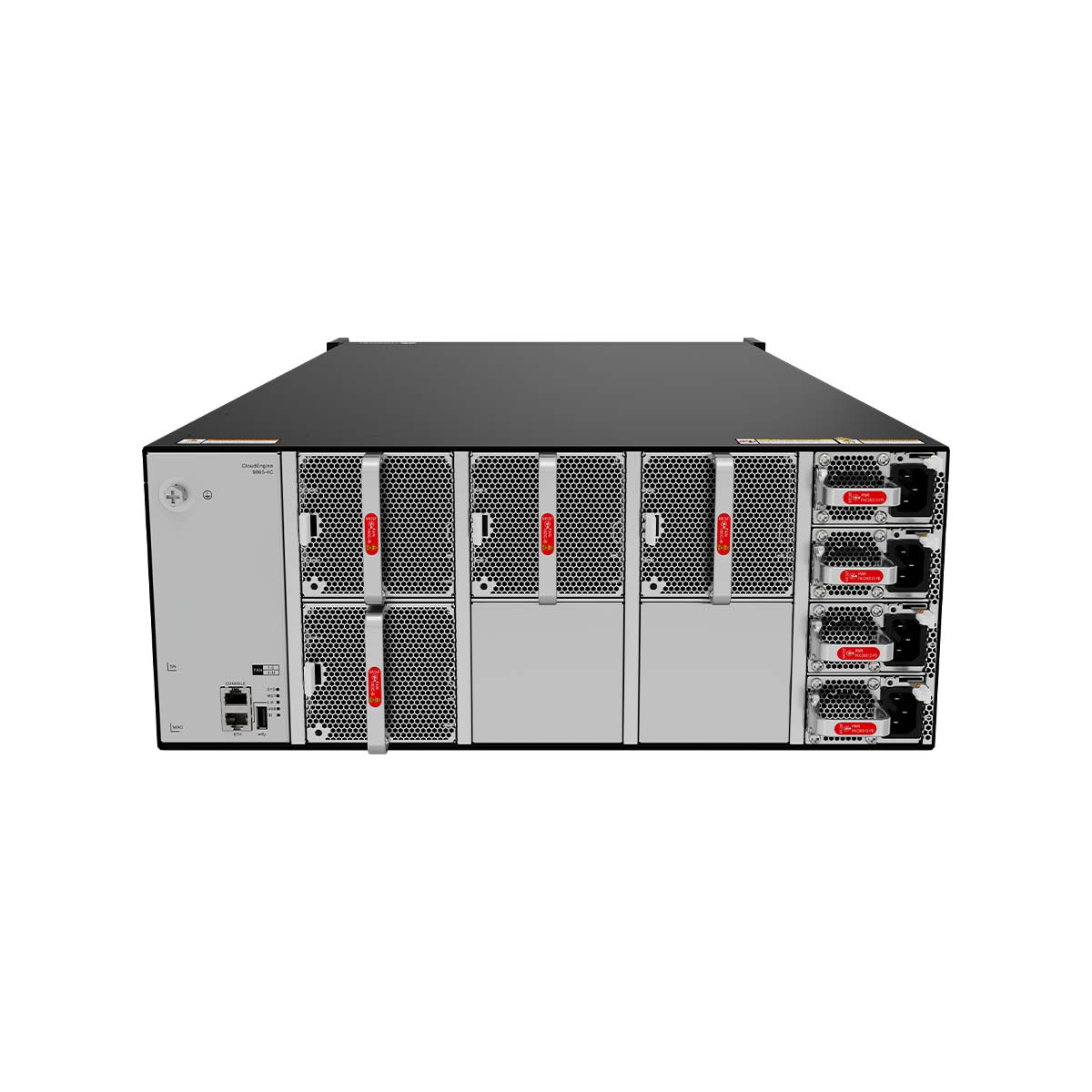

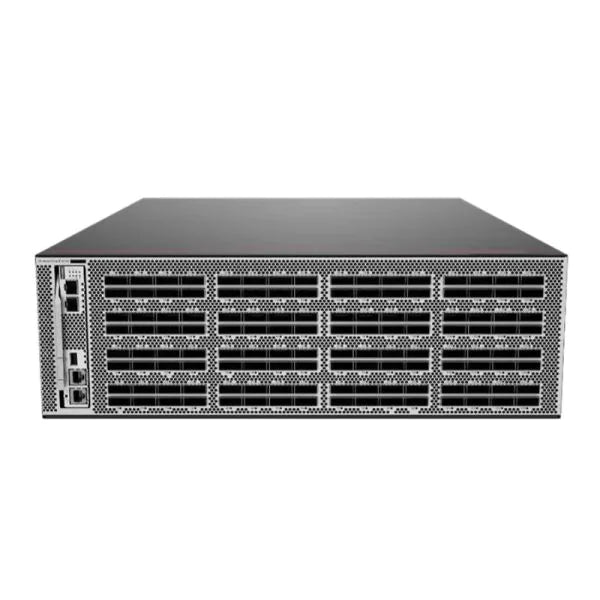

Huawei CE9865-4C Switch
Couldn't load pickup availability
CE9865-4C Hardware Description
Introduction
Huawei CE9800 Series Switch CE9865-4C support 4*8 Port 400GE QSFP-DD, 4*subcard slots.
Ports on the CE9865-4C
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| Console port | RJ45 | Connects to the console for onsite configuration. |
Console cable |
| ETH management port | RJ45 | You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. |
Category-5 or higher category Ethernet cable |
| USB port | USB |
It can be used for log backup and USB-based deployment. This function is reserved. |
Supports USB 2.0 flash drives. |
Technical specifications of the CE9865-4C
| Item | Specification |
|---|---|
| Dimensions with packaging (H x W x D) [mm (in.)] | 485 mm x 670 mm x 1060 mm (19.09 in. x 26.38 in. x 41.73 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] |
|
| Weight without packaging [kg (lb)] | 28.7 kg (63.27 lb) (excluding fan modules, power modules, and cards) |
| Weight without packaging (full configuration) [kg (lb)] |
34.4 kg (75.84 lb) (with four power modules and four fan modules) 45 kg (99.21 lb) (with four power modules, four fan modules, and four 32-port 100GE cards) 44 kg (97 lb) (with four power modules, four fan modules, and four 8-port 400GE cards) |
| Weight with packaging [kg (lb)] | 53.7 kg (118.39 lb) (excluding fan modules, power modules, and cards) |
| Weight with packaging (full configuration) [kg (lb)] |
59.4 kg (130.95 lb) (with four power modules and four fan modules) 70 kg (154.32 lb) (with four power modules, four fan modules, and four 32-port 100GE cards) 69 kg (152.12 lb) (with four power modules, four fan modules, and four 8-port 400GE cards) |
| Chassis height [U] | 4 U |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 16-core, 2 GHz |
| Memory | DRAM: 16 GB |
| NOR Flash | 64 MB x 2 |
| SSD Flash | 8GB |
| USB | Supported |
| Power supply mode |
|
| Console port | RJ45 |
| Downlink Service interface |
The device does not have fixed ports and provides four card slots. Currently, the device supports the following cards: CE98-D32CQ-F: 32 x 100GE QSFP28 1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s. 2. Only the top-row ports can be split. Every four ports form a group. When a 40GE/100GE port is split into 4 x 10GE or 4 x 25GE ports, the other top-row port is also split, and the bottom-row ports in the same group become unavailable. For example, ports 1, 2, 3, and 4 form a group. When port 1 is split, port 3 is also split, and ports 2 and 4 are unavailable. Only ports with optical modules can be split, and ports with copper cables cannot be split. 3. Support for optical modules: 40GE-SR4/LR4/eSR4/ER4/BIDI/eSDLC/SDLC/LX4/eSR4 and AOC, as well as 100G-SR4/PSM4/CWDM4/LR4/SWDM4/4WDM/BIDI/LX4/DR1/FR1/LR1/ER4 optical modules are supported. When the ambient temperature ranges from 0°C to 35°C (32°F to 95°F), 100G-ZR4 is supported, but the device noise will exceed the threshold. 4. Support for copper cables: 40GE/100GE 1/3/5 m passive copper cables are supported. Copper cable auto-negotiation and splitting are not supported. Copper cables can only be used on M-LAG peer-link ports. CE98-D8DQ-F: 8 x 400GE QSFP-DD 1. 400GE ports cannot be configured as 200GE, 100GE, or 40GE ports. 2. A 400GE port can be split into 4 x 100GE or 2 x 200GE ports. Only ports with optical modules can be split, and ports with copper cables cannot be split. 3. Support for optical modules: (1) 400GE ports support optical modules such as 400GE-SR8/eSR8/SR4/LR8/DR4/FR4/ER8/ZR and AOC. (2) 400G-ZR+ optical module: When the ambient temperature ranges from 0°C to 35°C (32°F to 95°F), only ports 1, 3, 5, and 7 in slots 3 and 4 support 400G-ZR+ optical modules. Each card supports four 400G-ZR+ optical modules, and a total of eight 400G-ZR+ optical modules are supported. In the ambient temperature, the device noise increases to 83 dBA. Ports 1 and 2, 3 and 4, 5 and 6, and 7 and 8 form different groups. In each group, only the port with a smaller port number supports 400G-ZR+. For example, if a 400G-ZR+ optical module is inserted into port 1, port 2 becomes unavailable and no optical module can be inserted. (3) 400G-VR4 is supported in V300R024C10 and later versions. 4. Support for copper cables: 400GE 1 m/2.5 m copper cables are supported. (For 400GE 1 m copper cables, only QSFP-DD-400G-CU1M is supported, and QSFP-DD-400G-CU1M-S is not supported.) Copper cable auto-negotiation and splitting are not supported. Copper cables can only be used on M-LAG peer-link ports. |
| Service port supporting the stack function | Not supported |
| RTC | Supported |
| Typical power consumption [W] |
Configured with four CE98-D32CQ-F cards: 1465 W (100% traffic load, 64-port 100G-SR4 optical modules, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 1140 W (100% traffic load, 16-port 400G-SR8 optical modules, normal temperature, fully configured with AC power modules) |
| Typical heat dissipation [BTU/hour] |
Configured with four CE98-D32CQ-F cards: 4999 BTU/hour (100% traffic load, 64-port 100G-SR4 optical modules, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 3890 BTU/hour (100% traffic load, 16-port 400G-SR8 optical modules, normal temperature, fully configured with AC power modules) |
| Static power consumption [W] |
Configured with four CE98-D32CQ-F cards: 1083 W Configured with four CE98-D8DQ-F cards: 847 W |
| Static heat dissipation [BTU/hour] |
Configured with four CE98-D32CQ-F cards: 3695 BTU/hour Configured with four CE98-D8DQ-F cards: 2890 BTU/hour |
| Maximum power consumption [W] |
Configured with four CE98-D32CQ-F cards: 1854 W (100% traffic load, 128-port 100G-SR4 optical modules, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 1457 W (100% traffic load, 32-port 400G-SR8 optical modules, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 2597 W (100% traffic load, 128-port 100G-LR4 optical modules, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 1831 W (100% traffic load, 32-port 400G-FR4 optical modules, high temperature, fully configured with AC power modules) |
| Maximum heat dissipation [BTU/hour] |
Configured with four CE98-D32CQ-F cards: 6326 BTU/hour (100% traffic load, 128-port 100G-SR4 optical modules, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 4971 BTU/hour (100% traffic load, 32-port 400G-SR8 optical modules, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 8861 BTU/hour (100% traffic load, 128-port 100G-LR4 optical modules, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 6248 BTU/hour (100% traffic load, 32-port 400G-FR4 optical modules, high temperature, fully configured with AC power modules) |
| Number of power modules | 4 |
| Redundant power supply | 2+2 backup |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] |
|
| Rated output power [W] |
|
| Certification |
|
| Power supply surge protection [kV] |
AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fan modules | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Back-to-front airflow: Air flows into the chassis from the port side and flows out from the power supply side. |
| Availability | 0.9999932861 |
| MTBF [year] | 25.50 years |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Back-to-front airflow: 60.6 dB(A) on average (maximum: 69 dB(A)) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Back-to-front airflow: 78.2 dB(A) on average (maximum: 88 dB(A)) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] |
0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE:
When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
