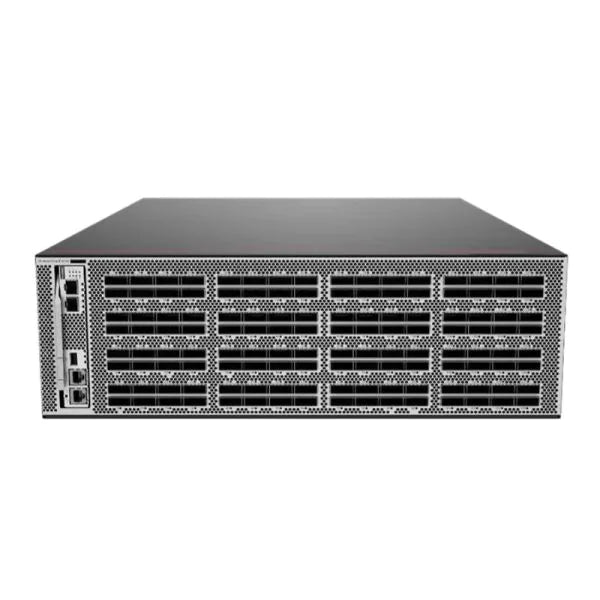

Huawei CE9866-128DQ Switch

$0.00
$0.00
Availability: In stock
SKU: 02356KVT
Tags:
Collections:
1CE9865-4C-1
HuaweiHuawei CE9865-4C Switch
CE9866-128DQ
$0.00
$0.00
CE9866-128DQ Hardware Description
Introduction

Huawei CE9800 Series Switch CE9866-128DQ support 128*400GE QSFP112,2*10GE SFP+.

Ports on the CE9866-128DQ
Port Connector Type Description Available Components
10GE SFP+ optical port The connector type of the optical fiber depends on the optical module.

A 10GE SFP+ port receives and sends service data at 10 Gbit/s.

1. The 10GE port can work at the rate of 1 Gbit/s.

2. Support for optical modules:

(1) 10GE-uSR/SR/LR/ZR/iLR/BX10/ER/Base-T and AOC are supported.

(2) GE-SX/LX10/EX/ZX/BX10/BX40/Base-T are supported.

(3) 10GE/GE copper modules do not comply with rail transportation standard EN 50121-4 and cannot work in the following scenarios:

  • The device is within 3 m away from the track.
  • The terminal connected to the device is within 3 m away from the track.
  • The device cable exceeds 30 m and is within 10 m away from the track.
  • Ethernet cables cannot be routed to outdoors.

3. Support for copper cables: Copper cables are not supported.

GE eSFP optical modules

GE SFP copper modules

10GE SFP+ optical modules

10GE SFP+ copper modules

SFP+ to SFP+ AOC cable
400GE QSFP112 optical port The connector type of the optical fiber depends on the optical module.

A 400GE QSFP112 port receives and sends service data at 400 Gbit/s.

NOTE:

The 400GE port can be configured to work at 200 Gbit/s and can be split into 2 x 200GE or 4 x 100GE ports.

200GE QSFP56 optical modules

200GE QSFP56 to 200GE QSFP56 AOC cable

200GE QSFP56 to 200GE QSFP56 high-speed cable

400GE QSFP112 optical modules

NOTE:

1. The product supports only port-side air intake.

2. Support for optical modules: 400GE ports support 200GE-SR4/FR4, AOC, and 400GE-VR4/SR4/FR4 optical modules.

3. Support for copper cables: 200GE copper cables are supported.
Console port RJ45

The console port is connected to a console for on-site configuration.

  • Complied standard: RS232
  • Working mode: duplex universal asynchronous receiver/transmitter (UART)
  • Baud rate: 9600 bit/s to 115200 bit/s. The default value is 9600 bit/s.

Console cable
ETH management port RJ45

The ETH management port (RJ45) is used to connect the device to a configuration terminal or network management workstation to configure the device locally or remotely.

  • Complied standard: IEEE802.3ab
  • Working mode: 10/100/1000 Mbit/s auto-sensing, full-duplex
  • Maximum transmission distance: 100 m

Category-5 or higher category Ethernet cable
USB port USB

It can be used for log backup and USB-based deployment.

This function is reserved.

Supports USB 2.0 flash drives.
Technical specifications of the CE9866-128DQ
Item Specification
Dimensions with packaging (H x W x D) [mm (in.)] 495 mm x 670 mm x 1060 mm (19.49 in. x 26.38 in. x 41.73 in.), including the pallet
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (the depth excludes the parts protruding from the body): 175 mm x 442 mm x 765 mm (6.89 in. x 17.40 in. x 30.12 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 175 mm x 442 mm x 800 mm (6.89 in. x 17.40 in. x 31.50 in.)
Weight without packaging [kg (lb)] 37.22 kg (82.06 lb) (including an independent main control board, excluding power modules, fan modules, and optical modules)
Weight without packaging (full configuration) [kg (lb)] 44.02 kg (97.05 lb) (including an independent main control board, AC power modules, and fan modules, but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)] 61.72 kg (136.07 lb), including the pallet
Weight with packaging (full configuration) [kg (lb)] 68.44 kg (150.88 lb), including the pallet
Chassis height [U] 4 U
Installation Type Cabinet installation
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU 32 cores, 2.2 GHz
Memory DRAM: 16 GB
NOR Flash 64 MB x 2
SSD Flash 8GB SSD
USB

It can be used for log backup and USB-based deployment.

This function is reserved.
Power supply mode
  • AC pluggable
  • HVDC pluggable
Console port RJ45
Downlink Service interface 128x400G QSFP112
Uplink Service interface 2 x 10GE SFP+ (for management and O&M)
Service port supporting the stack function Reserved function. This function is not enabled.
RTC Supported
Typical power consumption [W] 1699 W (100% traffic load, short-distance optical modules on 64 ports, normal temperature, four AC power modules)
Typical heat dissipation [BTU/hour] 5798 BTU/hour (100% traffic load, short-distance optical modules on 64 ports, normal temperature, four AC power modules)
Static power consumption [W] 972 W
Static heat dissipation [BTU/hour] 3317 BTU/hour
Maximum power consumption [W]

2425 W (100% traffic load, short-distance optical modules on 128 ports, normal temperature, four AC power modules)

3197 W (100% traffic load, long-distance optical modules on 128 ports, 40°C or 104°F, four AC power modules)
Maximum heat dissipation [BTU/hour]

8275 BTU/hour (100% traffic load, short-distance optical modules on 128 ports, normal temperature, four AC power modules)

10909 BTU/hour (100% traffic load, long-distance optical modules on 128 ports, 40°C or 104°F, four AC power modules)
Number of power modules 4
Redundant power supply 2+2 backup
Rated input voltage [V]
  • 2000 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
  • 2200 W DC power module: –48 V DC to –60 V DC; +48 V DC
  • 2000 W high-voltage DC power module: 336 V DC
Input voltage range [V]
  • 2000 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
  • 2200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC
  • 2000 W high-voltage DC power module: 260 V DC to 400 V DC
Maximum input current [A]
  • 2000 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC)
  • 2200 W DC power module: 63 A (–48 V DC to –60 V DC); 63 A (+48 V DC)
  • 2000 W high-voltage DC power module: 10 A (336 V DC)
Rated output power [W]
  • 2000 W AC&240 V DC power module: 2000 W (220 V AC to 240 V AC&240 V DC), 1800 W (200 V AC to 220 V AC), 900 W (100 V AC to 130 V AC)
  • 2200 W DC power module: 2200 W
  • 2000 W high-voltage DC power module: 2000 W
Certification
  • Compliance with safety standards
  • Compliance with EMC standards
  • Compliance with environment and environmental protection standards
Power supply surge protection [kV]

AC: 6 kV in common mode and 6 kV in differential mode

DC: 4 kV in common mode and 2 kV in differential mode

HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fan modules 6
Redundant fans The device supports 5+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Port-side air intake
Availability 0.9999916201
MTBF [year] 16.35 years
Noise at normal temperature (27°C, sound pressure) [dB(A)] Port-side air intake: 65.1 dB(A) on average (maximum: 72.65 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)] Port-side air intake: 83.7 dB(A) on average (maximum: 90.8 dB(A))
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]

0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)

NOTE:

When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
