Huawei H807GPBH Board Overview
H807GPBH is a 8-port GPON OLT interface board. It works with the optical network unit (ONU) to provide GPON access service.

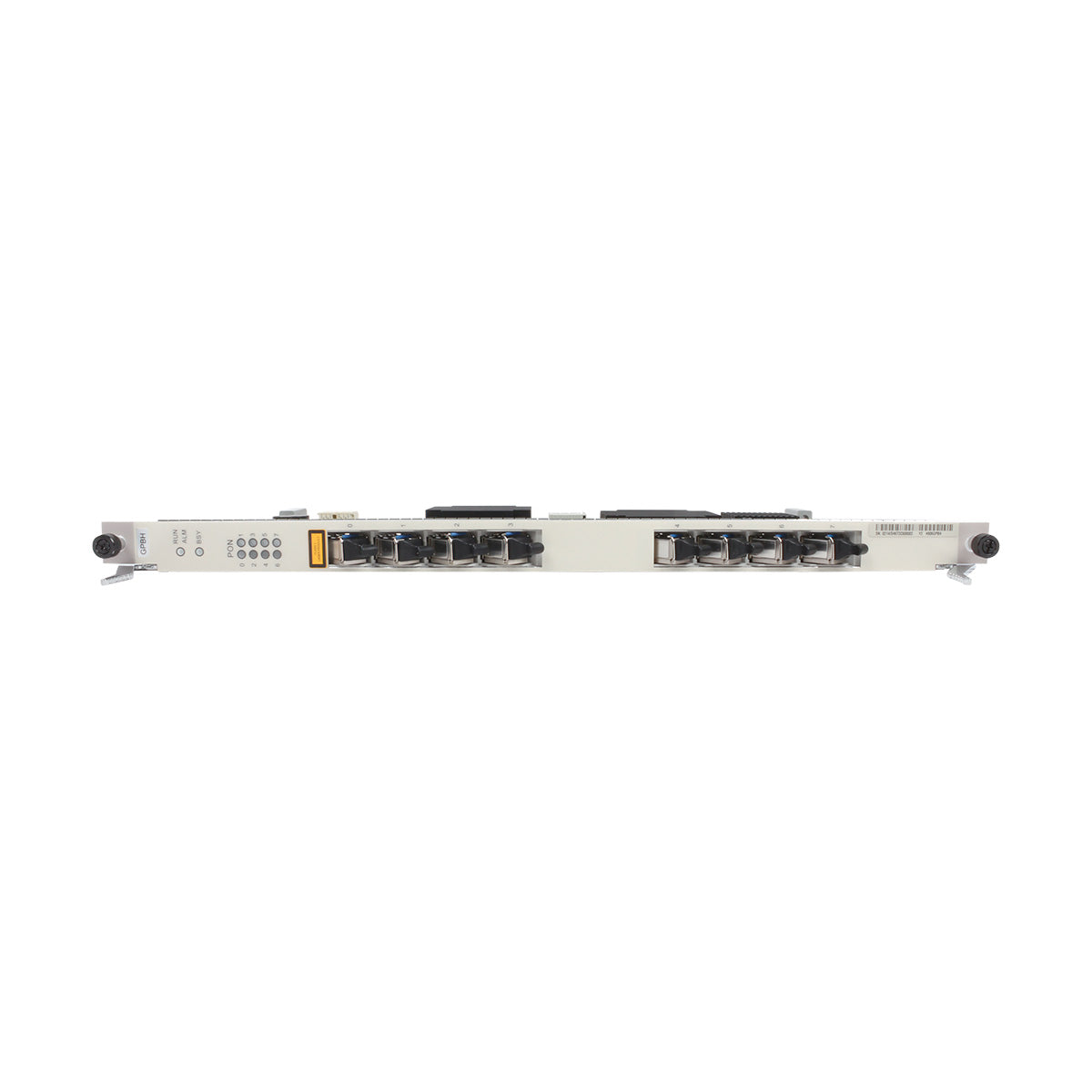

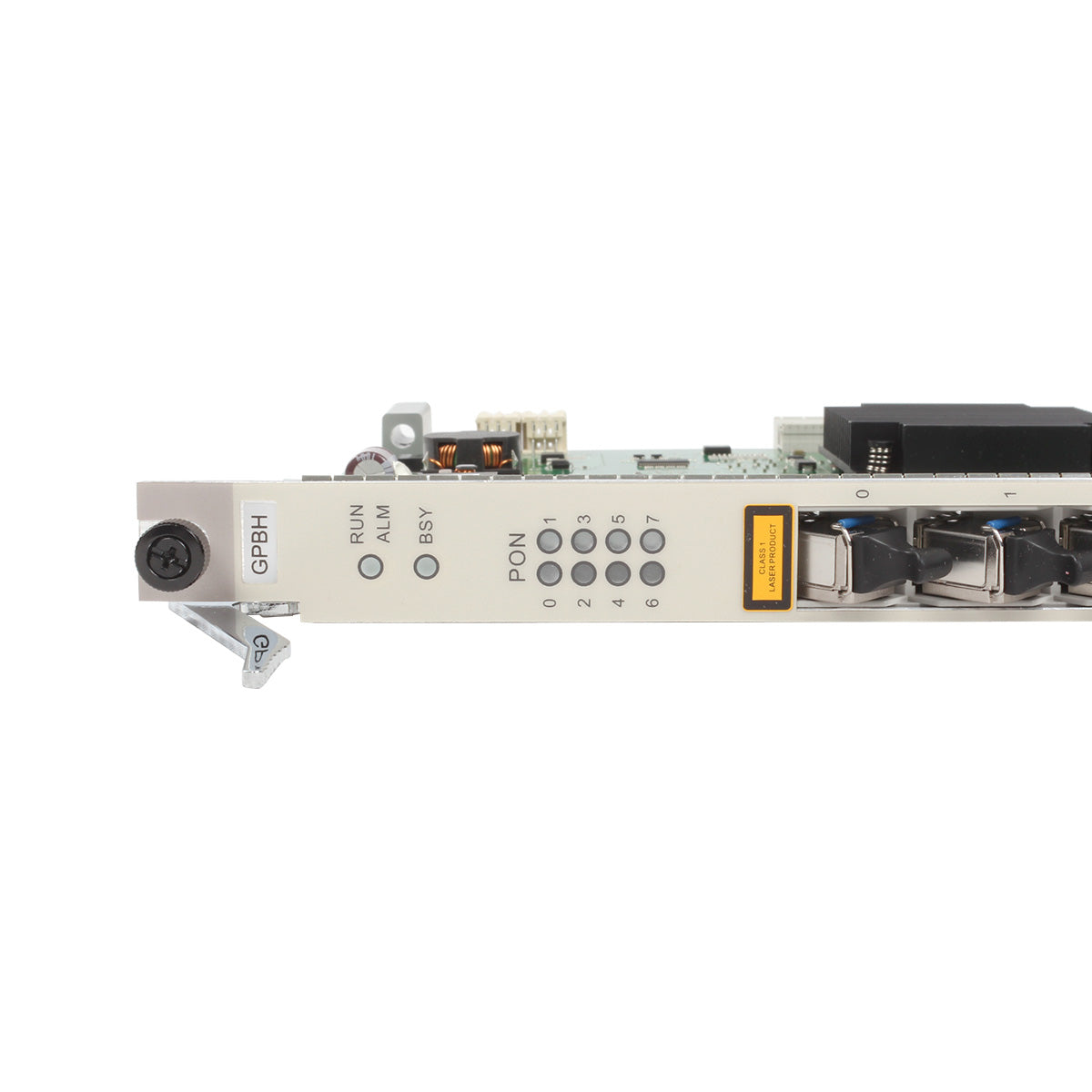

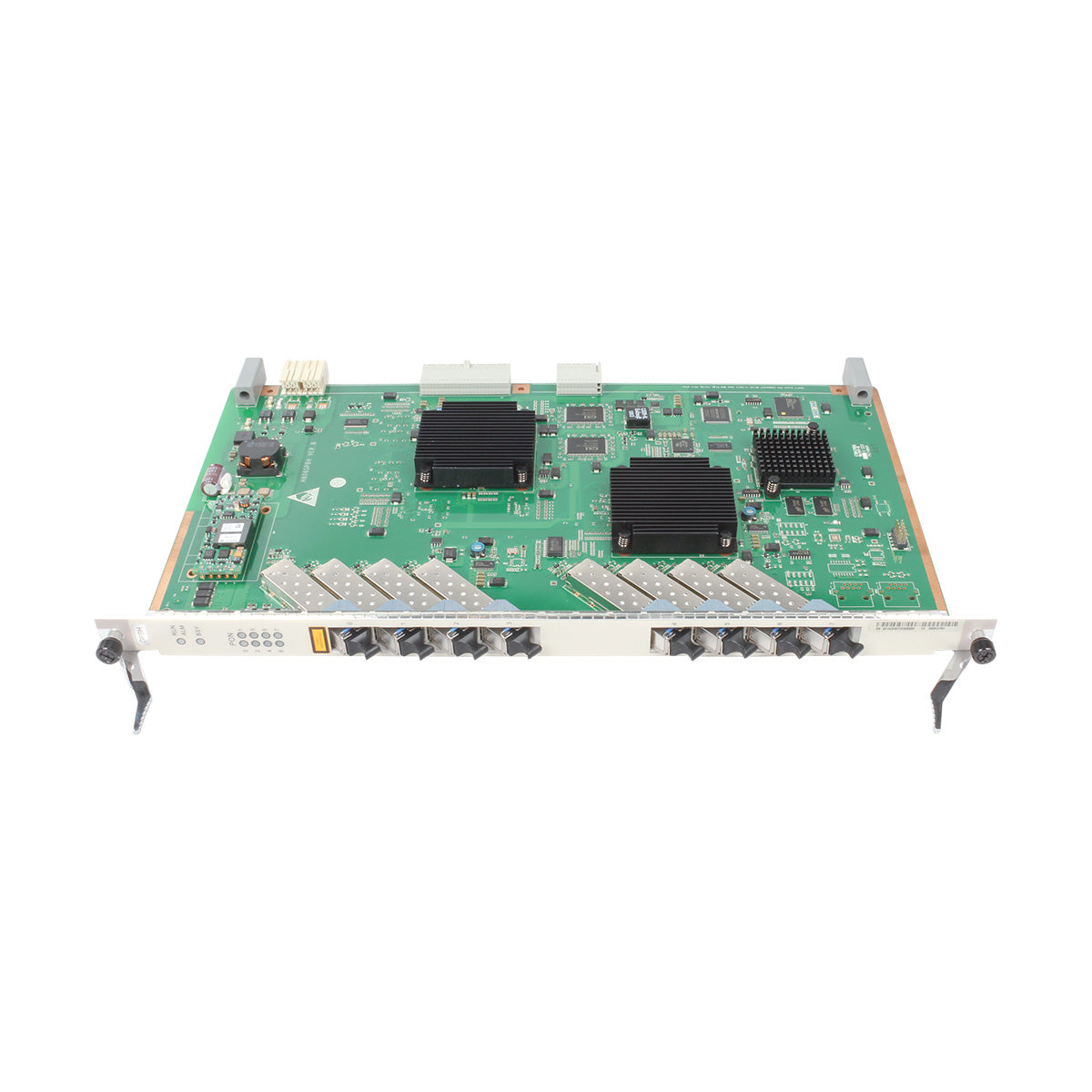

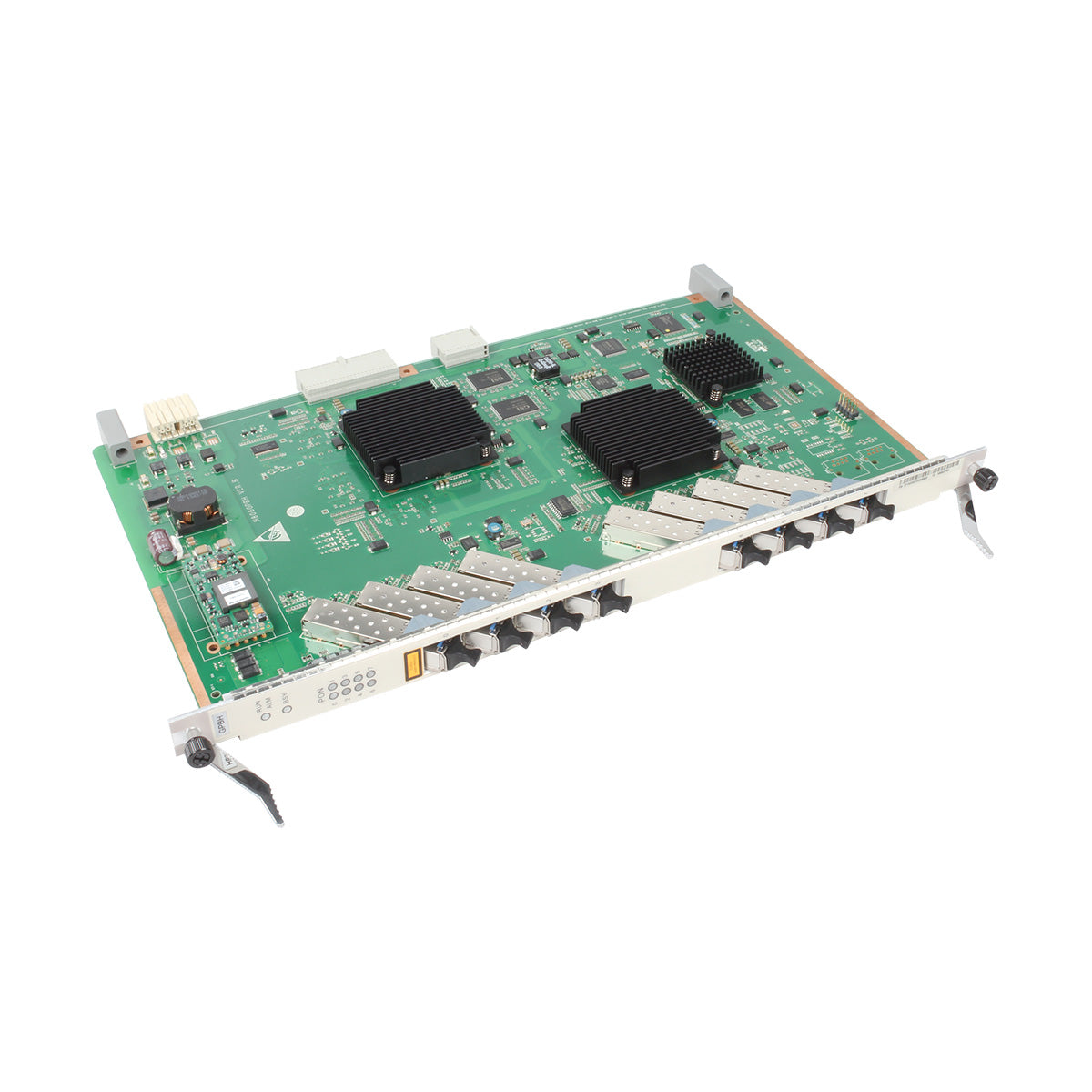

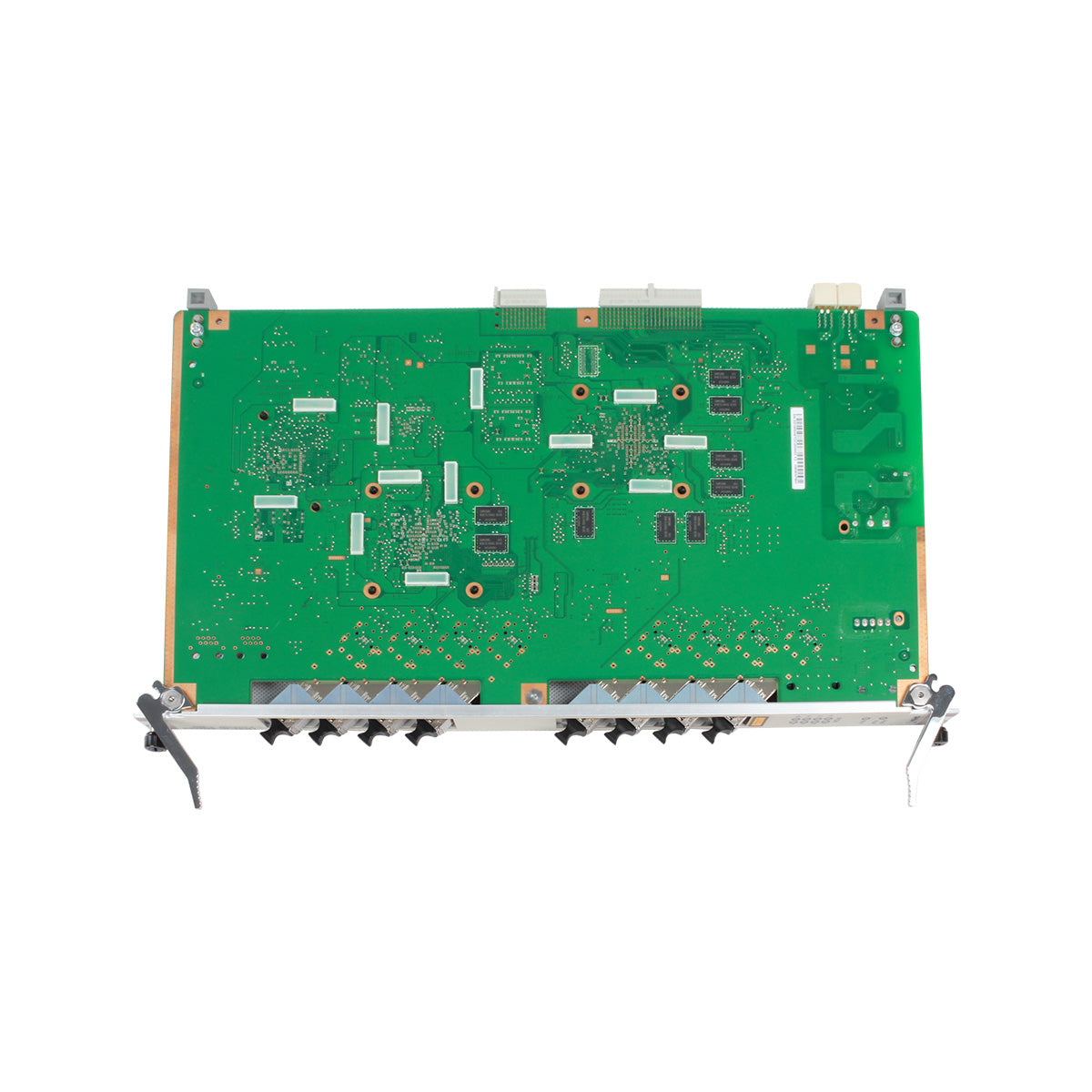

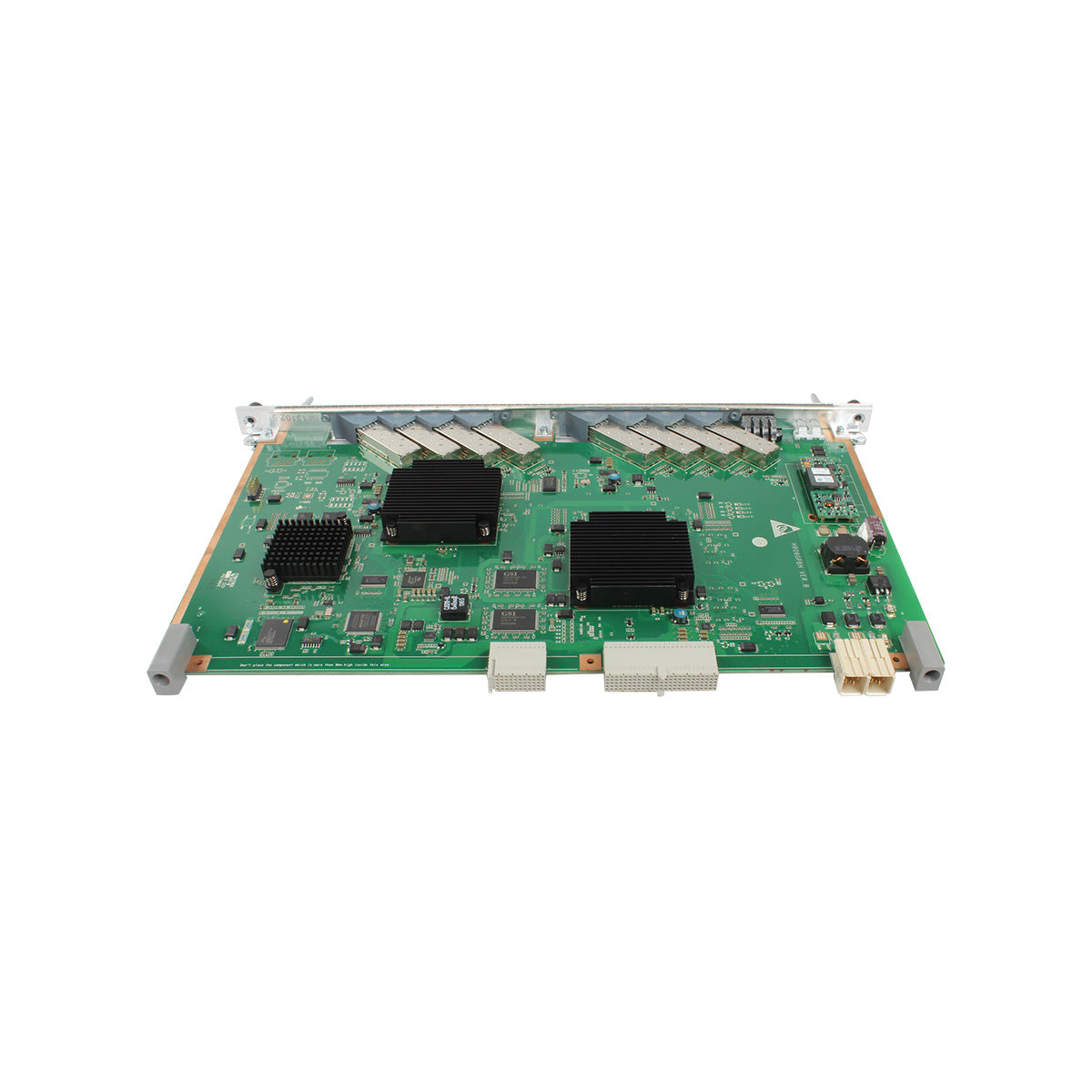

Appearance of the H807GPBH
H807GPBH Applicable Optical Module
A GPON optical module is connected to one SC optical fiber to provide GPON access service.
No. |
1 |
2 |
3 |
---|---|---|---|
Type |
One-fiber bi-directional optical module, class B+ |
One-fiber bi-directional optical module, class C+ |
One-fiber bi-directional optical module, class C++ |
Operating Wavelength |
Tx: 1490 nm Rx: 1310 nm |
Tx: 1490 nm Rx: 1310 nm |
Tx: 1490 nm Rx: 1310 nm |
Encapsulation Type |
SFP |
SFP |
SFP |
Port Rate |
Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
Minimum Output Optical Power |
1.50 dBm |
3.00 dBm |
6.00 dBm |
Maximum Output Optical Power |
5.00 dBm |
7.00 dBm |
10.00 dBm |
Maximum Receiver Sensitivity |
-28.00 dBm |
-32.00 dBm |
-35.00 dBm |
Optical Connector Type |
SC |
SC |
SC |
Optical Fiber Type |
Single-mode |
Single-mode |
Single-mode |
Overload Optical Power |
-8.0 dBm |
-12.0 dBm |
-15.0 dBm |
Extinction Ratio |
8.2 dB |
8.2 dB |
8.2 dB |
Technical specifications of the H807GPBH
Service ports | |
GPON Port | 8-GPON Port |
GPON SFP Module Specification | |
Type | C+ Module : One-fiber bi-directional optical module, class C+ |
Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
Encapsulation Type | SFP |
Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
Minimum Output Optical Power | C+ Module : 3.00 dBm |
Maximum Output Optical Power | C+ Module : 7.00 dBm |
Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
Optical Connector Type | SC/PC |
Optical Fiber Type | Single-mode |
Reach | 20.00 km |
Overload Optical Power | C+ Module : -12.0 dBm |
Extinction Ratio | 8.2 dB |
Device Specifications | |
Dimensions (mm) | 22.86 (W) x 237.00 (D) x 395.40 (H) |
Power Consumption and Maximum Frame Size | |
Power Consumption | H806GPBH : Static: 32 W, Maximum: 46 W |
H807GPBH: The data is being tested. | |
Maximum Frame Size | 2004 bytes |
Operating temperature | -25°C to +65°C |
Functions and features of the H807GPBH
Specification | H802GPBD | H805GPBD | H802GPFD/H805GPFD | H806GPBH/H807GPBH |
Port quantity | 8 | 8 | 16 | 8 |
MAX Split ratio ( B+) | 1: 64 | 1: 64 | 1: 64 | 1: 64 |
MAX Split ratio (C+/C++) | 1:128 | 1:128 | 1:128 | 1:128 |
D-CMTS | No | No | No | No |
ONU-based shaping | No | Yes | Yes | Yes |
Optical performance monitor (querying Rx optical power is not supported) |
Yes | Yes | Yes | Yes |
RSSI detection and controlled optical signal transmission of the optical module | Yes | Yes | Yes | Yes |
ONU-based rate limitation | √ | √ | √ | √ |
CAR group | √ | √ | √ | √ |
Temperature query and high temperature alarm | Yes | Yes | Yes | Yes |
Automatic power shutdown in case of a high temperature | Yes | Yes | Yes | Yes |
Maximum differential fibre distance (km) | 20 | 20 | 40 | 40 |
Maximum Number of Service Flows Supported by the Board |
8184 | 8184 | 16368 | 8184 |
Maximum Number of MAC address Supported by the Board |
32768 | 32768 | 32768 | 32768 |
Available DBA bandwidth (based on single port) (kbit/s) | 1238784 | 1238784 | 1238784 | 1238784 |
Number of T-CONT supported by each GPON port |
1024 | 1024 | 1024 | 1024 |
Board supporting downstream FEC | Yes | Yes | Yes | Yes |
Board supporting upstream FEC | Yes | Yes | Yes | Yes |
Rogue ONT detection | Yes | Yes | Yes | Yes |
Number of ONUs supported by a GPON port |
128 | 128 | 128 | 128 |
Number of GEM ports supported by each board |
8192 | 8192 | 16384 | 8192 |
Number of GEM ports supported by each GPON port |
3872 | 3872 | 3872 | 3872 |
Number of service ports supported by each GEM port |
8 | 8184 | 8184 | 8184 |
HQoS (four levels) | × | × | H802GPFD: × | H806GPBH: × |
H805GPFD: √ | H807GPBH: √ | |||
9216-byte Jumbo frames | × | × | H802GPFD: × | H806GPBH: × |
H805GPFD: √ | H807GPBH: √ | |||
Power budget supported by a GPON port | Class B+ (28.5 dB, mostly used), | |||
Class C+ (32 dB long reach transmission) | ||||
Class C++: 35 dB | ||||
Minimum bandwidth supported by a T-CONT | 1 Mbit/s (in the minimum delay mode) | |||
128 kbit/s (in the maximum bandwidth usage mode) |
