Huawei S5700S-28P-PWR-LI-AC Switch
Couldn't load pickup availability
S5700S-28P-PWR-LI-AC Hardware Description
Introduction
Huawei S5700S-28P-PWR-LI-AC is equipped with 24*PoE+ 10/100/1000BASE-T ports, 2*1000BASE-X ports,2*combo ports (10/100/1000BASE-T + 100/1000BASE-X), 1*AC power input.
The S5700 Gigabit Enterprise Switch is a Layer 2 Ethernet switch independently developed by Huawei. It can be widely used in various application scenarios such as enterprise campus access, aggregation, and data center Gigabit access. The S5700 adopts advanced energy-saving technology and is committed to helping enterprise customers build reliable and secure next-generation IT networks.
Key Features
24*PoE+ 10/100/1000BASE-T ports
2*1000BASE-X ports
2*combo ports (10/100/1000BASE-T + 100/1000BASE-X)
Memory (RAM) 256MB
Flash 200MB

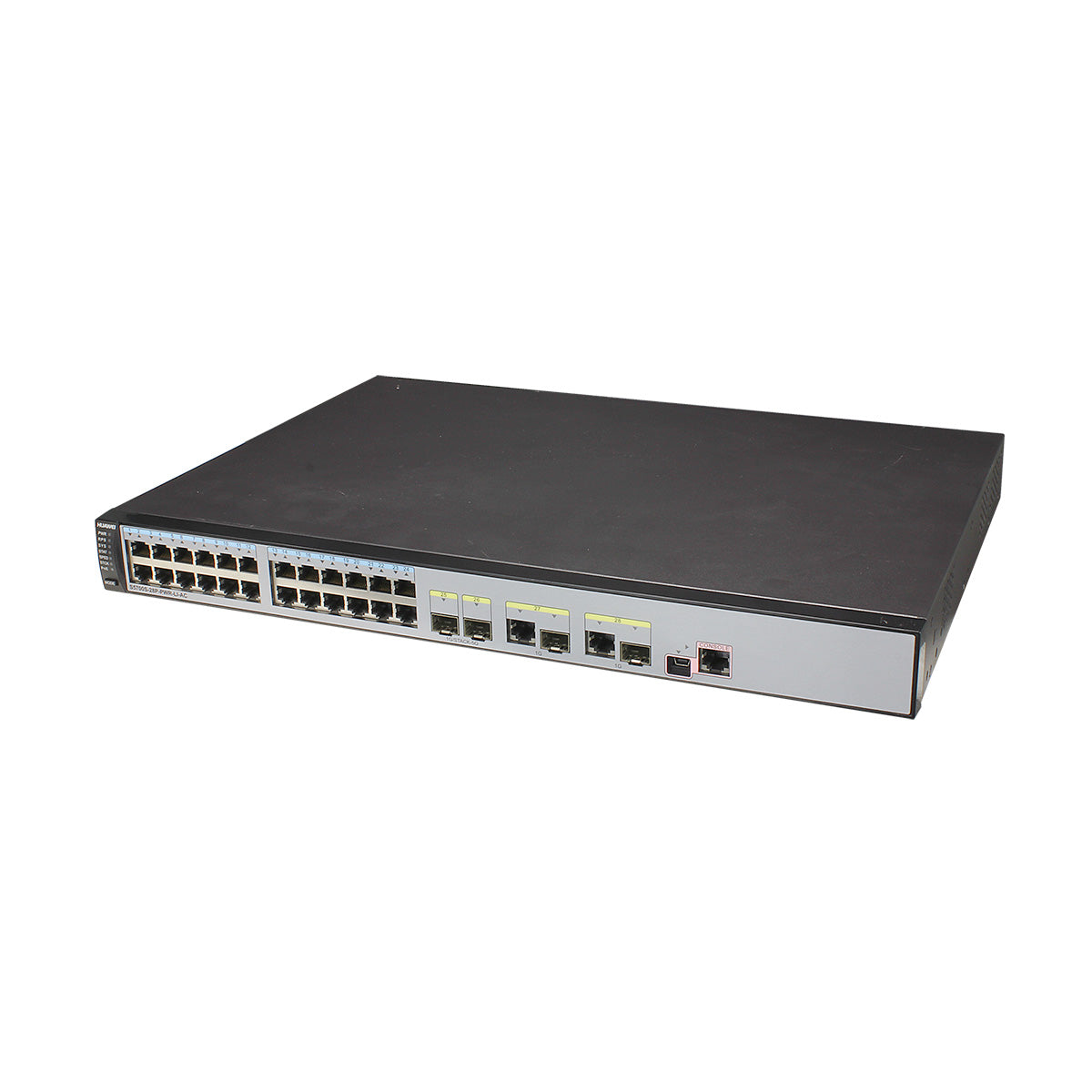

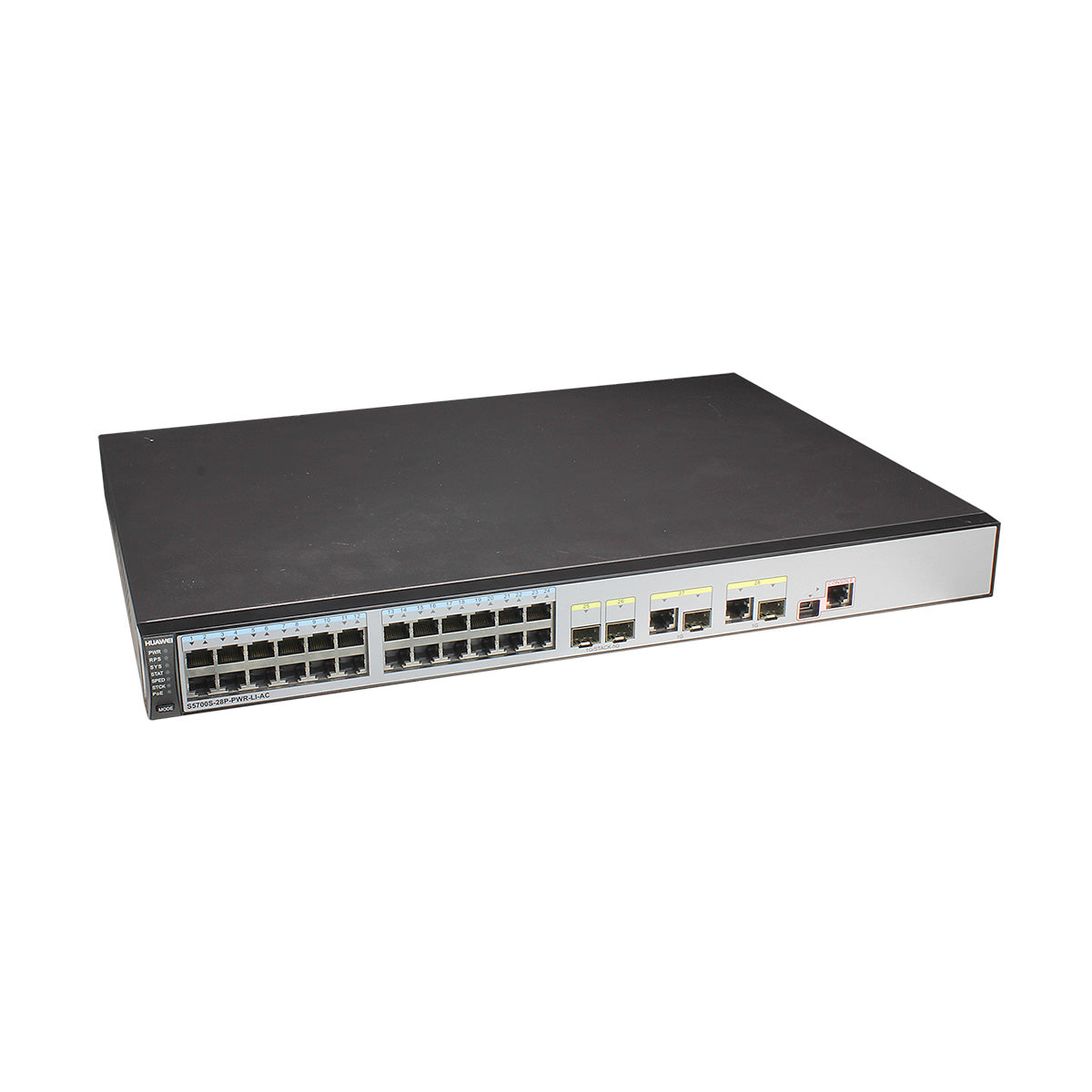

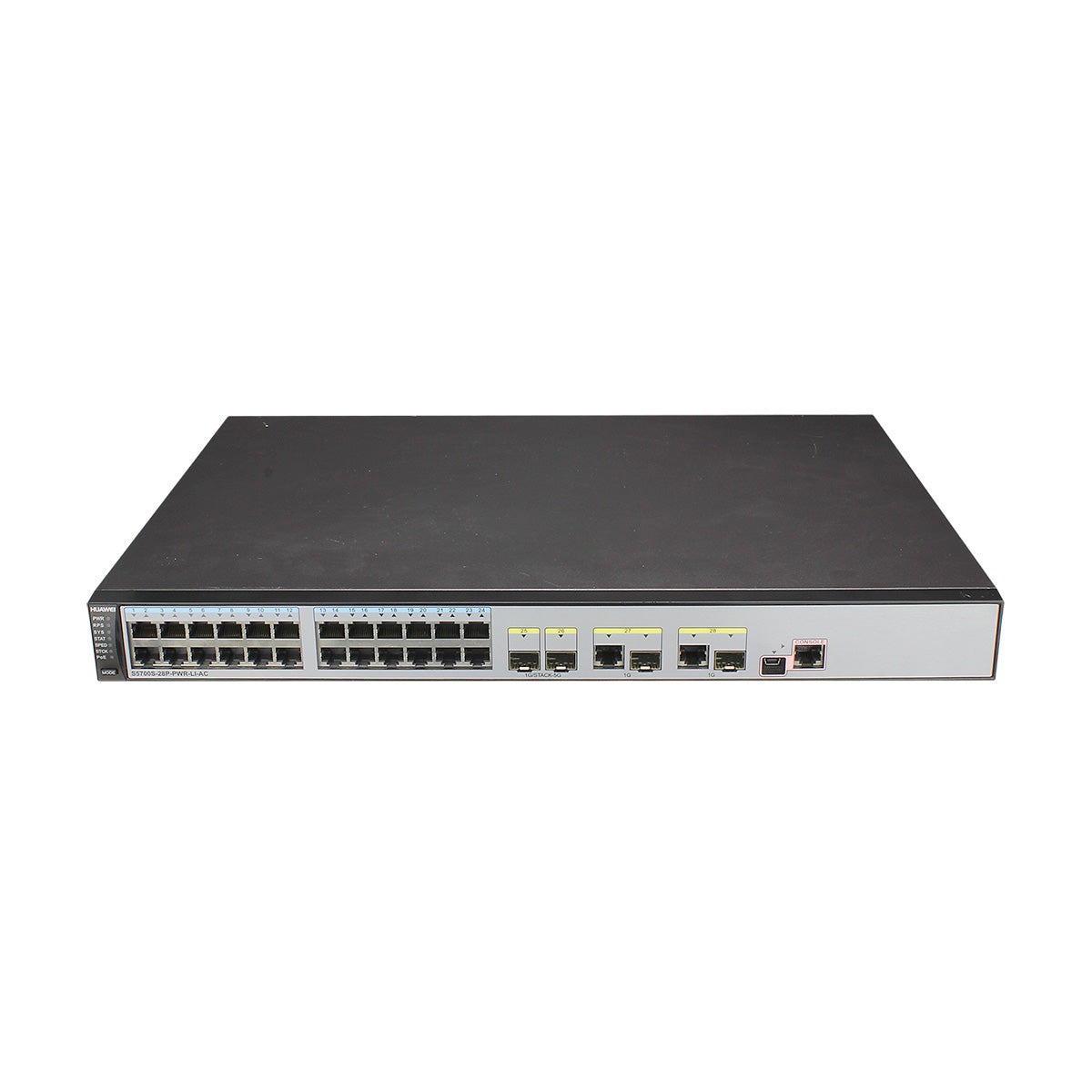

Appearance and Structure
|
1 |
Twenty-four PoE+ 10/100/1000BASE-T ports |
2 |
Two 1000BASE-X ports Applicable modules and cables:
|
|
3 |
Two combo ports (10/100/1000BASE-T + 100/1000BASE-X) Modules applicable to combo optical ports:
|
4 |
One mini USB port |
|
5 |
One console port |
6 |

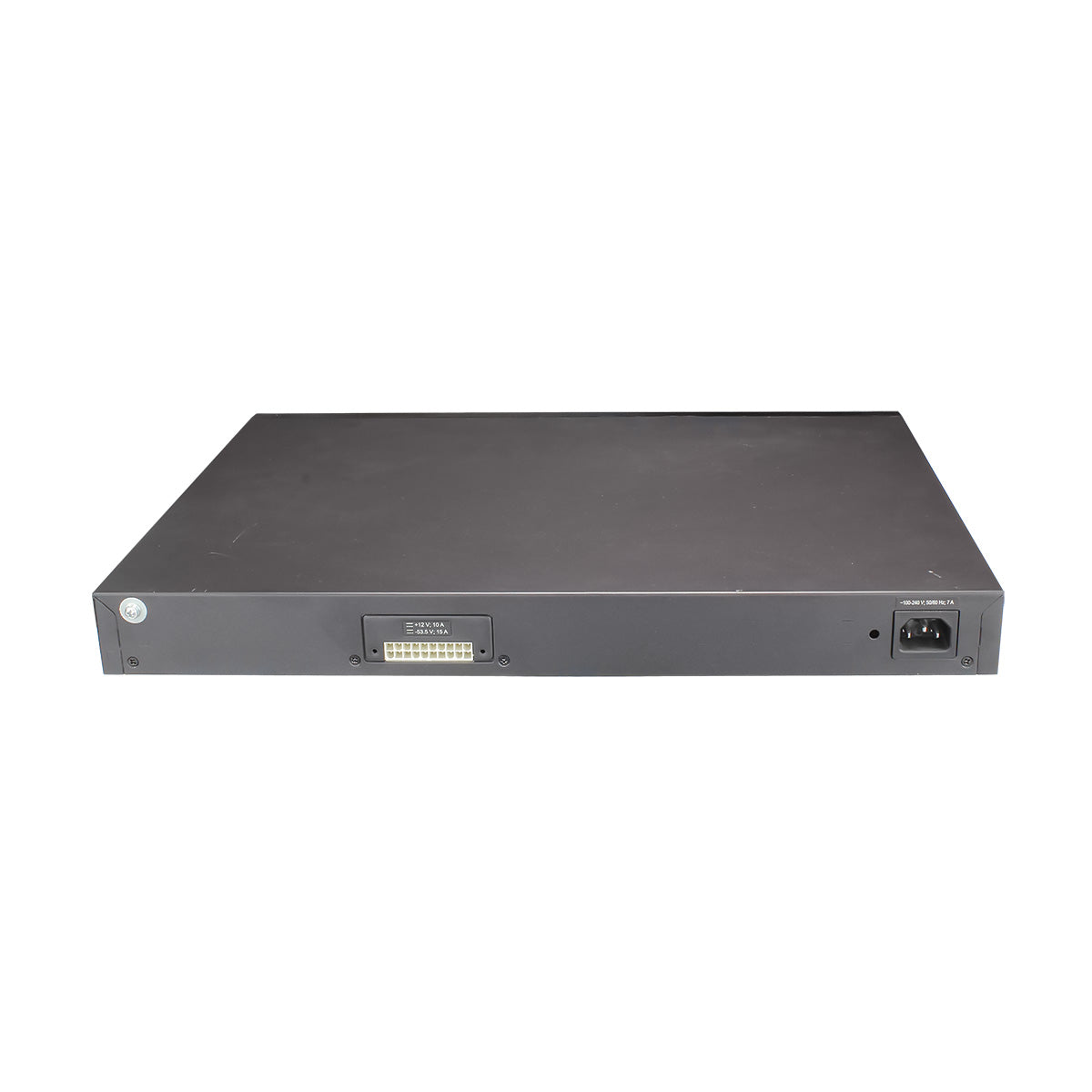

Ground screw NOTE:
It is used with a ground cable.
|
|
7 |
RPS socket NOTE:
|
8 |
Jack for AC power cable locking strap NOTE:
The AC power cable locking strap is not delivered with the switch.
|
|
9 |
AC socket NOTE:
It is used with an AC power cable. |
- |
- |
Port Description
Attributes of a 10/100/1000BASE-T Ethernet electrical port
|
Attribute |
Description |
|---|---|
|
Connector type |
RJ45 |
|
Standards compliance |
IEEE802.3, IEEE802.3u, IEEE802.3ab |
|
Working mode |
10/100/1000 Mbit/s auto-sensing |
|
Maximum transmission distance |
100 m |
Attributes of a 1000BASE-X Ethernet optical port
|
Attribute |
Description |
|---|---|
|
Connector type |
LC/PC |
|
Optical port attributes |
Depend on the module used |
|
Standards compliance |
IEEE802.3z |
Technical specifications
|
Item |
Description |
|---|---|
|
Memory (RAM) |
256 MB |
|
Flash |
200 MB |
|
Mean time between failures (MTBF) |
46.2 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±6 kV |
|
Power supply surge protection |
±6 kV in differential mode, ±6 kV in common mode |
|
Dimensions (H x W x D) |
43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.) |
|
Weight (with packaging) |
5.8 kg (12.79 lb) |
|
Stack ports |
Two uplink 1000BASE-X optical ports (non-combo ports) |
|
RTC |
Supported |
|
RPS |
Supported |
|
PoE |
Supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
Maximum power consumption (100% throughput, full speed of fans) |
|
|
Typical power consumption (30% of traffic load)
|
32 W |
|
Operating temperature |
0°C to 50°C (32°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 48 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
|
Certification |
|
|
Part number |
98010562 |
