Huawei S5700S-52P-LI-AC Switch

$0.00
$0.00
Availability: 100 in stock
SKU: 02353835
Tags:
Collections:
HuaweiHuawei S5700S-28X-LI-AC Switch
S5700S-28X-LI-AC
S5700S-28P-PWR-LI-AC
HuaweiHuawei S5700S-28P-PWR-LI-AC Switch
S5700S-52P-LI-AC
$0.00
$0.00

S5700S-52P-LI-AC Hardware Description



Introduction

The S5700S-52P-LI-AC offers 48*10/100/1000 Base-T Ethernet Ports,4*1000BASE-X ports,1*AC power input.


Huawei S5700-LI series switches deliver super-flexible, easy-to-manage platform that optimize L3 switching capacity and downstream port bandwidth from 100 Mbit/s to 1 Gbit/s.



Key Features

48*10/100/1000 Base-T Ethernet Ports

4*1000BASE-X ports

Memory (RAM)  256MB

Flash V200R001: 64 MB

          V200R002 and later versions: 200 MB



Appearance and Structure

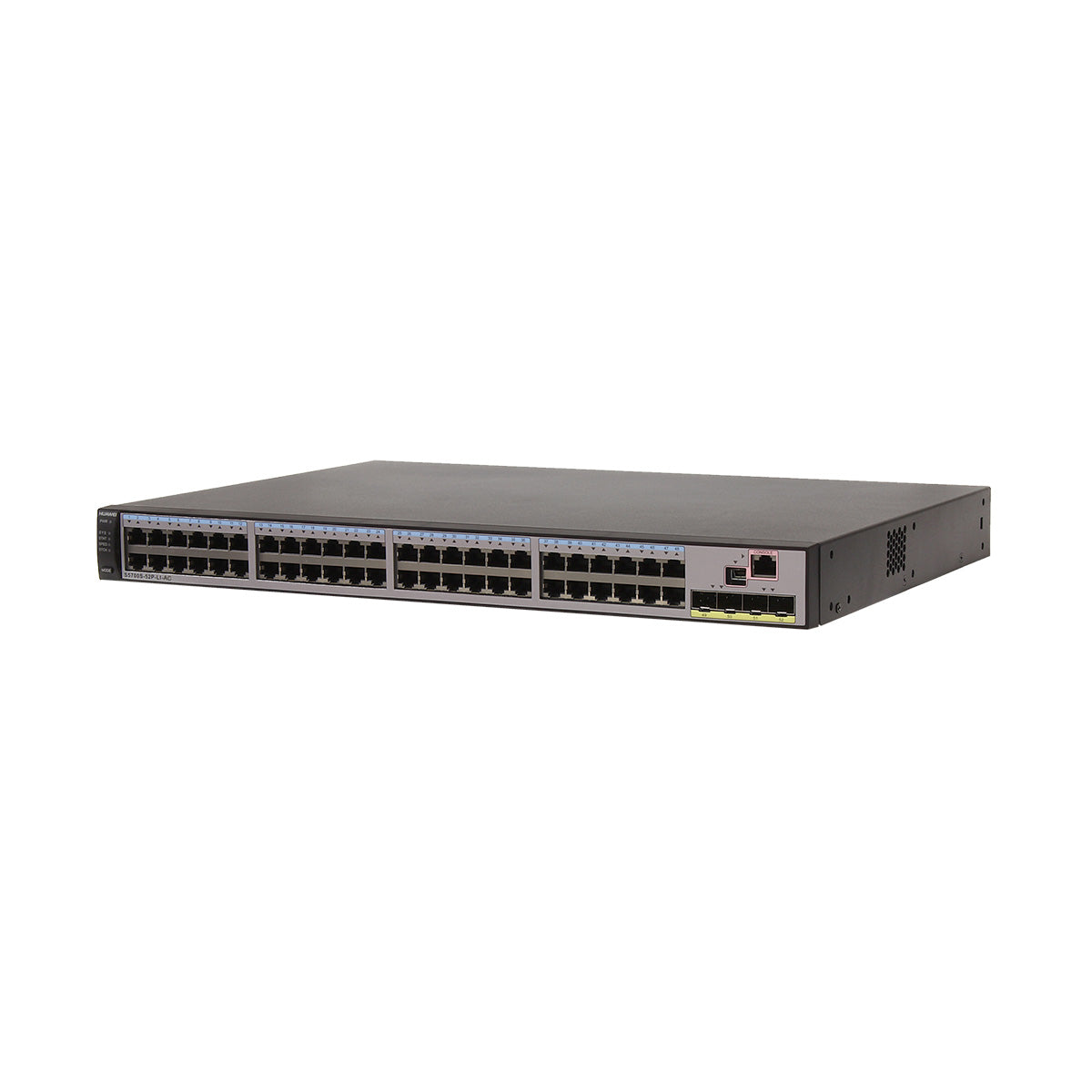

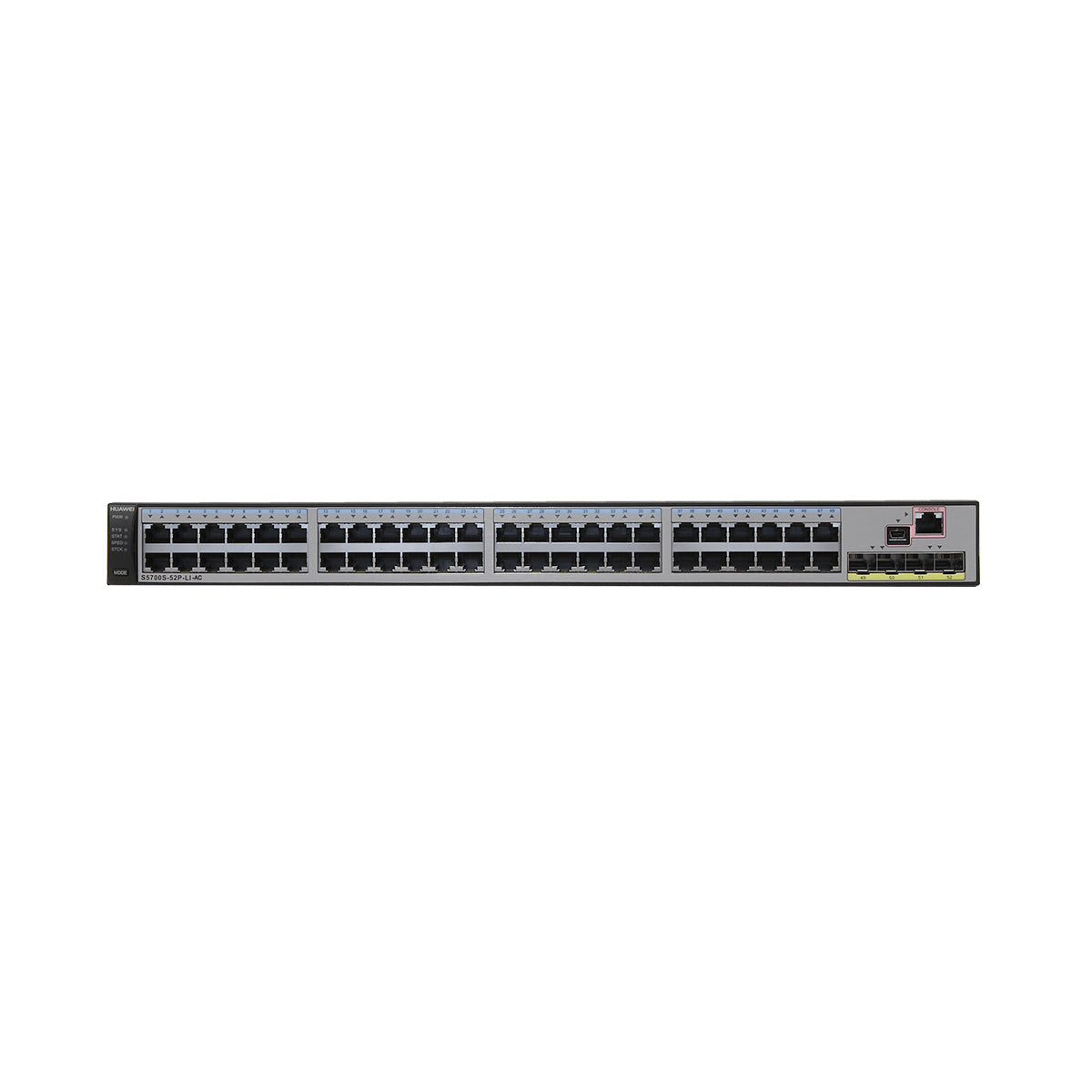

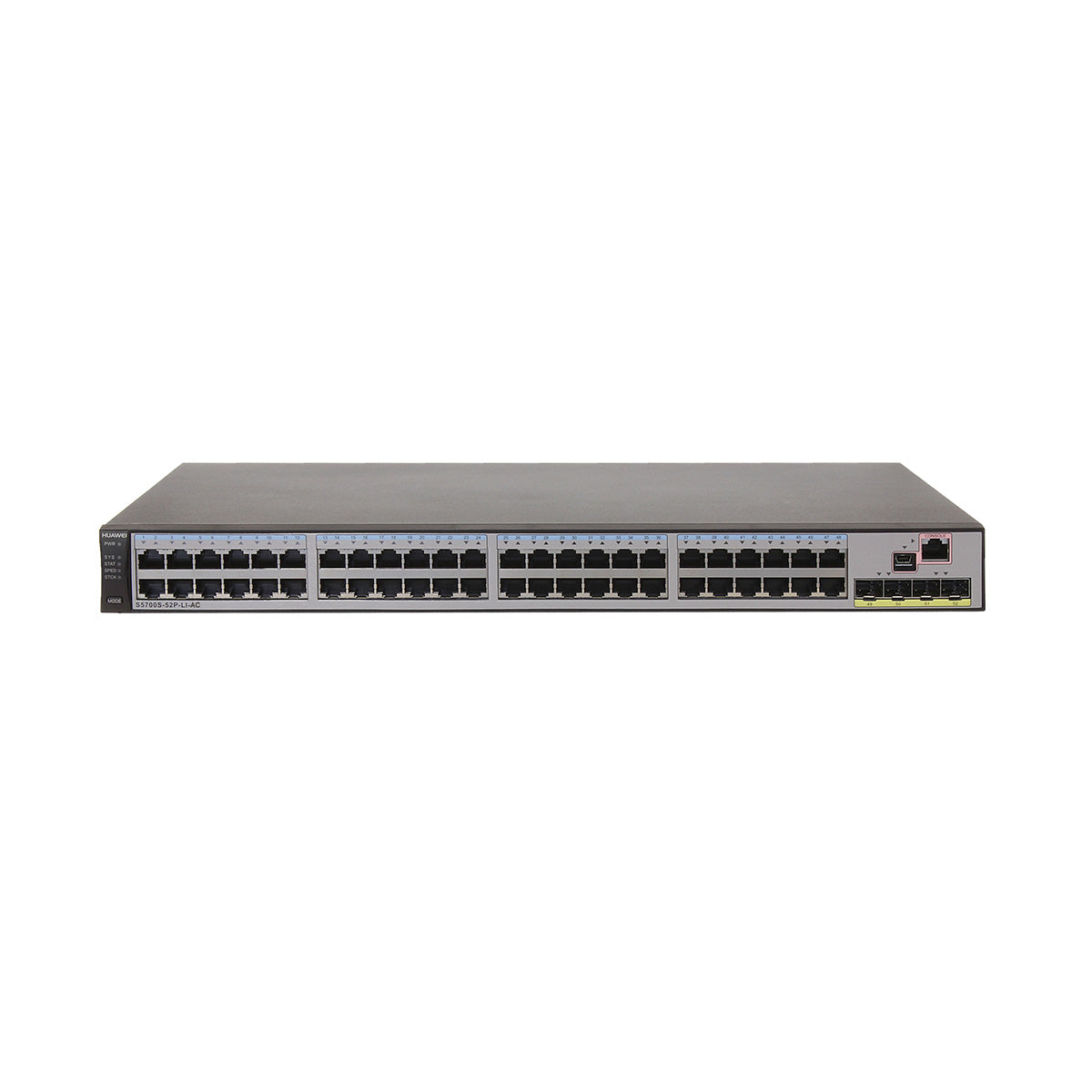

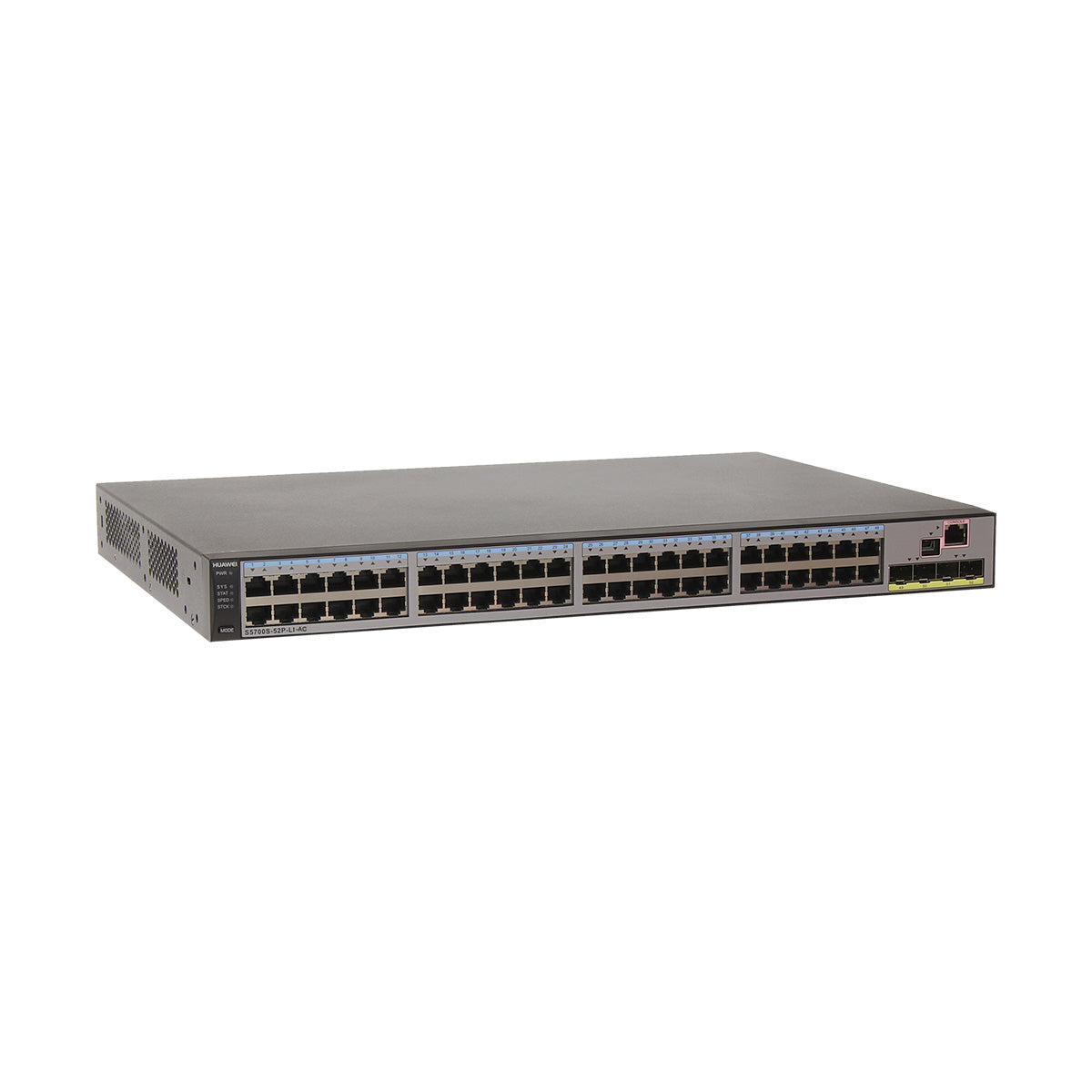

S5700S-52P-LI-AC Appearance

1

Forty-eight 10/100/1000BASE-T ports

2

Four 1000BASE-X ports

Applicable modules and cables:
  • GE optical module
  • GE-CWDM optical module
  • GE-DWDM optical module
  • GE copper module (applicable in V200R002C00 and later versions, works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s)

3

One mini USB port

4

One console port

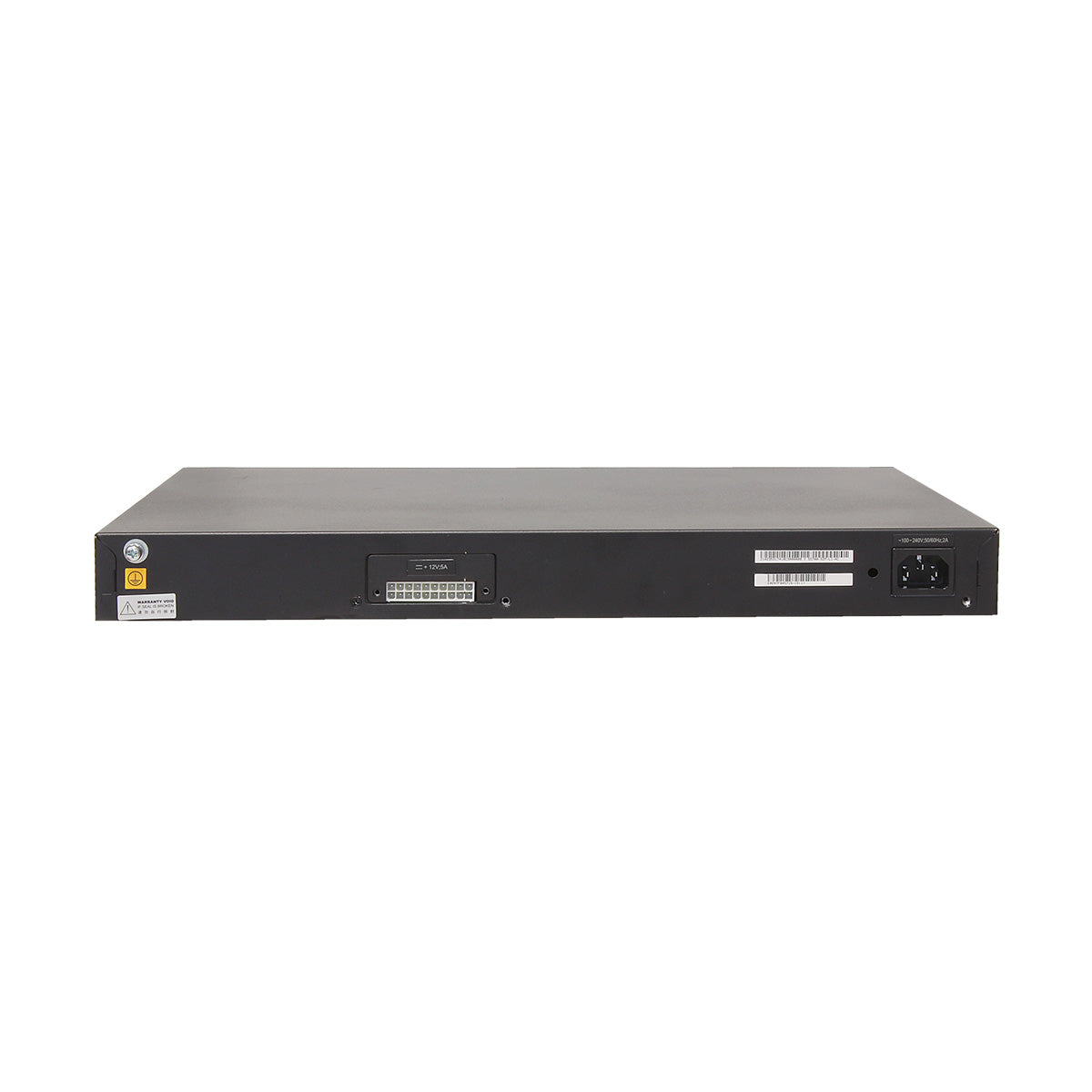

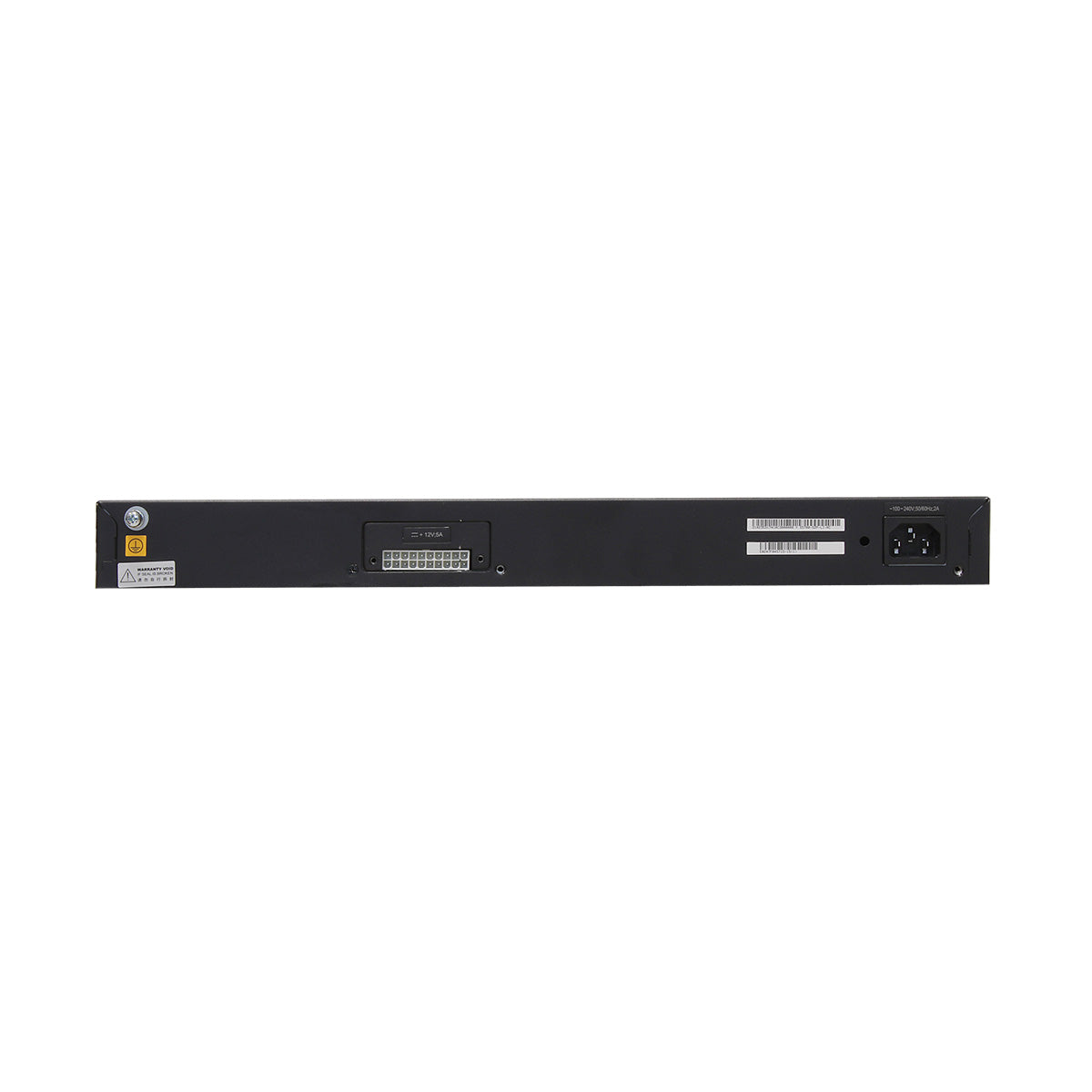

5

Ground screw

NOTE:
It is used with a ground cable.

6

RPS socket

NOTE:

It is used with an RPS cable, which is not hot swappable.

7

Jack for AC power cable locking strap

NOTE:
The AC power cable locking strap is not delivered with the switch.

8

AC socket

NOTE:

It is used with an AC power cable.



Port Description

 Attributes of a 10/100/1000BASE-T Ethernet electrical port

Attribute

Description

Connector type

RJ45

Standards compliance

IEEE802.3, IEEE802.3u, IEEE802.3ab

Working mode

10/100/1000 Mbit/s auto-sensing

Maximum transmission distance

100 m

​​

 Attributes of a 1000BASE-X Ethernet optical port

Attribute

Description

Connector type

LC/PC

Optical port attributes

Depend on the module used

Standards compliance

IEEE802.3z

​​​​​​​​​

Technical specifications

Item

Description

Memory (RAM)

256 MB

Flash
  • V200R001: 64 MB
  • V200R002 and later versions: 200 MB

Mean time between failures (MTBF)

39.26 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Dimensions (H x W x D)

43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.)

Weight (with packaging)

3.5 kg (7.72 lb)

Stack ports

Not supported

RTC

Supported

RPS

Supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption (100% throughput, full speed of fans)

48.4 W
Typical power consumption (30% of traffic load)
  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption

32.5 W

Operating temperature
0°C to 50°C (32°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 43.8 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number

02353835
