S6730-H48X6C Hardware Description



Introduction

Huawei S6730-H48X6C with 48*10GE SFP+ ports, 6*40GE/100GE QSFP+ ports,2 power module slots, hot-swappable power modules are optional: 2*AC, 2*DC, 1*AC+1*DC, 1*AC or 1*DC

Huawei CloudEngine S6730-H series switches offer 10GE, 25GE, 40GE, and 100GE port types, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud-managed network services throughout the full lifecycle from planning, deployment, monitoring, experience visibility, and fault rectification, all the way to network optimization, greatly simplifying network management.



Key Features

48*10GE SFP+ optical port

6*40GE/100GE QSFP28 optical port

Memory (RAM) 4 GB

Flash :2 GB

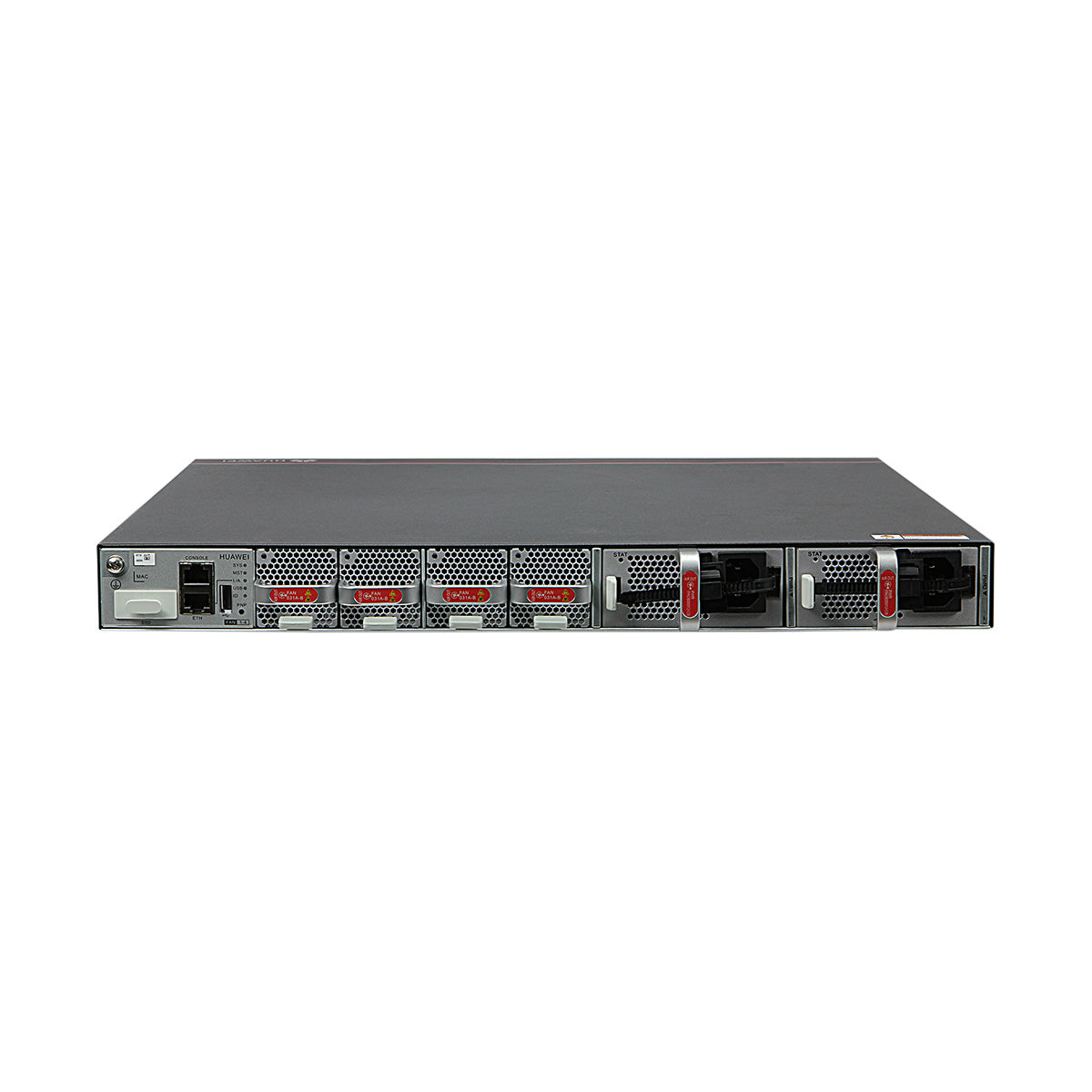

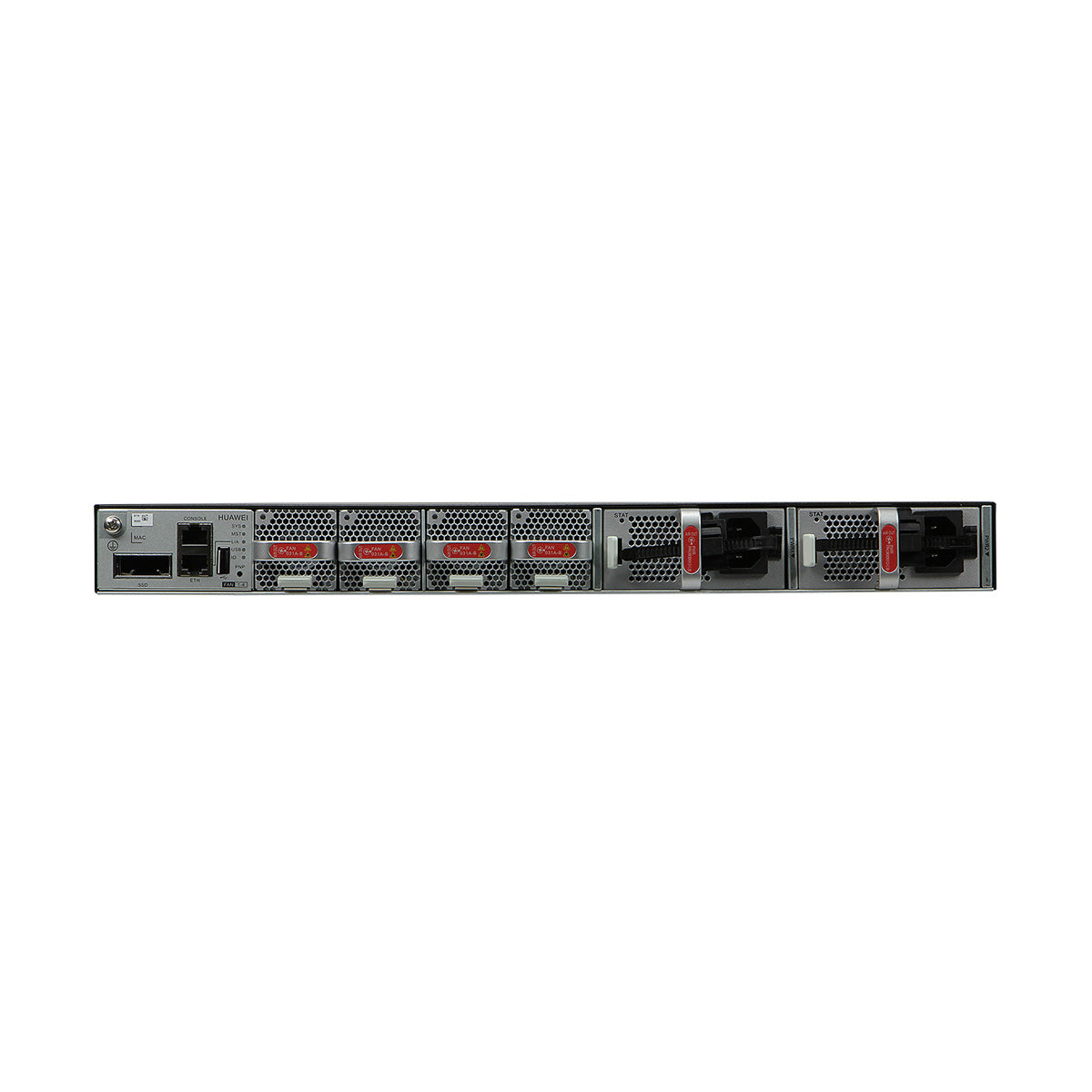

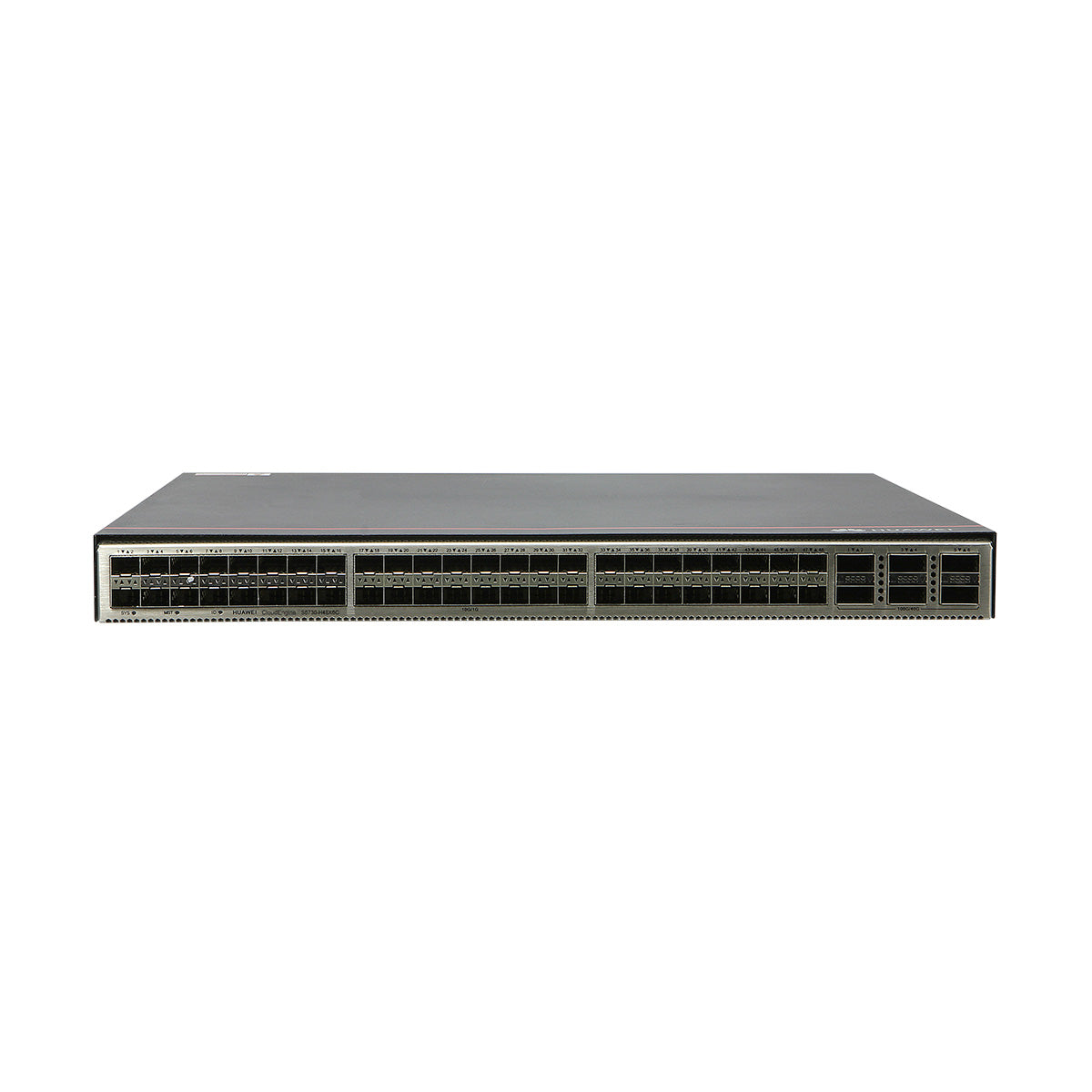

Appearance and Structure
S6730-H48X6CAppearance and Structure

1

Forty-eight 10GE SFP+ ports

Applicable modules and cables:
  • GE optical module
  • GE-CWDM optical module
  • GE-DWDM optical module
  • GE copper module
  • 10GE SFP+ optical module (OSXD22N00 not supported)
  • 10GE SFP+ Copper Modules (supported in V200R023C10 and later versions)
  • 10GE-CWDM optical module
  • 10GE-DWDM optical module
  • 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
  • 3 m and 10 m SFP+ AOC cables
  • 0.5 m and 1.5 m SFP+ dedicated stack cables (supported by the last 16 SFP+ ports and used only for zero-configuration stacking)

2

Six 40GE/100GE QSFP28 optical ports

Applicable modules and cables:
  • QSFP+ optical module
  • QSFP28 optical module
  • 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables
  • 10 m QSFP+ to QSFP+ AOC cable
  • 1 m QSFP28 to QSFP28 high-speed copper cable
  • 10 m QSFP28 to QSFP28 AOC cable
  • 2 m QSFP28 dedicated stack cable (supported in V200R020C10 and later versions)
NOTE:

A QSFP28 optical port cannot be split into four 10GE ports, regardless of whether the port uses a QSFP28 or QSFP+ optical module.

For the S6730-H48X6C (part number: 02352FSF/02352FSF-003/02352FSF-007/02352FSF-009/02352FSF-011/02352FSF-012):

  • By default, the license is not loaded on a switch.
  • In V200R013C02, QSFP28 ports are 100GE ports.
  • In V200R019C00 and later versions, QSFP28 ports are 40GE ports. To use the 100GE rate, you need to purchase and activate a license.
  • After a switch is upgraded from V200R013C02 to V200R019C00 or a later version, QSFP28 ports are still 100GE ports. You can load a license to change the port rate.
  • To configure QSFP28 ports as 100GE ports, load and activate this license, run the assign port-speed 100GE [ slot slot-id | all ] or assign port-type 100GE [ slot slot-id | all ] command, and restart the switch.

    In versions earlier than V200R020C00, the command format is assign port-speed 100GE [ slot slot-id | all ].

    In V200R020C00 and later versions, the command format is assign port-type 100GE [ slot slot-id | all ].

For the S6730-H48X6C (part number: 02353FWL/02353FWL-003/02353FWL-005/02353FWL-006), the license has been activated and QSFP28 ports on these switches work as 100GE ports.

3

Ground screw

NOTE:
It is used with a ground cable.

4

SSD card slot

NOTE:

This slot is reserved for future use.

5

One console port

6

One ETH management port

7

One USB port

8

One PNP button

NOTICE:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

9

Fan module slot 1

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

10

Fan module slot 2

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

11

Fan module slot 3

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

12

Fan module slot 4

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

13

Power module slot 1

NOTE:

Applicable power module:

  • PAC600S12-CB (600 W AC&240 V DC Power Module)
  • PAC600S12-EB (600 W AC&240 V DC Power Module)
  • PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
  • PDC1000S12-DB (1000 W DC Power Module)

14

Power module slot 2

NOTE:

Applicable power module:

  • PAC600S12-CB (600 W AC&240 V DC Power Module)
  • PAC600S12-EB (600 W AC&240 V DC Power Module)
  • PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
  • PDC1000S12-DB (1000 W DC Power Module)



Port Description

Attributes of a 10GE SFP+ port

Attribute

Description

Connector type

LC/PC

Optical port attributes

Depend on the optical module used

Standards compliance

IEEE802.3ae

Working mode

GE/10GE auto-sensing


Attributes of a QSFP28 optical port

Attribute

Description

Connector type

MPO/LC

Optical port attributes

Depend on the optical module used

Standards compliance

IEEE802.3ba

​

Technical specifications

Memory (RAM)

4 GB

Flash

2 GB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

56.87 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

N/A

Power supply surge protection
  • Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
  • Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)

Weight (with packaging)

9.2 kg (20.28 lb)

Stack ports
  • Any 10GE SFP+ ports (a maximum of 16 physical ports)
  • Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports)

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range
  • AC input: 100 V AC to 240 V AC, 50/60 Hz
  • High-Voltage DC input: 240 V DC
  • DC input: -48 V DC to -60 V DC

Maximum voltage range
  • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
  • High-Voltage DC input: 190 V DC to 290 V DC
  • DC input: -38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

291 W

Typical power consumption (30% of traffic load, tested according to ATIS standard)

165 W

Operating temperature
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient temperature is lower than 0°C (32°F).

The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module.

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 65 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number

02352FSF

02352FSF-003

02352FSF-007

02352FSF-009

02352FSF-011

02352FSF-012

02353FWL

02353FWL-003

02353FWL-005

02353FWL-006



​
