S6730S-H24X6C-A Hardware Description
Introduction

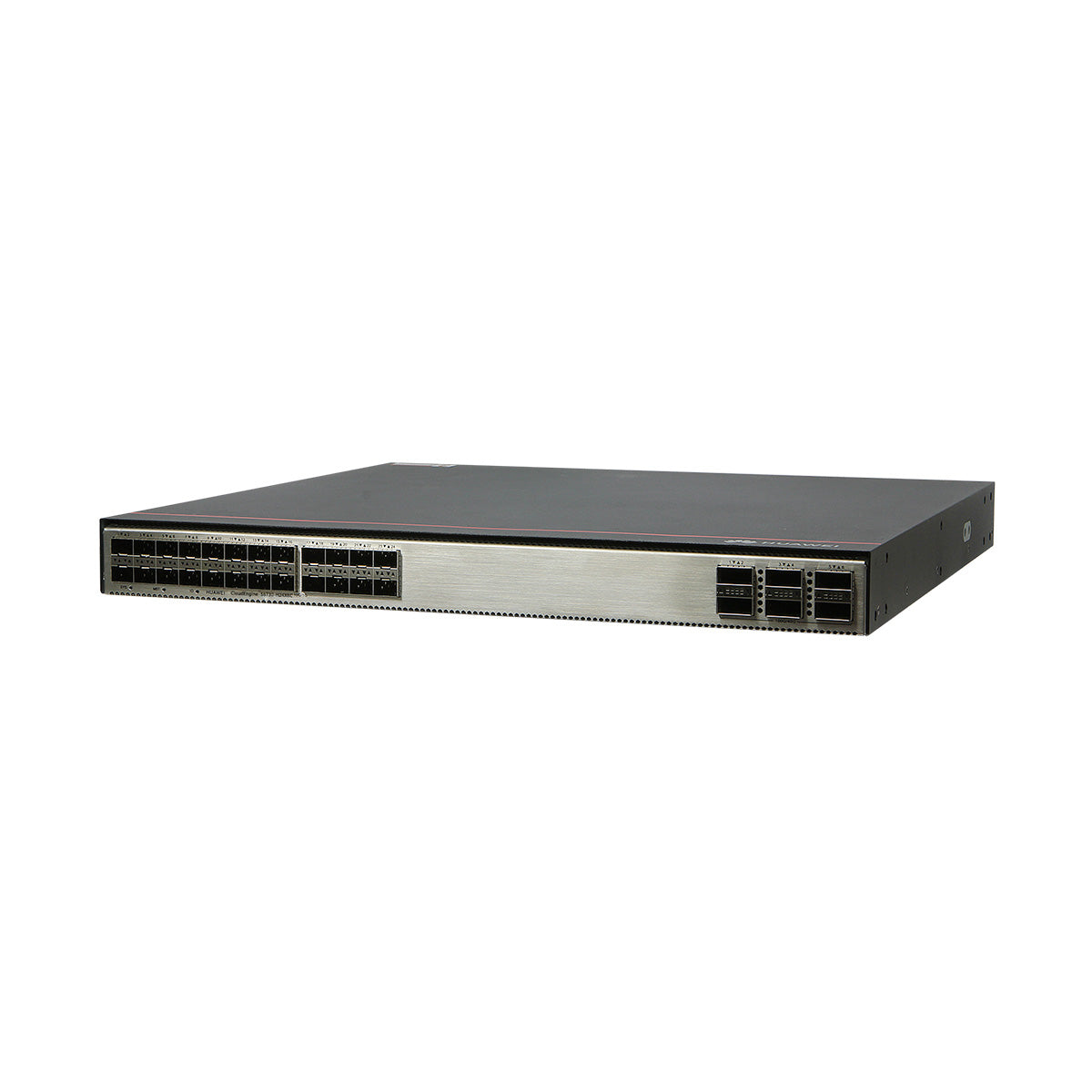

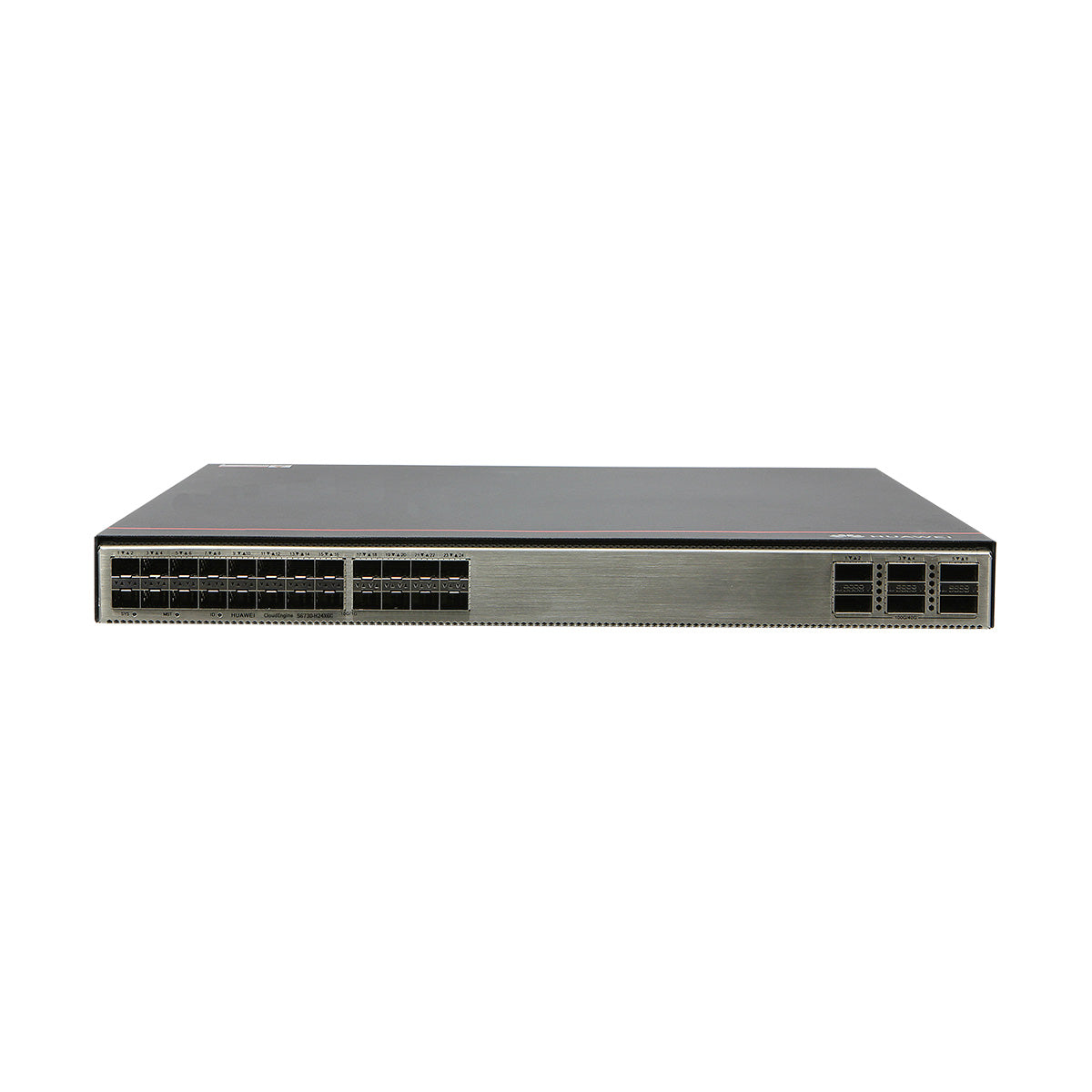

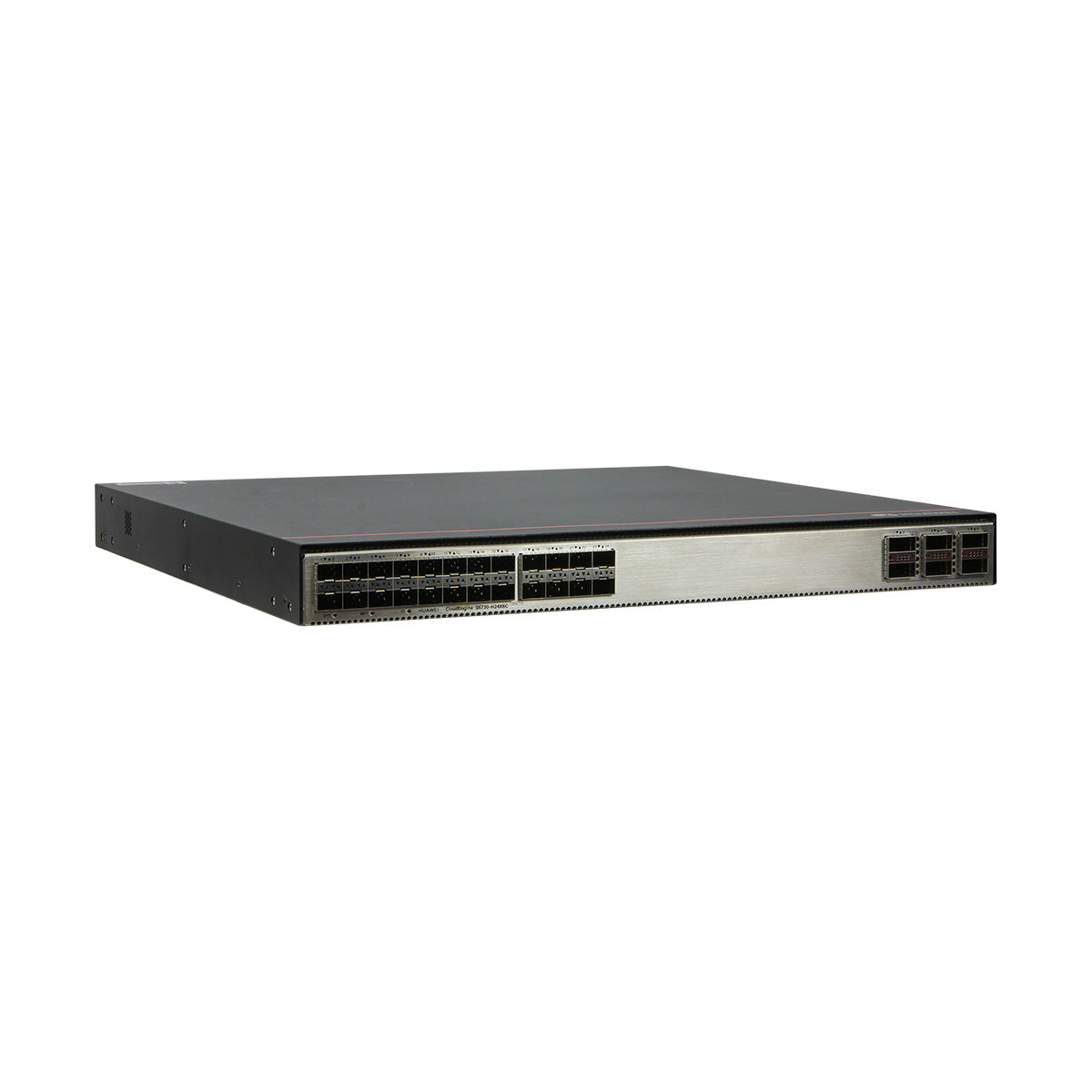

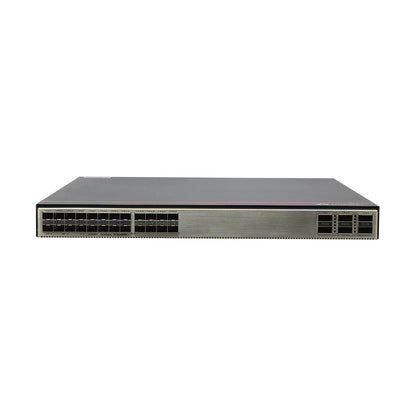

Huawei S6730S-H24X6C-A switch with 24*10GE optical ports, 6*40GE/100GE QSFP+/QSFP28 ports, 2 power module slots, hot-swappable power modules are optional: 2*AC, 2*DC, 1*AC+1*DC, 1*AC or 1*DC.
Huawei CloudEngine S6730S-H series switches offer 10GE, 25GE, 40GE, and 100GE port types, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud-managed network services throughout the full lifecycle from planning, deployment, monitoring, experience visibility, and fault rectification, all the way to network optimization, greatly simplifying network management.
Key Features
24*10GE optical ports
6*40GE/100GE QSFP+/QSFP28 ports
2 hot-swappable AC/DC power supplies
Memory (RAM): 4 GB
Flash: 2 GB

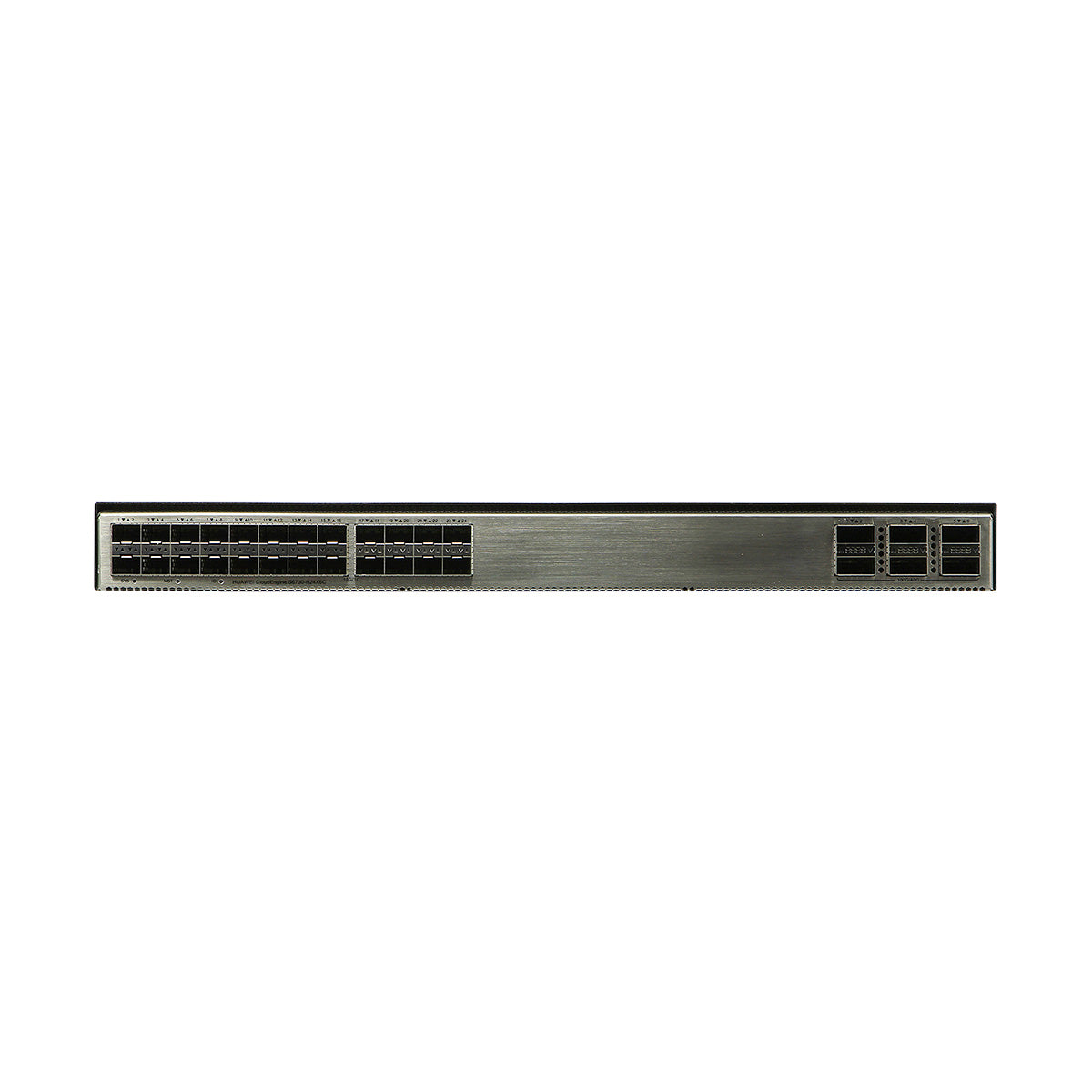

Appearance and Structure
|
1 |
Twenty-four 10GE SFP+ ports Applicable modules and cables:
|
2 |
Six 40GE/100GE QSFP28 optical ports Applicable modules and cables:
NOTE:
A QSFP28 optical port cannot be split into four 10GE ports, regardless of whether the port uses a QSFP28 or QSFP+ optical module. The default rate is 100 Gbit/s. |
|
3 |
Ground screw NOTE:
It is used with a ground cable.
|
4 |
SSD card slot NOTE:
This slot is reserved for future use. |
|
5 |
One console port |
6 |
One ETH management port |
|
7 |
One USB port |
8 |
One PNP button NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
|
9 |
Fan module slot 1 NOTE:
Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust)) |
10 |
Fan module slot 2 NOTE:
Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust)) |
|
11 |
Fan module slot 3 NOTE:
Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust)) |
12 |
Fan module slot 4 NOTE:
Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust)) |
|
13 |
Power module slot 1 NOTE:
Applicable power module:
|
14 |
Power module slot 2 NOTE:
Applicable power module:
|
Port Description
Attributes of a 10GE SFP+ port
| Attribute | Description |
|---|---|
|
Connector type |
LC/PC |
|
Optical port attributes |
Depend on the optical module used |
|
Standards compliance |
IEEE802.3ae |
|
Working mode |
GE/10GE auto-sensing |
Attributes of a QSFP28 optical port
|
Attribute |
Description |
|---|---|
|
Connector type |
MPO/LC |
|
Optical port attributes |
Depend on the optical module used |
|
Standards compliance |
IEEE802.3ba |
Technical specifications
| Memory (RAM) | 4 GB |
| Flash | 2 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 62.27 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | N/A |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.) | |
| Weight (with packaging) | 9.84 kg (21.69 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports) | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| High-Voltage DC input: 240 V DC | |
| DC input: -48 V DC to -60 V DC | |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| High-Voltage DC input: 190 V DC to 290 V DC | |
| DC input: -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 254 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 149 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| NOTE: | |
| When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). | |
| The switch cannot be started when the ambient temperature is lower than 0°C (32°F). | |
| The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module. | |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 65 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 02353HVK |
| 02353HVK-001 |
