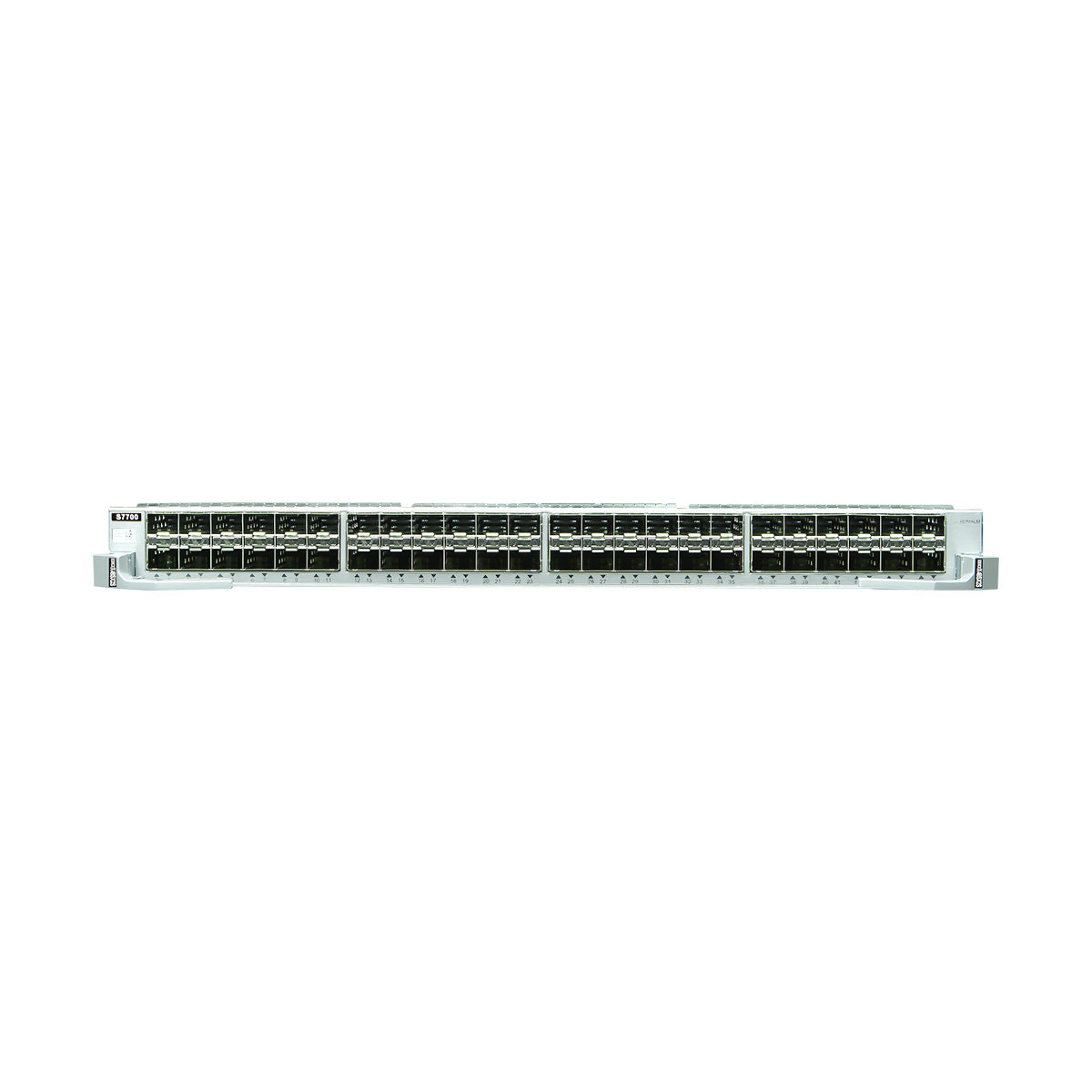

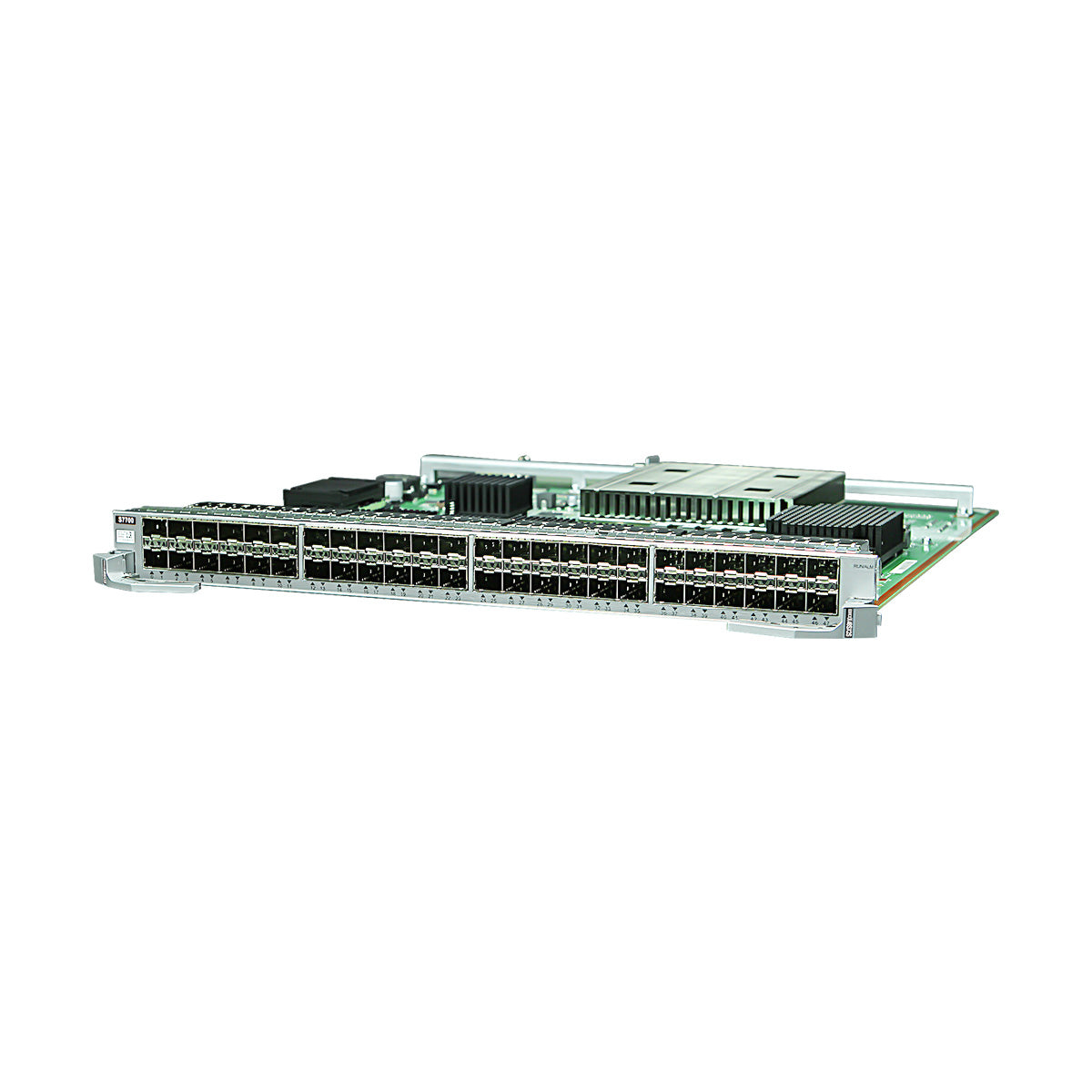

Huawei ES1D2X48SX2S Interface Card
Couldn't load pickup availability
ES1D2X48SX2S Hardware Description
Introduction
This card is Huawei S7700 switch 48-Port 10GBASE-X Interface Card (X2S, SFP+).
The ES1D2X48SX2S can be installed in:
- Slots 01 to 03 in an S7703 or S7703 PoE chassis.
- Slots 01 to 06 in an S7706 or S7706 PoE chassis. When the SRUB, SRUHA1, SRUH1, or SRUH is used, you are advised to install it in slots 01 to 03. Otherwise, congestion may occur during inter-board forwarding.
- Slots 01 to 12 in an S7712 chassis. When the SRUB, SRUHA1, SRUH1, or SRUH is used, you are advised to install it in slot 06 or 07. Otherwise, congestion may occur during inter-board forwarding.
Functions of the ES1D2X48SX2S
- Communicates with the MPU and works under the control of the MPU.
- Searches for routes and destination addresses of data packets for forwarding.
- Forwards data packets.
|
Function |
Description |
|---|---|
|
Basic functions |
Provides forty-eight 1000M/10G BASE-X ports for data transmission and switching. |
|
Distributed forwarding |
Performs concurrent data forwarding using a distributed data plane. |
|
Hot swapping |
The ES1D2X48SX2S is hot swappable. |
Ports on the ES1D2X48SX2S
10GBASE SFP+/1000BASE-X ports support 10GE and GE auto sensing.
|
Attribute |
Description |
|---|---|
|
Connector type |
SFP+ |
|
Optical port attributes |
Depend on the SFP optical module used. For the SFP optical modules supported by the ES1D2X48SX2S and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules. |
|
Standards compliance |
IEEE802.3z |
|
Frame format |
Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
|
Network protocol |
IP |
|
Attribute |
Description |
|---|---|
|
Connector type |
SFP+ |
|
Optical port attributes |
Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used. For the optical modules supported by the ES1D2X48SX2S and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules. NOTE:
When used in an S7703, S7706, or S7712 switch, the card can only use 10G SFP+ optical modules with the maximum transmission distance shorter than or equal to 10 km. |
|
Standards compliance |
IEEE 802.3ae |
|
Frame format |
Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
|
Network protocol |
IP |
|
Attribute |
Description |
|---|---|
|
Connector type |
SFP+ |
|
Optical port attributes |
Depend on the SFP copper module used. For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (100 Mbit/s and 1000 Mbit/s rates). |
|
Applicable cable |
SFP copper module and Ethernet cable |
Specifications of the ES1D2X48SX2S
|
Item |
Description |
|---|---|
|
Physical specifications |
|
|
Environment specifications |
Operating temperature: 0°C to 45°C (32°F to 113°F) NOTE:
When the card is installed in an S7703, S7706, or S7712 switch and uses 10G SFP+ optical modules with the maximum transmission distance of 10 km, its operating temperature is 0°C to 42°C (32°F to 107.6°F). |
