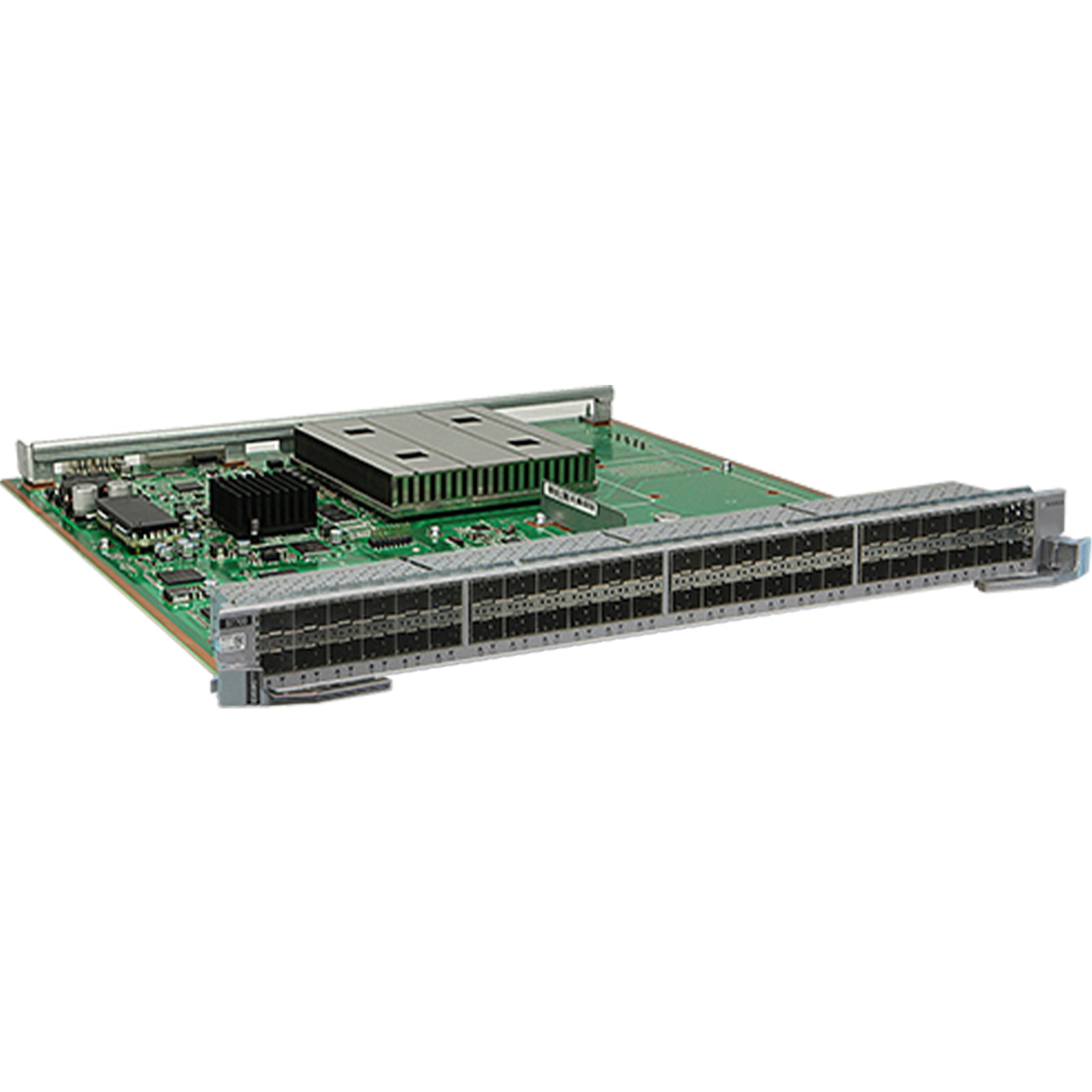

Huawei LSS7X48SX6E0 Interface Card

$0.00
$0.00
Availability: In stock
SKU: 03032YGD
Tags:
Collections:
HuaweiHuawei LSS7X48SX6S0 Interface Card
LSS7X48SX6S0
ES1D2X48SX2S-1
HuaweiHuawei ES1D2X48SX2S Interface Card
LSS7X48SX6E0
$0.00
$0.00

LSS7X48SX6E0 Hardware Description

Introduction

This card is Huawei S7700 switch 48-Port 10GBASE-X Interface Card (X6E, SFP+).

    The LSS7X48SX6E0 can be installed in:

    Functions of the LSS7X48SX6E0
    The LSS7X48SX6E0 provides the following functions:
    • Communicates with the MPU and works under the control of the MPU.
    • Searches for routes and destination addresses of data packets for forwarding.
    • Forwards data packets.

    Function

    Description

    Basic functions

    Provides forty-eight 1000M/10G BASE-X ports for data transmission and switching.

    Distributed forwarding

    Performs concurrent data forwarding using a distributed data plane.

    Hot swapping

    The LSS7X48SX6E0 is hot swappable.

    Ports on the LSS7X48SX6E0

    10GBASE SFP+/1000BASE-X ports support 10GE and GE auto sensing.

     Optical port attributes (GE optical module)

    Attribute

    Description

    Connector type

    SFP+

    Optical port attributes

    Depend on the SFP optical module used. For the SFP optical modules supported by the LSS7X48SX6E0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.

    Standards compliance

    IEEE802.3z

    Frame format

    Ethernet_II, Ethernet_SAP, Ethernet_SNAP

    Network protocol

    IP
    Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)

    Attribute

    Description

    Connector type

    SFP+

    Optical port attributes

    Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.

    For the optical modules supported by the LSS7X48SX6E0 and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.

    NOTE:

    The S7703, S7706 and S7712 do not support SFP-10G-ZR, 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.

    Standards compliance

    IEEE 802.3ae

    Frame format

    Ethernet_II, Ethernet_SAP, Ethernet_SNAP

    Network protocol

    IP
    Optical port attributes (copper module)

    Attribute

    Description

    Connector type

    SFP+

    Optical port attributes

    Depend on the SFP copper module used.

    For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (100 Mbit/s and 1000 Mbit/s rates).

    Applicable cable

    SFP copper module and Ethernet cable
    Specifications of the LSS7X48SX6E0

    Item

    Description

    Physical specifications
    • Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
    • Weight: 3.2 kg (7.05 lb)
    • Maximum power consumption: 192 W
