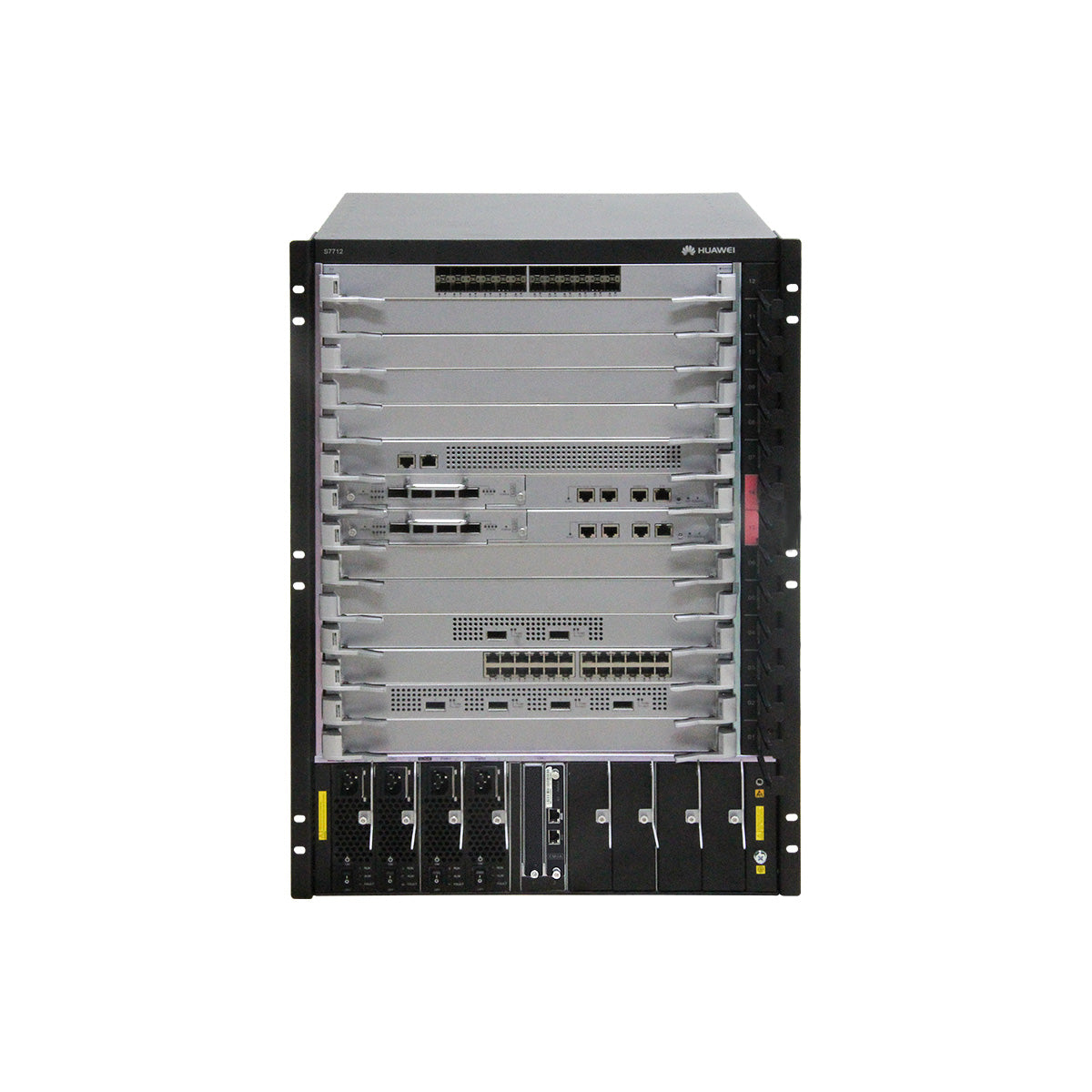

HuaweiHuawei S7712 Switch
Huawei S7712 Switch
Huawei S7706 Switch
HuaweiHuawei S7706 Switch
$0.00
$0.00

S7706 PoE Hardware Description

Introduction

S7706 is one of the S7700 series smart switches, and the S7700 series switches are smart routing switches designed for next-generation enterprise networks. The S7700 series switches can offer voice, video, and data services, helping enterprises build routing and switching integrated end-to-end networks.

The S7700 series design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability.

The S7700 series is available in three models: S7703/S7703-PoE, S7706/S7706-PoE, and S7712. The switching capacity and port density of all three models are expandable. The S7700 is based on a new hardware platform, which adopts a left-to-rear ventilation channel to achieve better energy efficiency. Key components work in redundancy mode to minimize risks of system breakdown and service interruption. Using innovative energy-saving chips, the S7700 provides an industry-leading solution for a sustainable energy-saving network.

The S7706 PoE chassis provides 6 LPU slots, 2 SRU slots, 2 Centralized Monitoring Unit (CMU) slots, and 8 power supply slots.

The S7706 PoE chassis supports three redundancy modes of power modules: N+N, N+1, and N+0. You can run the set power backup-mode command to configure the backup mode of power modules. By default, the power supply redundancy mode is automatic redundancy. That is, the power module roles are automatically determined based on the power and number of power modules.

The power modules of the S7706 PoE chassis have the following roles:
  • M: indicates a master power module that is supplying power. When the backup mode of power modules is N+N or N+1, N power modules are of the master role.
  • S: indicates a standby power module. When the backup mode of power modules is N+N or N+1, N or one power module is of the standby role.
  • A: indicates a power module that is always supplying power. When the backup mode of power modules is N+0, N power modules are of the A role.

After the power supply redundancy mode is configured, run the display power command to view the power module roles.

S7706 PoE chassis Appearance
1. Six of the following service cards can be installed:



  • Open Service Platform Unit
  • 100M Interface Card
  • 1000M Interface Card
  • GE/10GE Interface Card
  • 10GE Interface Card
  • 40GE Interface Card
  • 40GE/100GE Interface Card
  • 100GE Interface Card

    NOTE:

    The cards supported by a switch depend on the software version. For details, see Info-finder.

 2. Two MPUs 3. A pair of mounting brackets



NOTE:

The mounting brackets are used to secure the chassis in the cabinet.
4. Eight power modules



  • 800 W AC Power Module
  • 2200 W AC Power Module
  • 2200 W DC Power Module
  • 3000 W AC Power Module

NOTE:

For details, see Power Module.

 5. Two EH1D200CMU00-Centralized Monitoring Unit 6. Ground screw



NOTE:

The ground screw is used to ground the chassis.
7. Front ESD jack



NOTE:

The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

 8. Cable management frames



NOTE:

Cable management frames are used to route cables.

 –
Technical specifications


Item

Description

LPU slots

6

MPU slots

2

Fan slots

2

Power supply slots

8

Maximum port density
  • V200R013C00 to V200R019C00: 288xFE, 288xGE, 288x10GE, 48x40GE, 24x100GE
  • V200R019C00 to V200R020C10: 288xFE, 288xGE, 288x10GE, 48x40GE, 36x100GE
  • V200R021C00 and later versions: 288xFE, 288xGE, 288x10GE, 72x40GE, 36x100GE

Installation

In an N66E or N68E cabinet, one or two chassis in a cabinet

CSS

CSS card or service port clustering

Maximum power consumption (fully configured, no PoE power supply)

NOTE:

The heat dissipation value of a chassis equals the current power consumption of the chassis.

2640W

Power specifications

  • DC input voltage

    Rated voltage: -48 V DC/-60 V DC

    Maximum voltage range: -40 V DC to -72 V DC

  • AC input voltage

    Rated voltage: 110 V AC/220 V AC, 50/60 Hz

    Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.)

  • HVDC input voltage (3000 W AC)

    Rated voltage: 240 V DC

    Maximum voltage range: 190 V DC to 290 V DC

Dimensions (H x W x D, without rack-mounting brackets)
  • With cable management frames (10 U high): 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.4 in. x 23.0 in.)
  • Without cable management frames (10 U high): 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.4 in. x 20.37 in.)

Weight (empty/fully configured)

21.3 kg/78.1 kg (47.0 lb/172.2 lb)

Reliability and availability
  • MTBF: 24.2 years
  • Availability: 0.9999959
NOTE:

The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.

Environment specifications
  • Operating temperature and altitude:

    -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)

    1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).

    4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)

  • Relative humidity: 5% RH to 95% RH (noncondensing)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Storage altitude: < 5000 m (16404 ft.)

Noise at normal temperature (acoustic power)

≤ 72 dB(A)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number

S7706 PoE chassis: 02115713
