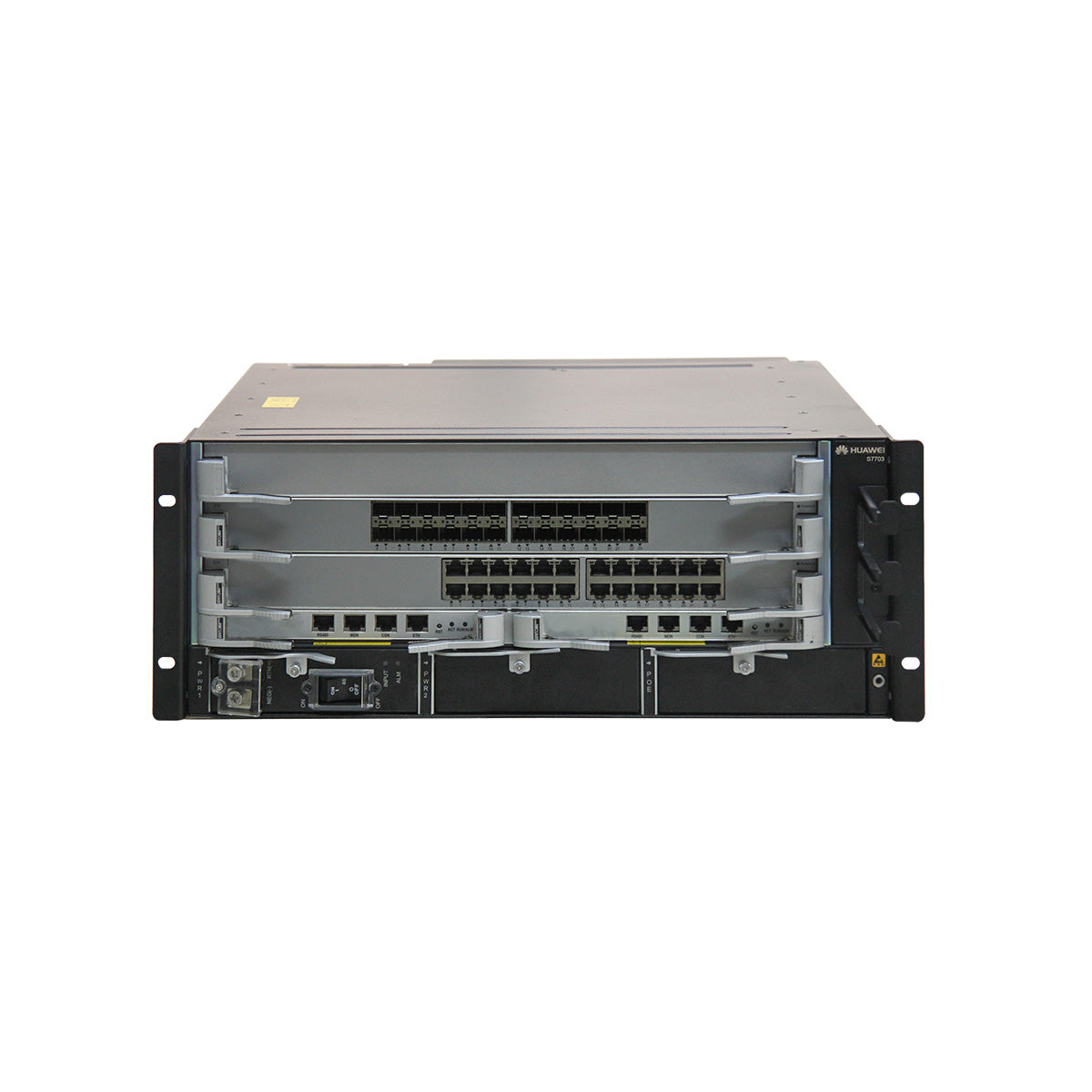

Huawei S7703 PoE Switch
HuaweiHuawei S7703 PoE Switch
$0.00
$0.00

S7706 Hardware Description

Introduction

S7706 is one of the S7700 series smart switches, and the S7700 series switches are smart routing switches designed for next-generation enterprise networks. The S7700 series switches can offer voice, video, and data services, helping enterprises build routing and switching integrated end-to-end networks.

The S7700 series design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability.

The S7700 series is available in three models: S7703/S7703-PoE, S7706/S7706-PoE, and S7712. The switching capacity and port density of all three models are expandable. The S7700 is based on a new hardware platform, which adopts a left-to-rear ventilation channel to achieve better energy efficiency. Key components work in redundancy mode to minimize risks of system breakdown and service interruption. Using innovative energy-saving chips, the S7700 provides an industry-leading solution for a sustainable energy-saving network.

The S7706 chassis provides 6 LPU slots, 2 SRU slots, 2 Centralized Monitoring Unit (CMU) slots, 4 system power supply slots, and 4 PoE power supply slots.

The S7706 chassis provides four system power supply slots: PWR1 to PWR4, which support DC and AC power modules. PWR1 and PWR2 are in area A, and PWR3 and PWR4 are in area B. Area A and area B act as a hot backup of each other, and the power modules in each area work in load balancing mode.

Please note:

The power supply slots on the S7703, S7706, and S7712 consist of the system power supply slot and PoE power supply slot, which are independent of each other. By installing the appropriate power modules into the PoE power supply slots, the S7703, S7706, and S7712 can provide PoE capabilities.

The S7703-PoE/S7706-PoE differ from the S7703/S7706, because all power supply slots on the S7703-PoE/S7706-PoE are shared by the system power supply and PoE power supply.

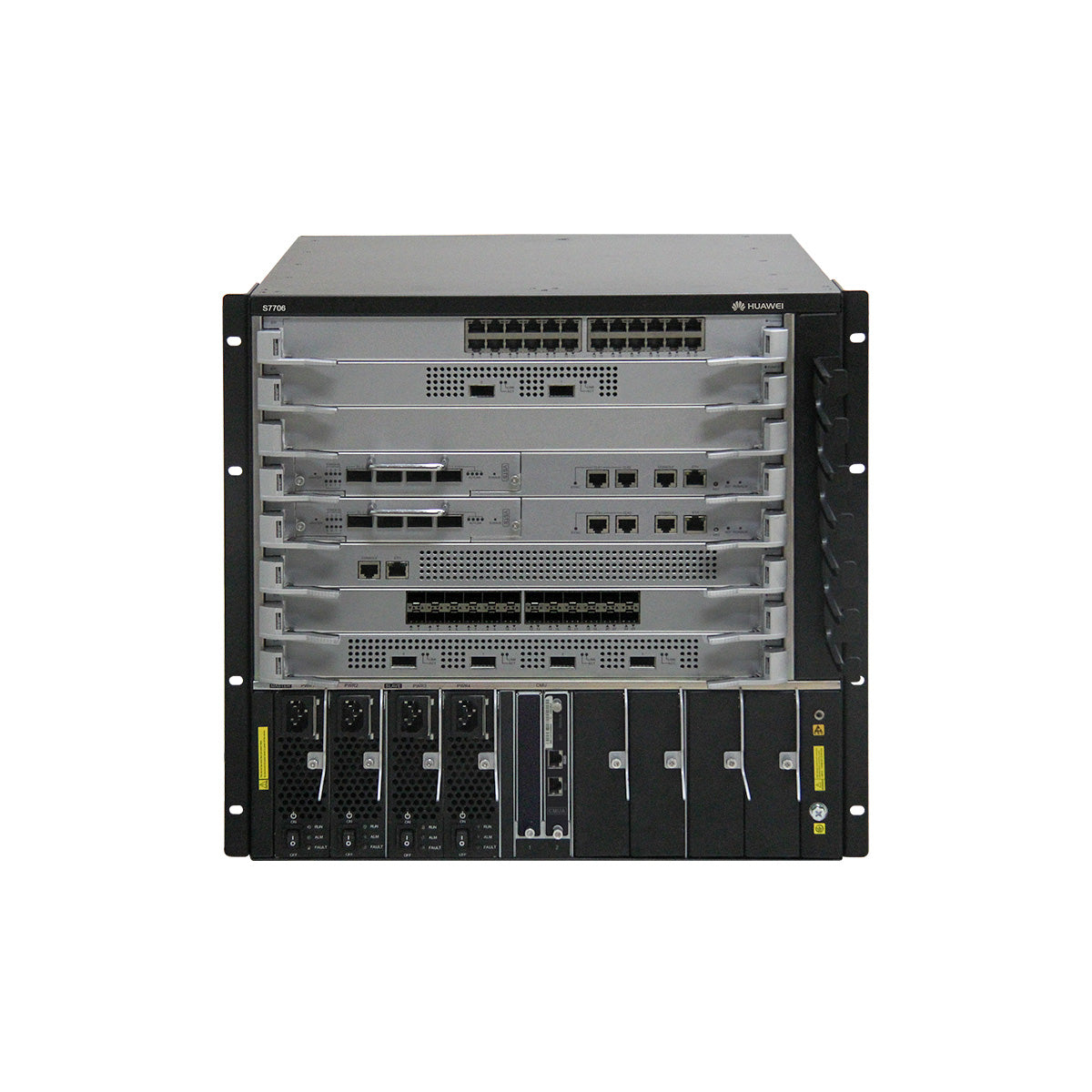

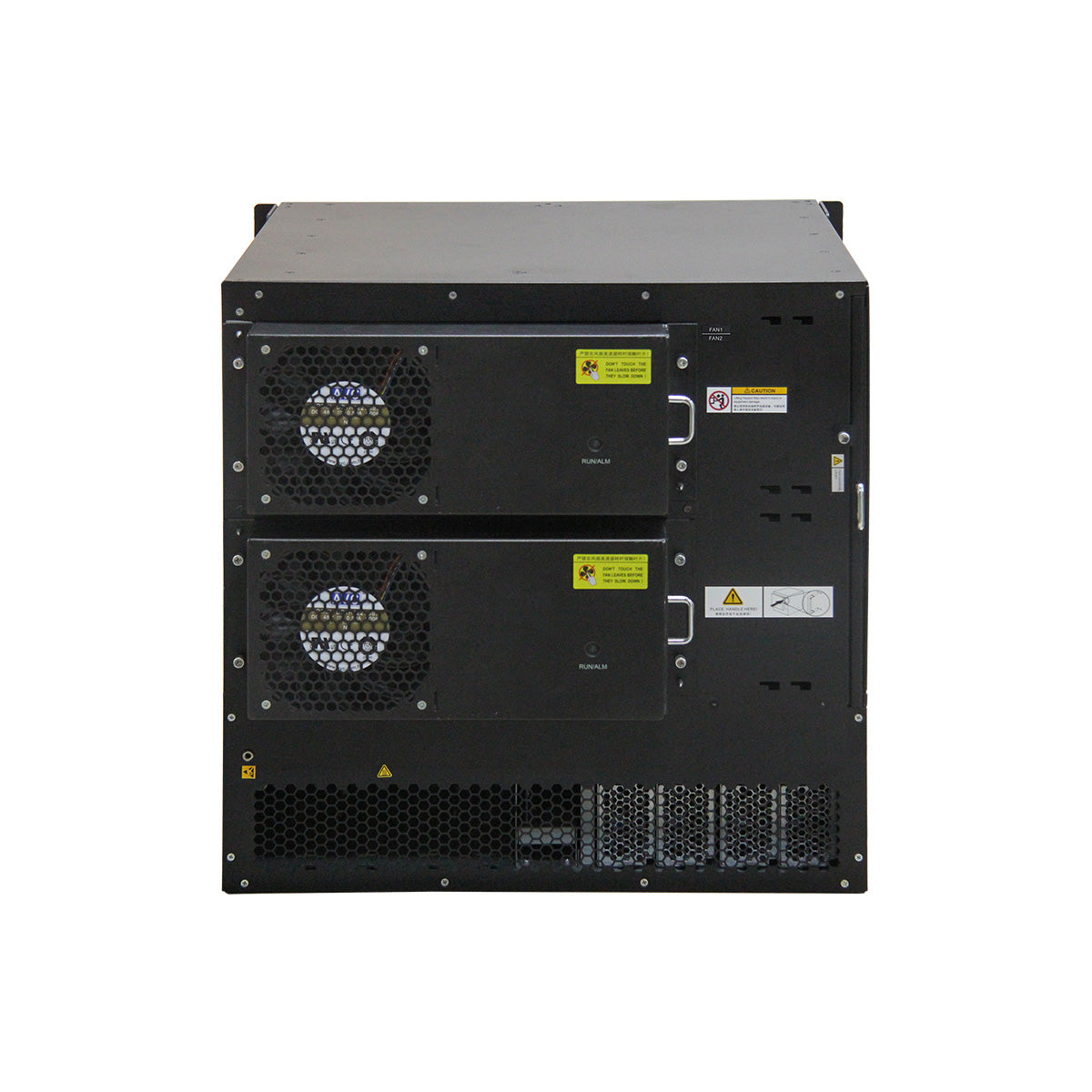

S7706 chassis Appearance
1. Six of the following service cards can be installed:
  • Value-Added Service Unit
  • Open Service Platform Unit
  • Interface cards:
  1. 100M Interface Card
  2. 1000M Interface Card
  3. GE/10GE Interface Card
  4. 10GE Interface Card
  5. 40GE Interface Card
  6. 40GE/100GE Interface Card
  7. 100GE Interface Card

Note: The cards supported by a switch depend on the software version. For details, see Hardware Query Tool.

 2. Two MPUs 3. A pair of mounting brackets
note: The mounting brackets are used to secure the chassis in the cabinet.
4. Two power modules 5. Two EH1D200CMU00-Centralized Monitoring Unit 6. Four PoE power modules

2200 W AC Power Module
800 W AC Power Module
2200 W DC Power Module (Supported in V200R006C00 and later versions)
3000 W AC Power Module (Supported in V200R012C00 and later versions)
7. Ground screw 8. Front ESD jack 9. Cable management frames



Technical specifications

Item

Description

LPU slots

6

MPU slots

2

Fan slots

2

System power supply slots

4

PoE power supply slots

4

Maximum port density
  • V100R006C00: 288xFE, 288xGE, 72x10GE
  • V200R001C00: 288xFE, 288xGE, 240x10GE
  • V200R002C00 to V200R007C00: 288xFE, 288xGE, 240x10GE, 12x40GE
  • V200R008C00 to V200R009C00: 288xFE, 288xGE, 240x10GE, 12x40GE, 12x100GE
  • V200R010C00 to V200R019C00: 288xFE, 288xGE, 288x10GE, 48x40GE, 24x100GE
  • V200R019C00 to V200R020C10: 288xFE, 288xGE, 288x10GE, 48x40GE, 36x100GE
  • V200R021C00 and later versions: 288xFE, 288xGE, 288x10GE, 72x40GE, 36x100GE

Installation

In an N66E or N68E cabinet, one or two chassis in a cabinet

CSS

CSS card or service port clustering

PoE
  • Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). V200R012C00 and later versions support 3000 W AC power supply
  • PoE power module backup: no backup, 3+1 backup, or 2+2 backup
  • Maximum output power: 9000 W

Maximum power consumption (fully configured, no PoE power supply)

NOTE:

The heat dissipation value of a chassis equals the current power consumption of the chassis.

2200 W

Power specifications
  • DC input voltage

    Rated voltage: -48 V DC/-60 V DC

    Maximum voltage range:
    • 1600 W DC power module: -38.4 V DC to -72 V DC
    • 2200 W DC power module: -40 V DC to -72 V DC
  • AC input voltage

    Rated voltage: 110 V AC/220 V AC, 50/60 Hz

    Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.)

  • HVDC input voltage (3000 W AC)

    Rated voltage: 240 V DC

    Maximum voltage range: 190 V DC to 290 V DC

Dimensions (H x W x D, without rack-mounting brackets)
  • With cable management frames (10 U high): 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.4 in. x 23.0 in.)
  • Without cable management frames (10 U high): 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.4 in. x 20.37 in.)

Weight (empty/fully configured)

15 kg/61.8 kg (33.1 lb/136.2 lb)

Reliability and availability
  • MTBF: 24.2 years
  • Availability: 0.9999959
NOTE:

The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.

Environment specifications
  • Operating temperature and altitude:

    -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)

    1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).

    4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)

  • Relative humidity: 5% RH to 95% RH (noncondensing)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Storage altitude: < 5000 m (16404 ft.)

Noise at normal temperature (acoustic power)

≤ 72 dB(A)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number
  • S7706 chassis: 02113305
  • S7706 chassis, PoE supported: 02113307
  • S7706 chassis, FCC certified: 02113960
  • S7706 chassis, PoE supported, FCC certified: 02113962
