Huawei SmartAX MA5800-X7 OLT Overview
Huawei SmartAX MA5800-X7 is medium-capacity, next-generation intelligent OLT designed for ultra-broadband FTTH networks. It supports GPON, 10G PON, XG(S)-PON, and smooth evolution to 50G PON, delivering ultra-high bandwidth, low latency, and carrier-grade reliability for large-scale fiber access deployments.

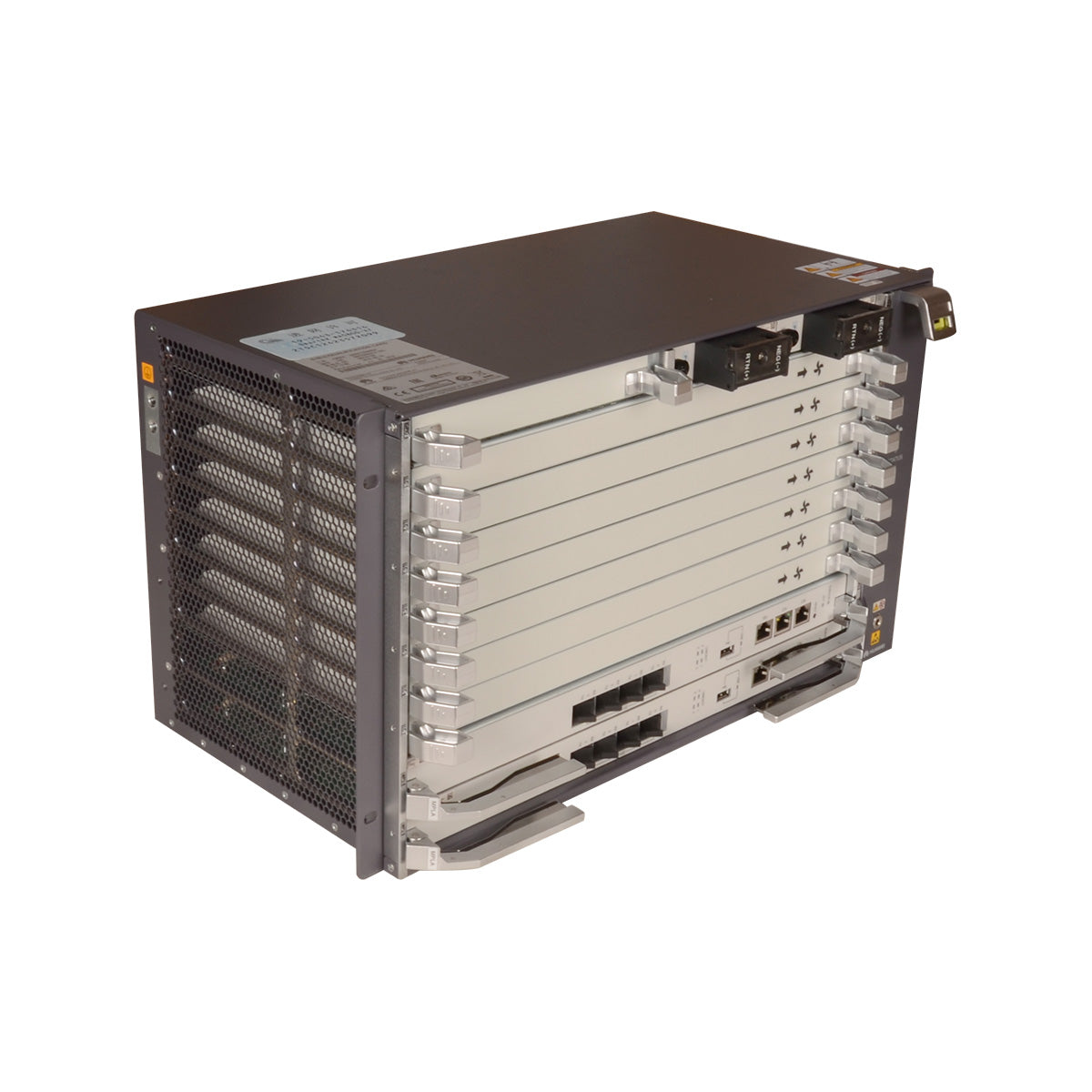

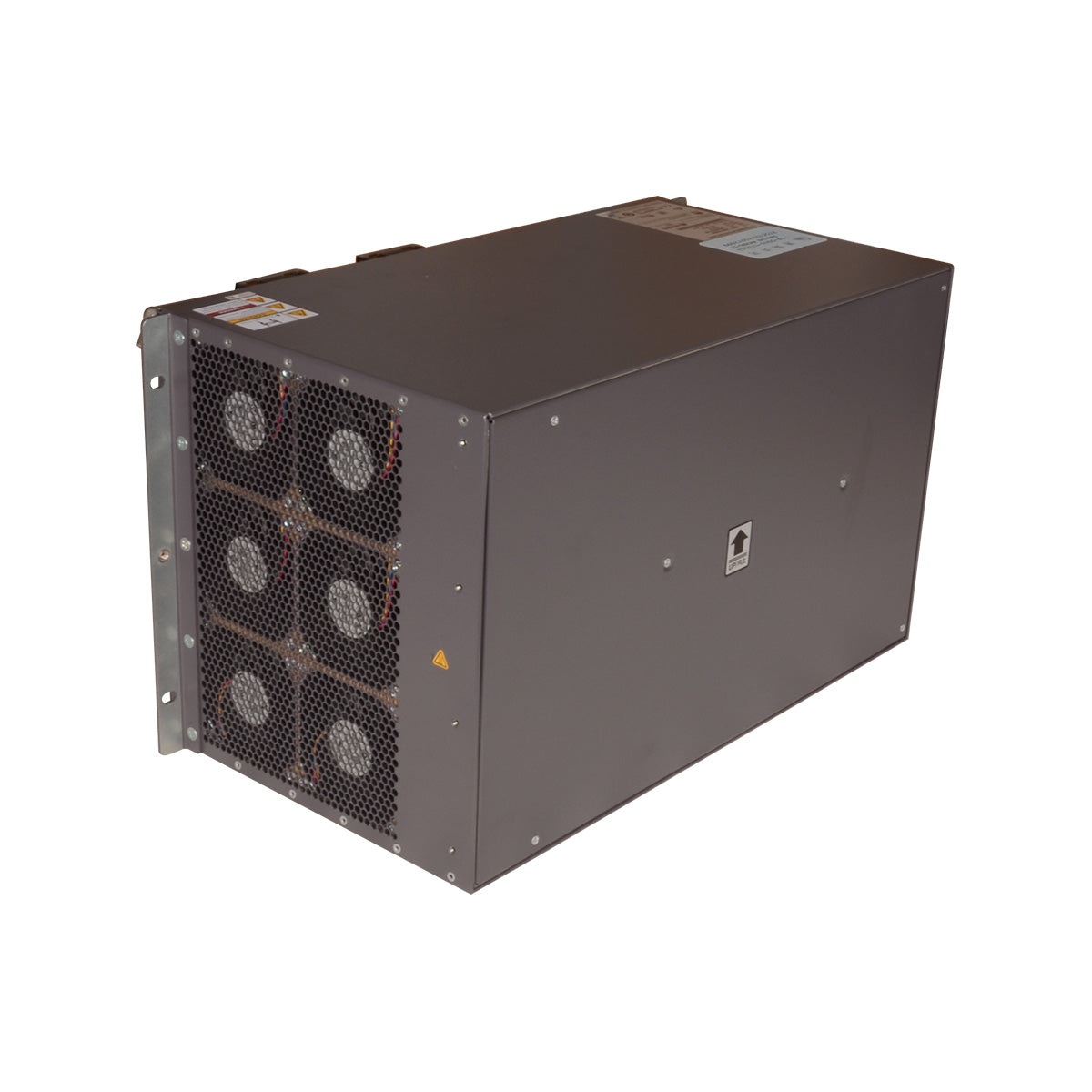

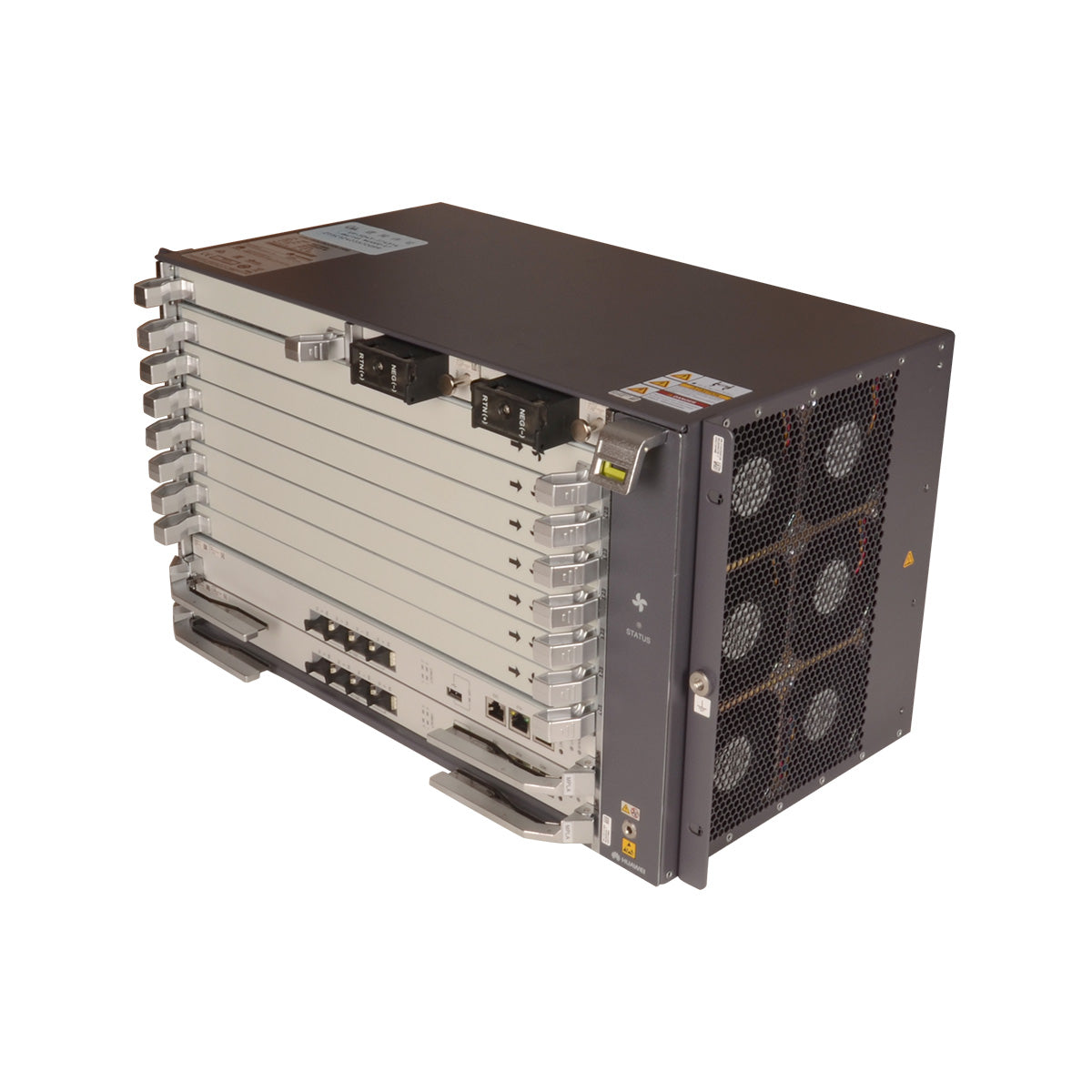

An MA5800-X7 service subrack provides 12 slots, 2 for control boards, 2 for power boards, 1 for the universal interface board, and 7 for service boards.
MA5800-X7 with 7 service board slots, perfect choice for operators and ISPs looking to scale broadband networks efficiently with future-ready architecture.

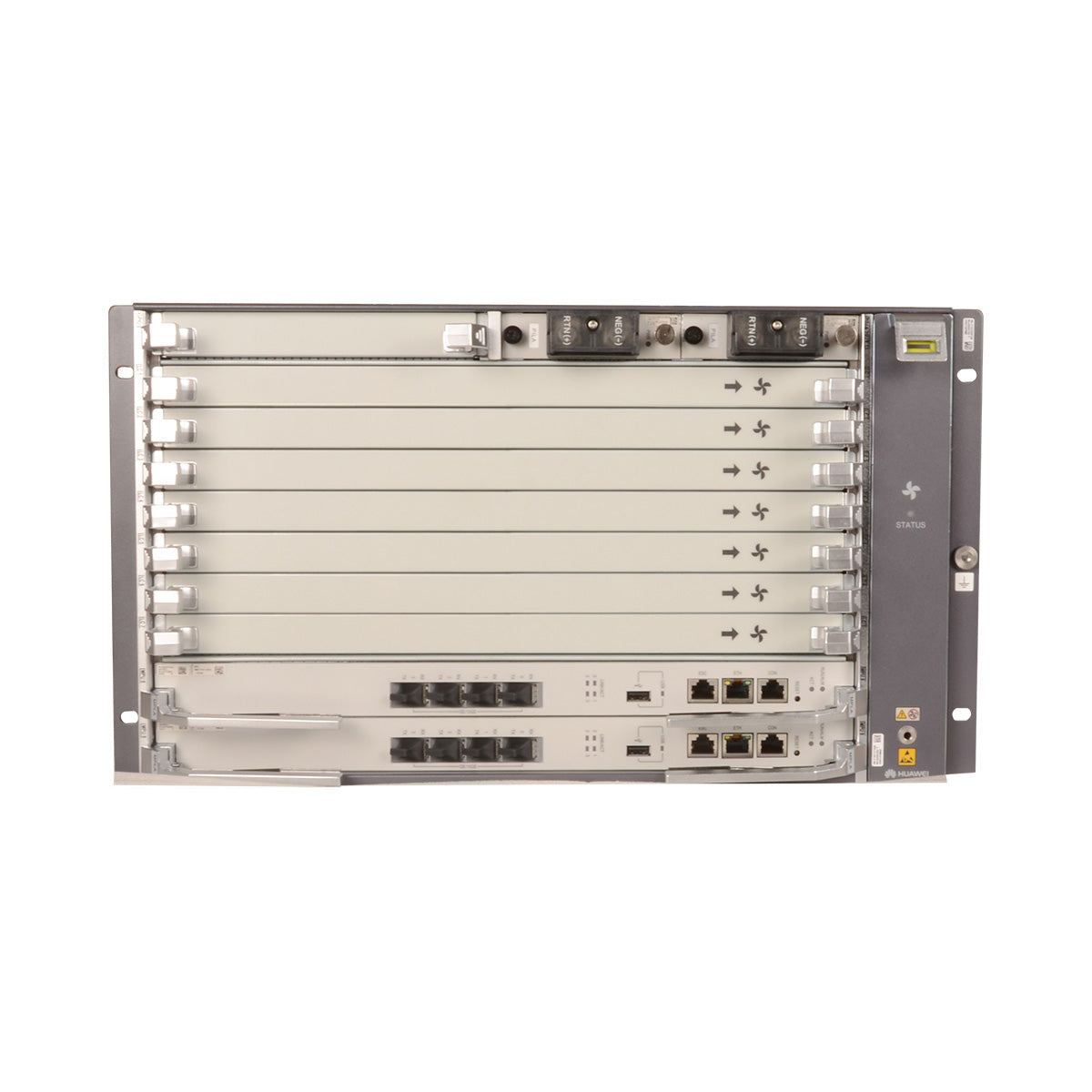

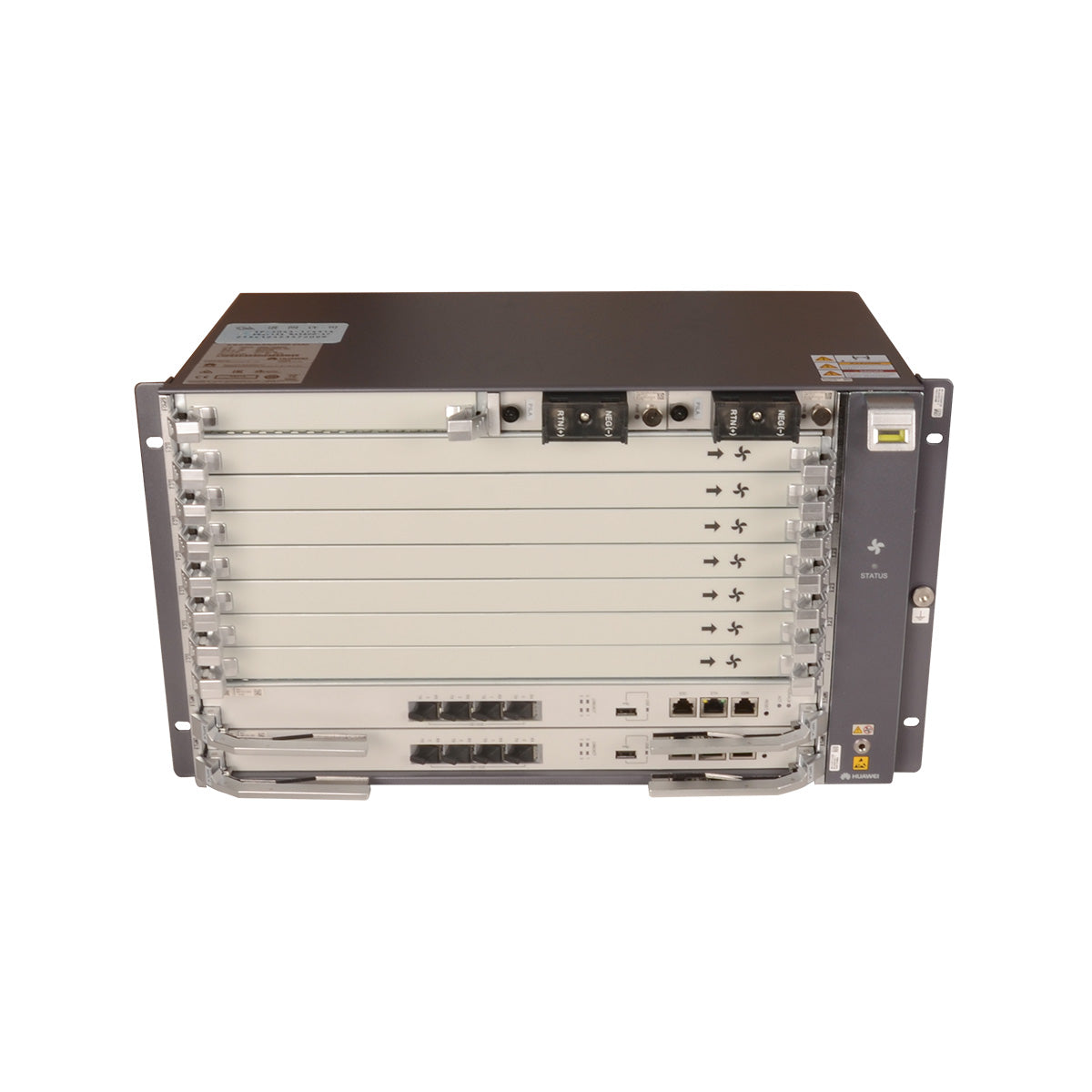

Figure: Configuration of boards in the MA5800-X7

Technical Specifications of Huawei SmartAX MA5800 OLT
| Item | MA5800-X17 | MA5800-X15 | MA5800-X7 | MA5800-X2 |
| Supported cabinet | N63E-22, N66E-18 | N66E-22 | N63E-22, N66E-22 | N63E-22 |
| Board configuration | Control board slots: 9, 10 | Control board slots: 8, 9 | Control board slots: 8,9 | Control board slots: 3,4 |
| Service board or upstream interface board slots: 1–8, 11–19 | Service board or upstream interface board slots: 1–7, 10–17 | Service board or upstream interface board slots: 1–7 | Service board or upstream interface board slots: 1–2 | |
| Universal interface board slot: 0 | Universal interface board slot: 0 | Universal interface board slot: 0 | Does not support the universal interface board. | |
| Power board slots: 20, 21 | Power board slots: 18,19 | Power board slots: 10, 11 | Power board slot: 0 | |
| Dimensions (W x D x H) (mm) | Excluding mounting ears: 493 x 287 x 486 | Excluding mounting ears: 442 x 287 x 486 | Excluding mounting ears: 442 x 268.7 x 263.9 | Excluding mounting ears: 442 x 268.7 x 88.1 |
| Including mounting ears: 535 x 287 x 486 | Including mounting ears: 482.6 x 287 x 486 | Including IEC mounting ears: 482.6 x 268.7 x 263.9 Including ETSI mounting ears: 535 x 268.7 x 263.9 |
Including IEC mounting ears: 482.6 x 268.7 x 88.1 Including ETSI mounting ears: 535 x 268.7 x 88.1 |
|
| Maximum weight (including mounting brackets) | 45 kg | 35 kg | 26 kg | 9.4 kg |
| Maximum input current | 60 A | 60 A | 40 A | DC power supply: 20 A |
| AC power supply: 8 A | ||||
| Power supply mode | DC power support (dual backup) | DC power support (dual backup) | ||
| AC power supply + battery for backup | ||||
| Working voltage range | –38.4 V DC to –72 V DC | DC power supply: –38.4 V to –72 V | ||
| AC power supply: 100–240 V | ||||
| Rated voltage | –48 V/–60 V | DC power supply: –48 V/–60 V | ||
| AC power supply: 110 V/220 V | ||||
| Ambient temperature | –40°C to +65°C | |||
| The MA5800 can start up at a lowest temperature of –25°C. | ||||
| NOTE: | ||||
| The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. | ||||
| Ambient humidity | 5%–95% RH | |||
| Atmospheric pressure | 70–106 kPa | |||
| Altitude | < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the MA5800 varies with the altitude. | |||
| Switching capacity of the control board (load sharing mode) | MPLA: 3.6 Tbit/s | MPSA: 248 Gbit/s | ||
| MPLB: 7 Tbit/s | ||||
| Maximum bandwidth per service slot (load sharing mode) | MPLA: 100 Gbit/s | MPSA: 40 Gbit/s | ||
| MPLB: 200 Gbit/s | ||||
| Maximum number of concurrent 4K video users | 16000 | 8000 | 2000 | |
| Maximum number of MAC addresses | 262143 | |||
| Maximum number of IPv4 routing tables | 65536 | |||
| Maximum number of IPv6 routing tables | 16384 | |||
| Maximum number of ARP tables | 131072 | 32768 | ||
| Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. | |||
| Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load | |||
| System reliability specifications | System availability for the typical configuration: > 99.999% | |||
| Mean time between failures (MTBF): about 45 years | ||||
| NOTE: | ||||
| Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the MA5800 is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers. | ||||
| GPON ports | 272 | 240 | 112 | 32 |
| XG-PON ports | 272 | 240 | 112 | 32 |
| XGS-PON ports | 272 | 240 | 112 | 32 |
| GE ports | 816 | 720 | 336 | 96 |
| 10GE ports | 408 | 360 | 168 | 16 |
Mapping Between Huawei SmartAX MA5800 OLT Boards and Software Versions
| BoardName | Software Versions Supported by This Board | Substitution Relationship | |
| MA5800-X17/X15/X7 | MA5800-X2 | ||
| Control board | |||
| H901MPLA | All versions | N/A | Replaceable with the H902MPLA/H903MPLA board |
| H902MPLA | Compatible in V100R017C00SPC207 | N/A | Replaceable with the H901MPLA/H903MPLA board |
| V100R017C10 and later versions | |||
| H903MPLA | Compatible in V100R018C00SPH317 | N/A | Replaceable with the H901MPLA/H902MPLA board |
| V100R019C1x and later versions | |||
| H901MPLB | All versions | N/A | Replaceable with the H902MPLB board |
| H902MPLB | V100R019C1xSPH202 and later versions | N/A | Replaceable with the H901MPLB board |
| H903MPLB-G01 | V100R020C10 and later versions | N/A | N/A |
| H901MPSC | N/A | V100R017C10 and later versions | Replaceable with the H901MPSA board |
| WARNING: | |||
| When the H901MPSA board is used to replace the H901MPSC board, configurations exceeding the specifications may be lost. | |||
| NOTE: | |||
| H901MPSC and H901MPSA are not slot compatible. | |||
| H901MPSA-G | N/A | V100R019C1xSPH202 and later versions | Replaceable with the H901MPSC board |
| NOTE: | |||
| H901MPSC and H901MPSA are not slot compatible. | |||
| Upstream interface board | |||
| H901NXED | All versions | V100R016C00SPC105 and later versions | Replaceable with the H901OXEG/H902OXEG/H902NXED board |
| H902NXED | Compatible in V100R016C00-V100R019C00 | Replaceable with the H901OXEG/H902OXEG/H901NXED board | |
| V100R019C1x and later versions | |||
| H902NCEB | V100R019C1xSPC100 and later versions | N/A | N/A |
| Universal interface board | |||
| H901CIUA | All versions | N/A | Replaceable with the H902CIUA board |
| H902CIUA | Compatible in V100R018C00SPH315 | N/A | Replaceable with the H901CIUA board |
| V100R019C1x and later versions | |||
| H906CIUA | V100R020C10 and later versions | N/A | N/A |
| Power interface board | |||
| H901PILA | All versions | N/A | Replaceable with the H902PILA board |
| H902PILA | Compatible in V100R017C10-V100R019C00 | N/A | Replaceable with the H901PILA board |
| V100R019C1x and later versions | |||
| H903PILA | V100R020C10 and later versions | N/A | N/A |
| H901PISA | N/A | V100R017C10 and later versions | N/A |
| H901PISB | N/A | V100R017C10 and later versions | Replaceable with the H902PISB board |
| H902PISB | N/A | Compatible in V100R017C10-V100R019C1x | Replaceable with the H901PISB board |
| V100R019C1xSPH202 and later versions | |||
| GPON interface board | |||
| H901GPHF | All versions | V100R016C00SPC105 and later versions | Replaceable with the H901CSHF/H903CSHF/H901CGHF/H902GPHF/H902CSHF/H902CGHF/H901FLHF/H902FLHF/H903FLHF board |
| H902GPHF | Compatible in V100R015C00-V100R019C00 | Replaceable with the H901GPHF/H901CSHF/H903CSHF/H901CGHF/H902CSHF/H902CGHF/H901FLHF/H902FLHF/H903FLHF board | |
| V100R019C1x and later versions | |||
| H903GPHF | Compatible in V100R016C00-V100R020C00 | Replaceable with the H901CSHF/H903CSHF/H901CGHF/H901GPHF/H902GPHF/H902CSHF/H902CGHF/H901FLHF/H902FLHF/H903FLHF board | |
| V100R020C10 and later versions | |||
| H901GPSF | V100R016C00 and later versions | V100R016C00SPC105 and later versions | Replaceable with the H901GPHF/H901CGHF/H901CSHF/H902GPHF/H902CGHF/H902CSHF/H902GPSF/H901FLHF/H902FLHF/H903FLHF board |
| H902GPSF | Compatible in V100R016C00-V100R019C1x | Replaceable with the H901GPHF/H901GPSF/H901CGHF/H901CSHF/H902GPHF/H902CGHF/H902CSHF/H903CSHF/H901FLHF/H902FLHF/H903FLHF board | |
| V100R019C20 and later versions | |||
| XG-PON interface board | |||
| H901XGHD | All versions | V100R016C00SPC105 and later versions | Replaceable with the H901XSHF/H902XSHD/H902XSHF board |
| H901XGSF | Compatible in V100R016C00-V100R017C10 | Replaceable with the H901XSHF/H902XSHF board | |
| V100R018C00 and later versions | |||
| XGS-PON interface board | |||
| H901TWED | V100R017C00 and later versions | Replaceable with the H902TWHD/H901FLHF/H902FLHF board | |
| H901XSHF | Compatible in V100R018C00-V100R018C10 | Replaceable with the H902XSHF board | |
| V100R019C00 and later versions | |||
| H902XSHF | Compatible in V100R018C00SPH317 | Replaceable with the H901XSHF board | |
| Compatible in V100R018C10-V100R019C1x | |||
| V100R019C20 and later versions | |||
| H902XSHD | Compatible in V100R017C10-V100R019C00 | Replaceable with the H901XSHF/H902XSHF board | |
| V100R019C1x and later versions | |||
| H902TWHD | Compatible in V100R018C00-V100R019C00 | Replaceable with the H901FLHF/H902FLHF board | |
| V100R019C1x and later versions | |||
| PON Combo interface board | |||
| H901CGID | V100R018C00 and later versions | Replaceable with the H901CGHF/H902CGHD/H902CGHF board | |
| H901CGHF | Compatible in V100R018C00SPH313 | Replaceable with the H902CGHF board | |
| Compatible in V100R018C10SPH108 | |||
| V100R019C00 and later versions | |||
| H902CGHF | Compatible in V100R018C00SPH313 | Replaceable with the H901CGHF board | |
| Compatible in V100R018C10SPH108 | |||
| Compatible in V100R019C00 | |||
| V100R019C1x and later versions | |||
| H901CSHF | Compatible in V100R018C00SPH313 | Replaceable with the H902CSHF/H903CSHF board | |
| Compatible in V100R018C10SPH108 | |||
| V100R019C00 and later versions | |||
| H902CSHF | Compatible in V100R018C00SPH313 | Replaceable with the H901CSHF/H903CSHF board | |
| Compatible in V100R018C10SPH108 | |||
| Compatible in V100R019C00 | |||
| V100R019C1x and later versions | |||
| H903CSHF | Compatible in V100R019C00-V100R020C00 | Replaceable with the H901CSHF/H902CSHF board | |
| V100R020C10 and later versions | |||
| H902CGHD | Compatible in V100R018C00SPH313 | Replaceable with the H901CGHF/H902CGHF board | |
| Compatible in V100R018C10SPH108 | |||
| Compatible in V100R019C00 | |||
| V100R019C1x and later versions | |||
| H902CSHD | Compatible in V100R018C00SPH313 | Replaceable with the H901CSHF/H902CSHF/H903CSHF board | |
| Compatible in V100R018C10SPH108 | |||
| Compatible in V100R019C00 | |||
| V100R019C1x and later versions | |||
| Flex-PON interface board | |||
| H901FLHF | V100R019C00 and later versions | Replaceable with the H902FLHF/H903FLHF/H902XSHF/H901XSHF board | |
| H902FLHF | Compatible in V100R019C00-V100R019C1x | Replaceable with the H901FLHF/H903FLHF/H902XSHF/H901XSHF board | |
| V100R019C1xSPH202 and later versions | |||
| H903FLHF | V100R019C00 and later versions | Replaceable with the H901FLHF/H902FLHF board | |
| TDM service processing board | |||
| H901EDSH | V100R016C00 and later versions | V100R016C00SPC105 and later versions | N/A |
| GE/FE optical interface board | |||
| H901OGHK | All versions | V100R016C00SPC105 and later versions | Replaceable with the H902OGHK board |
| H902OGHK | Compatible in V100R016C00-V100R019C1x | Replaceable with the H901OGHK board | |
| V100R019C20 and later versions | |||
| 10GE/GE optical interface board | |||
| H901OXHD | All versions | V100R016C00SPC105 and later versions | Replaceable with the H901OXEG/H902OXEG/H902OXHD board |
| H902OXHD | Compatible in V100R016C00-V100R019C1x | Replaceable with the H901OXEG/H902OXEG/H901OXHD board | |
| V100R019C1xSPH202 and later versions | |||
| H901OXEG | V100R018C00 and later versions | N/A | Replaceable with the H902OXEG board |
| H902OXEG | Compatible in V100R018C00 | N/A | N/A |
| Compatible in V100R018C10 | |||
| Compatible in V100R019C00 | |||
| Compatible in V100R019C1x | |||
| V100R019C1xSPH210 | |||
| FAN monitoring board | |||
| H901FMLA | All versions | N/A | Replaceable with the H902FMLA |
| H902FMLA | Compatible in V100R017C10-V100R019C00 | N/A | N/A |
| V100R019C1x and later versions | |||
| H901FMMA | V100R016C00 and later versions | N/A | Replaceable with the H903FMMA |
| H903FMMA | Compatible in V100R017C10-V100R019C00 | N/A | N/A |
| V100R019C1x and later versions | |||
| H901FMSA | N/A | V100R017C10 and later versions | N/A |
