By Huawei

Huawei ES0DG24TFA00 Interface Card

Regular price $0.00
Regular price Sale price $0.00
Regular price $0.00
Regular price Sale price $0.00

ES0DG24TFA00 Hardware Description

Introduction

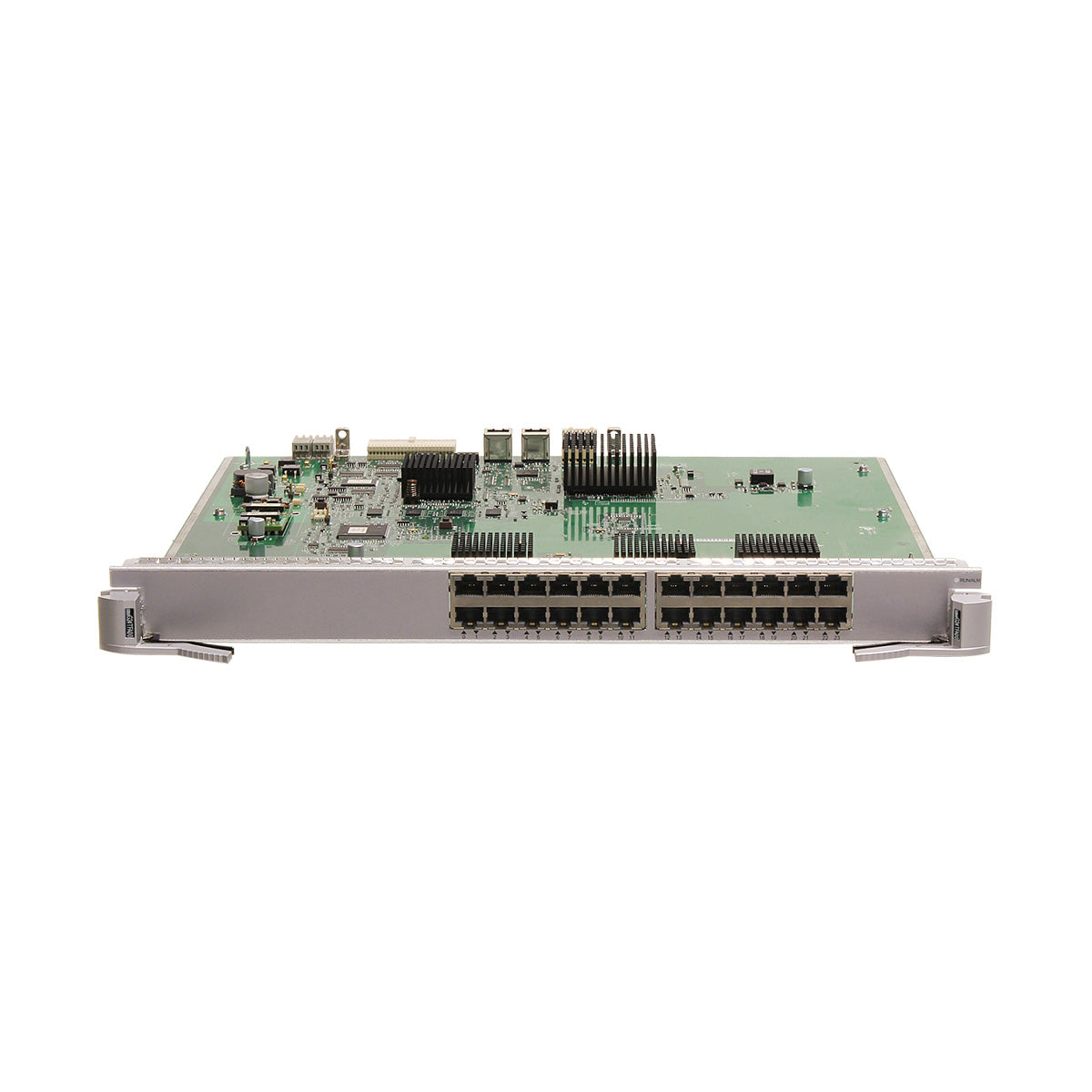

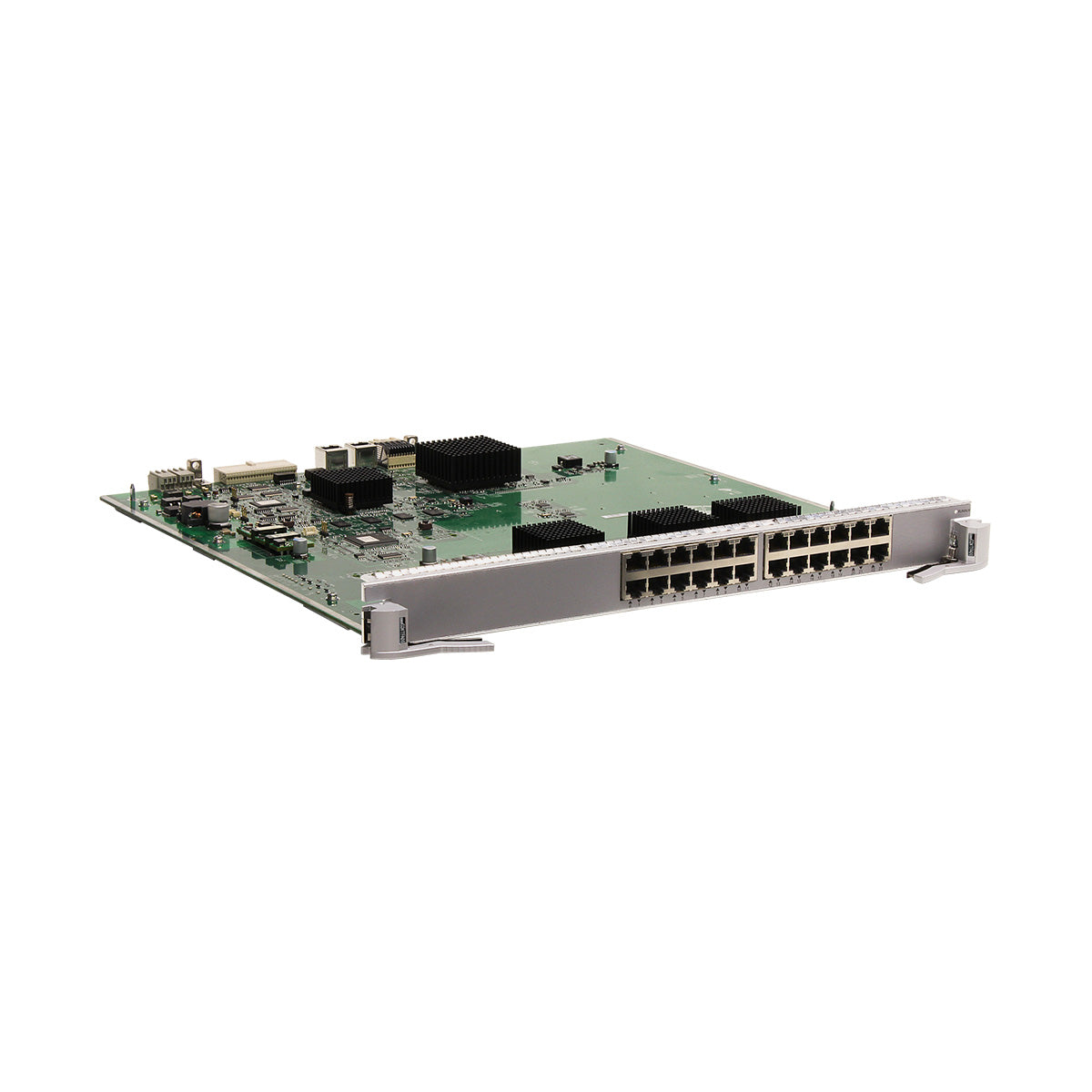

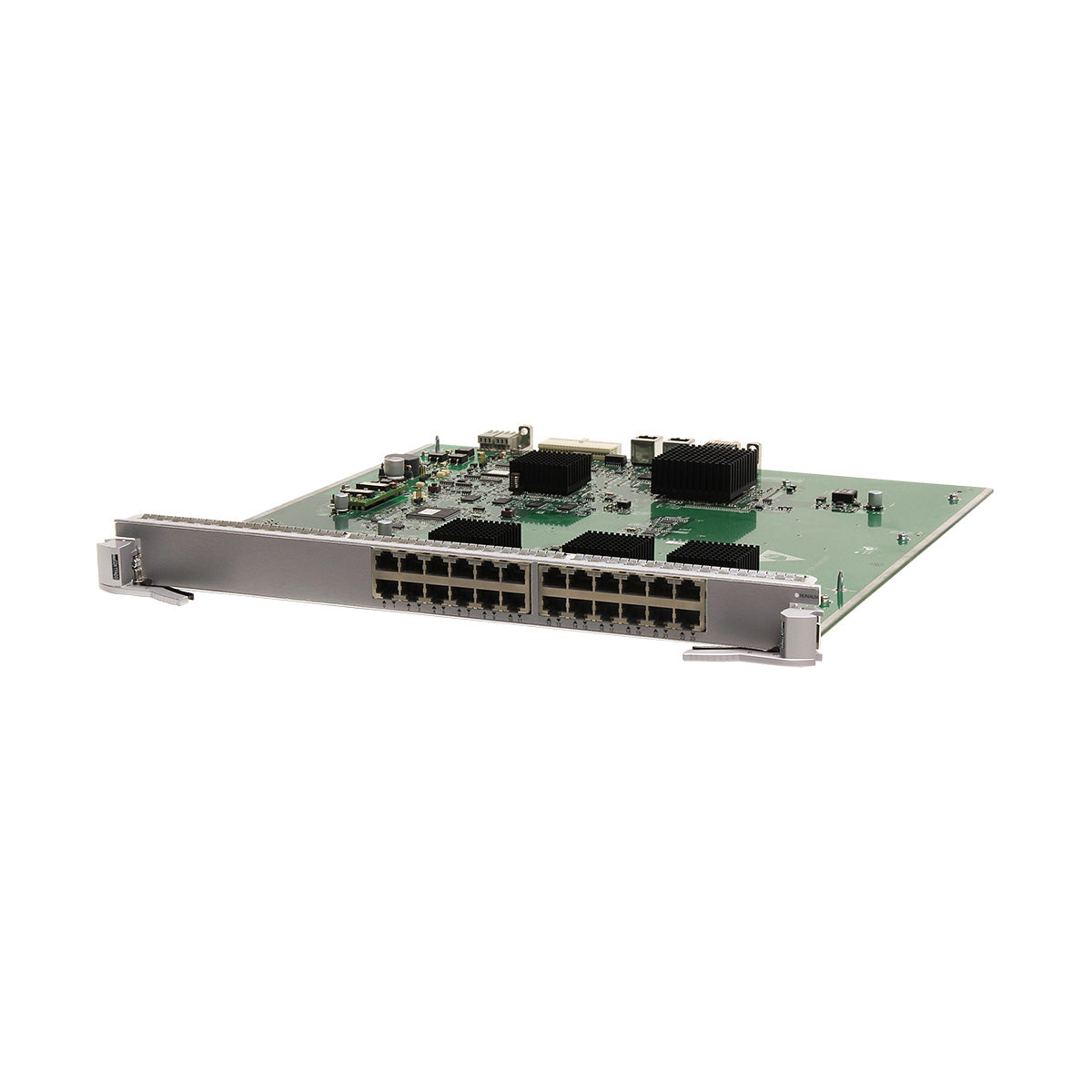

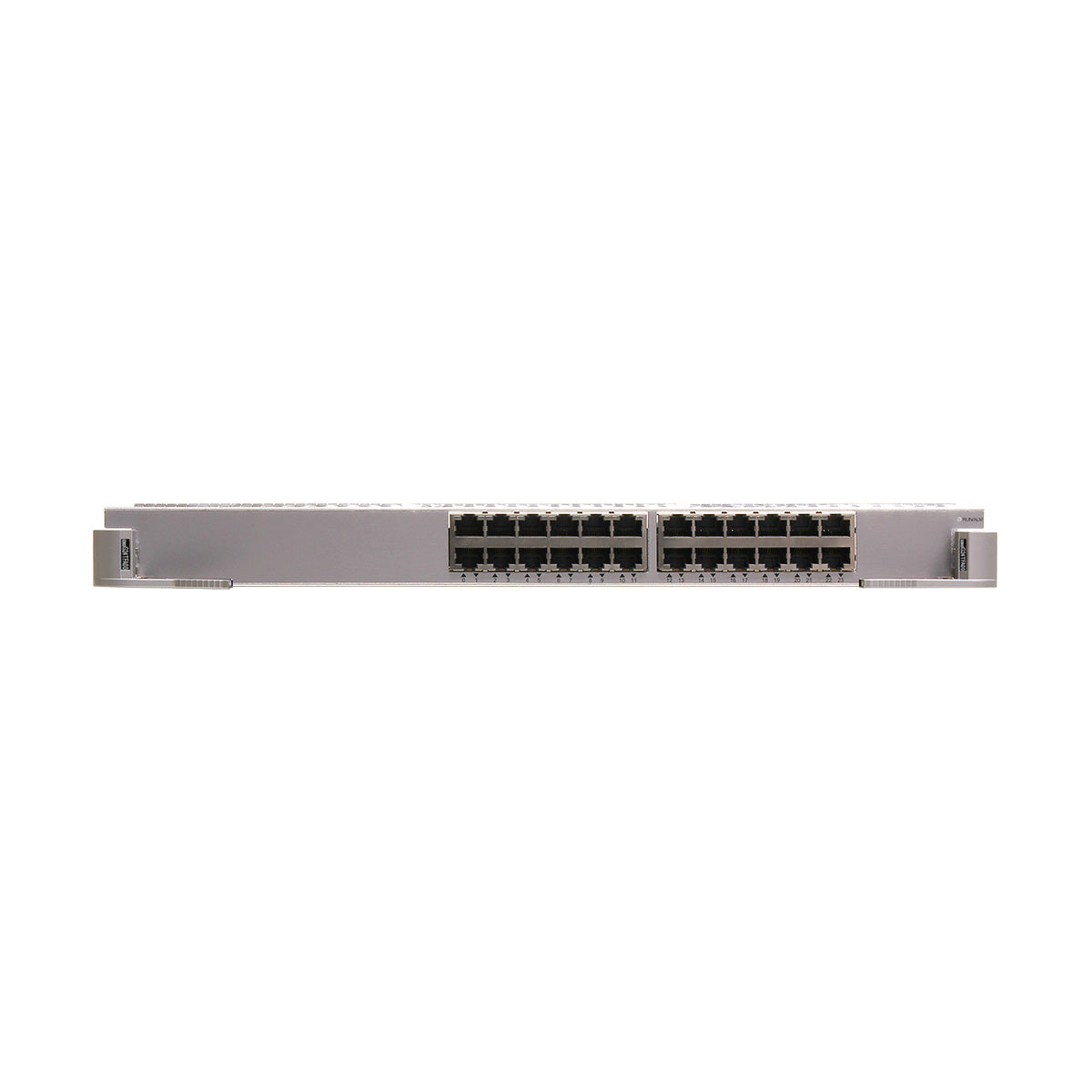

This card is Huawei S7700 switch 24-Port 10/100/1000BASE-T Interface Card (FA, RJ45).

The ES0DG24TFA00 can be installed in:

Functions of the ES0DG24TFA00

Function

Description

Basic function

Provides twenty-four 10M/100M/1000M Ethernet electrical ports for data transmission and switching.

Energy Efficient Ethernet (EEE)

The EEE mode can dynamically adjust power consumption based on network traffic volume.

Distributed forwarding

Performs concurrent data forwarding using a distributed data plane.

Hot swapping

The ES0DG24TFA00 is hot swappable.

Ports on the ES0DG24TFA00
10/100/1000BASE-T electrical port attributes

Attribute

Description

Connector type

RJ45

Standards compliance

IEEE802.3ab and IEEE802.3az

Frame format

Ethernet_II, Ethernet_SAP, Ethernet_SNAP

Network protocol

IP


Technical specifications
Item ES0DG24TFA00
Apply to S7700 Switch
Attributes of a 10/100/1000BASE-T port
Connector type RJ45
Standards compliance IEEE802.3ab and IEEE802.3az
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Version Mapping
ES0DG24TFA00 is supported in V100R006C00 and later versions
Physical specifications
Dimensions (W x D x H) 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight 2.20 kg (4.85 lb)
Maximum power consumption (W) 32
Environment parameters
Operating temperature 0°C to 45°C
Relative humidity 5% RH to 95% RH
Storage temperature -40°C to +70°C
Storage relative humidity 5% RH to 95% RH
